50Nm Electric Proportional Valve Plastic material with True Union ends ANSI, JIS, DIN standard

50Nm Electric Proportional Valve Plastic material with True Union ends ANSI, JIS, DIN standard

2 Way UPVC Electric Proportional Valve for flow regulating size from: DN40 to DN100

  • TFMA500-T-B Series 2 Way UPVC Proportional Valve:
    Features:
    1. Torque force: 50Nm
    2. Power supply: DC12, AC/DC24V
    3. Control signal: <0-5V, 1-5V, 0-10V, 2-10V, 0-20mA, 4-20mA
    4. Size: DN40, DN50, DN65, DN80, DN100
    5. Material: UPVC
    6. Connection: BSP,NPT thread/Glue End
    7. Temperature: (2~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Product Specifications:

Install valves: 2-way,3-way ball valve and butterfly valve

◎ Rated voltage: AC/DC95V-265V,AC/DC24V,DC12V

◎ Control signal: 4-20mA,0-20mA,0-10V,0-5V,1-5V,2-10V

◎ Position feedback: 4-20mA,0-20mA,0-10V,0-5V,1-5V,2-10V

◎ Position accuracy: ±1%

◎ Alarm output: A(Relay contact feedback)

◎ High performance brushless motor,overload protection and

motor self-clock unit of internal

◎ It can be used up to 20,000 times

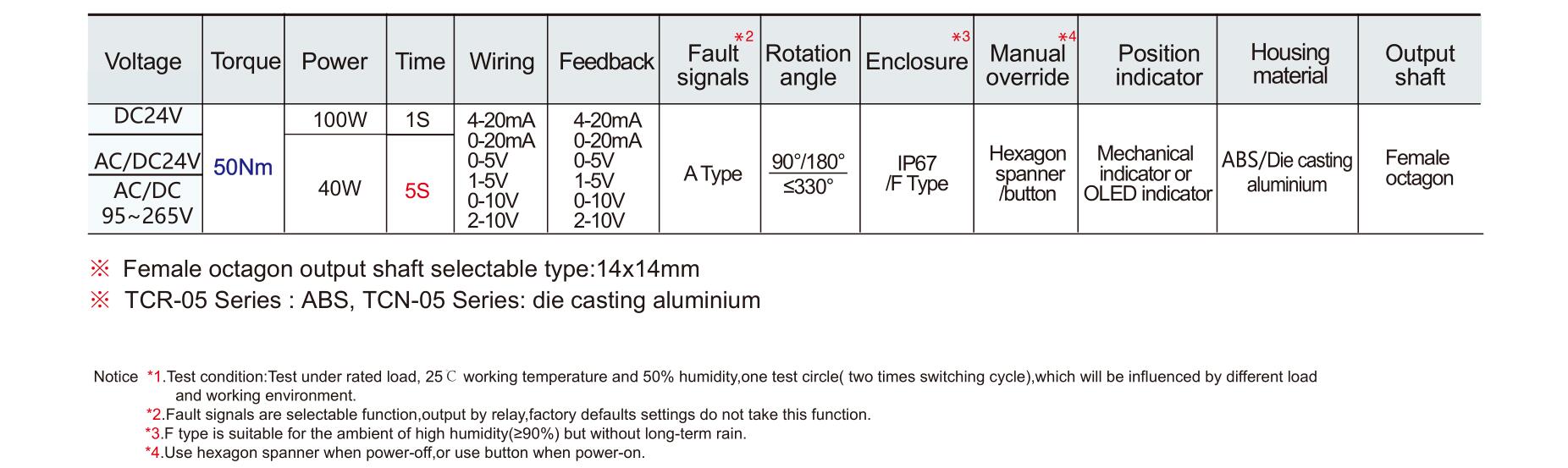

Standard product data sheet:

MetInfo enterprise content manager system | MetInfo CMS

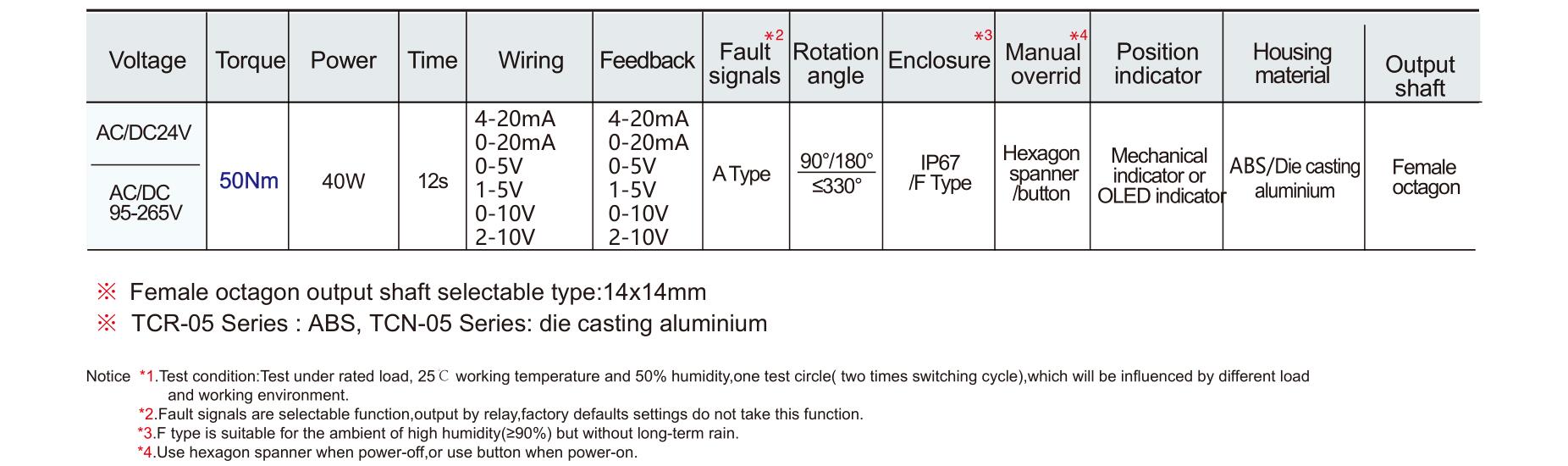

High Speed Type:

MetInfo enterprise content manager system | MetInfo CMS

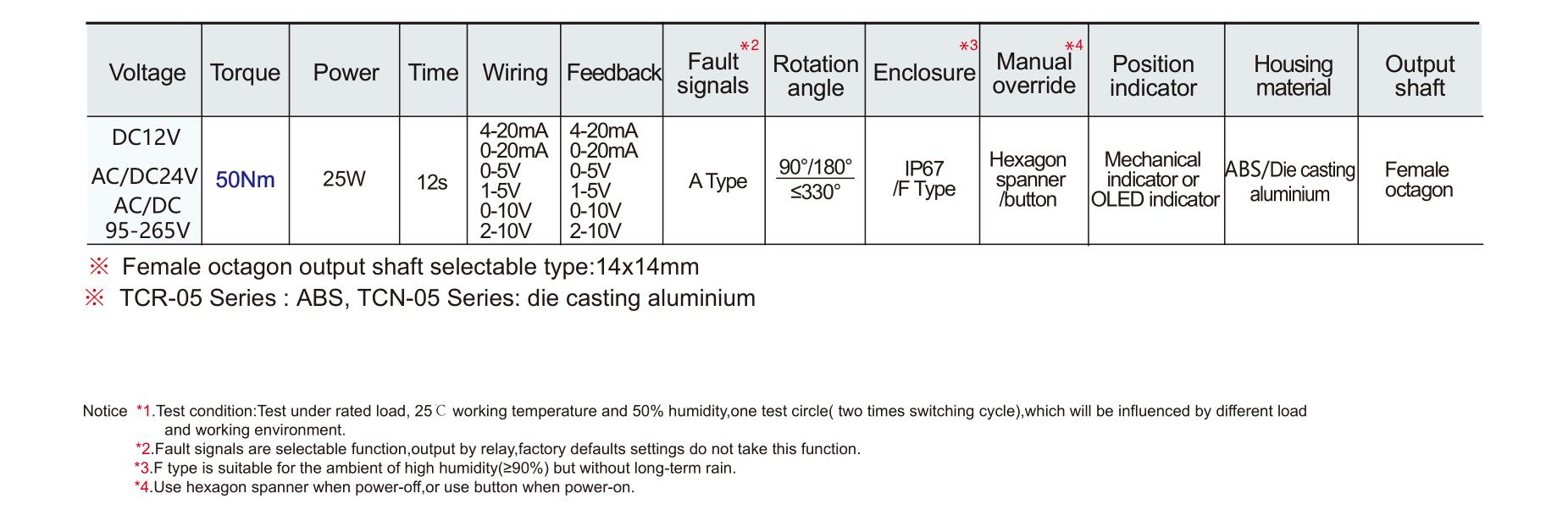

Power off/fail return type:

MetInfo enterprise content manager system | MetInfo CMS

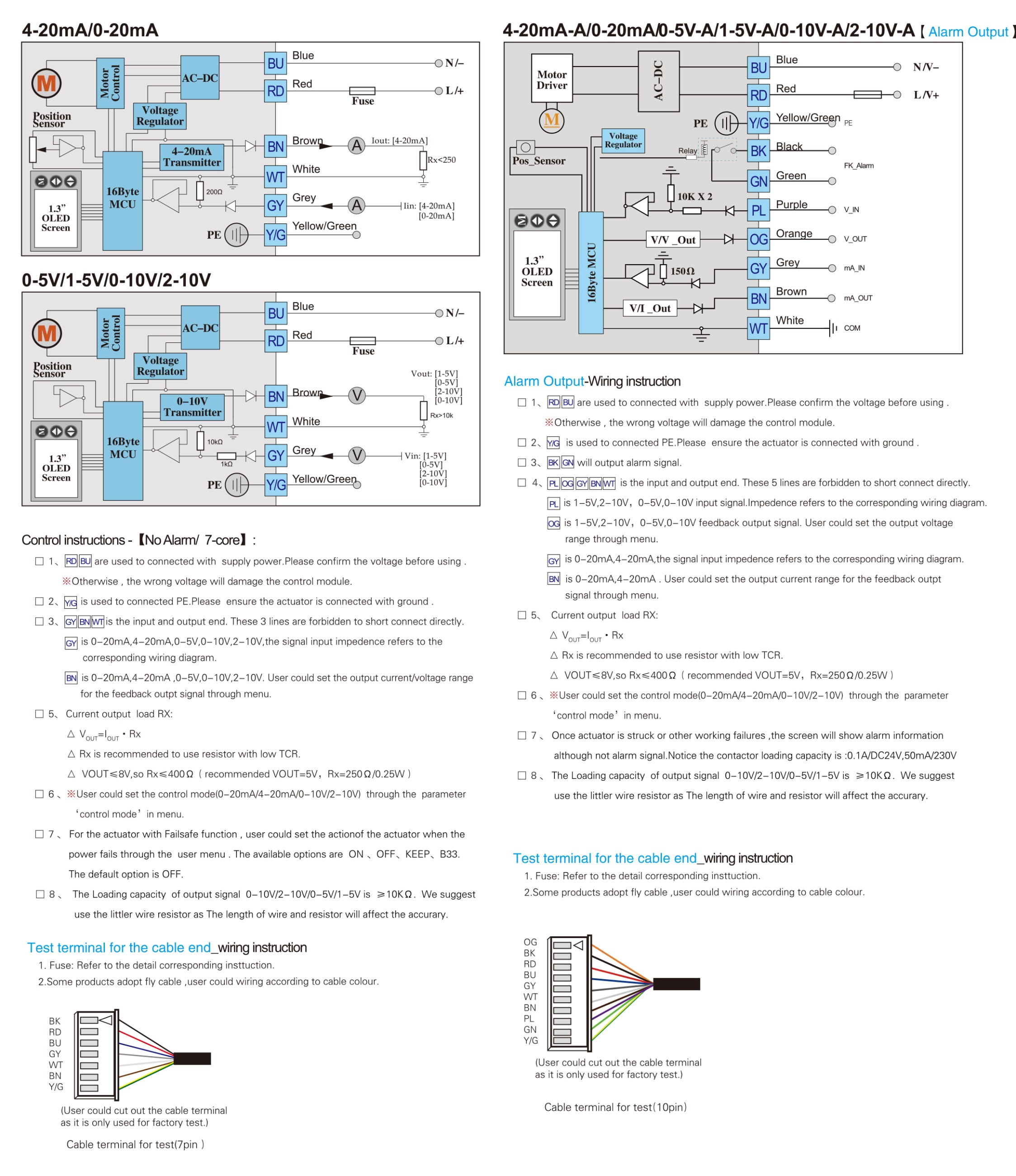

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMS

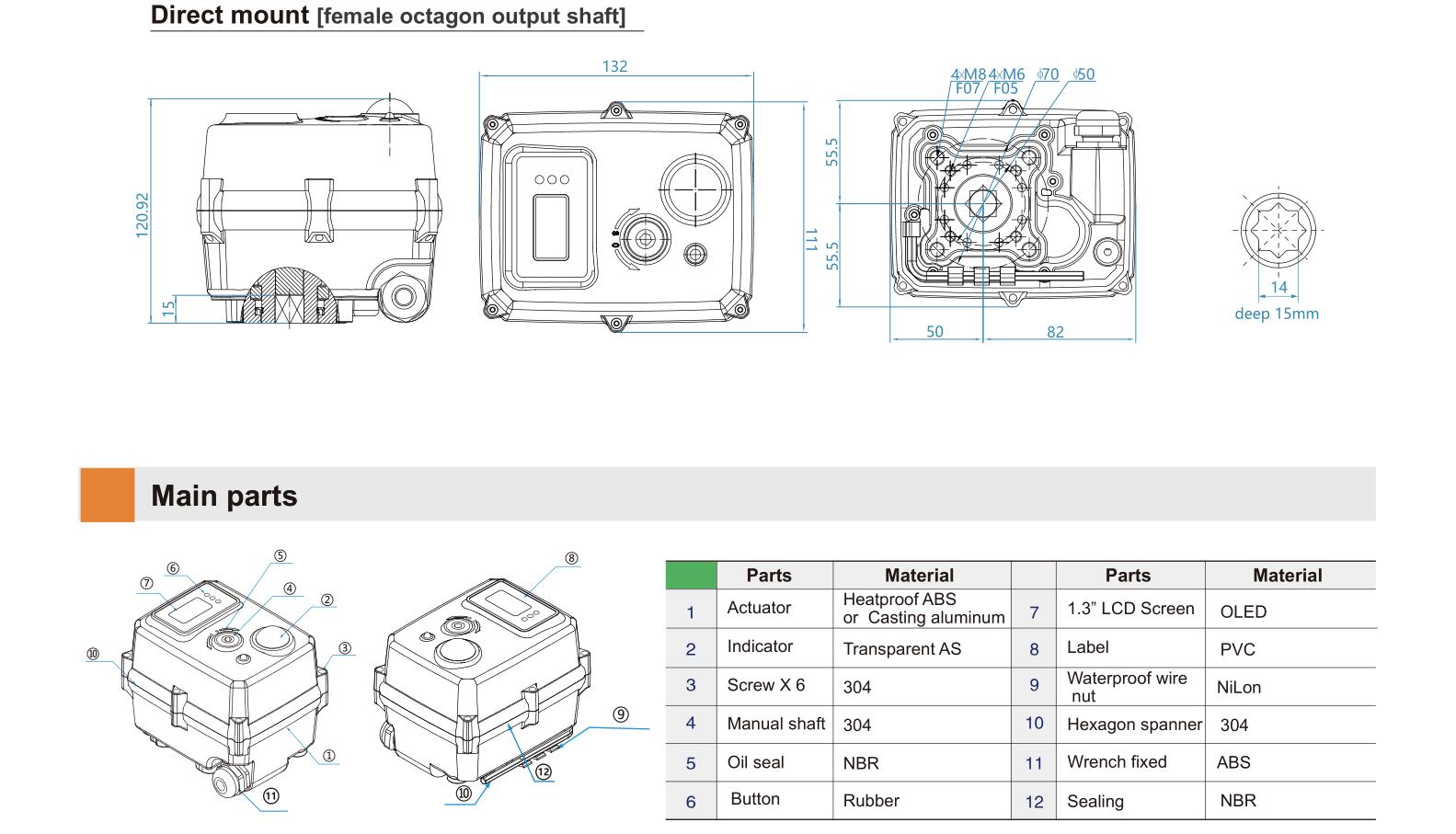

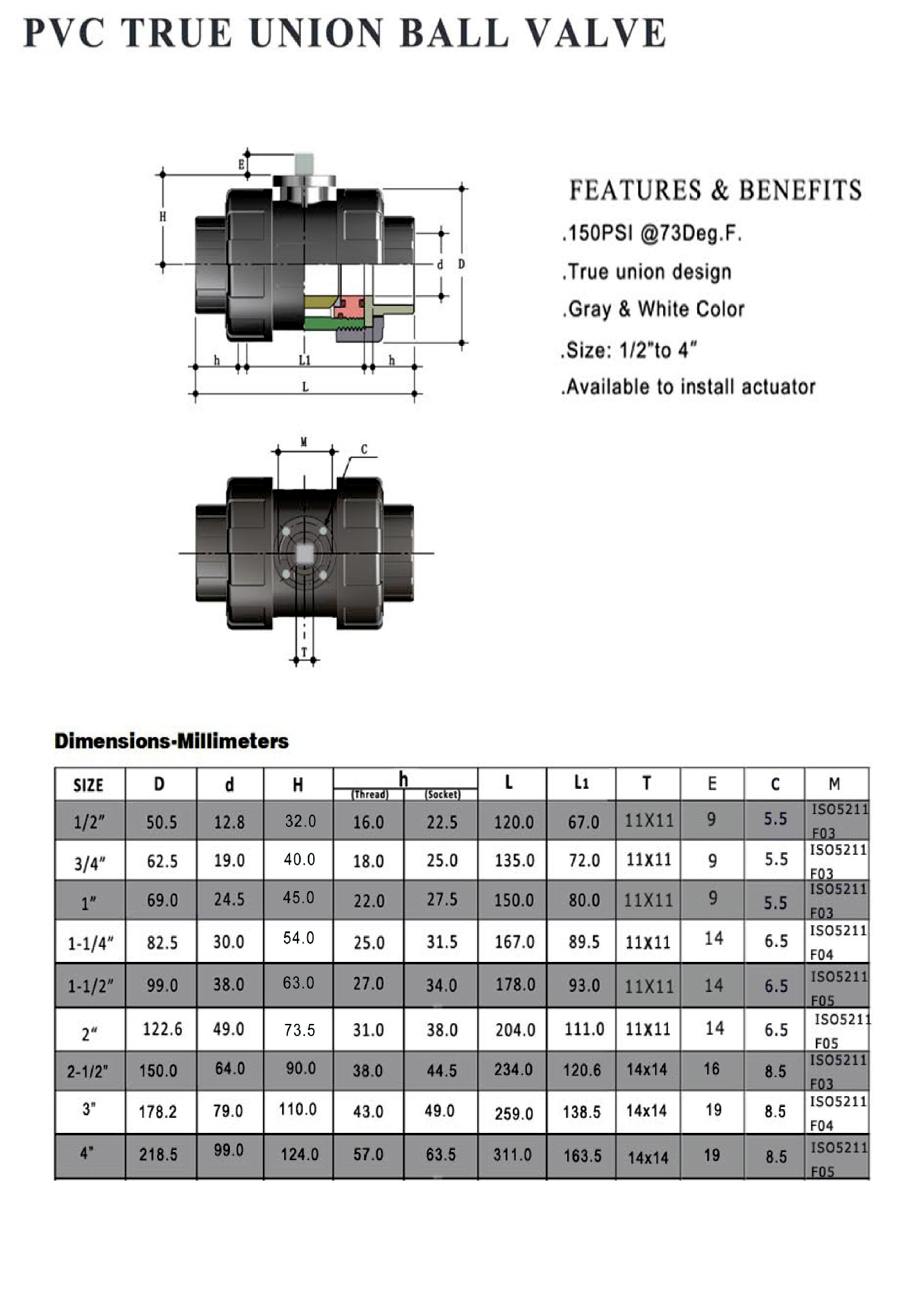

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

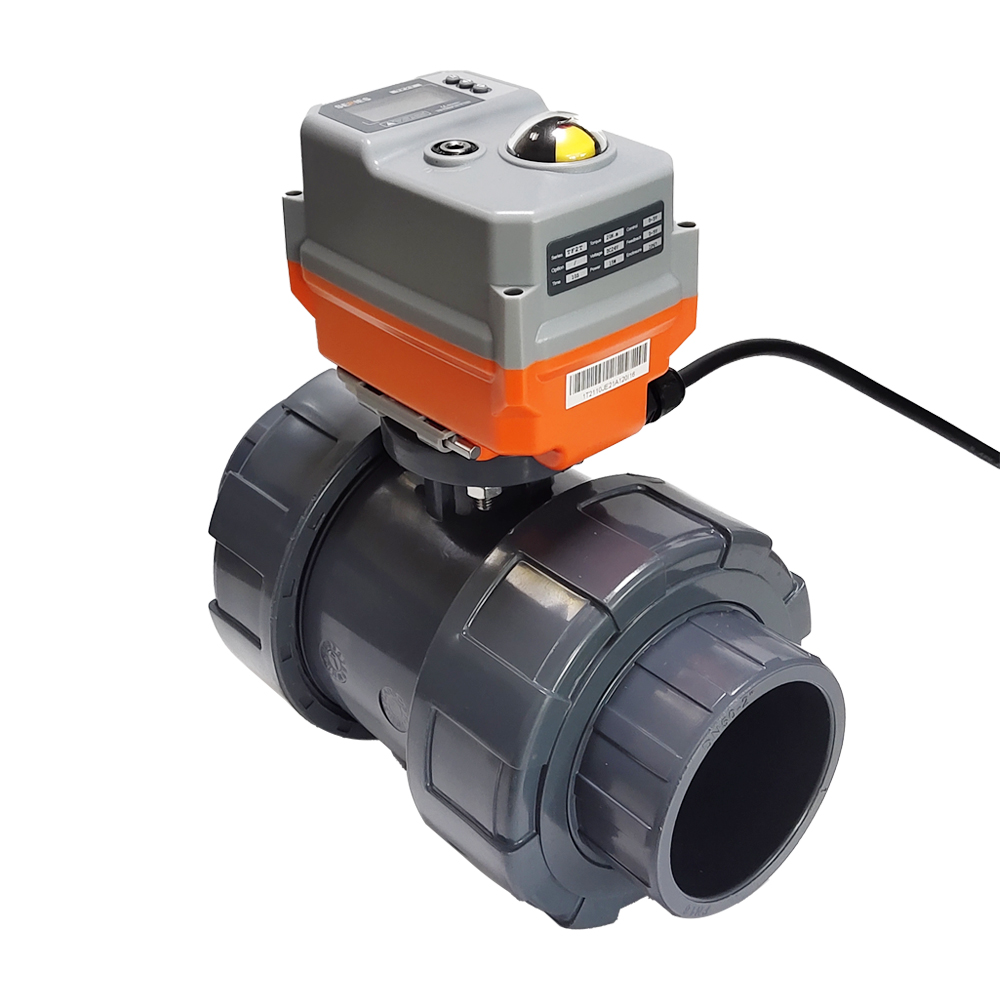

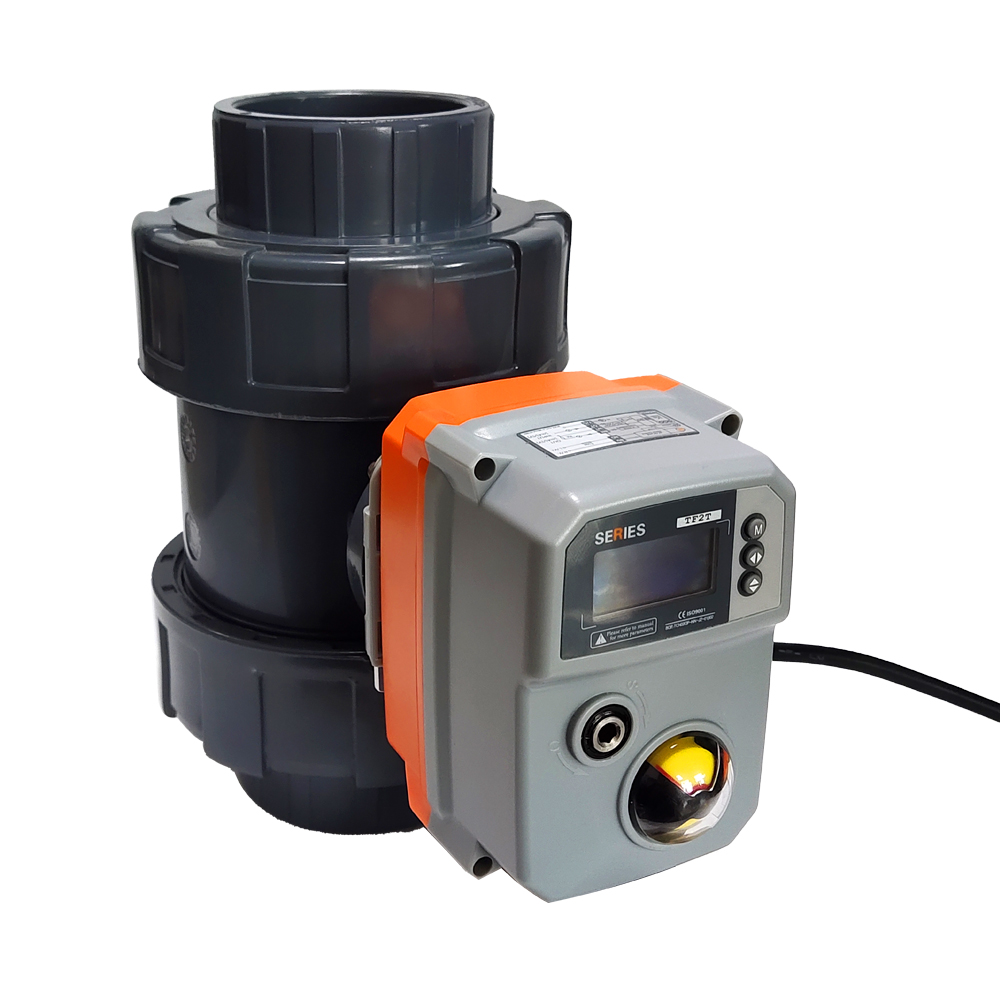

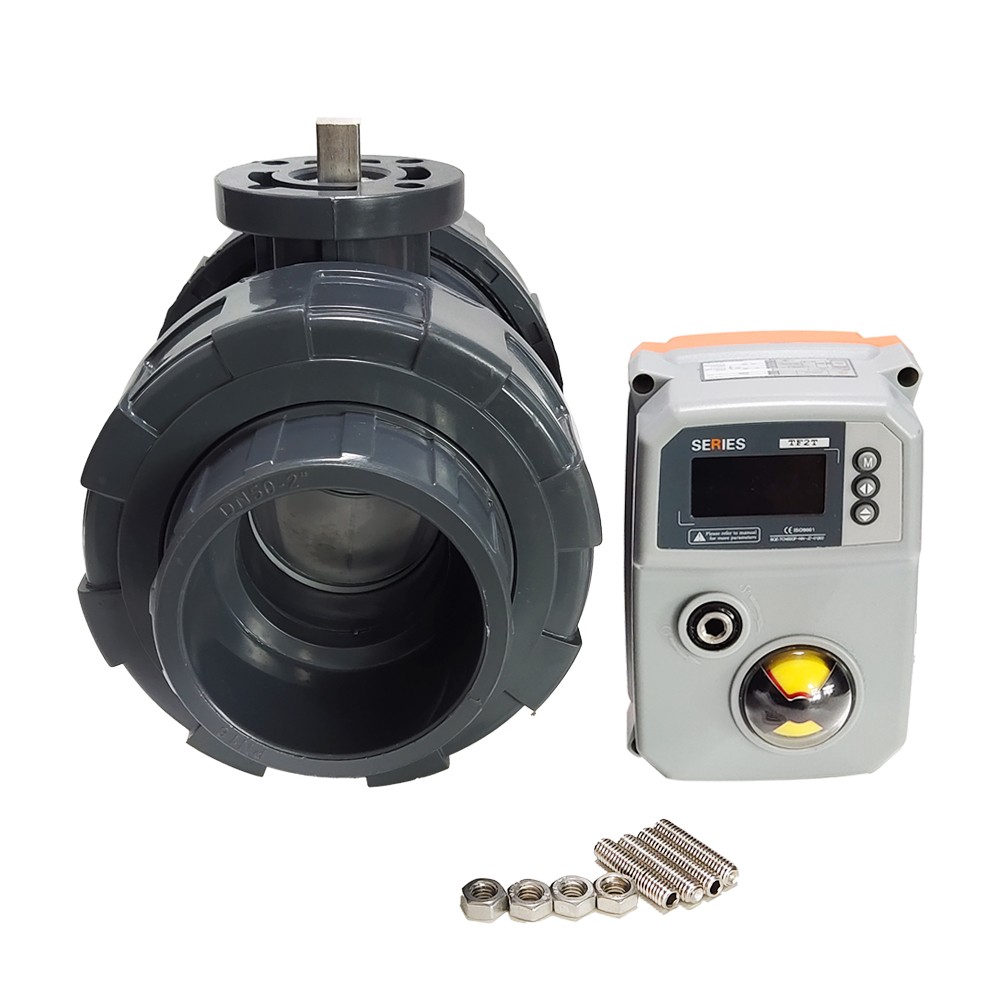

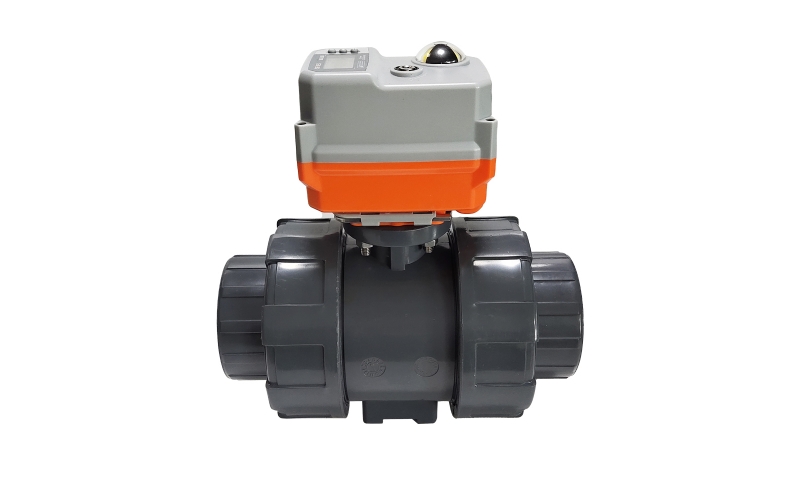

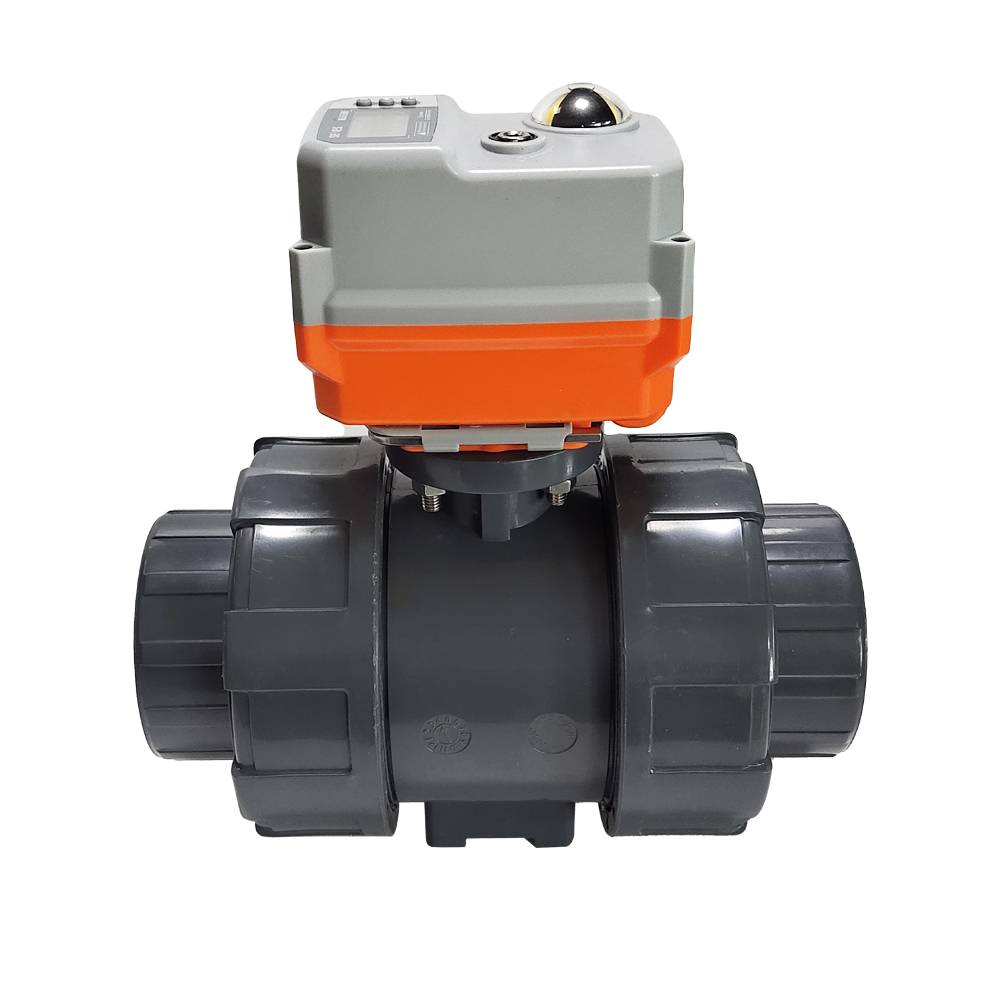

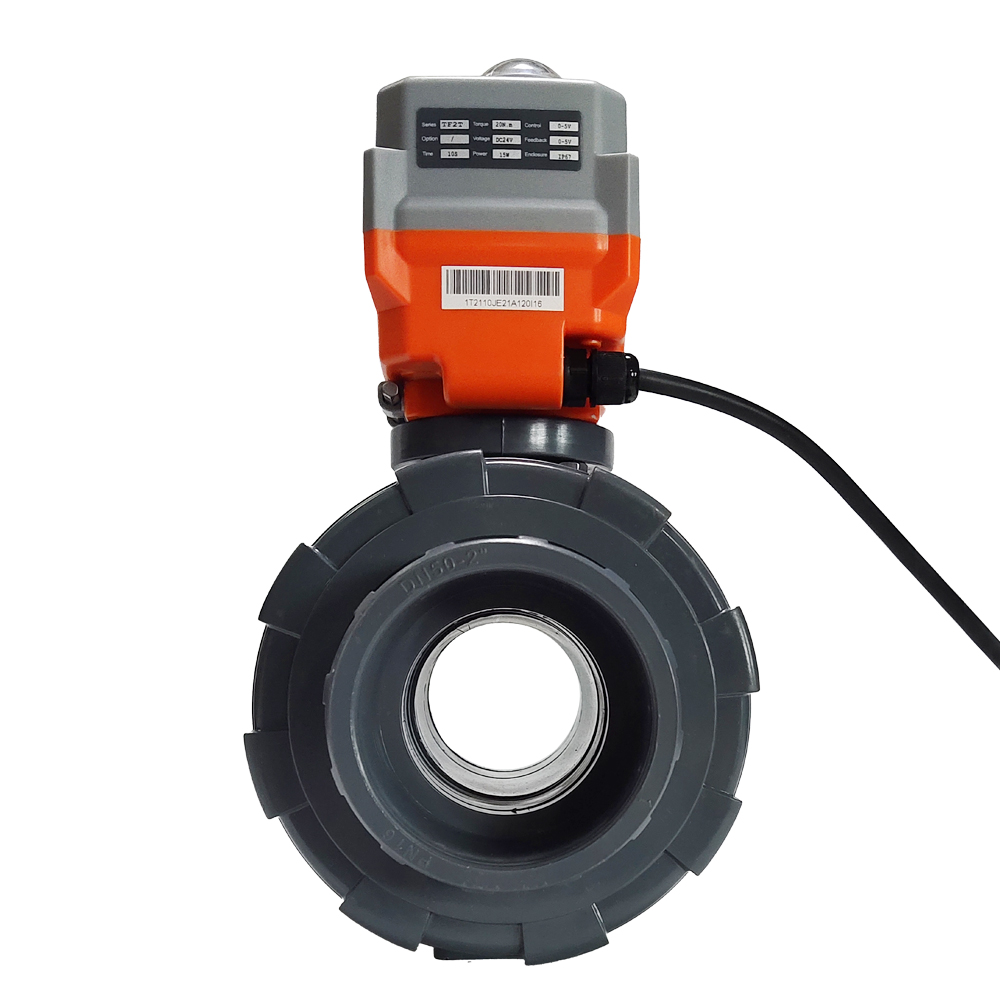

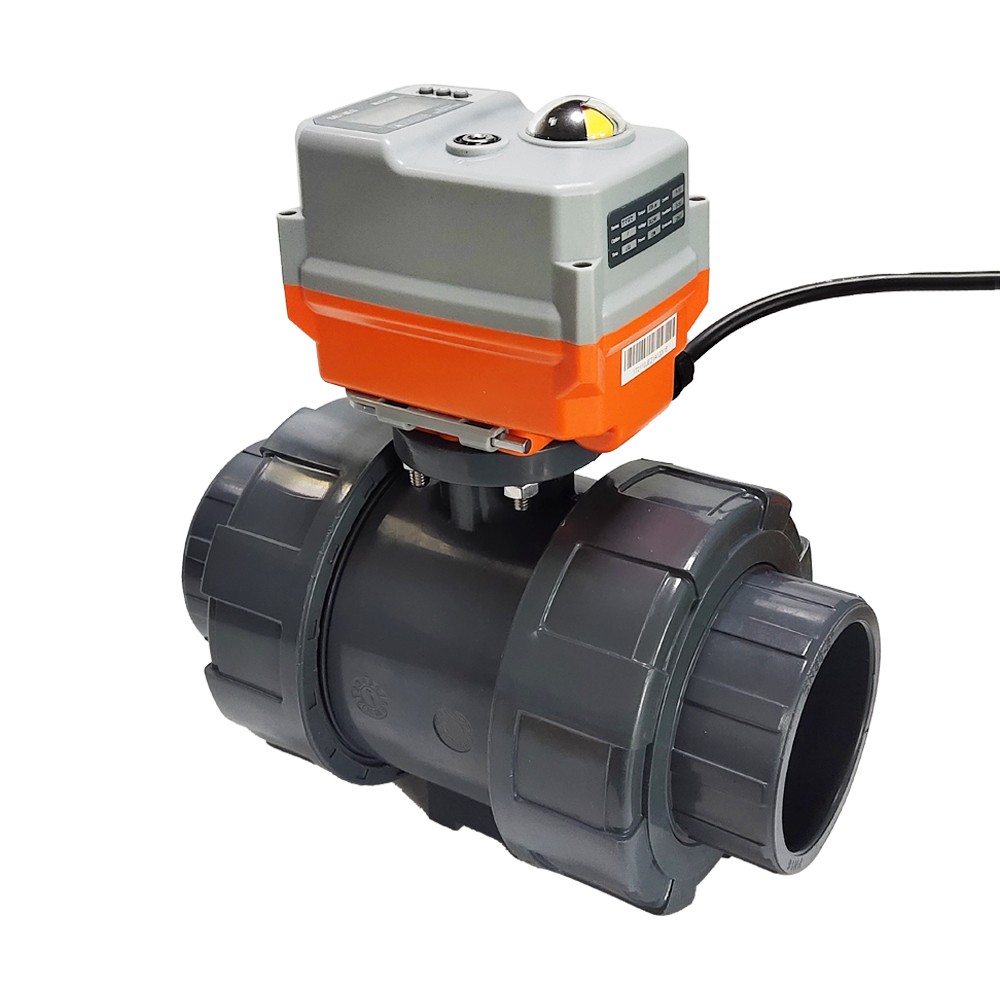

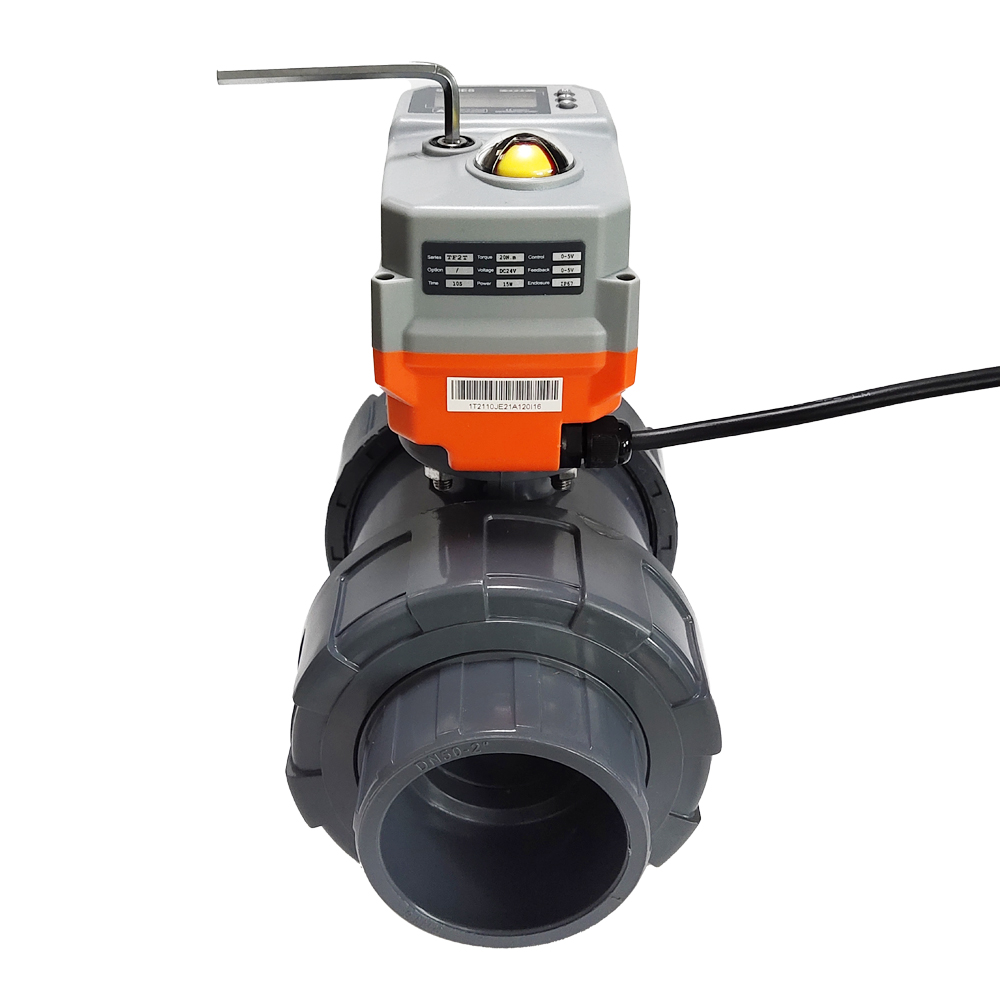

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS
