Electric Timer control valve SS304 timing for animal feed, irrigation, tank drain etc.

  • TFS25-S2-C Series SS304 Electric Timing Valve:
    Features:
    1. Torque force: 3Nm
    2. Power supply: AC/DC9-24V, AC110V to AC230V
    3. Keeping Valve Open/Close time: 00:00:00 to 99:59:59S
    4. Size: DN8, DN10, DN15, DN20, DN25
    5. Material: SS304/316/316L
    6. Connection: BSP,NPT thread
    7. Temperature: (2~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Electric Timer Control Valve Actuator
Rated voltage:    AC/DC9-24V, AC110V to AC230V
Keeping Valve Open/Close time: 00:00:00 to 99:59:59S
Working current:≤500MA
Open/close time:7S
Life time:70000 times
Actuator material:Engineering plastics
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:4 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:No
Indicator:Yes
Protection class:IP67
Valve body
Valve sizeDN8, DN10, DN15, DN20, DN25 (Optional)
Ball typeFull bore
Valve body material:Stainless Steel 304/316 (Optional)
Connection end:NPT or BSP thread (Optional)
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 90

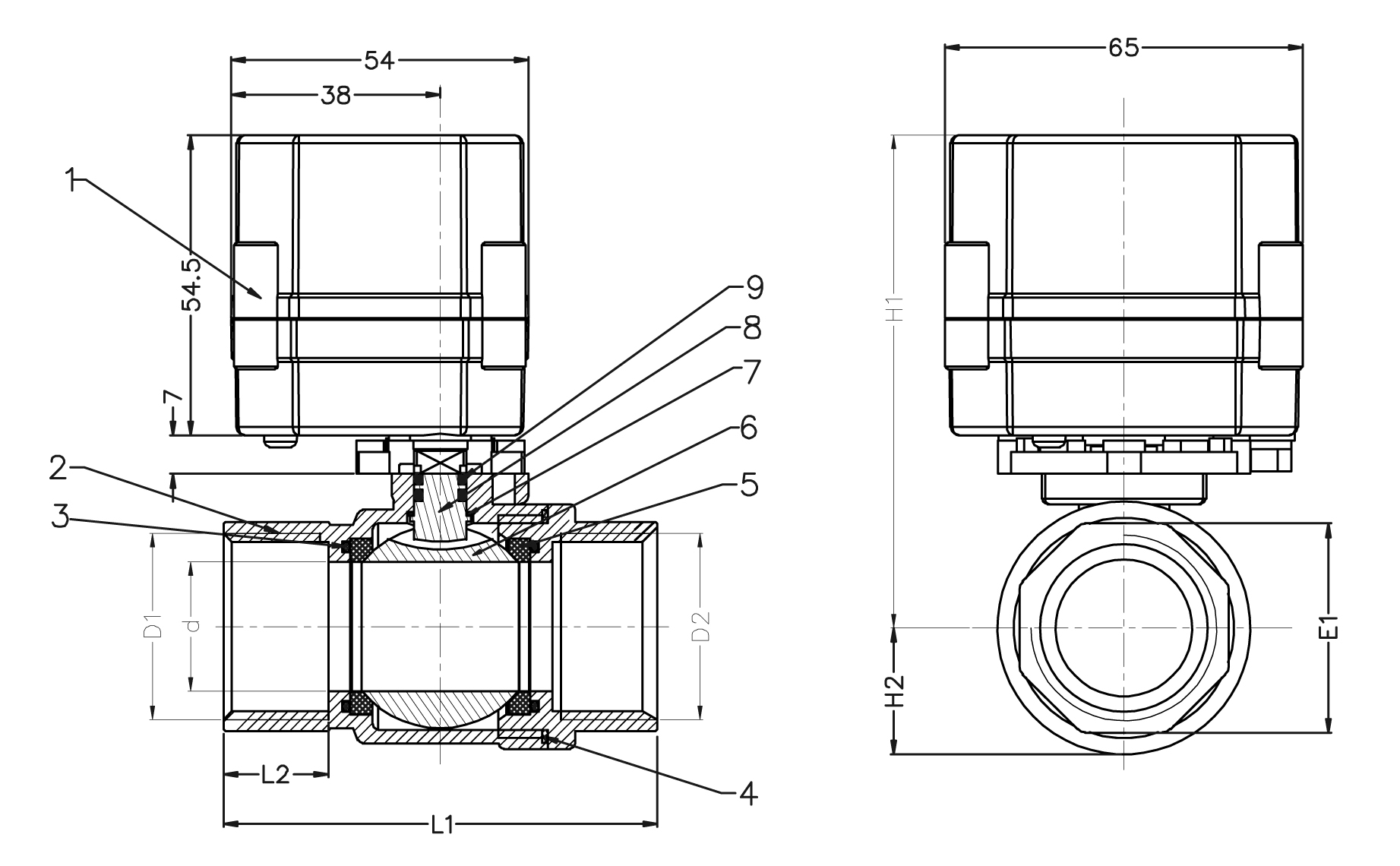

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Main components material:

No.

Name

Material

Qty

1

Actuator

PPO

1

2

Body cover

SS304

1

3

O-ring

FKM

2

4

Sealing

PTFE

2

5

Ball

SS304

1

6

Steam

SS304

2

7

O-ring

FKM

2



Electric Valve Dimension:

Size (mm)

D1/D2

d

L1

L2

E1

H1

H2

TF8(1/4”)Electric valve

1/4”

10

51

12

21

82

14

TF10(3/8”)Electric valve

1/4”

10

51

12

21

82

14

TF15(1/2”) Electric valve

1/2”

15

63

14

25

83

17

TF20(3/4”) Electric valve

3/4”

20

72

17

31

87

20

TF25(1”) Electric valve

1”

25

81

18

38

95

24


Operating instructions:

MetInfo enterprise content manager system | MetInfo CMS

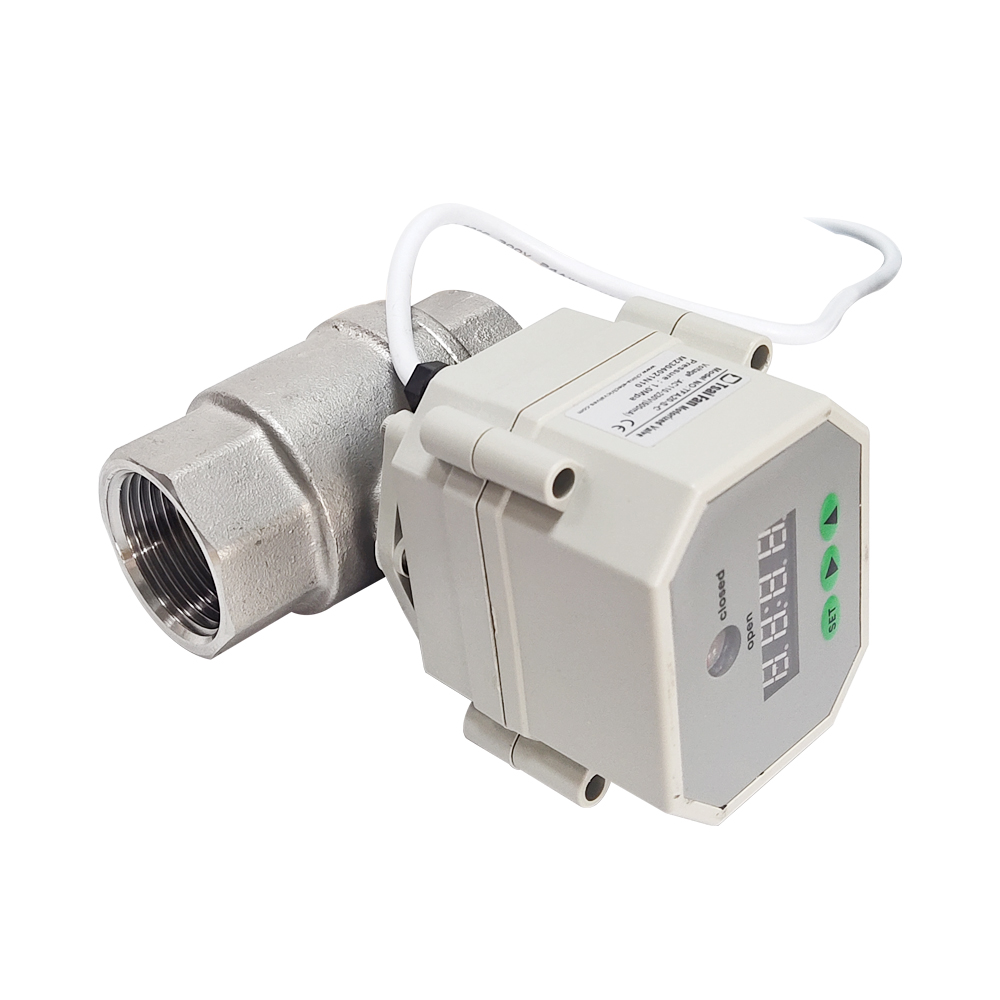

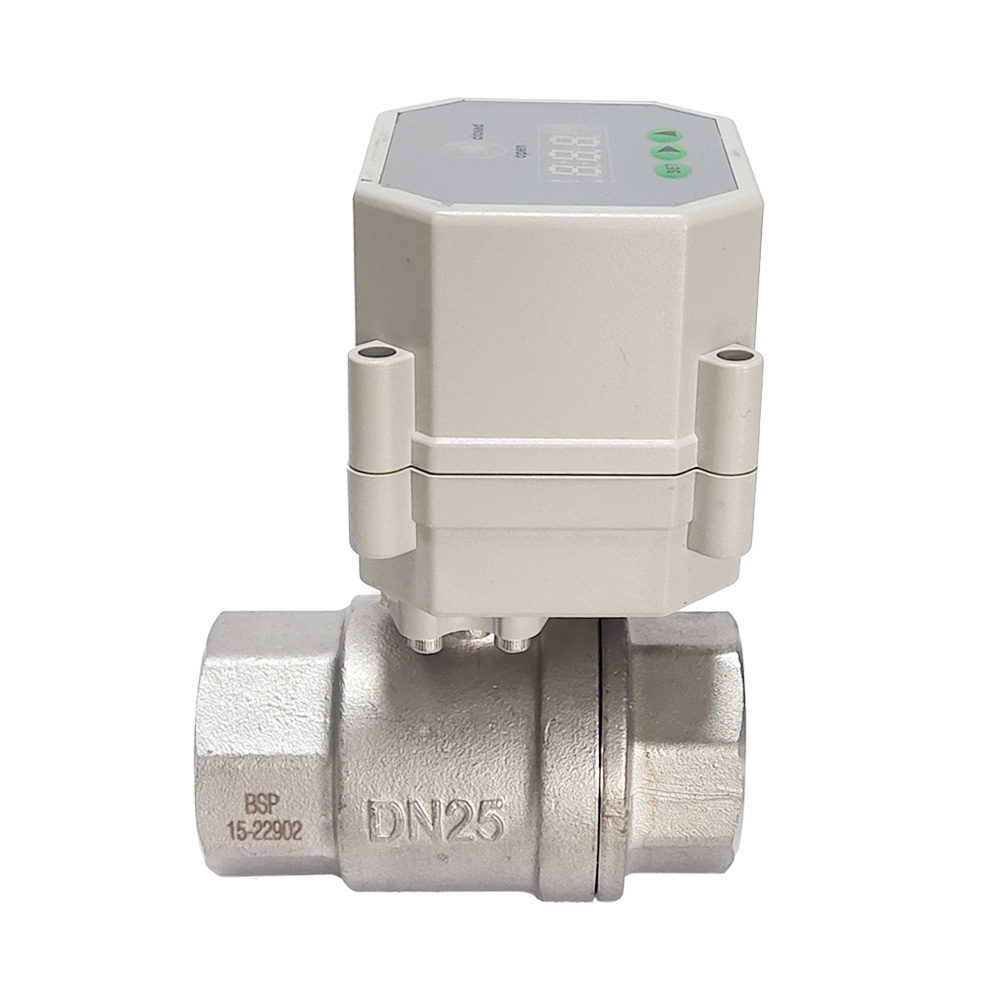

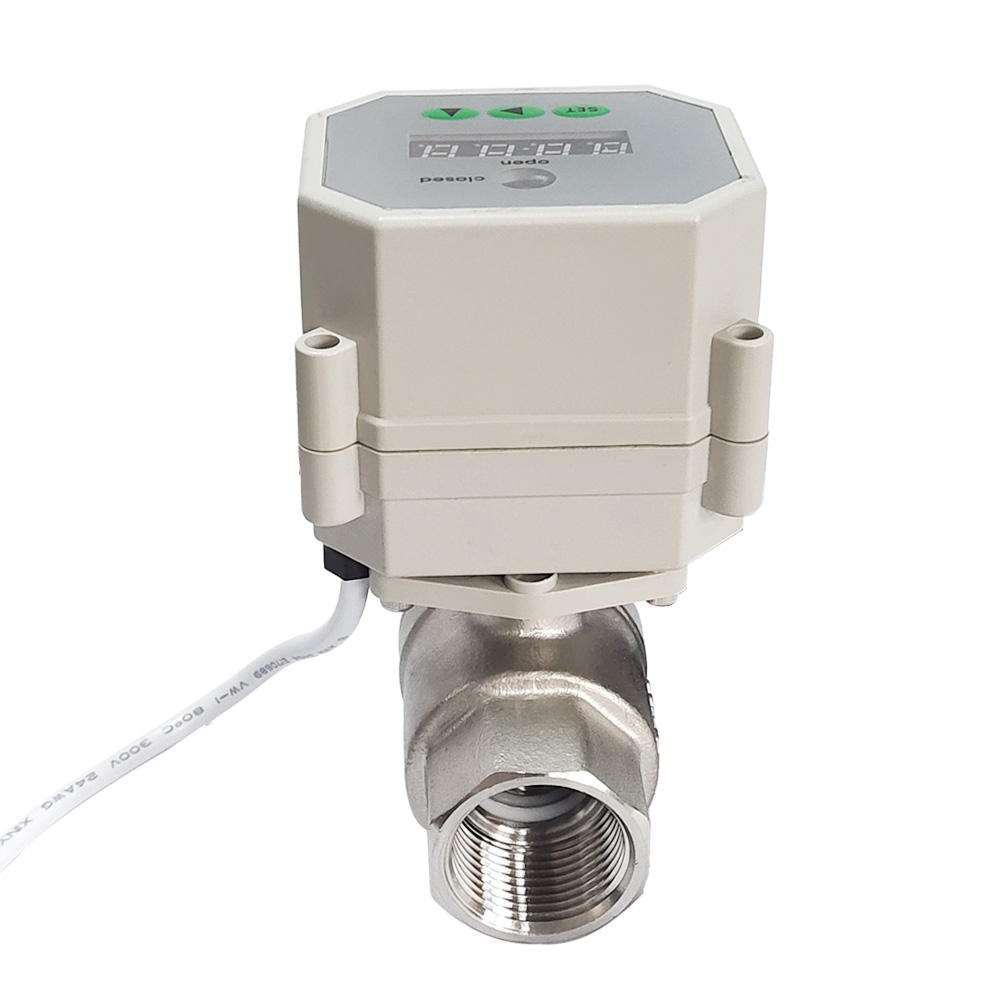

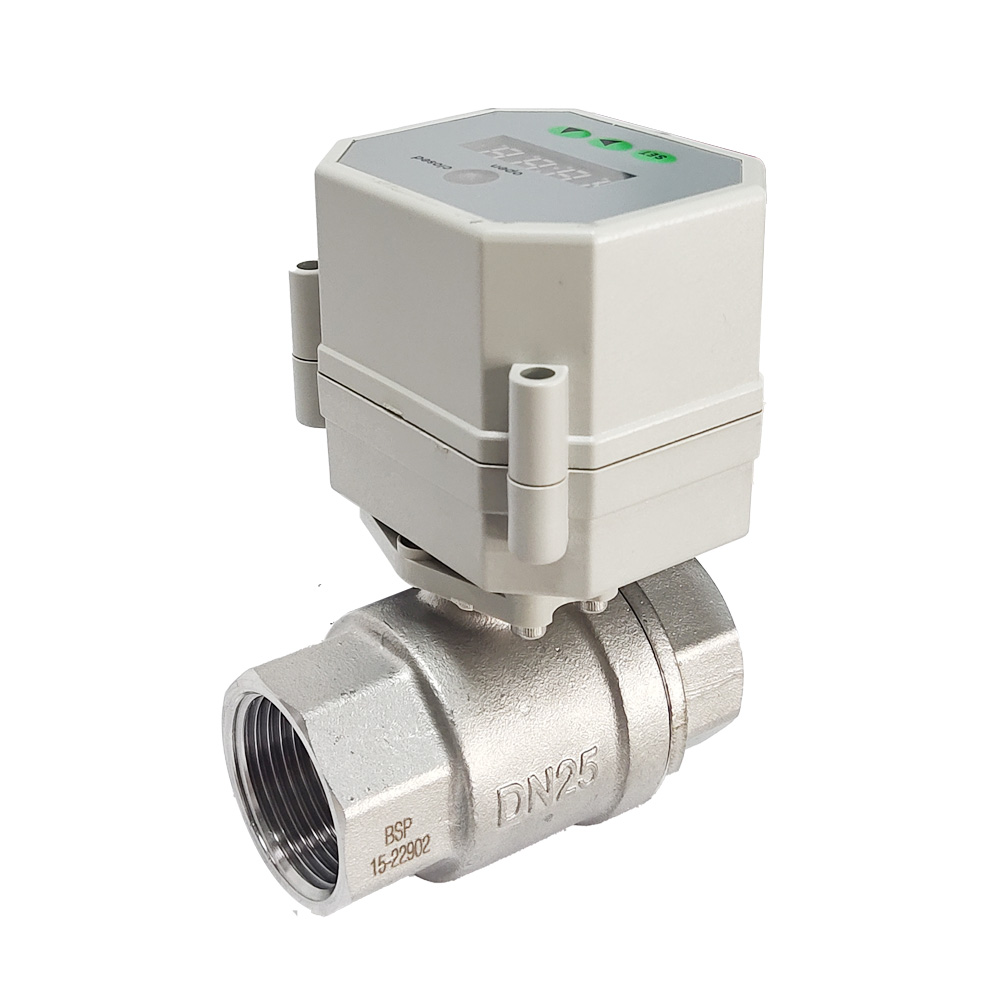

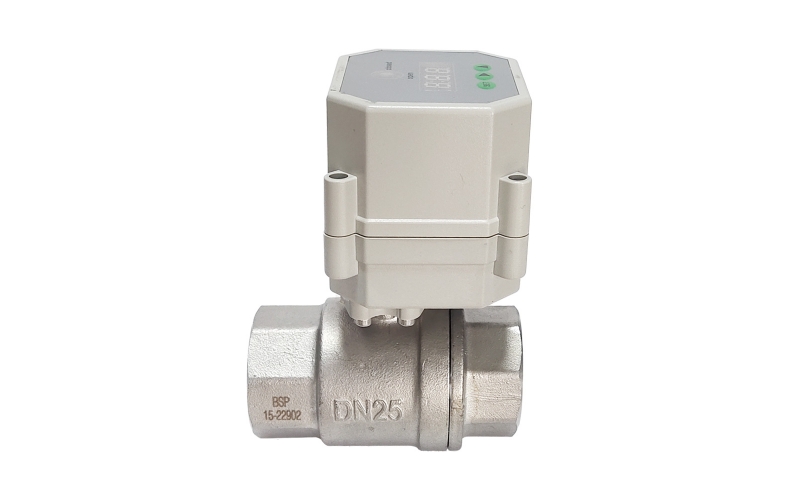

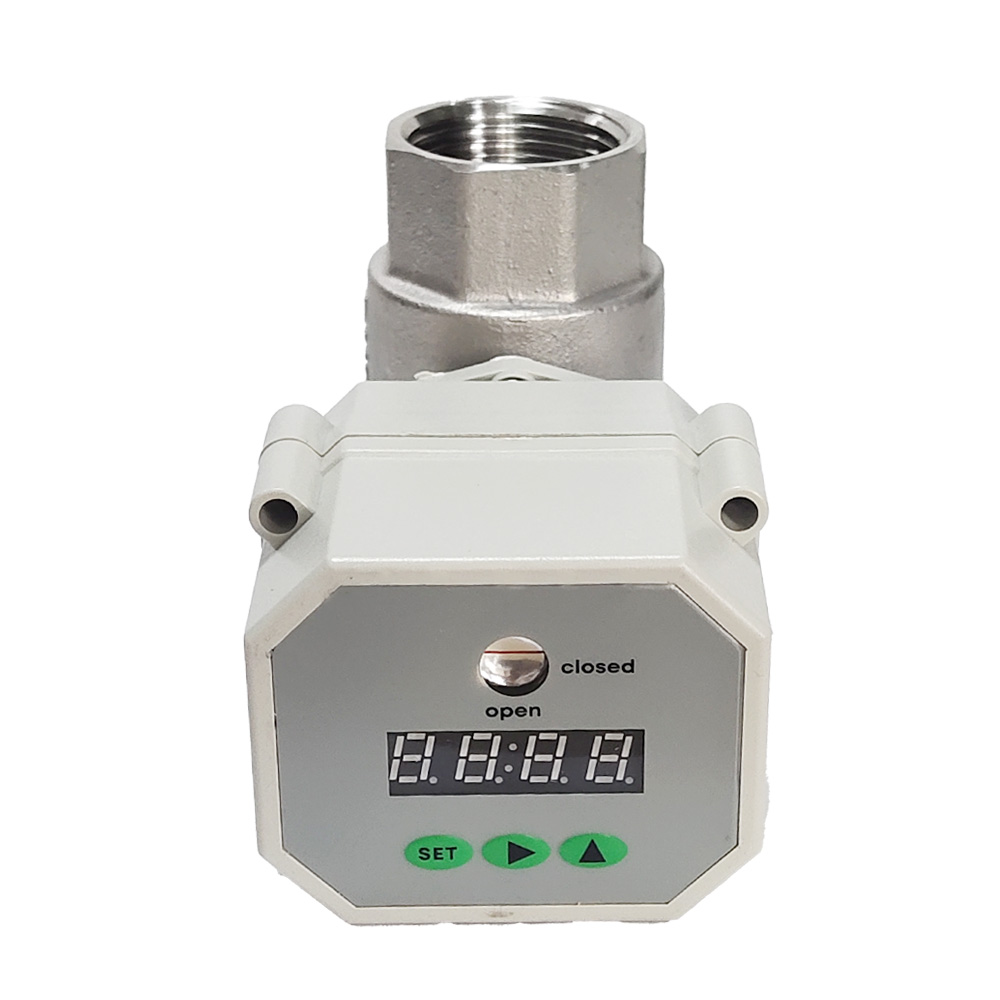

Photos:


MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMSApplications:

MetInfo enterprise content manager system | MetInfo CMS
