LoraWan Remote control 3 Way Electric Valve Stainless Steel Metal Gears, IP67, NSF, CE certifed

LoraWan Remote control 3 Way Electric Valve Stainless Steel Metal Gears, IP67, NSF, CE certifed

Lorawan Wireless Control Electric Ball Valve Stainless Steel 3 way with BSP/NPT thread, size from DN8 to DN15, IP67,NSF,CE Certified

  • TFE20 series Lorawan type 3 Way SS304 Electric Valve:
    Features:
    1. Torque force: 2Nm
    2. Power supply: DC3V
    3. Protocol: LORAWAN 868 MHz 915 MHz
    4. Size: DN8, DN10, DN15
    5. Material: SS304/316
    6. Connection: BSPT/NPT
    7. Temperature: (2~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Battery drive(2pcs of AA batteries).
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. NSF, CE, ROHS certified.
    6. 100% ON/OFF testing before shipping.

Spefications:

Actuator
Rated voltage:     DC3V2 Pcs of AA batteries in Actuator
Protocol:LORAWAN 868 MHz 915 MHz
Locked-Rotor Current:≤500MA
Open/close time:5S/90 degree
Life time:70000 times
Actuator material:Engineering plastics
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:2 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP67
Valve body
Valve sizeDN8, DN10, DN15
Valve body material:SS304/SS316/SS316L
Connection end:NPT, BSP thread (Optional)
Valve type3 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 55

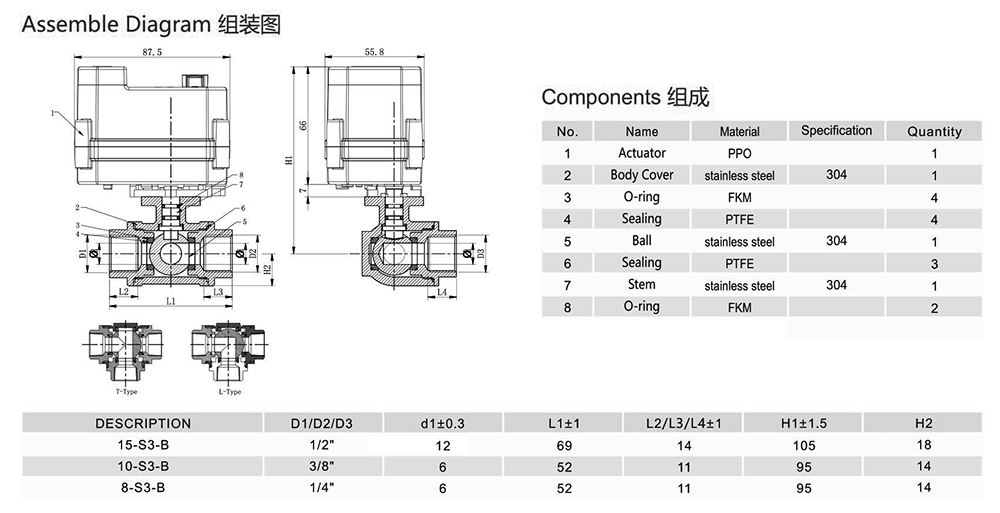

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

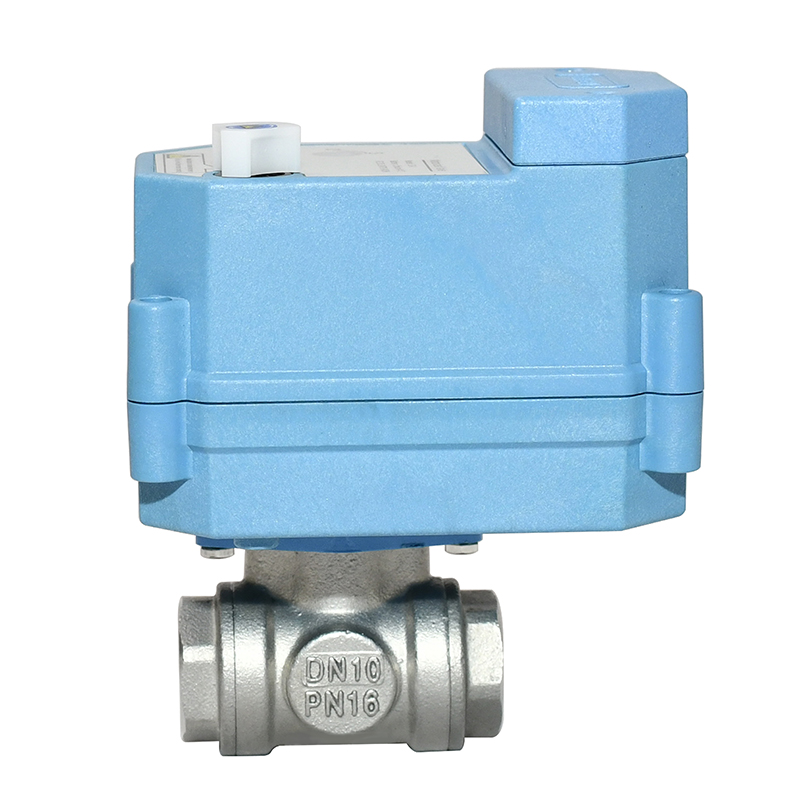

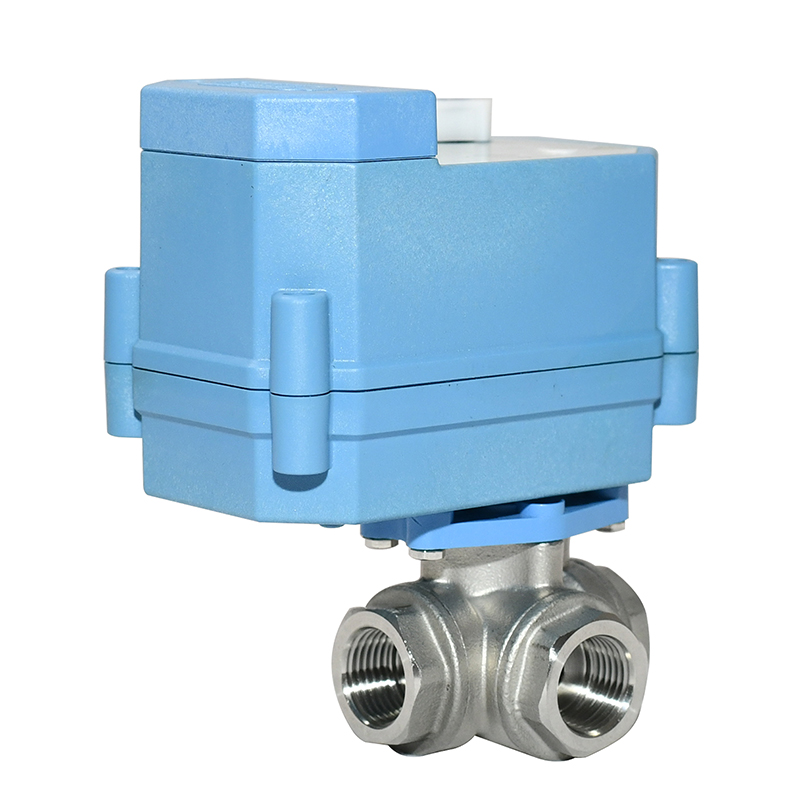

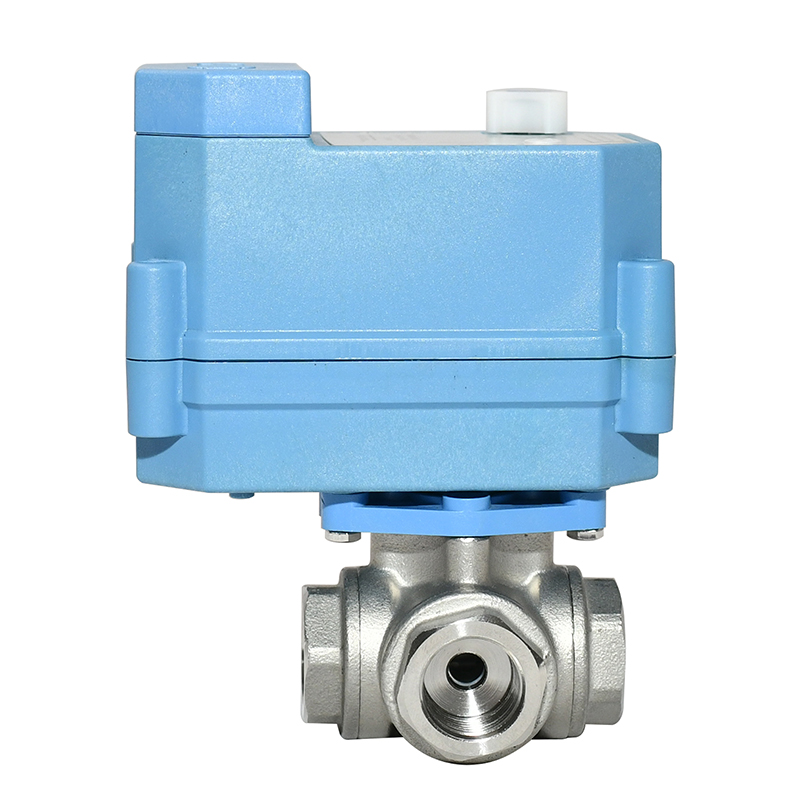

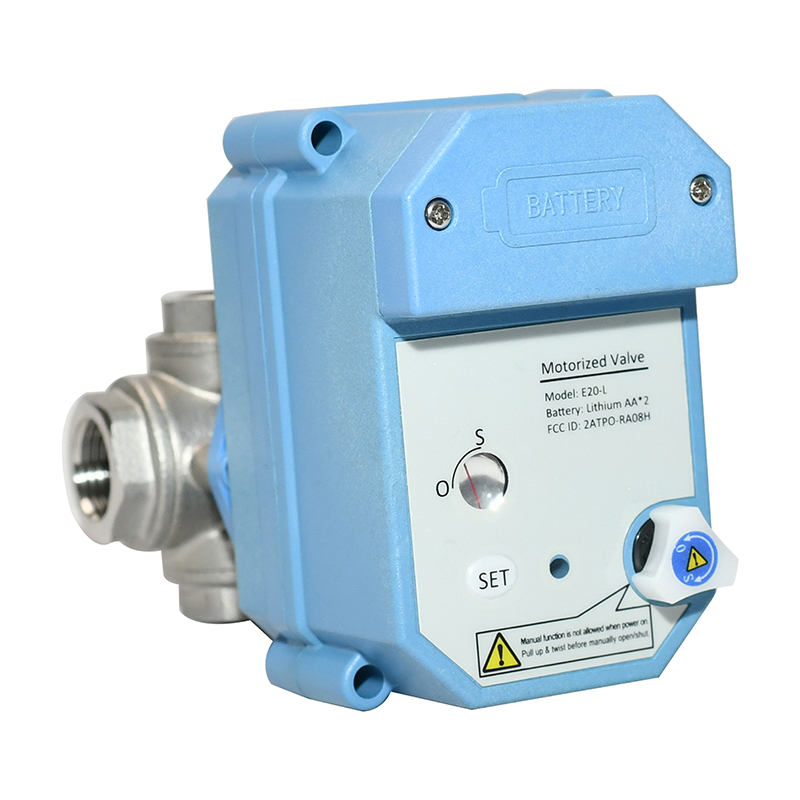

Photos:


MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS




Factory:

MetInfo enterprise content manager system | MetInfo CMS

Applications:

MetInfo enterprise content manager system | MetInfo CMS
