50Nm Tri-Clamp Sanitary Electric ball valve 304 Stainless Steel Quick Installed Motorized Ball Valve Tri-Clamp Ball Valve

50Nm Tri-Clamp Sanitary Electric ball valve 304 Stainless Steel Quick Installed Motorized Ball Valve Tri-Clamp Ball Valve

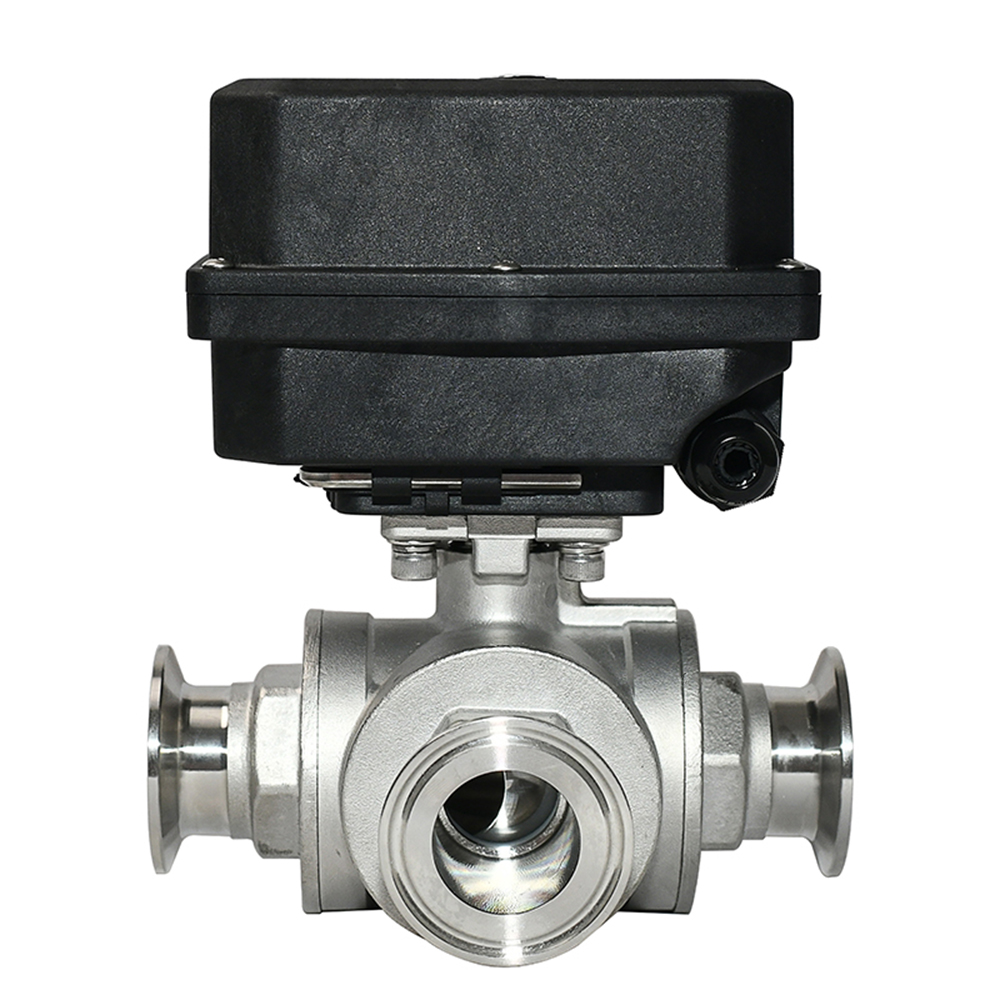

50Nm 3 Way Tri-Clamp type Electric Ball valve with Sanitary Stainless Steel quick install

  • TFA550 series 50Nm Tri-Clamp Ball Valve:
    Features:
    1. Torque force: 50Nm
    2. Power supply: DC12V,DC24V
    3. Running time: <15 seconds
    4. Size: DN32, DN40
    5. Material: Stainless 304/316
    6. Connection: Tri- Clamp
    7. Temperature: (2~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP68.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

TFA550 Series Electric Valve
Rated voltage:     DC12V, DC24VWiring :  CR201,CR303, CR501,CR603,(Optional)
Working current:≤2.8 A
Open/close time:15S
Life time:30000 times
Actuator material:Engineering Plastics PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:50 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP68
Connection StandardISO5211 F03,F05
Output axisFemale octagonal 14*14mm
Work with different valvesStainless steel two-way three-piece ball valve DN65/DN80
Stainless steel sanitary quick-install 2-way ball valve T38/T45/T51;
Stainless steel clamp butterfly valve DN50/DN65/DN80;
Stainless steel quick-install butterfly valve T63/T76
PVC Clamp Butterfly Valve DN50/DN65/DN80;
PVC True Union Ball Valve with stainless steel bracket DN65/DN80
Stainless steel horizontal 3-way ball valve DN32/DN40
Stainless steel horizontal tee-quick ball valve DN32/DN40
Stainless steel sanitary three-way ball valve DN38; DN45;
Valve body
Valve sizeDN32, DN40 (Optional)
Valve body material:SS304/ SS316/ SS316L(Optional)
Connection end:NPT/ BSP(Optional)
Valve type3 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 90

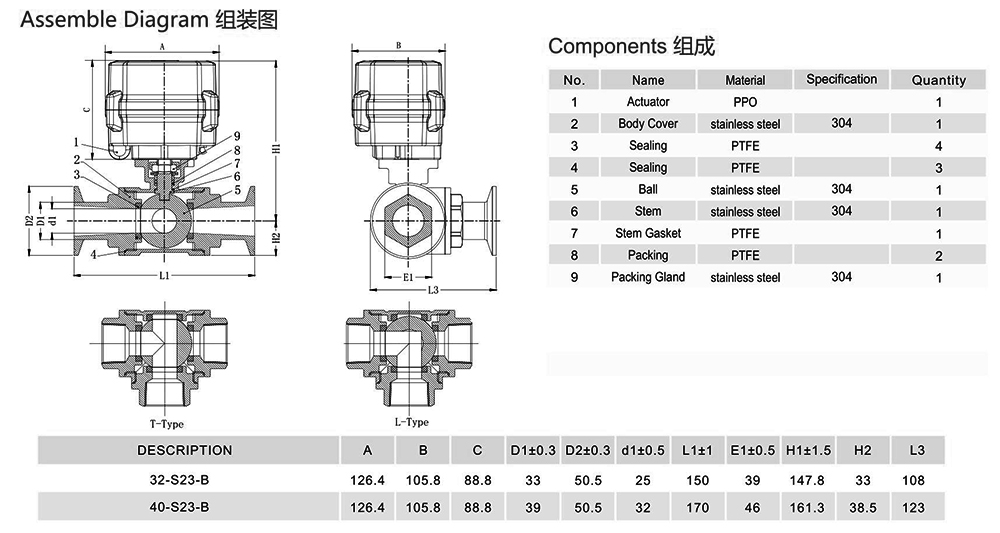

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

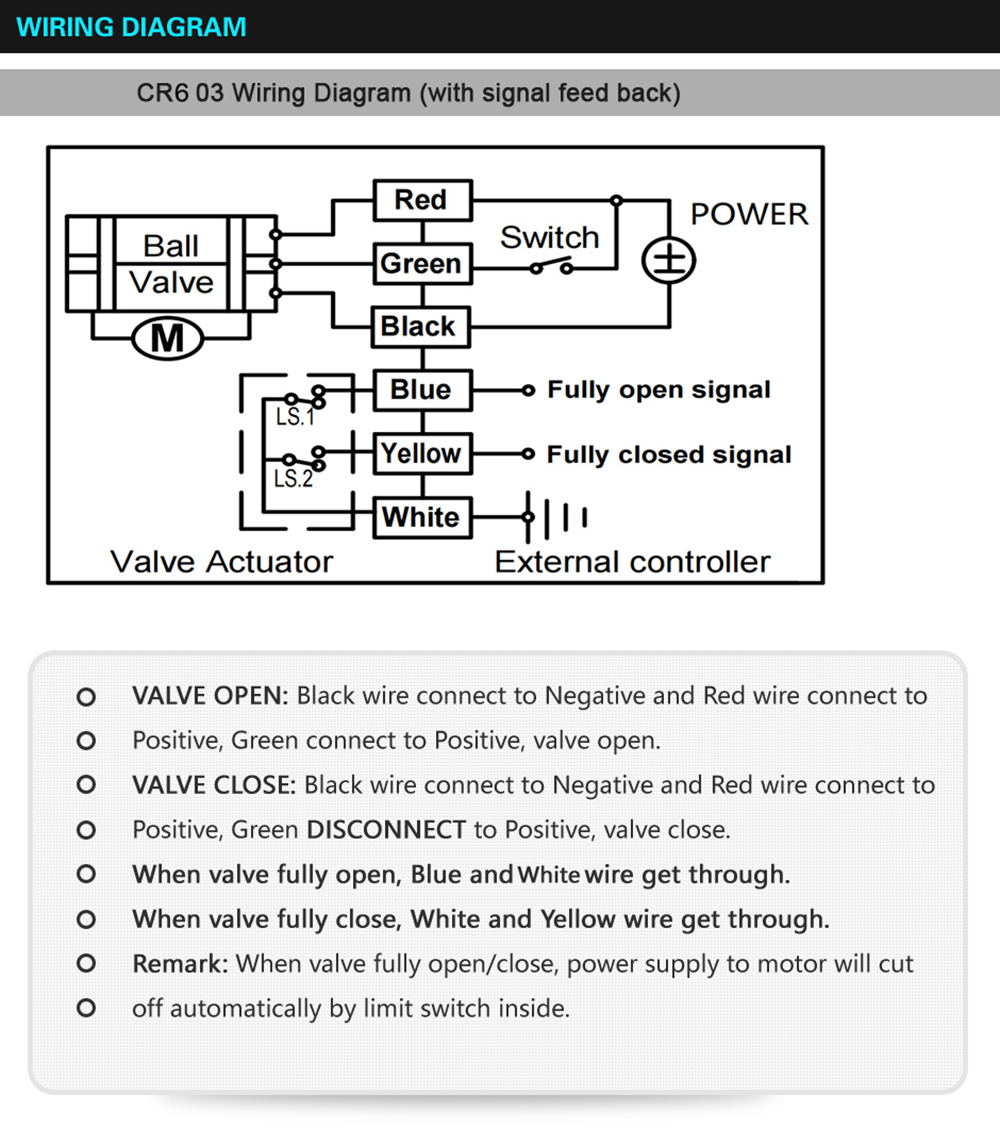

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

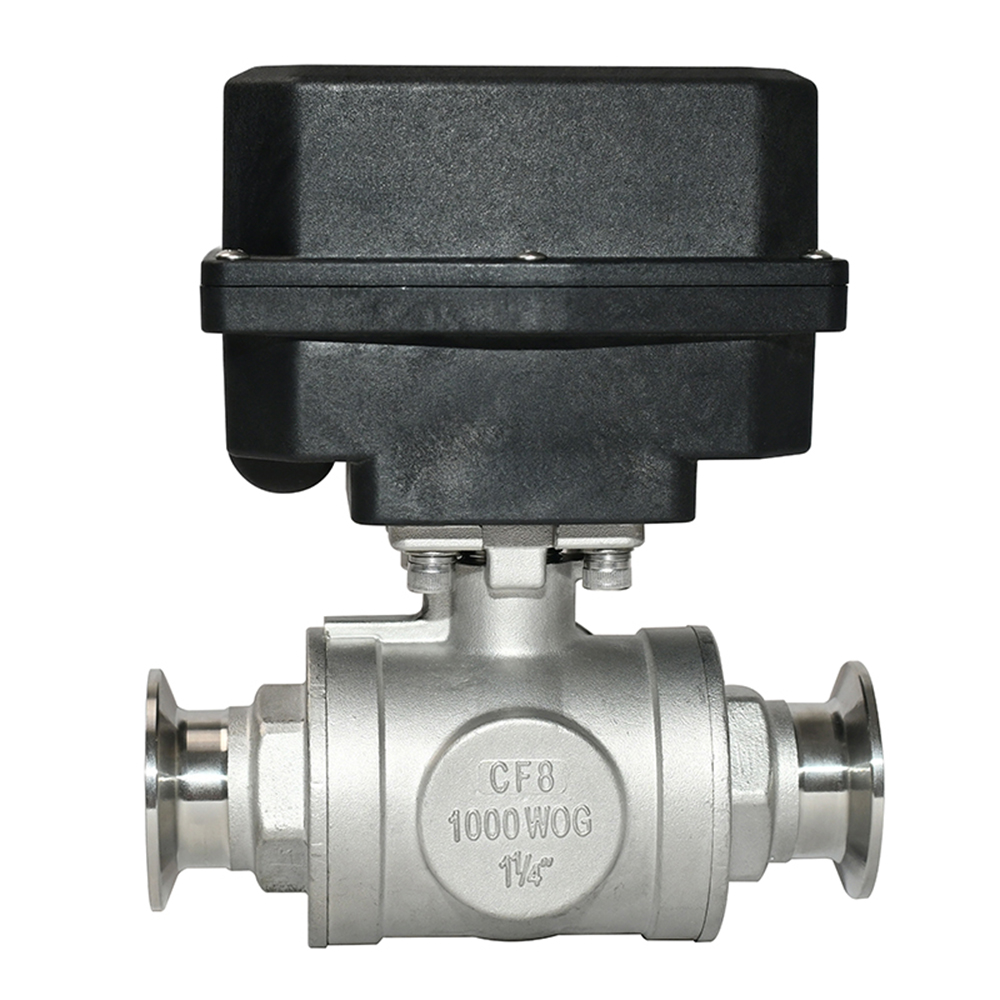

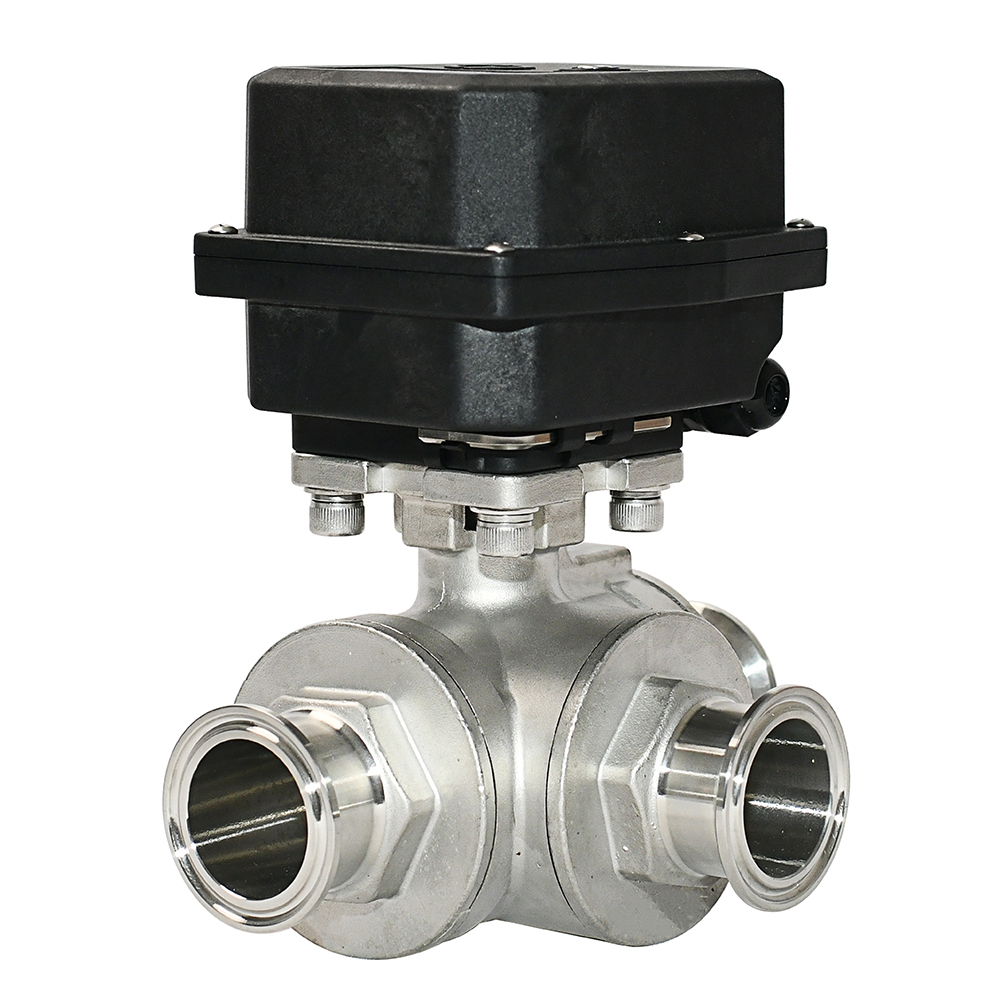

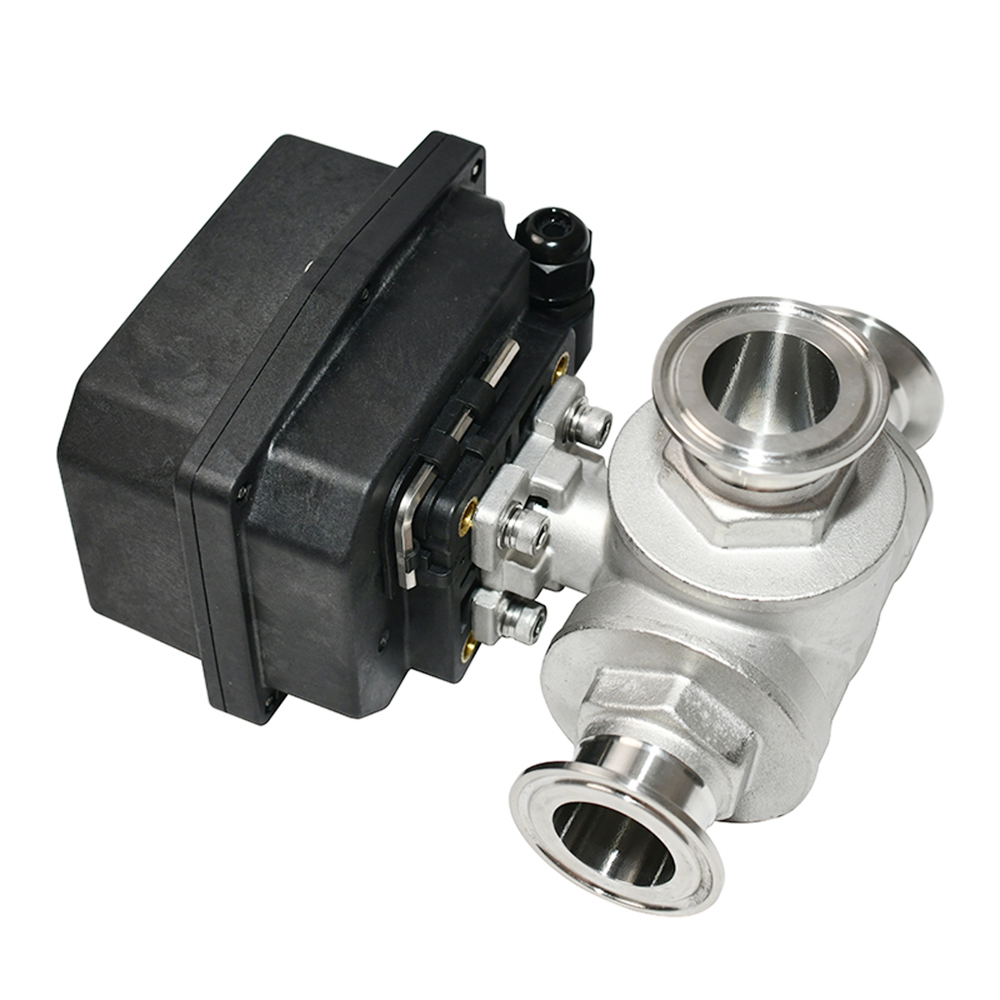

Different sizes:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

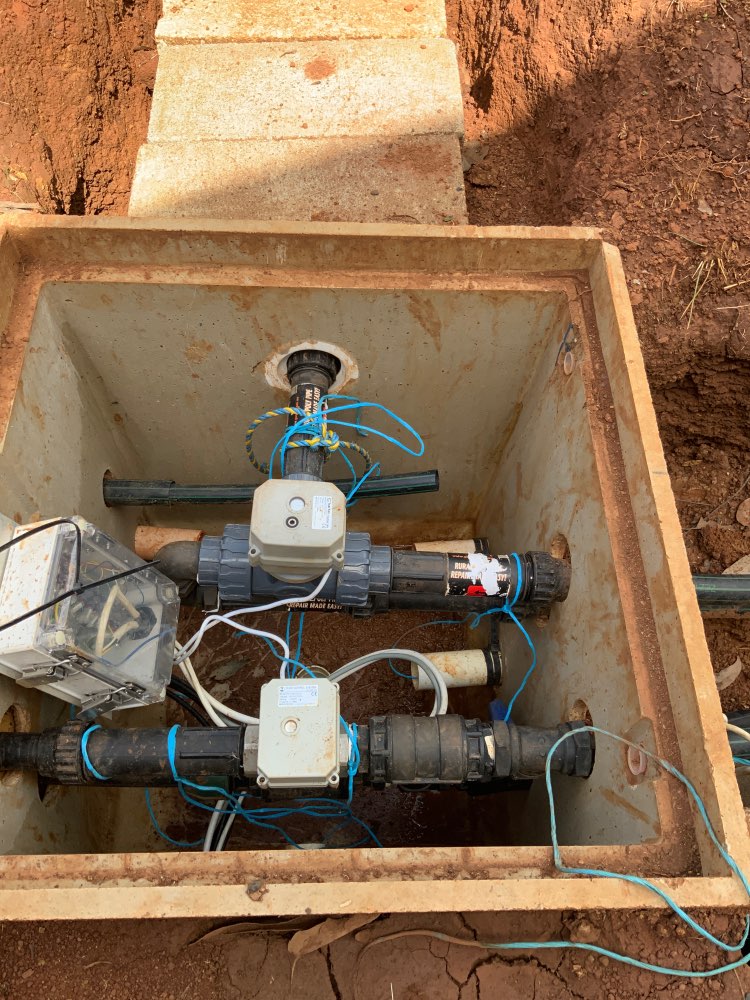

Applications:

MetInfo enterprise content manager system | MetInfo CMS
