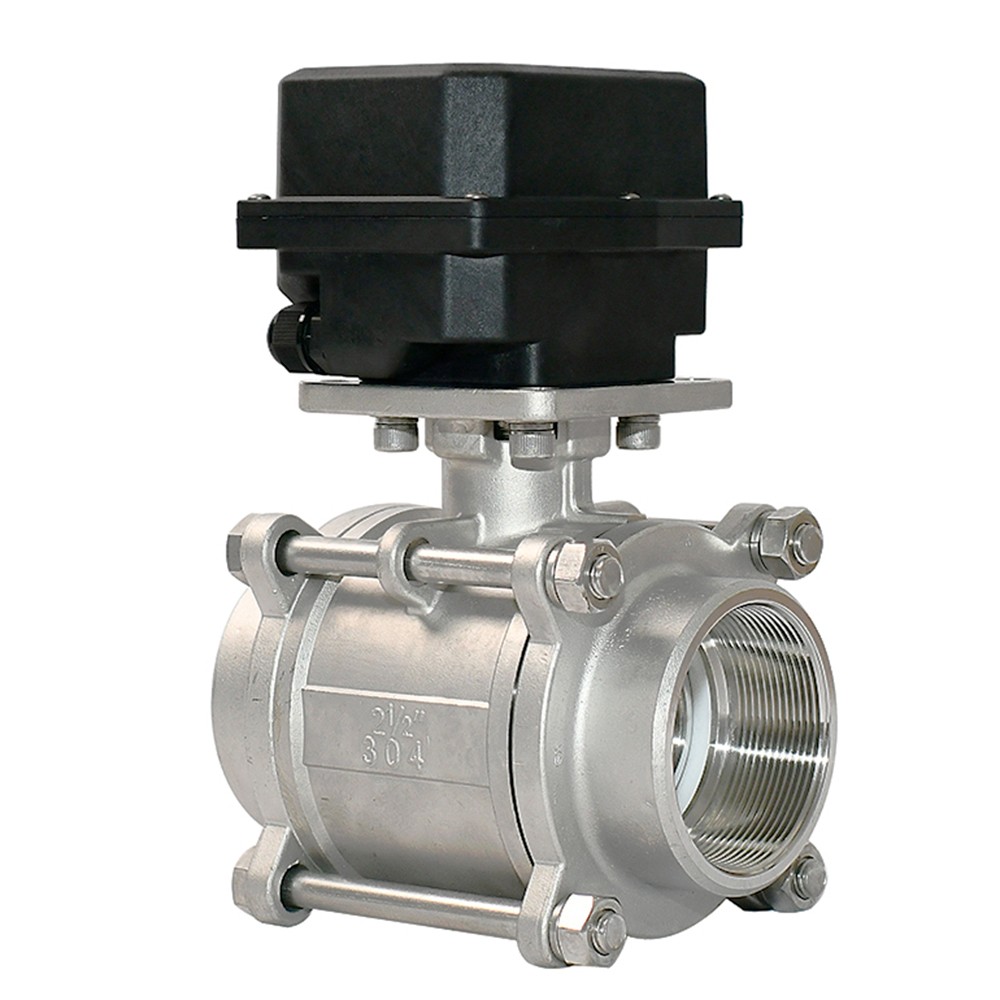

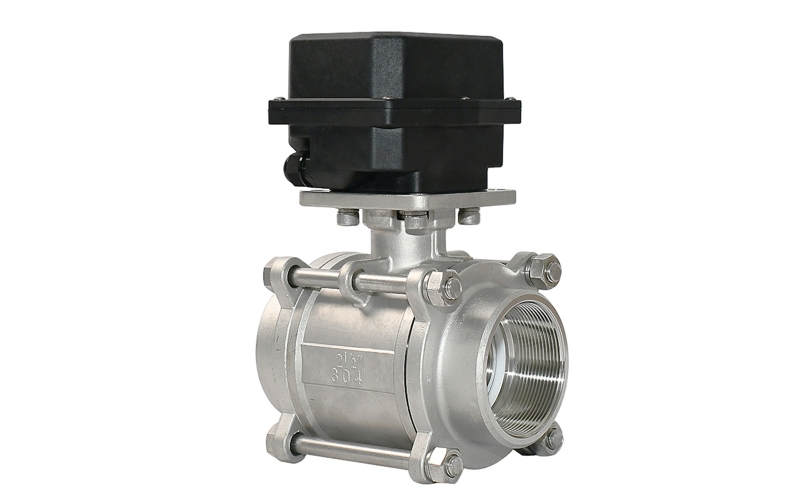

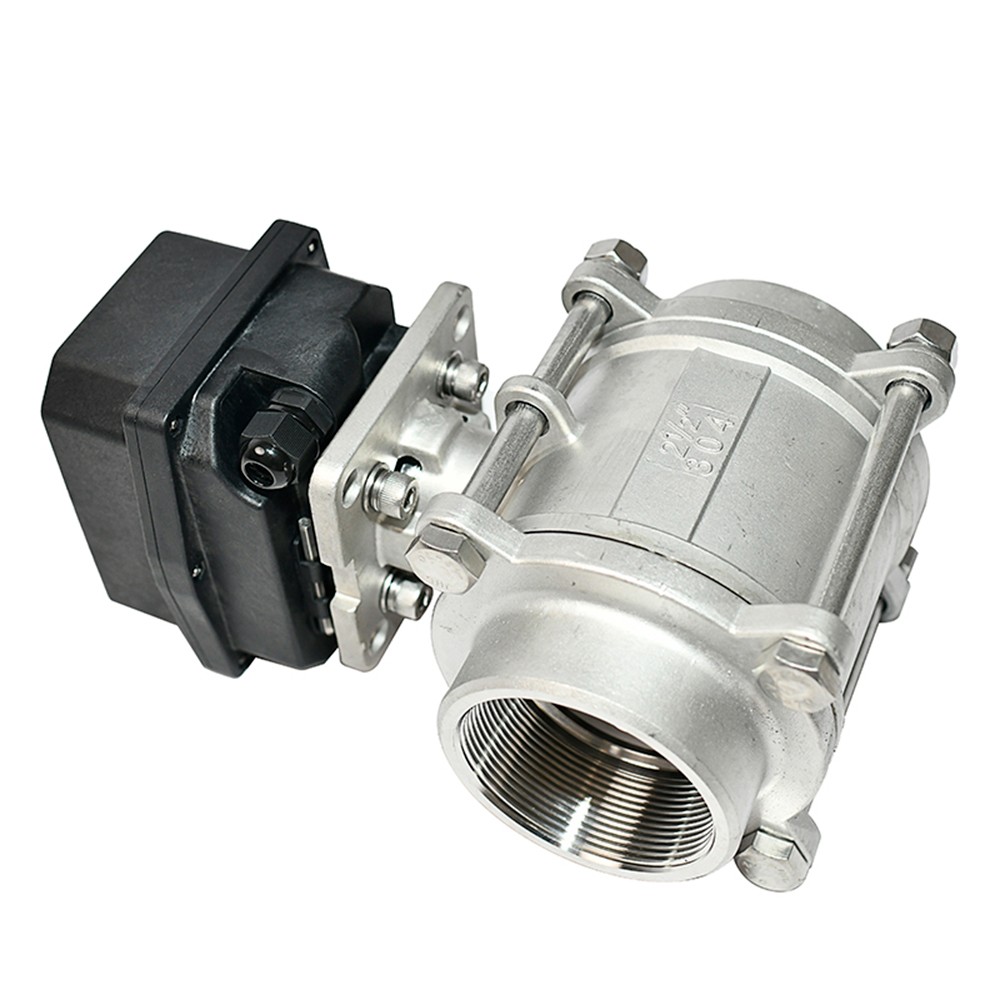

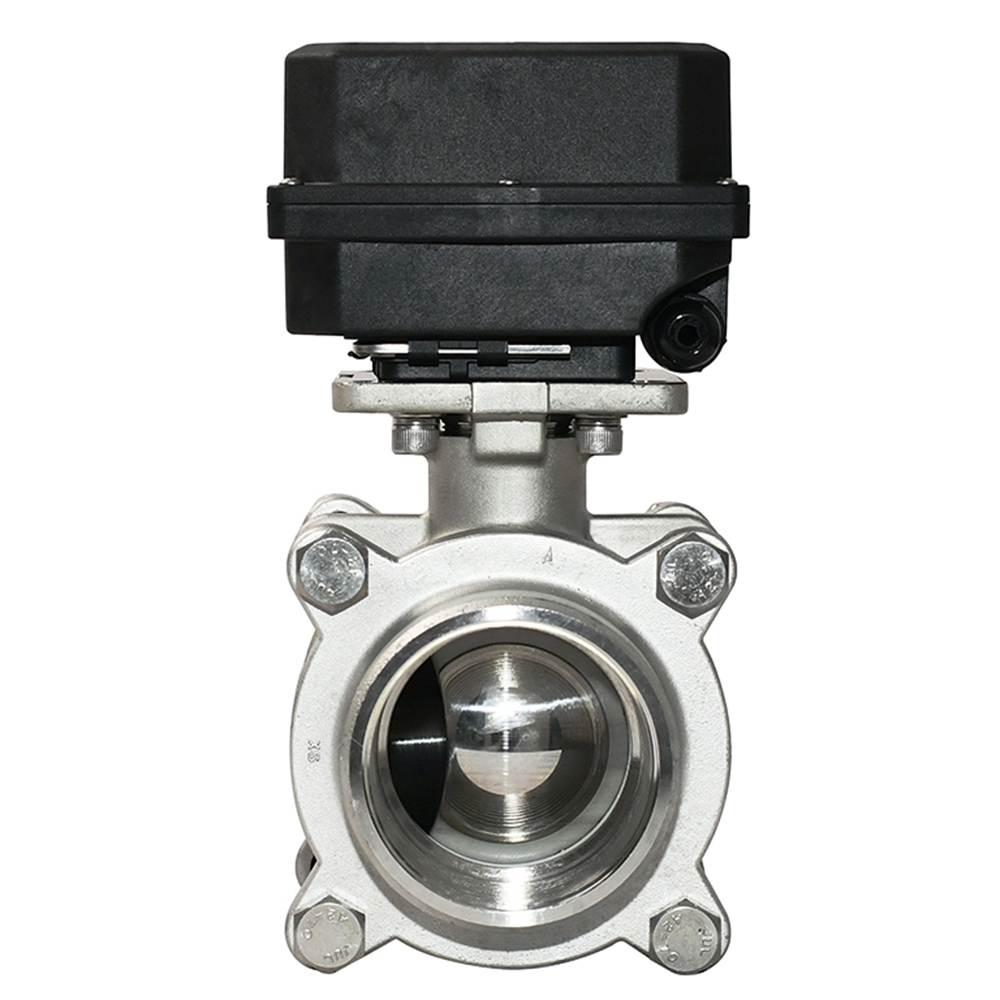

50Nm Stainless Steel 2 Way Ball Valve High pressure 3-Pcs type BSP/NPT Thread

50Nm SS304 2 Way Electric Ball Valves from DN32 to DN80

TFA550 series 50Nm SS304 2 Way electric valves：
Features：
1. Torque force: 50Nm
2. Power supply: DC12V,DC24V
3. Running time: ＜15 seconds
4. Size: DN32, DN40, DN50, DN65, DN80
5. Material: Stainless 304/316
6. Connection: BSP, NPT
7. Temperature: (2~90℃);
8) Maximum pressure: 1.0Mpa

Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.

Specifications:

Rated voltage: DC12V, DC24V	Wiring : CR201,CR303, CR501,CR603,(Optional)
Working current:	≤2.8 A
Open/close time:	≤15S
Life time:	30000 times
Actuator material:	Engineering Plastics PPO
Gears material:	Metal Gears
Actuator rotation:	90 degree
Max. torque force:	50 Nm
Cable length:	0.5m, 1.5m(Optional)
Manual override:	Yes
Indicator:	Yes
Protection class:	IP68
Connection Standard	ISO5211 F03,F05
Output axis	Female octagonal 14*14mm
Work with different valves	Stainless steel two-way three-piece ball valve DN65/DN80
	Stainless steel sanitary quick-install 2-way ball valve T38/T45/T51;
	Stainless steel clamp butterfly valve DN50/DN65/DN80;
	Stainless steel quick-install butterfly valve T63/T76
	PVC Clamp Butterfly Valve DN50/DN65/DN80;
	PVC True Union Ball Valve with stainless steel bracket DN65/DN80
	Stainless steel horizontal 3-way ball valve DN32/DN40
	Stainless steel horizontal tee-quick ball valve DN32/DN40
	Stainless steel sanitary three-way ball valve DN38; DN45;
Valve body
Valve size	DN32, DN40, DN50, DN65, DN80
Valve body material:	SS304/ SS316/ SS316L(Optional)
Connection end:	NPT/ BSP(Optional)
Valve type	2 Way
Maximum working pressure:	1.0MPa
Circulation medium:	Fluid, Air
Sealing material:	EPDM, PTFE, FKM (Optional)
Environment temperature:	-15℃ ~ 50℃
Liquid temperature:	2℃ ~ 90℃
