50Nm UPVC Electric Ball Valve DN65/DN80 DC12V, DC24V with manual override

50Nm UPVC Electric Ball Valve DN65/DN80 DC12V, DC24V with manual override

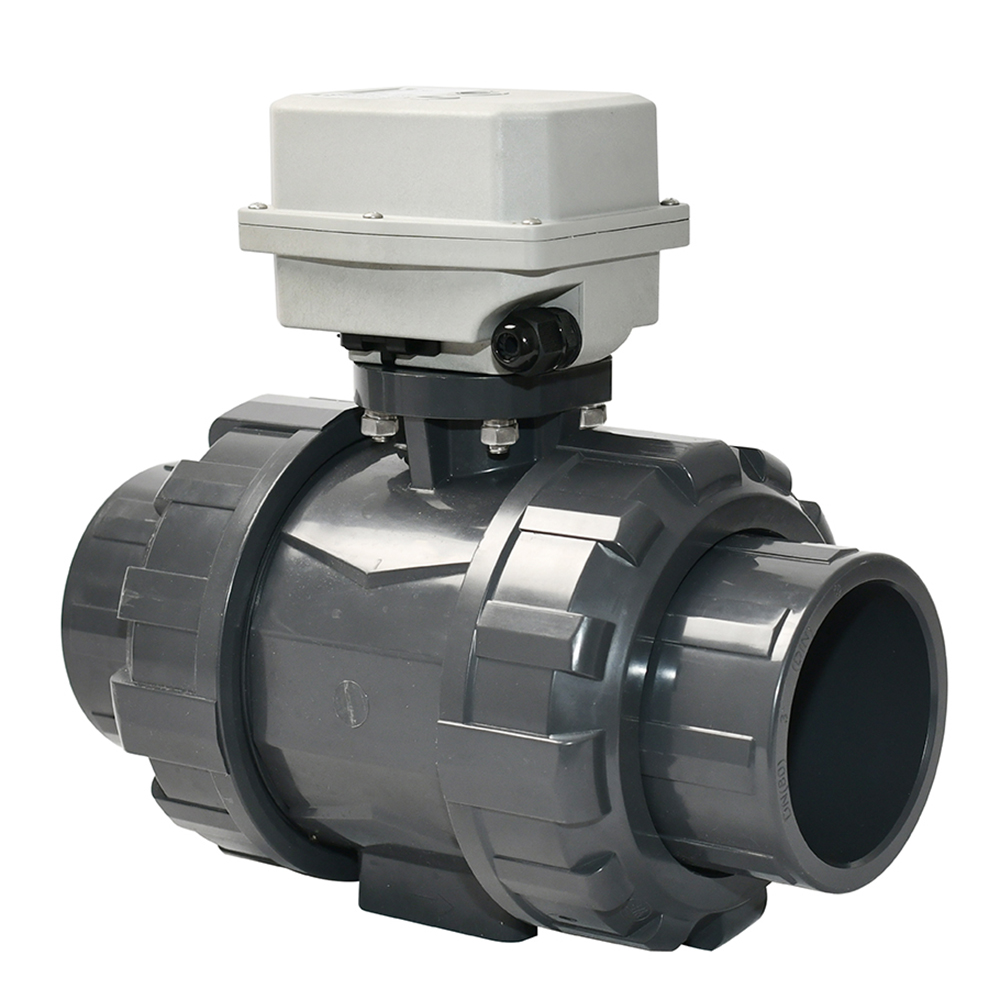

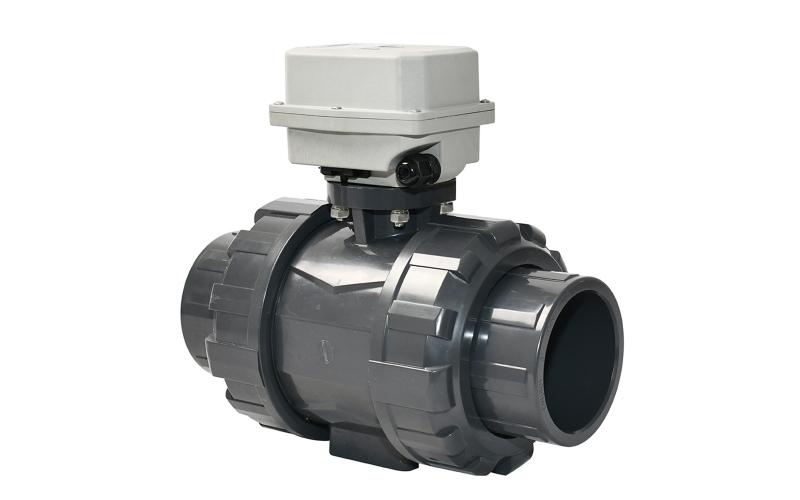

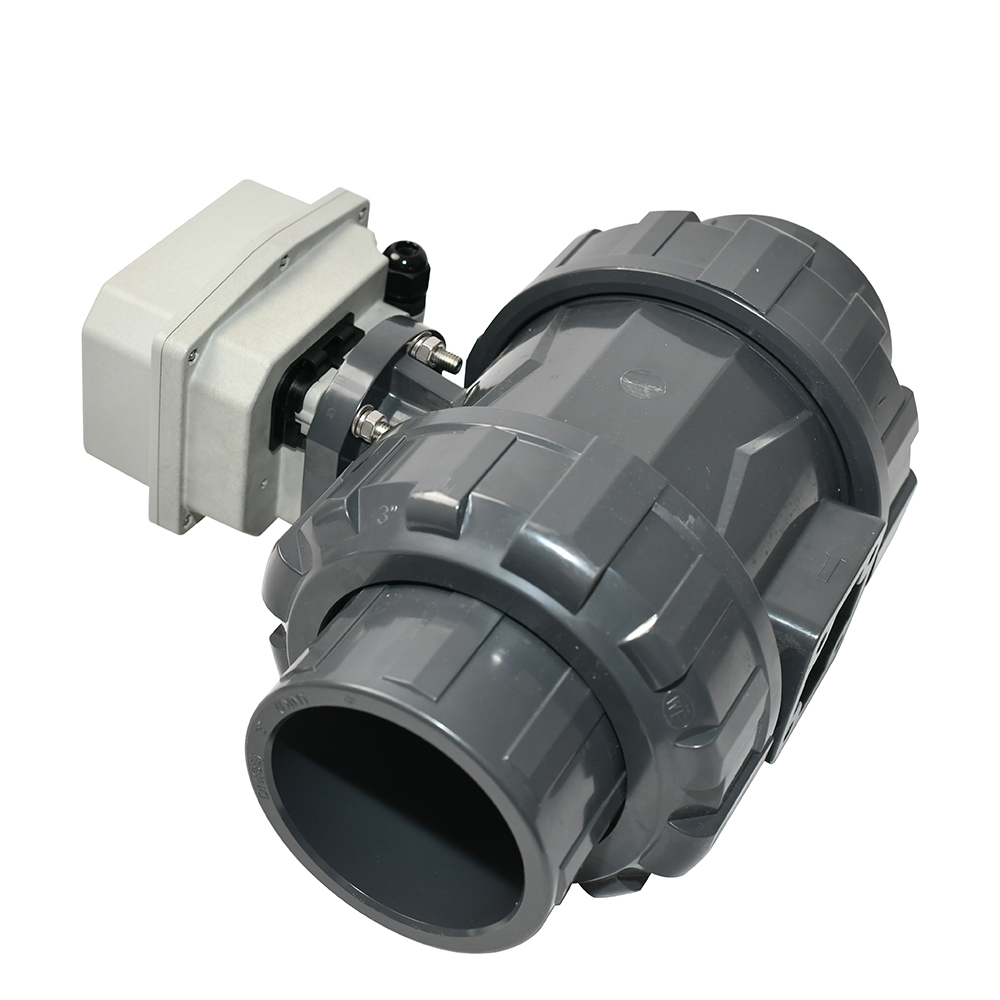

50Nm 2 Way UPVC True Union End Motorized Ball Valve DN65 to DN80

  • TFA550 series 50Nm UPVC 2 Way electric valves:
    Features:
    1. Torque force: 50Nm
    2. Power supply: DC12V,DC24V
    3. Running time: <15 seconds
    4. Size: DN65, DN80
    5. Material: UPVC
    6. Connection: BSP, NPT, Glue End
    7. Temperature: (2~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

TFA550 Series Electric Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201,CR303, CR501,CR603,(Optional)
Working current:≤2.8 A
Open/close time:15S
Life time:30000 times
Actuator material:Engineering Plastics PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:50 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP68
Connection StandardISO5211 F03,F05
Output axisFemale octagonal 14*14mm
Work with different valvesStainless steel two-way three-piece ball valve DN65/DN80
Stainless steel sanitary quick-install 2-way ball valve T38/T45/T51;
Stainless steel clamp butterfly valve DN50/DN65/DN80;
Stainless steel quick-install butterfly valve T63/T76
PVC Clamp Butterfly Valve DN50/DN65/DN80;
PVC True Union Ball Valve with stainless steel bracket DN65/DN80
Stainless steel horizontal 3-way ball valve DN32/DN40
Stainless steel horizontal tee-quick ball valve DN32/DN40
Stainless steel sanitary three-way ball valve DN38; DN45;
Valve body
Valve sizeDN65, DN80
Valve body material:UPVC
Connection end:NPT/ BSP/Glue end (Optional)
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 55

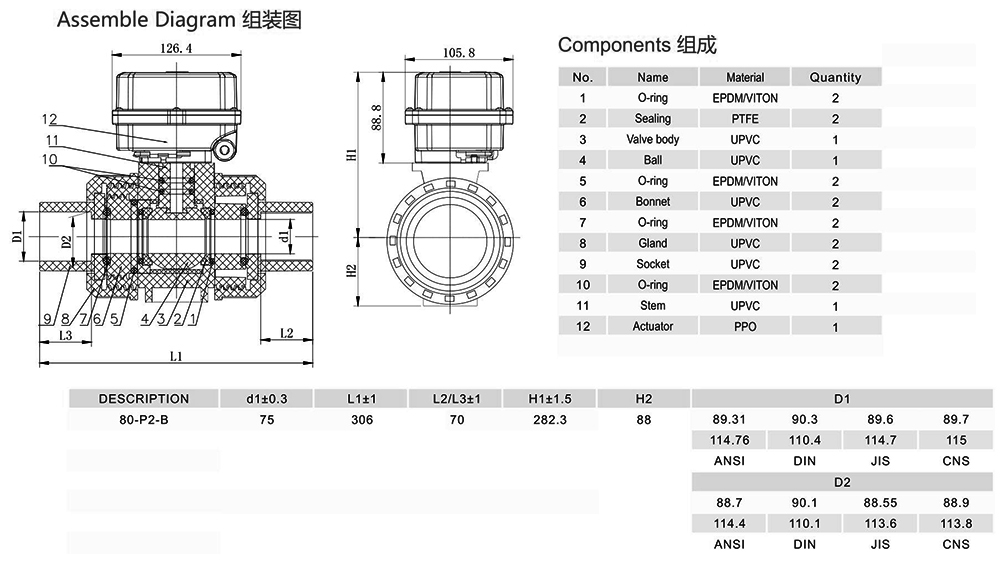

Dimensions:
