Spefications:
| Actuator | |
| Rated voltage: DC3V | 2 Pcs of AA batteries in Actuator |
| Protocol: | LORAWAN 868 MHz 915 MHz |
| Locked-Rotor Current: | ≤500MA |
| Open/close time: | ≤5S/90 degree |
| Life time: | 70000 times |
| Actuator material: | Engineering plastics |
| Gears material: | Metal Gears |
| Actuator rotation: | 90 degree |
| Max. torque force: | 2 Nm |
| Cable length: | 0.5m, 1.5m(Optional) |
| Manual override: | Yes |
| Indicator: | Yes |
| Protection class: | IP67 |
| Valve body | |
| Valve size | DN8, DN10, DN15,DN20, DN25 |
| Valve body material: | SS304/SS316/SS316L |
| Connection end: | NPT, BSP thread (Optional) |
| Valve type | 2 Way |
| Maximum working pressure: | 1.0MPa |
| Circulation medium: | Fluid, Air |
| Sealing material: | EPDM, PTFE, FKM (Optional) |
| Environment temperature: | -15℃ ~ 50℃ |
| Liquid temperature: | 2℃ ~ 55℃ |

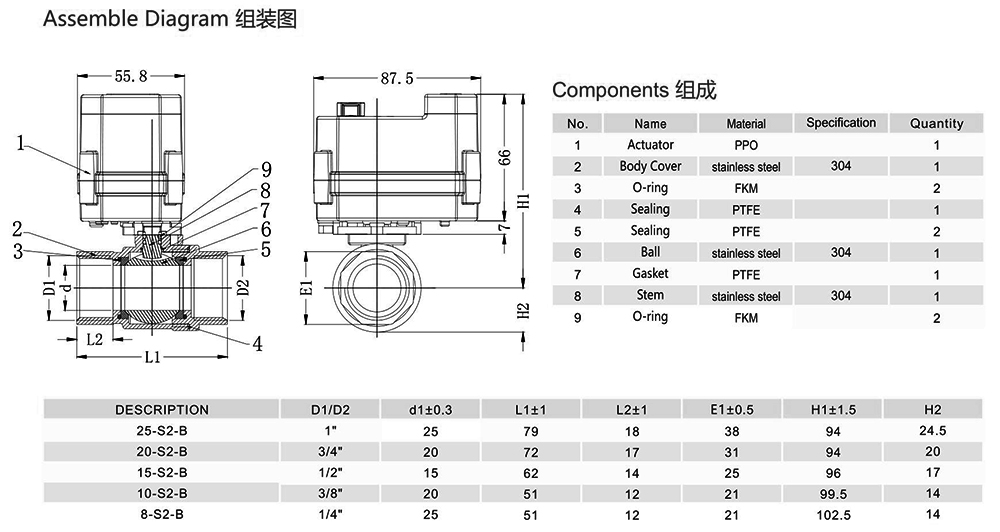

Dimensions:

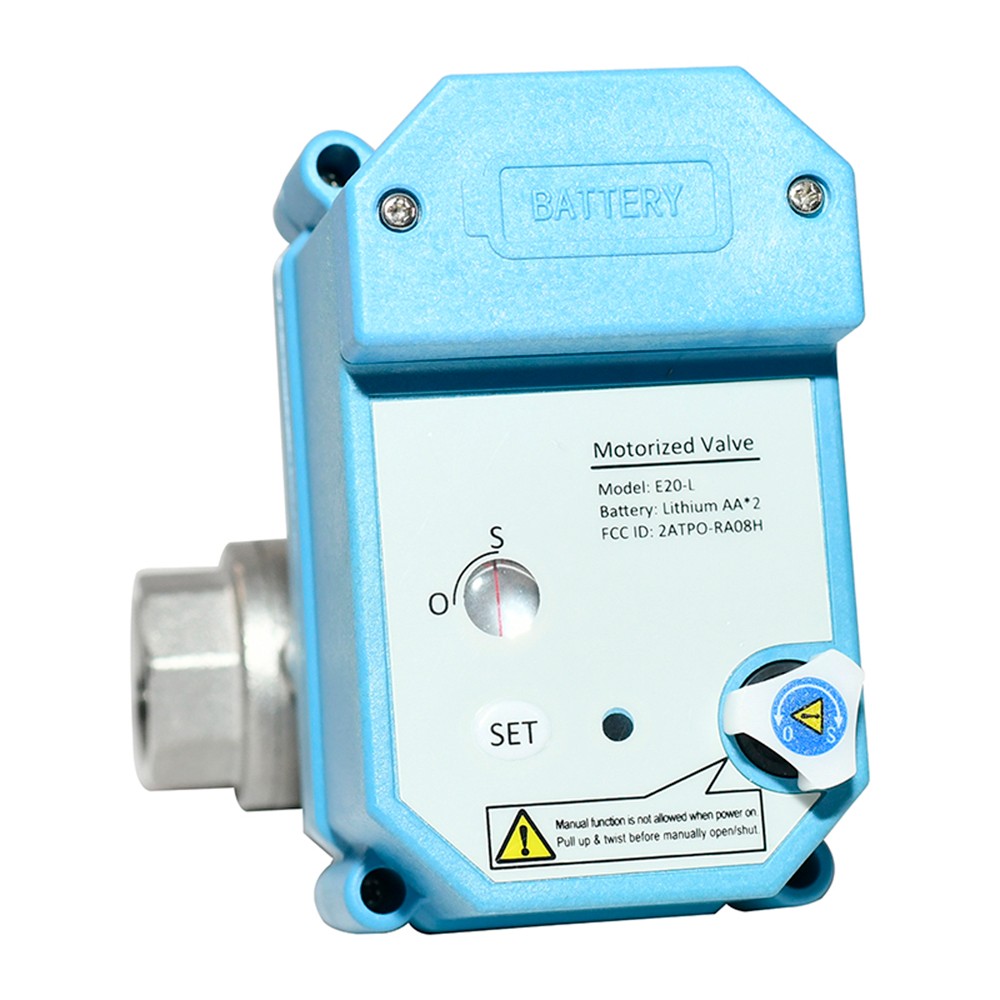

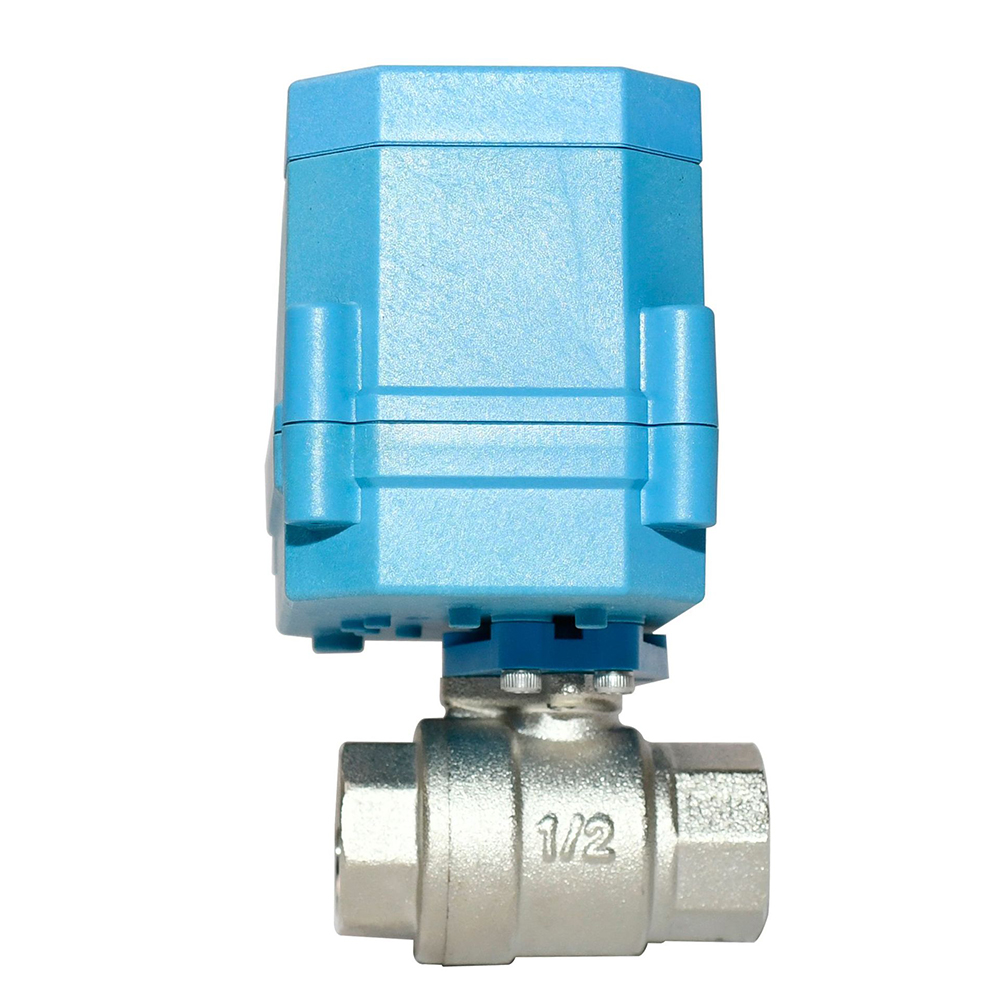

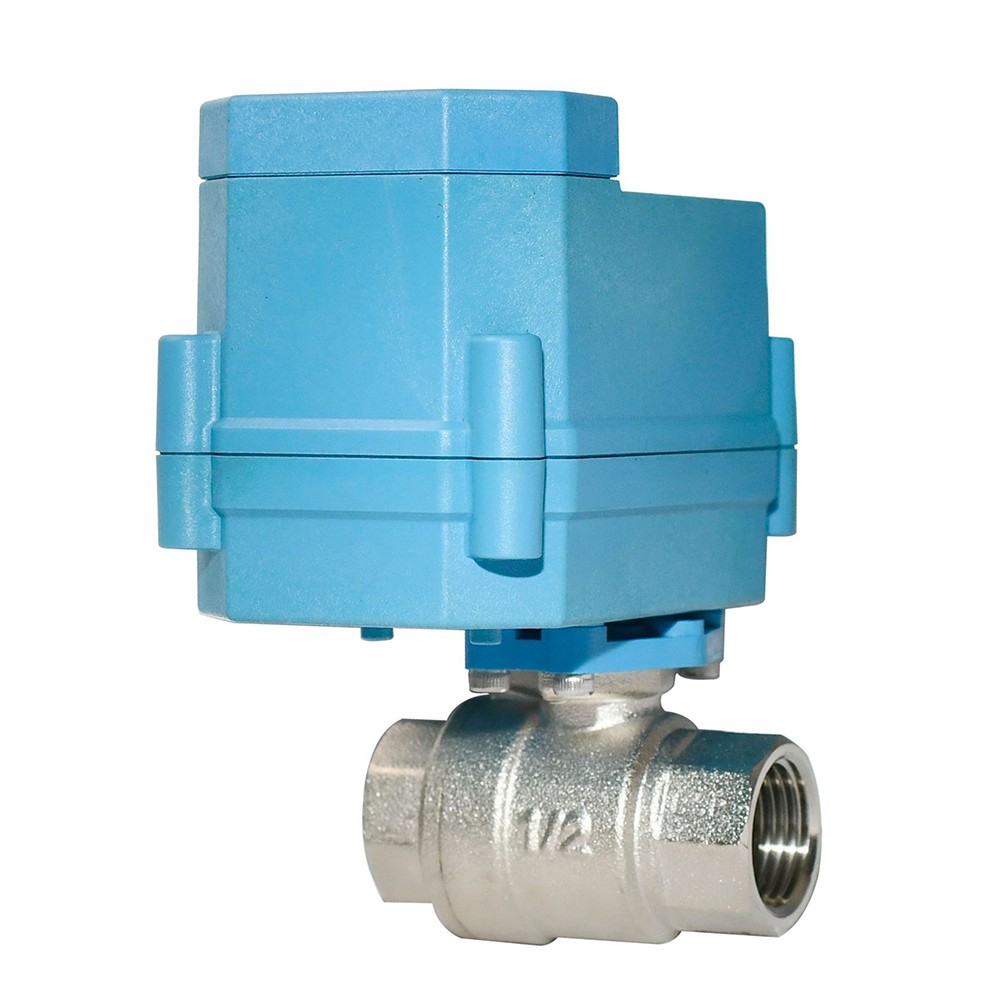

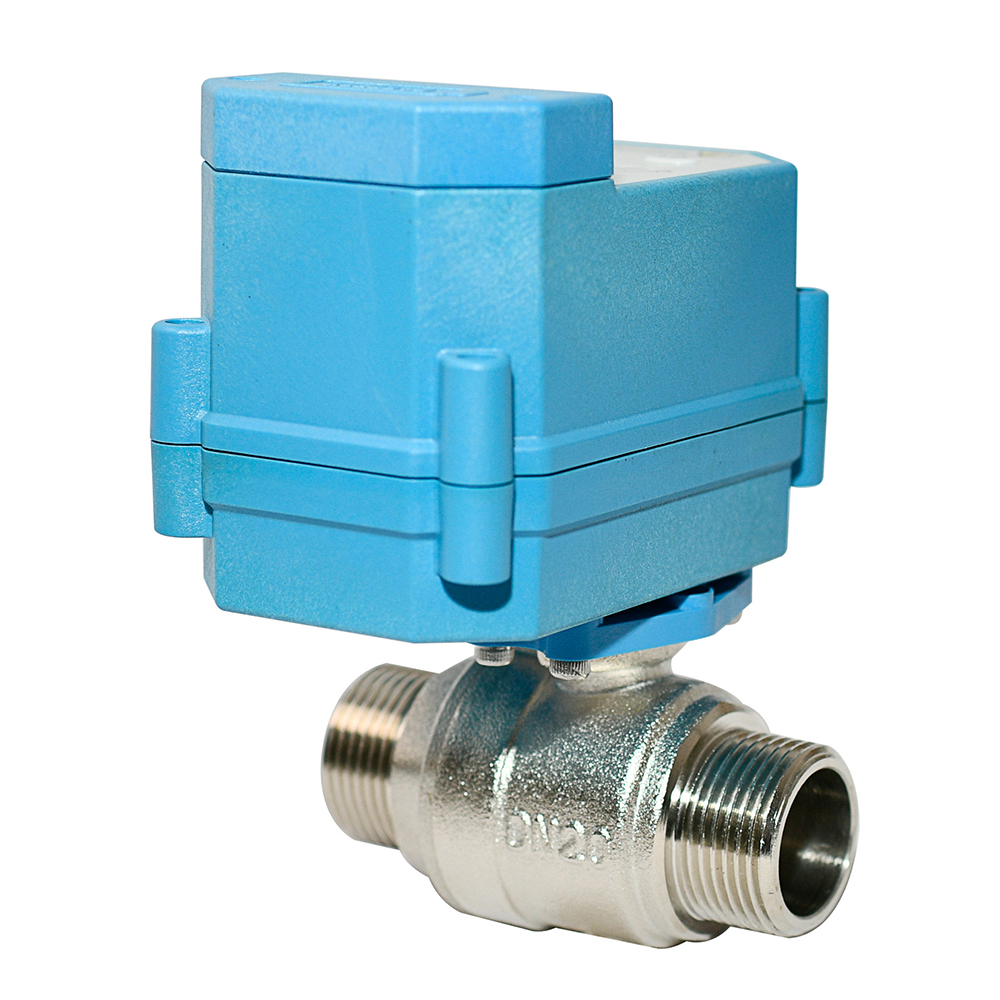

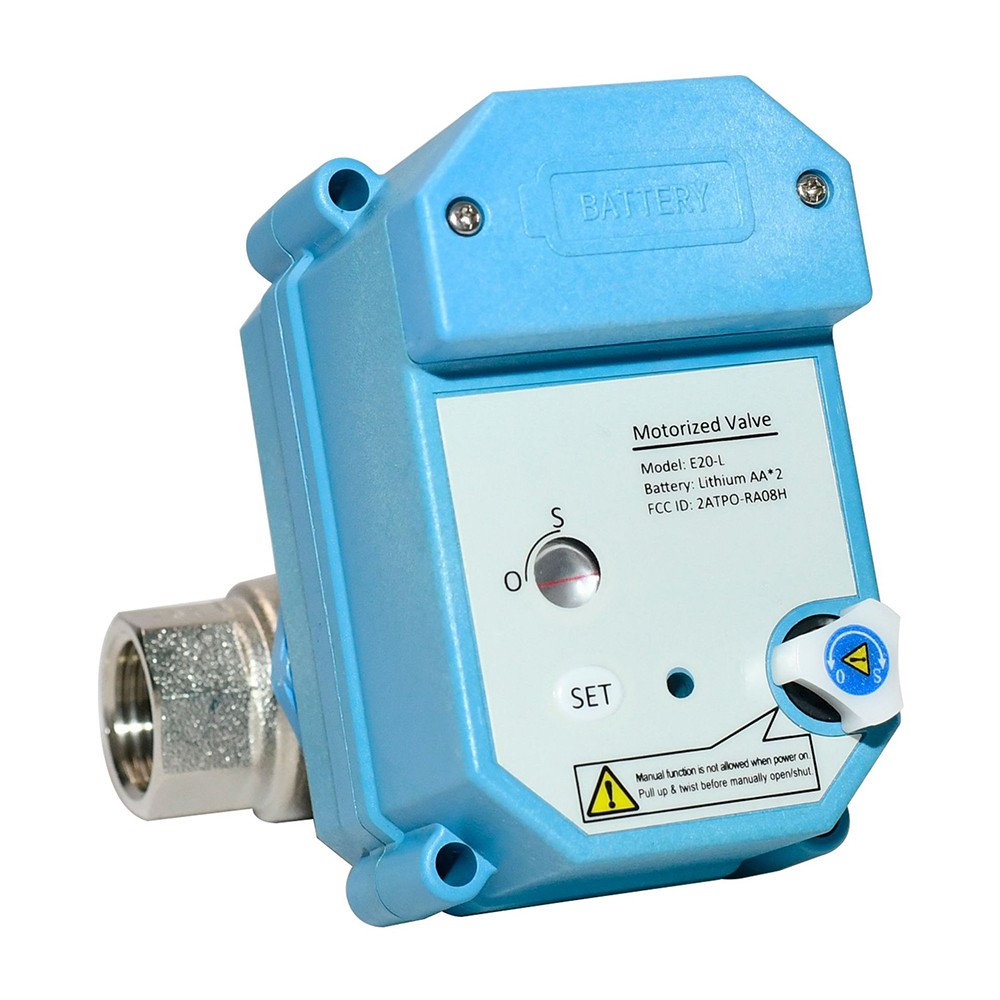

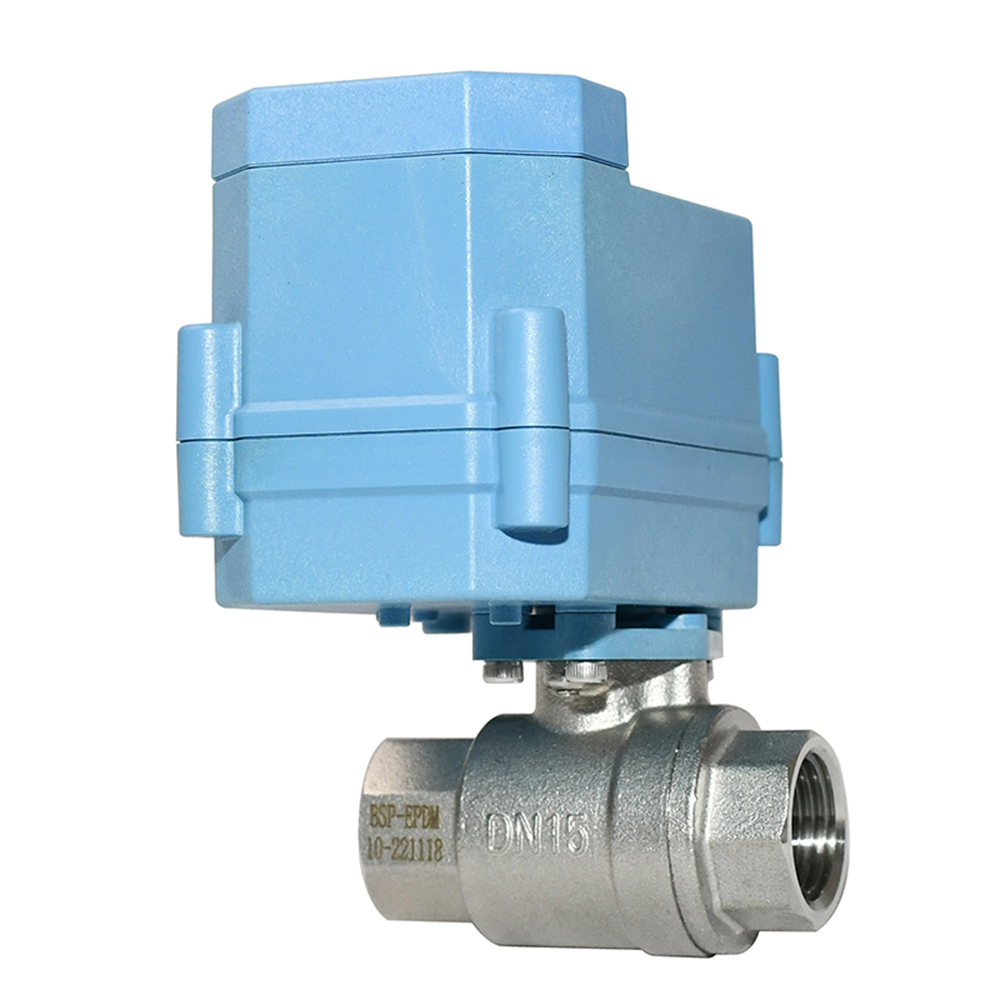

Photos:
Factory:

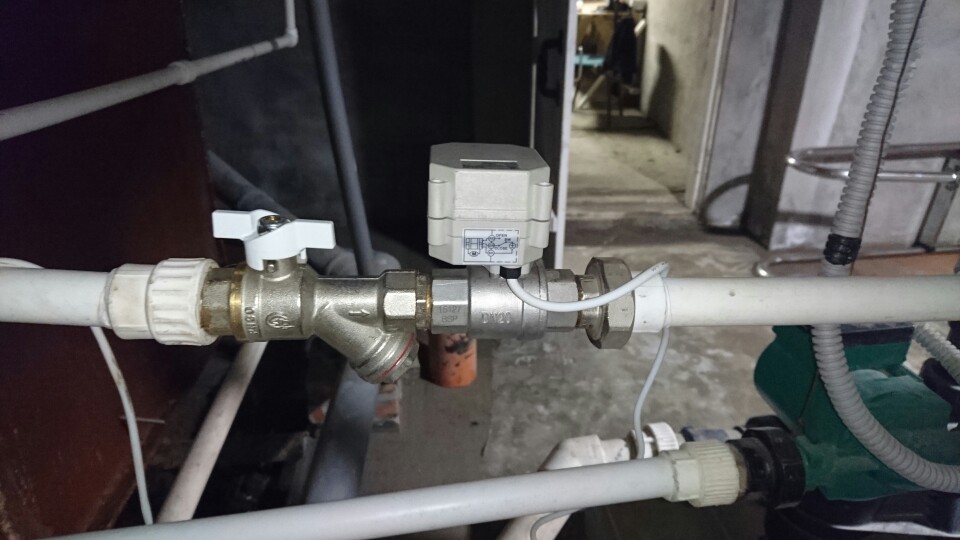

Applications:
