15Nm SS304 Electric Control Valve with Analog control signal 0-5V/0-10V/4-20mA

Electric Linear Control Valve 2 Way SS304 with analog 0-5V/0-10V/4-20mA Size from DN15 to DN50

• TFMA150-T-B Series 2 Way SS304 Proportional Valve：
  Features：
  1. Torque force: 15Nm
  2. Power supply: DC12-24V
  3. Control signal: ＜0-5V, 0-10V, 4-20mA

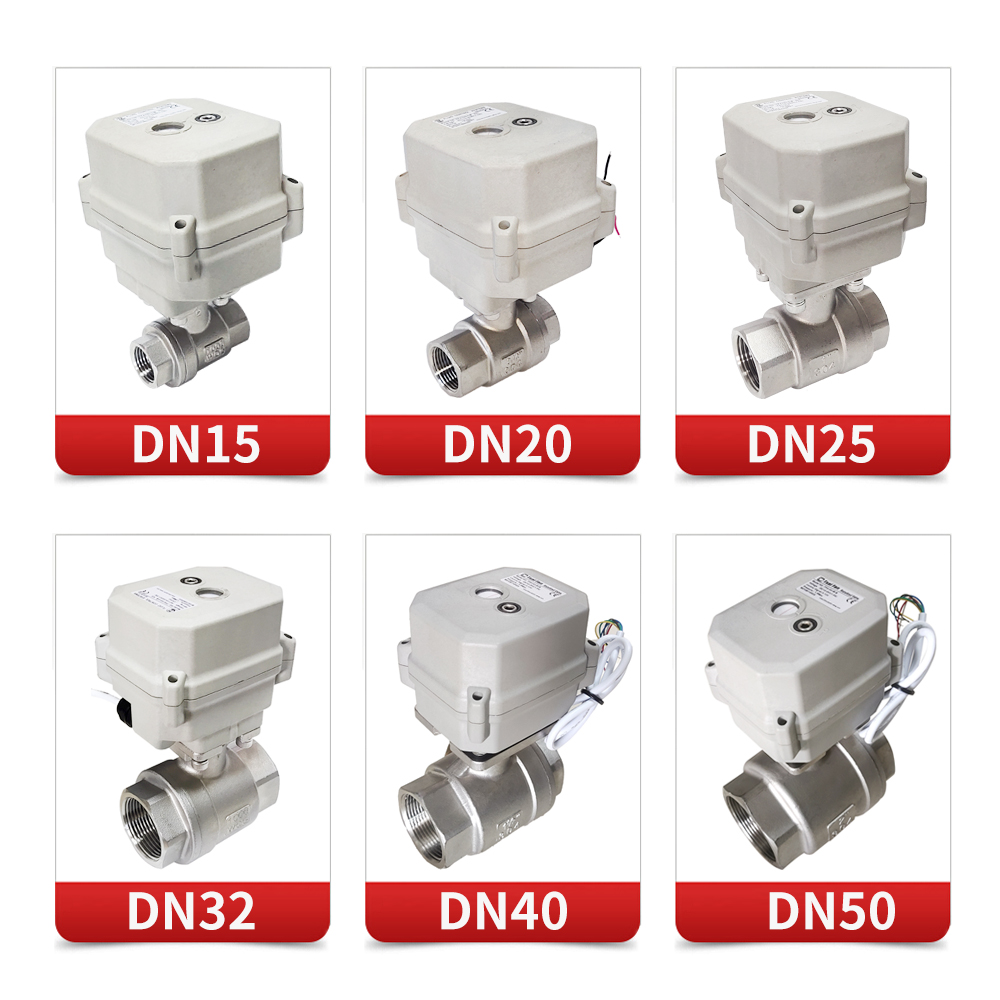

  4. Size: DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50
  5. Material: SS304/SS316/SS316L
  6. Connection: BSP,NPT thread
  7. Temperature: (2~90℃);
  8) Maximum pressure: 1.0Mpa

  Advantages：
  1. Electric drive, remote switching control, convenient for automation system.
  2. Different wiring diagram to meet various control methods.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Manual override & Positing indicator optional.
  6. 100% ON/OFF testing before shipping.
