15Nm Electric Proportional Ball Valve, UPVC material 2 Way True Union type ISO5211 Standard connection

15Nm Electric Proportional Ball Valve, UPVC material 2 Way True Union type ISO5211 Standard connection

2 Way Electric Proprotional Ball Valve, UPVC material, True Union End from DN15 to DN50

  • TFMA150-T-B Series 2 Way UPVC Proportional Valve:
    Features:
    1. Torque force: 15Nm
    2. Power supply: DC12-24V
    3. Control signal: <0-5V, 0-10V, 4-20mA
    4. Size: DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50
    5. Material: UPVC, PPH, CPVC
    6. Connection: BSP,NPT thread, Glue End, Melt Welding
    7. Temperature: (5~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Power supply:     DC12 - 24V
Control Singal: 0-5V, 0-10V, 4-20mA  (Optional)
Position feedback output4-20mA
Control positions1.5 A
Open/close time:12S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP67
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm
Valve body
Valve sizeDN15, DN20, DN25, DN32, DN40, DN50
Valve body material:UPVCPPH,CPVC
Connection end:NPT/ BSP/Glue end/Melt Welding (Optional)
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:5 ~ 55

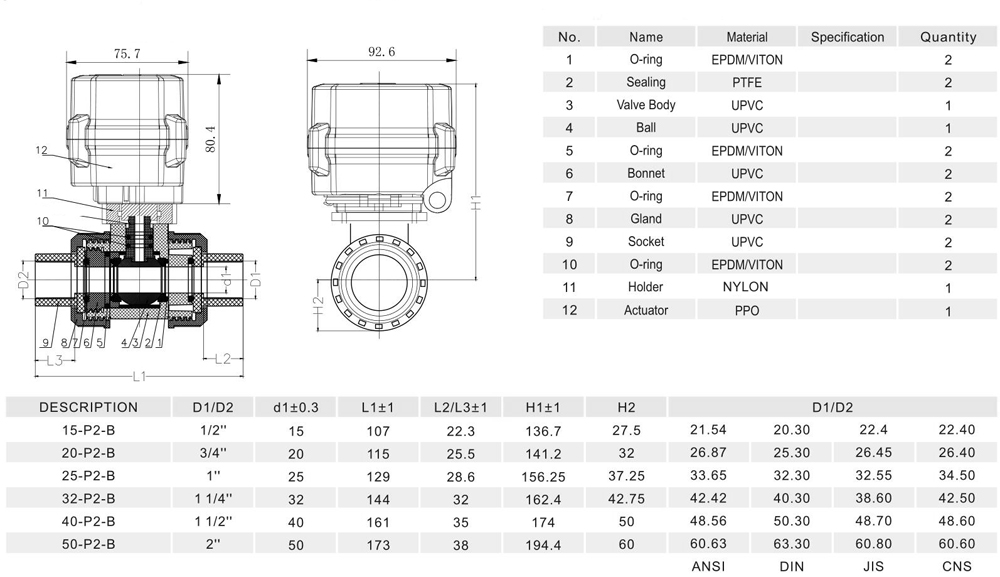

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

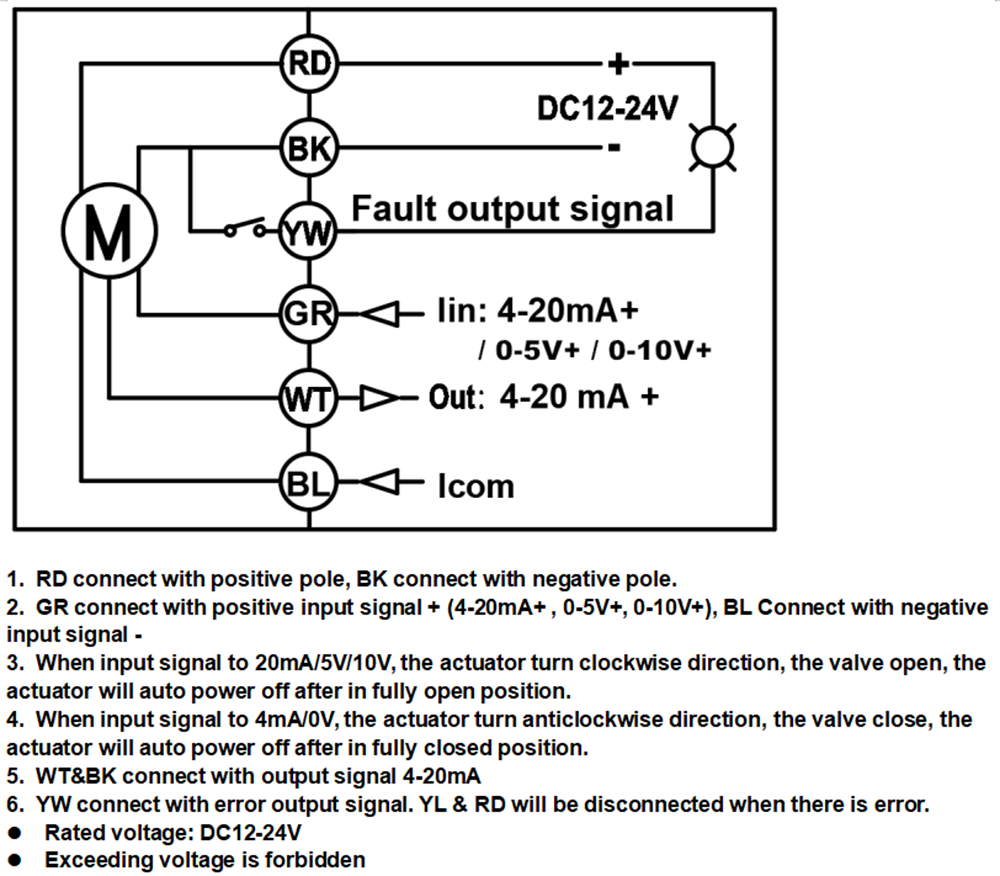

Wiring Diagrams:

MetInfo enterprise content manager system | MetInfo CMS

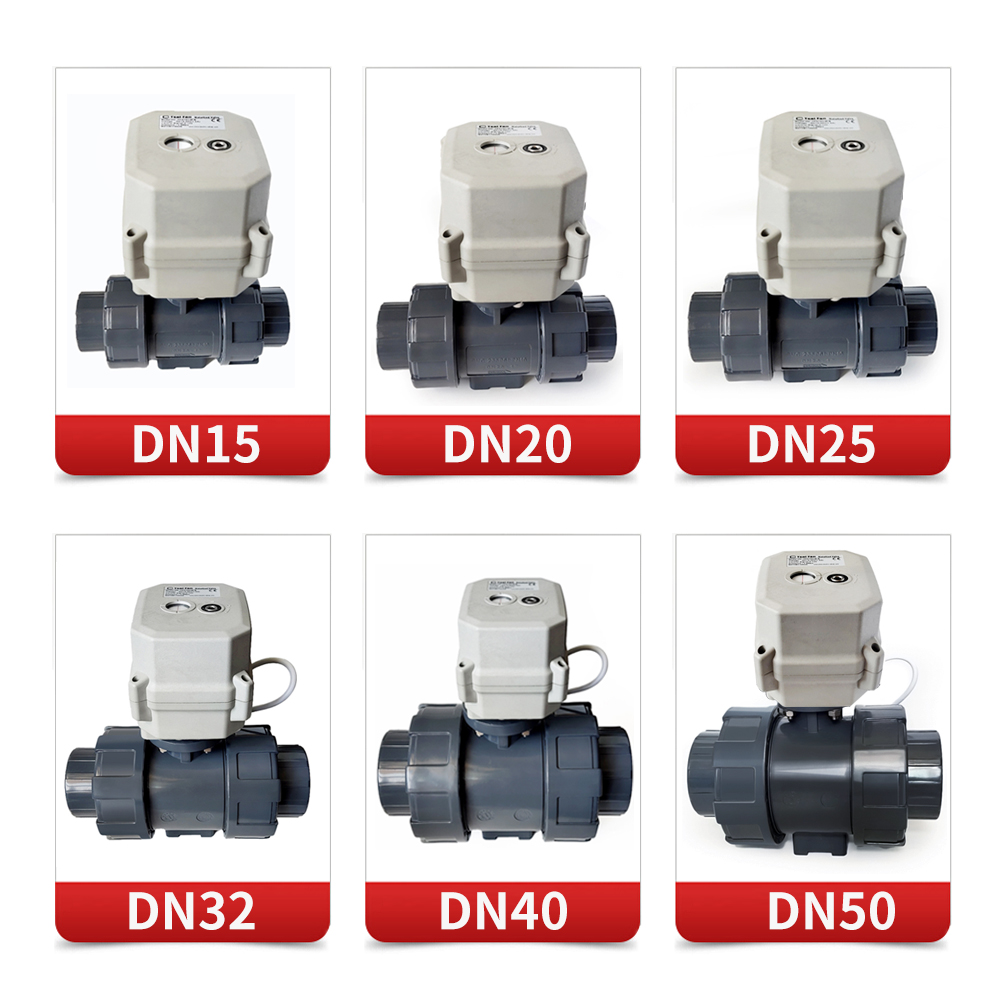

Different sizes:

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

Applications:

MetInfo enterprise content manager system | MetInfo CMS
