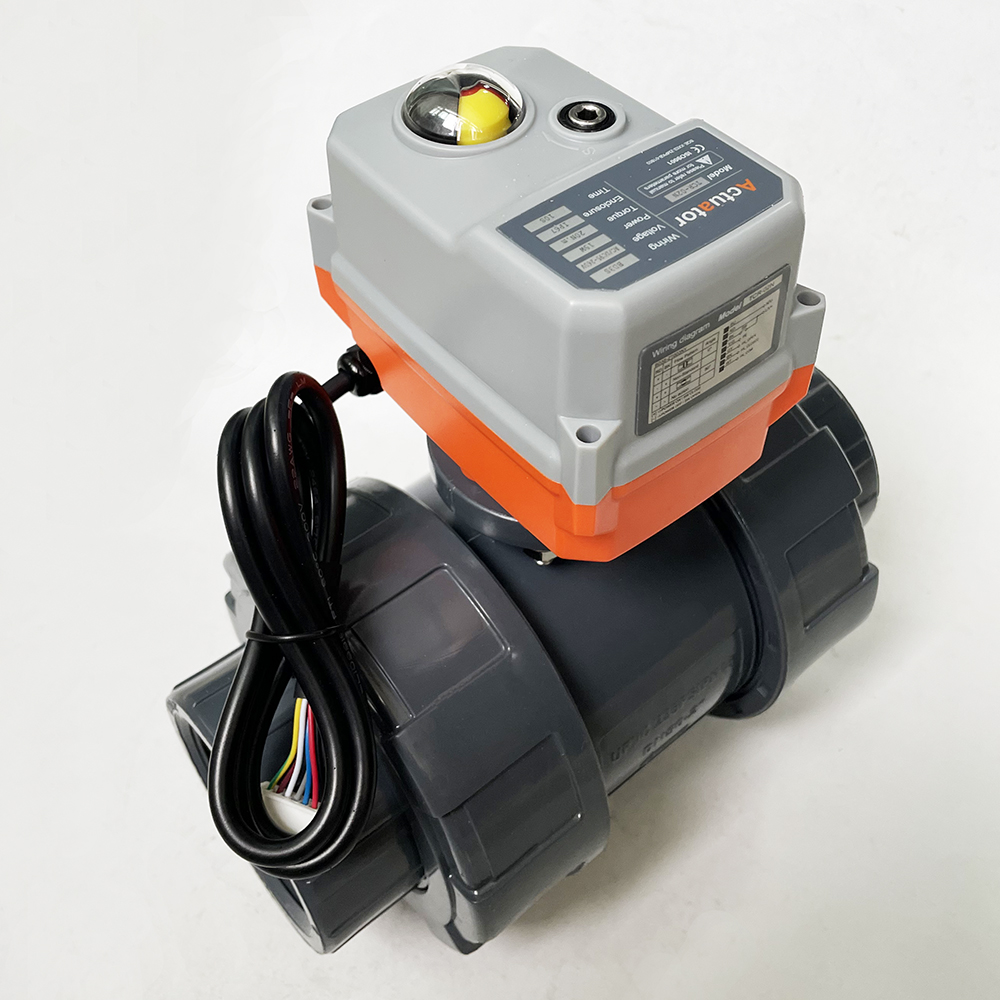

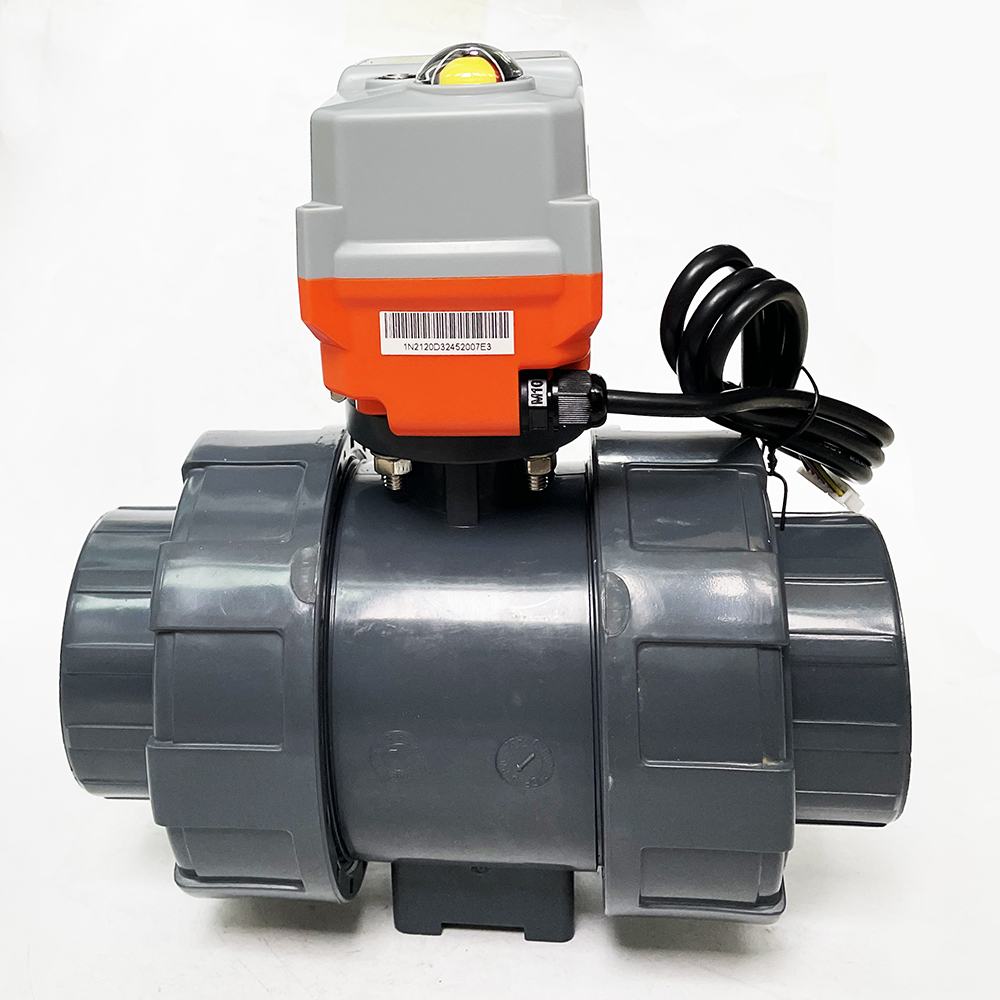

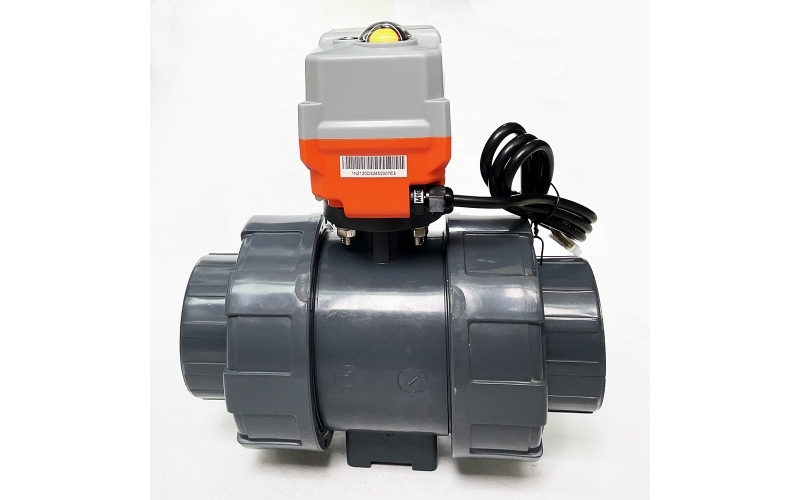

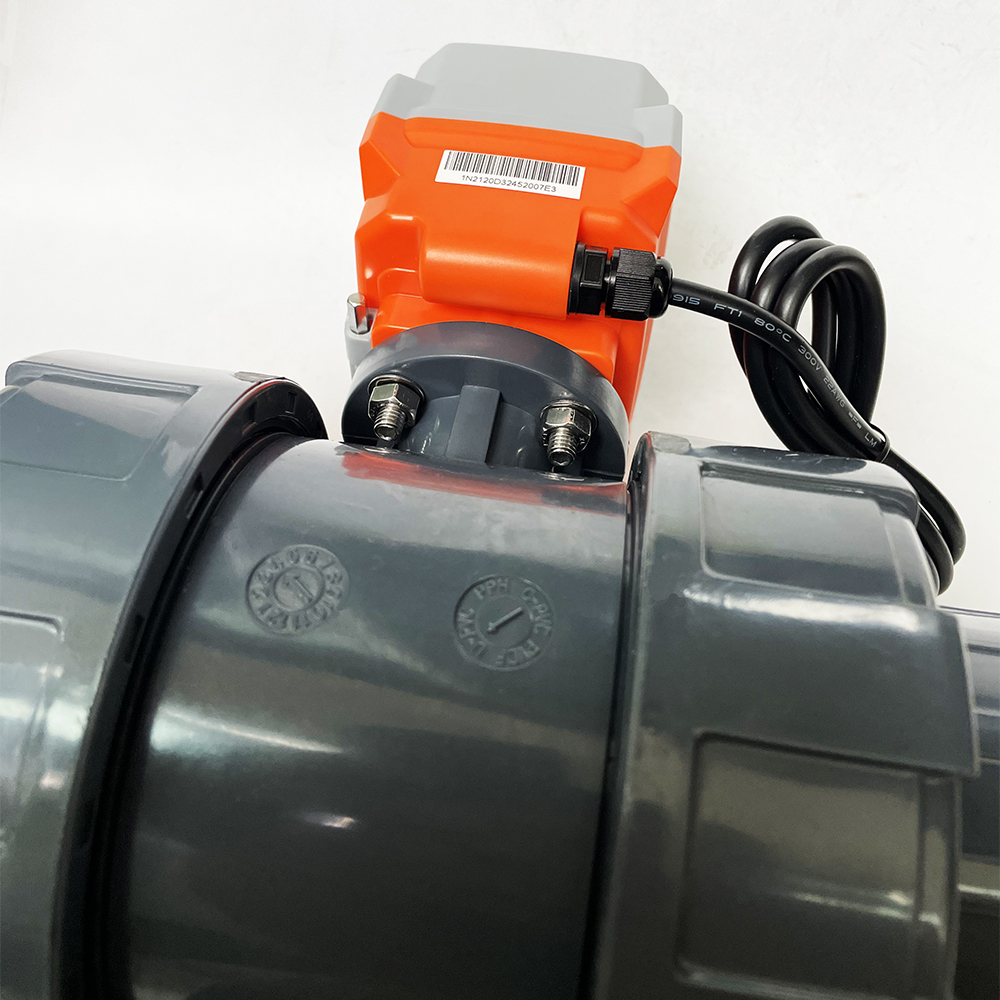

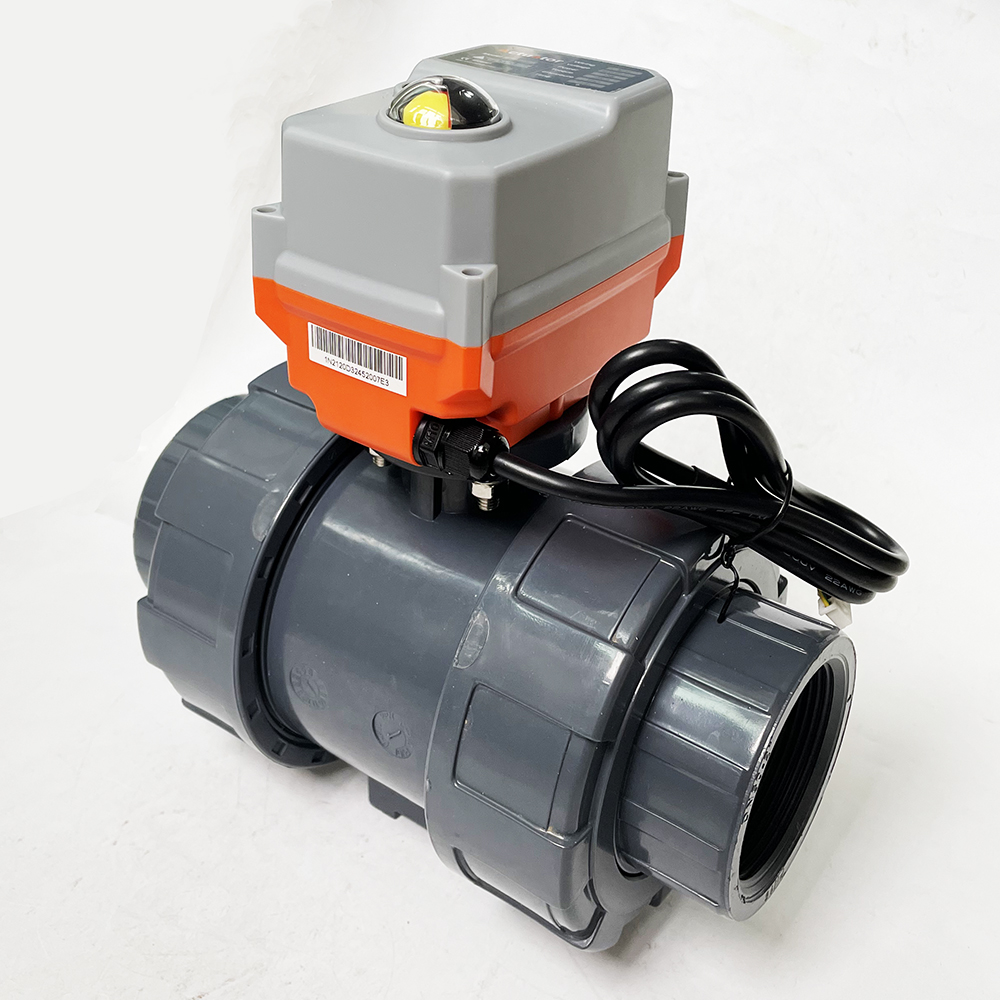

20Nm 2 Way U-PVC Electric Ball Valve, high speed and power off return optional

20Nm 2 Way U-PVC Electric Ball Valve, high speed and power off return optional

20Nm Electric Motorized Ball Valve, True Union End Size from 1/2" to 4"(DN15 to DN100)

  • TF-02N Series 2 Way UPVC Electric Ball Valve:
    Features:
    1. Torque force: 20Nm
    2. Power supply:,DC24V,AC24V,AC95-265V
    3. Running time: <10 seconds
    4. Size: DN15,DN20,DN25,DN32,DN40,DN50,DN65,DN80
    5. Material: UPVC
    6. Connection: BSP, NPT, Glue End(DIN,ANSI,JIS)
    7. Temperature: (2~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. High performance Brushless Motor.
    2. Electric drive, remote switching control, convenient for automation system.
    3. Different wiring diagram to meet various control methods.
    4. 100% Metal Gears inside.
    5. Protection grade IP67.
    6. Manual override & Positing indicator optional.
    7. 100% ON/OFF testing before shipping.
