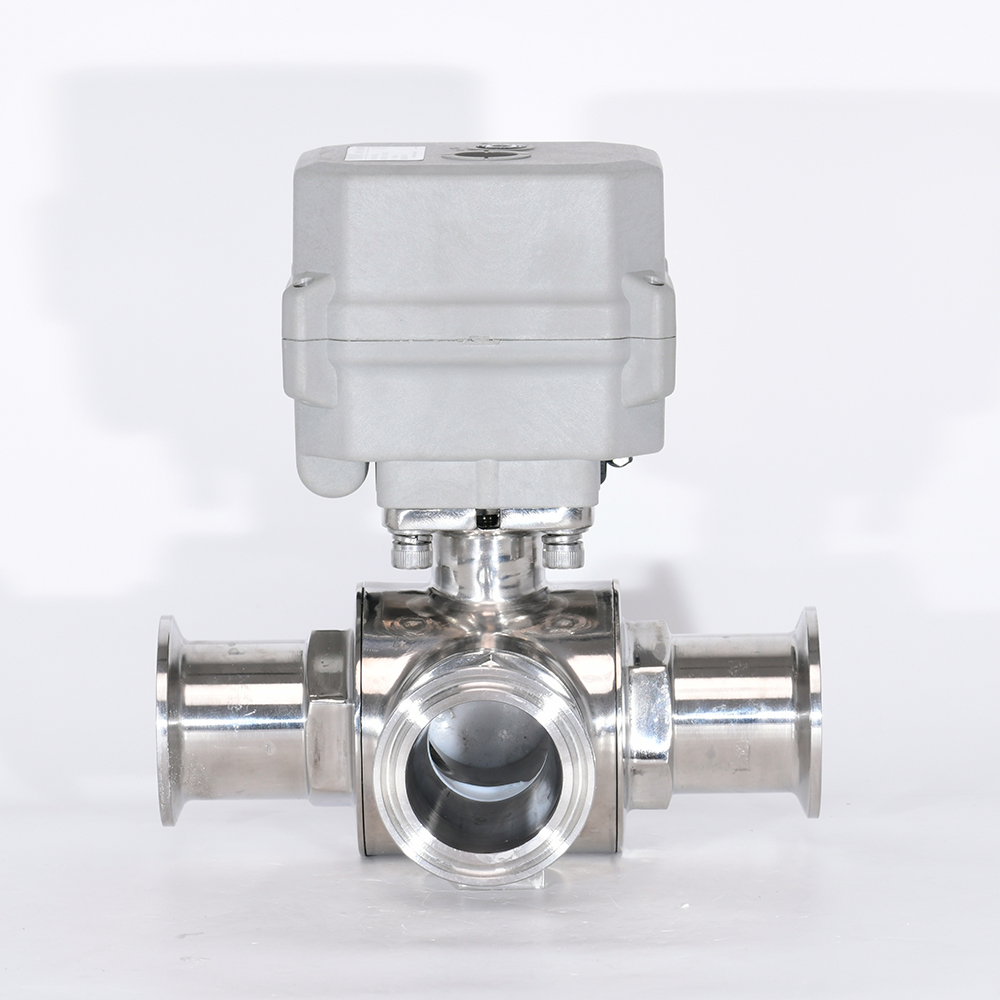

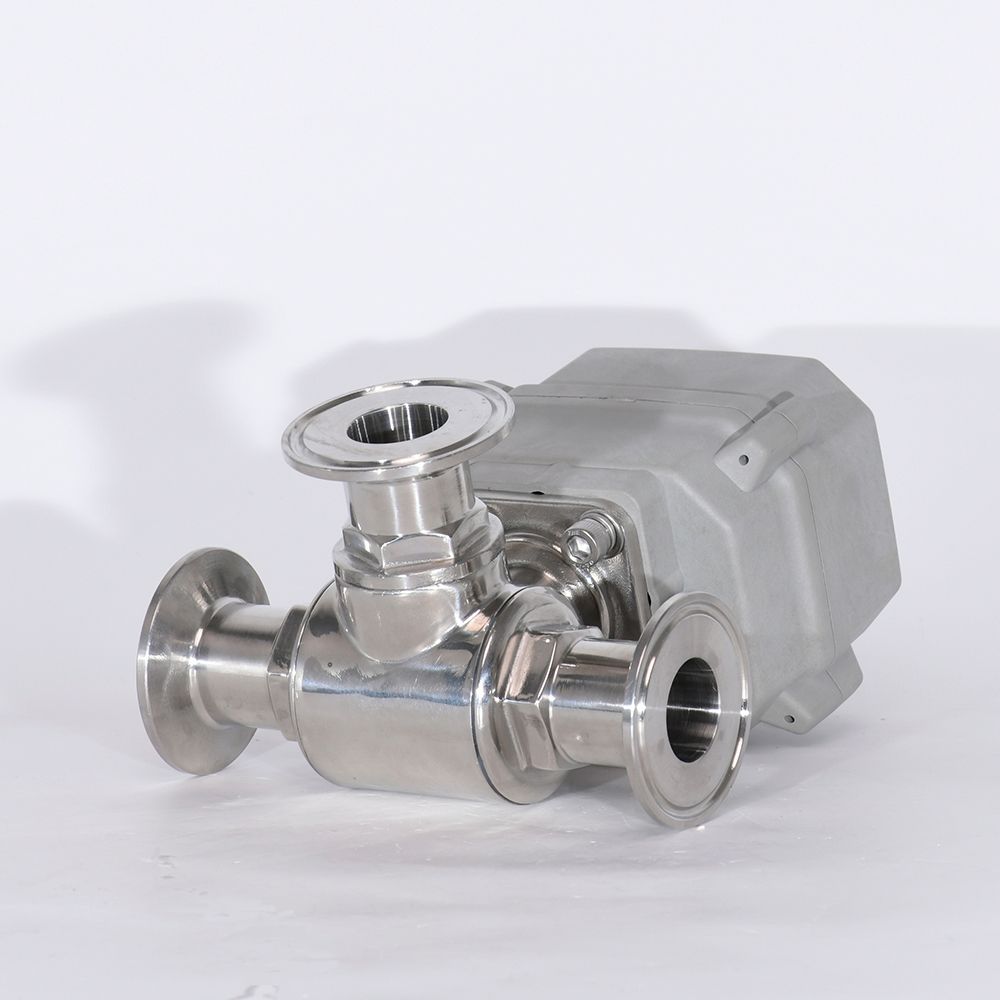

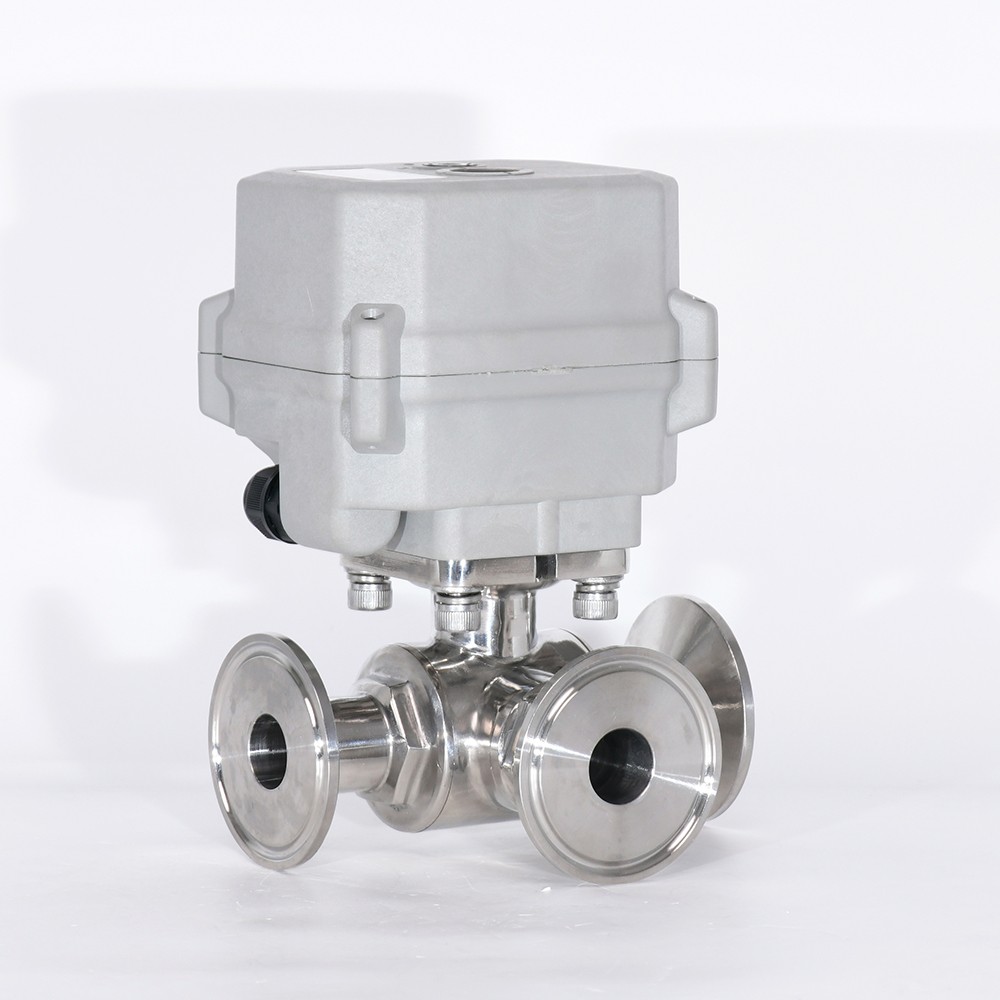

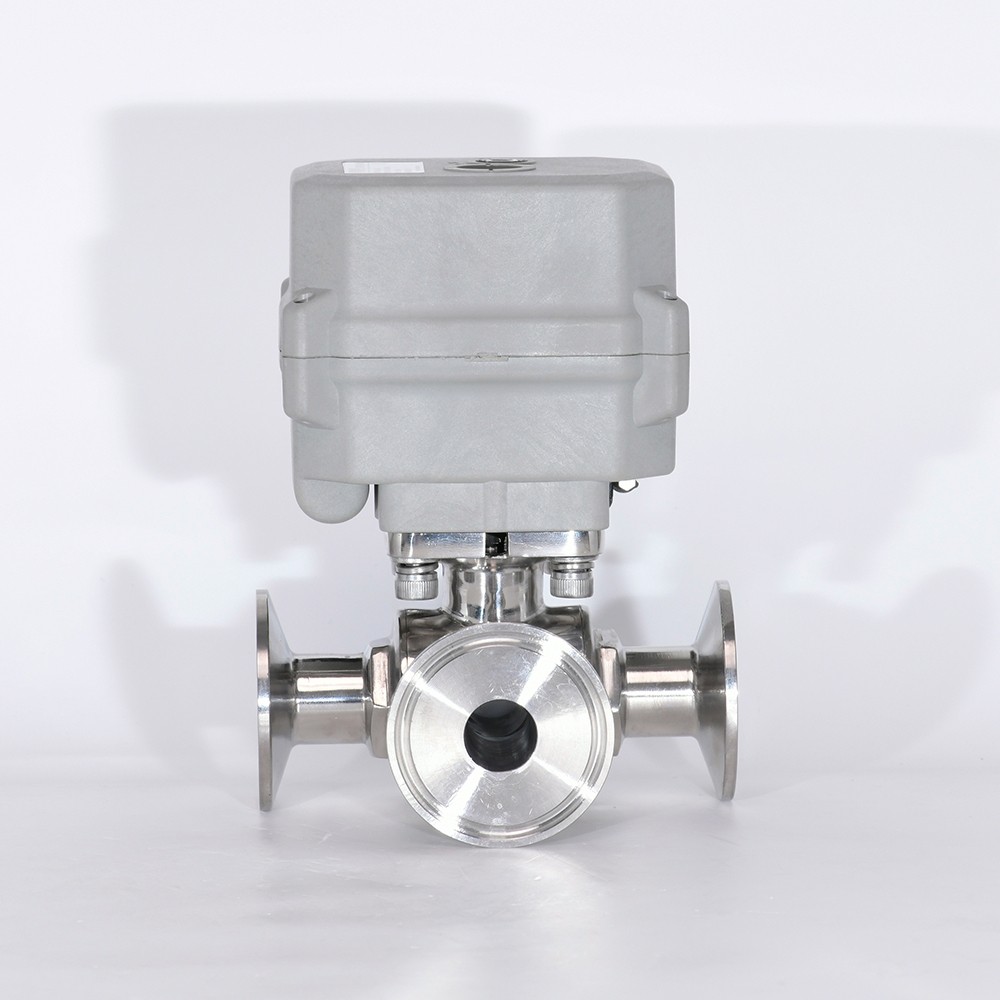

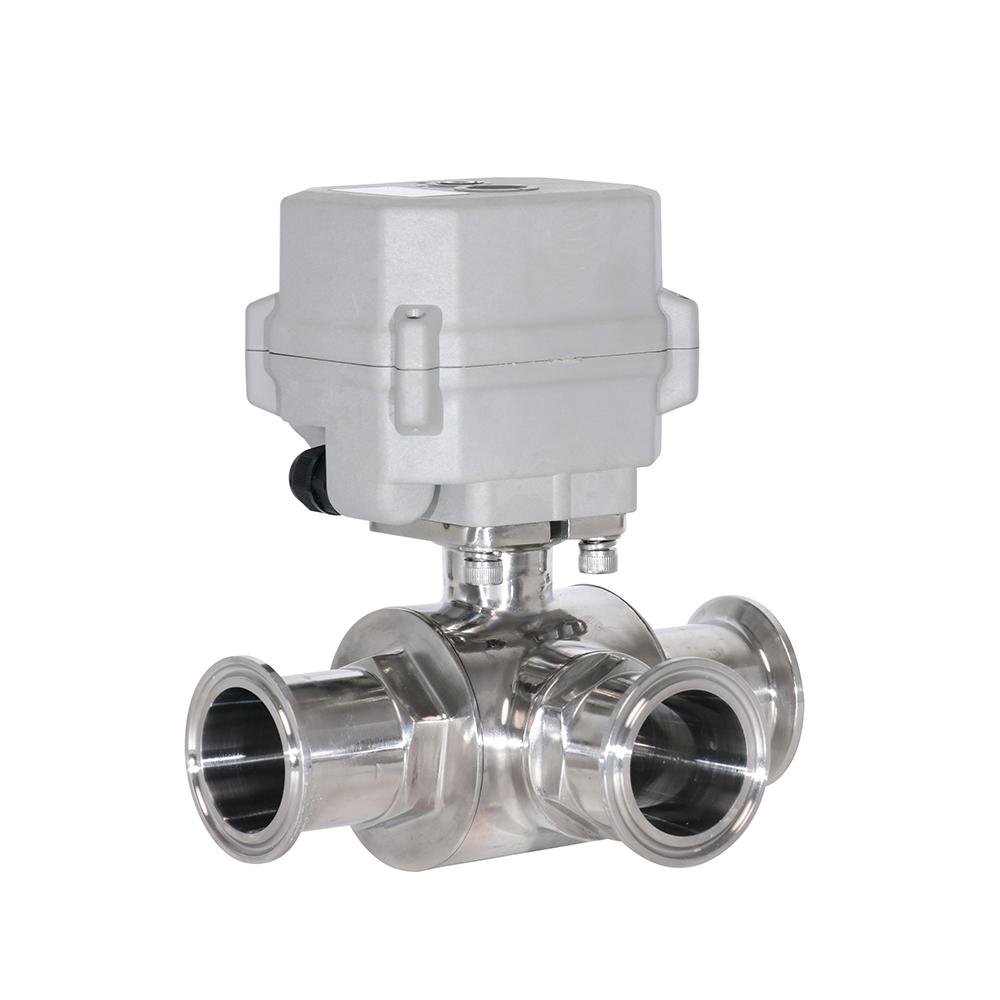

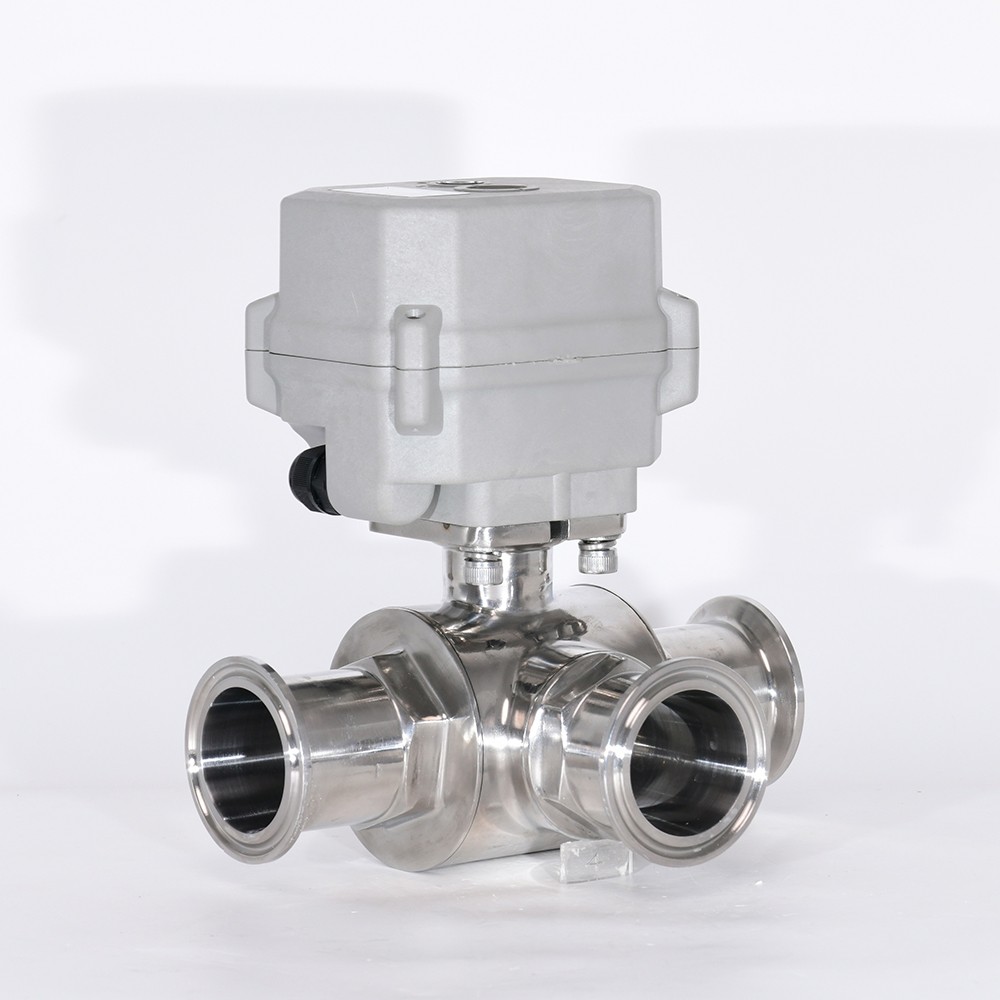

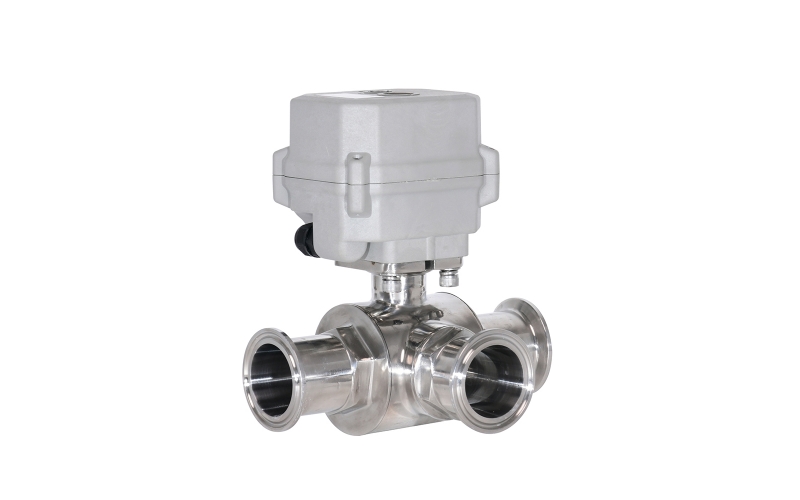

15Nm TFA150 Series 3-Way Tri-clamp Quick connect Electric Ball Valve Sanitary Motorized Valve Mirror polished

15Nm 3-Way Tri-Clamp Connection quick connection Sanitary Electric Ball Valve mirror polished surface

• TFA150 Series 3 Way Tri-Clamp Electric Valve：
  Features：
  1. Torque force: 15Nm
  2. Power supply: DC12V,DC24V,AC24V,AC110-230V
  3. Running time: ＜12 seconds

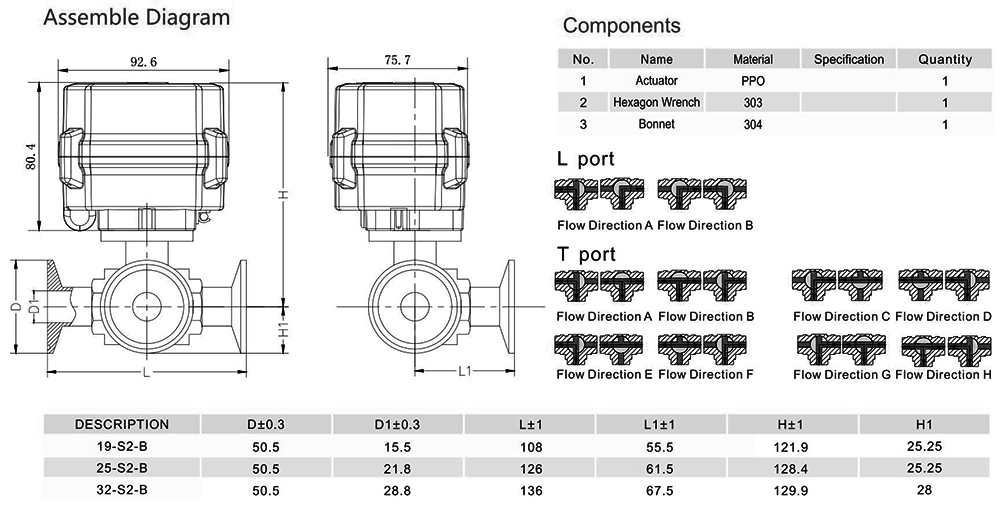

  4. Size: DN19, DN25, DN32, DN38
  5. Material: SS304/316
  6. Connection: 3-Way Tri-Clamp
  7. Temperature: (2~90℃);
  8) Maximum pressure: 1.0Mpa

  Advantages：
  1. Electric drive, remote switching control, convenient for automation system.

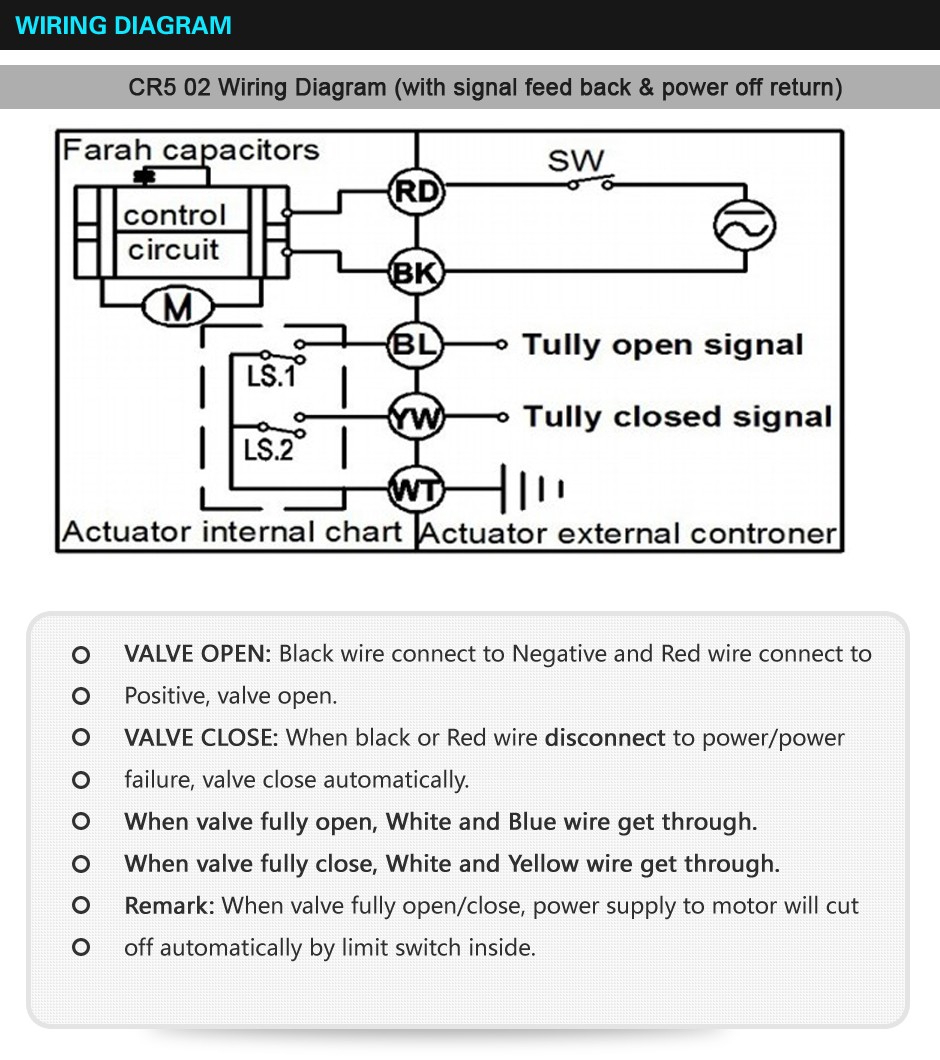

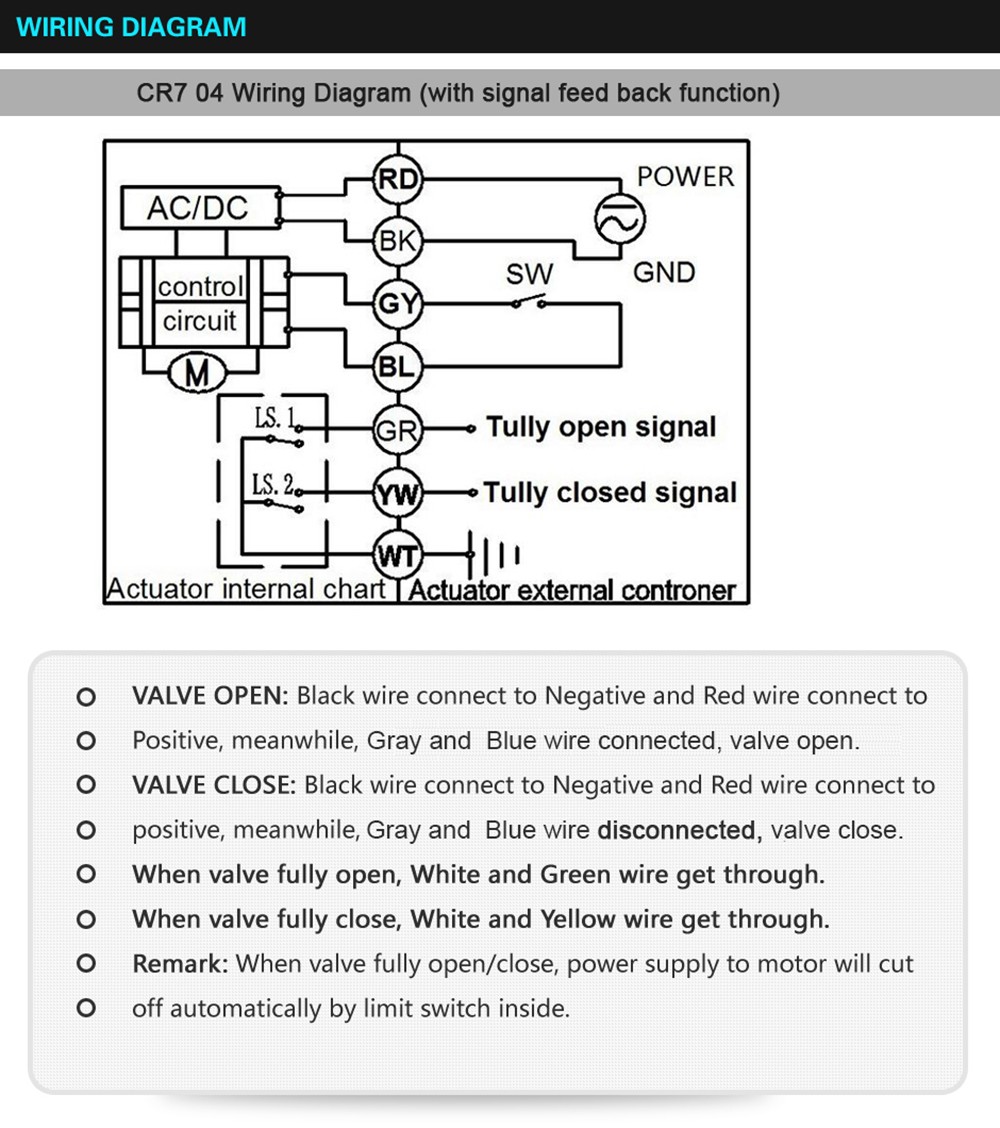

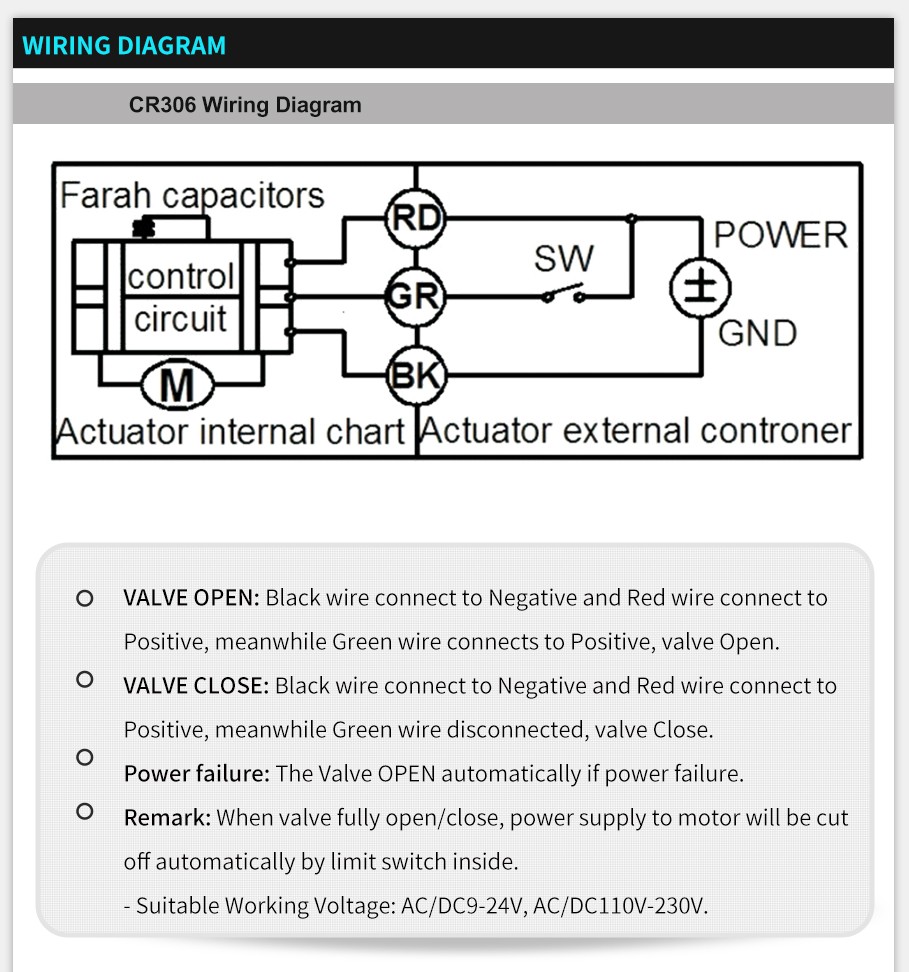

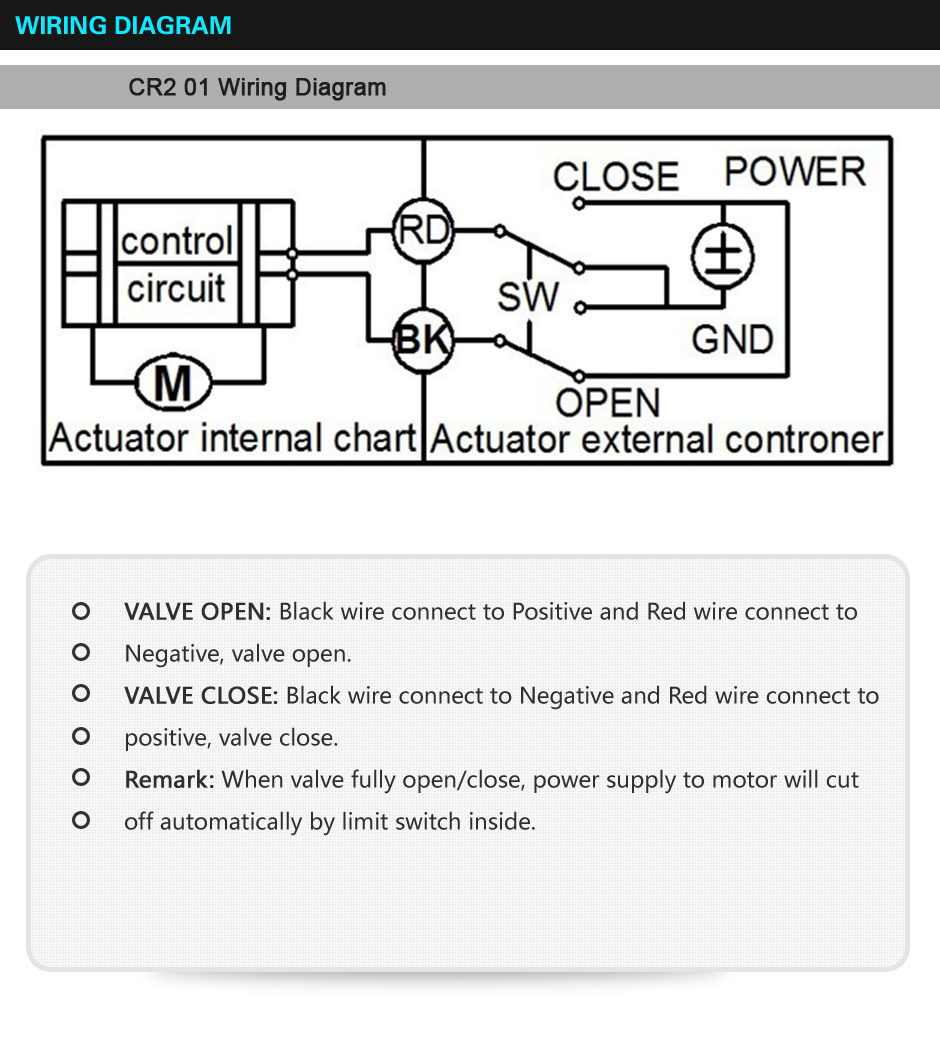

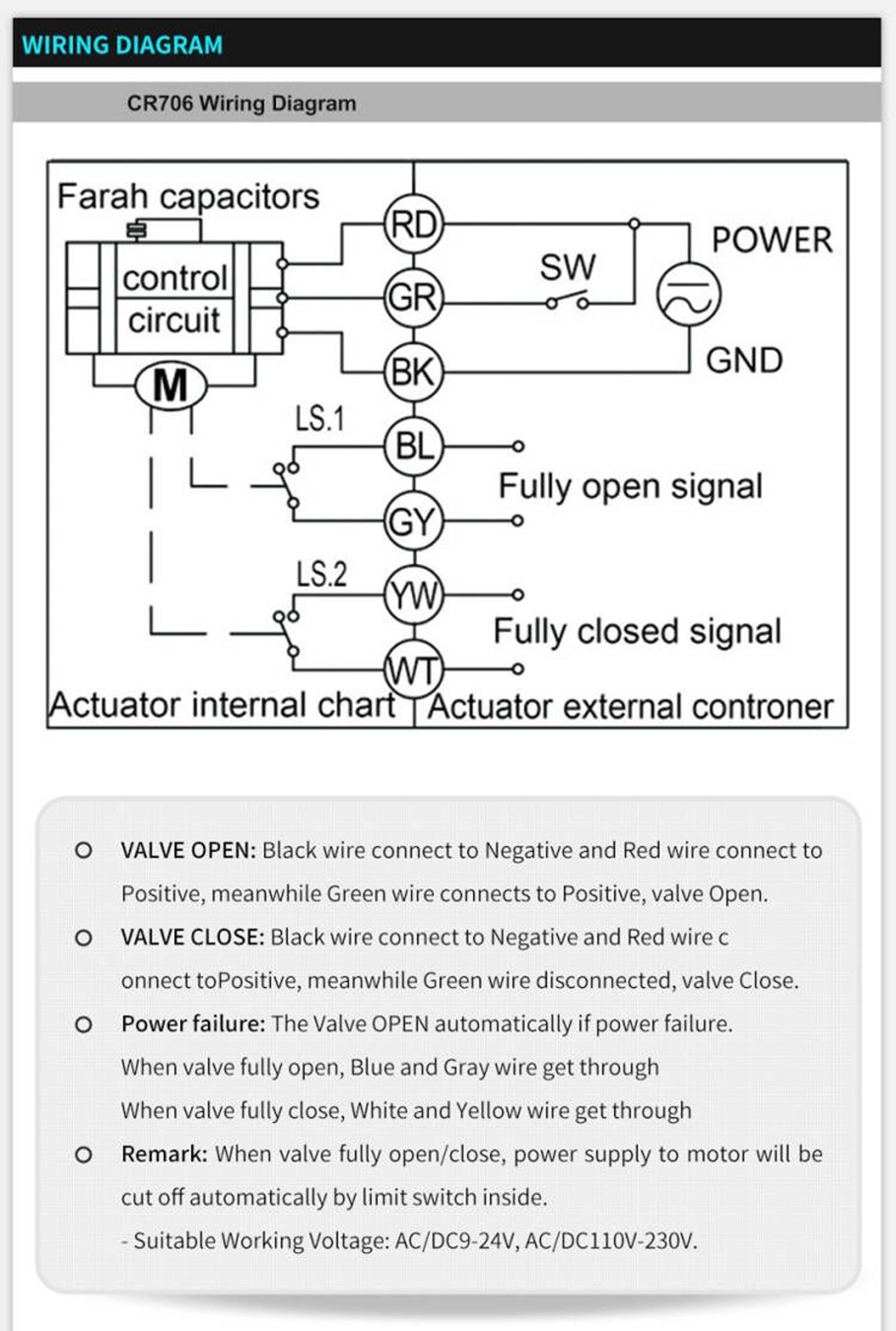

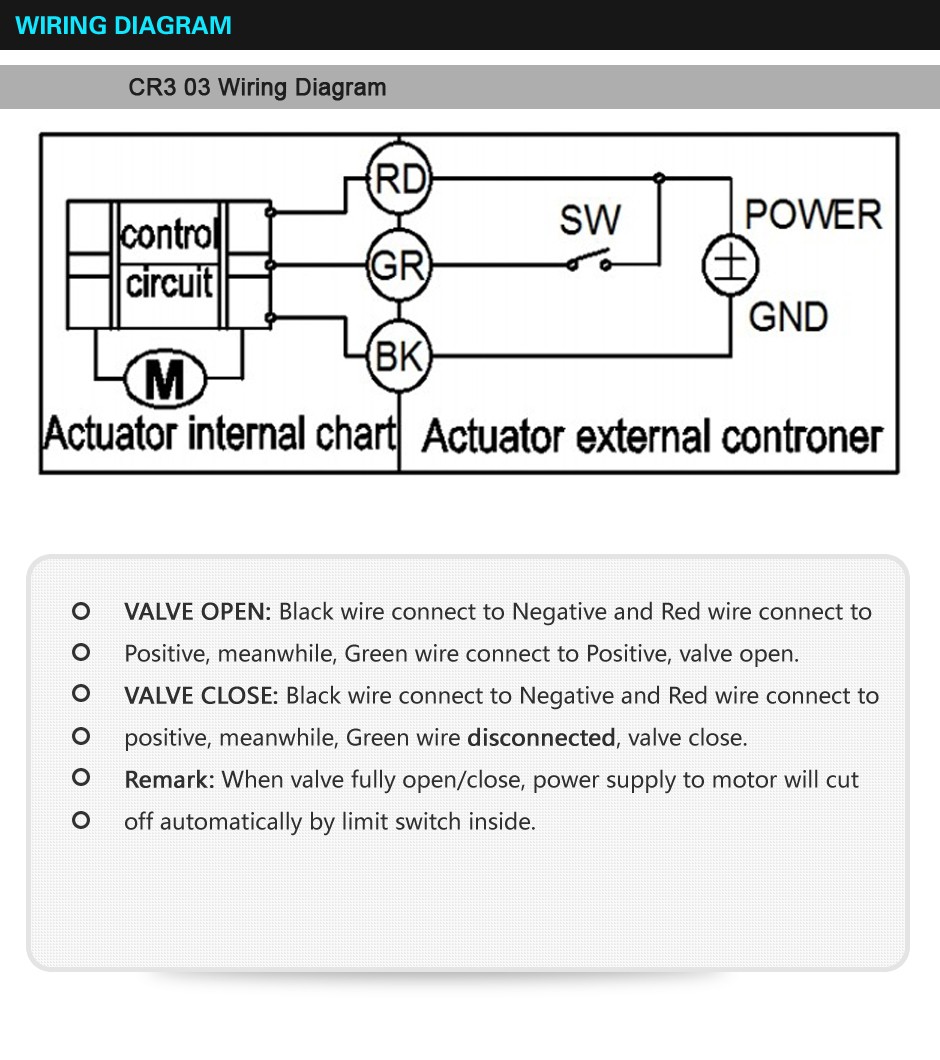

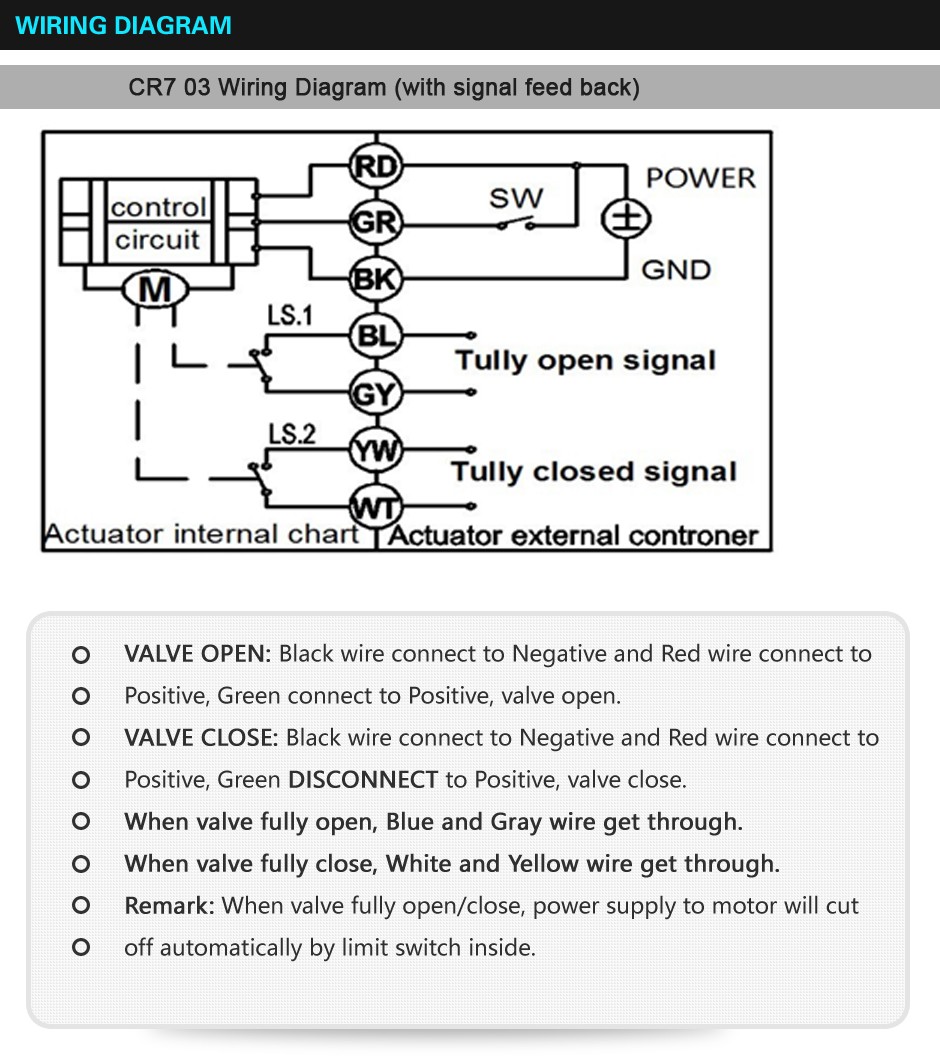

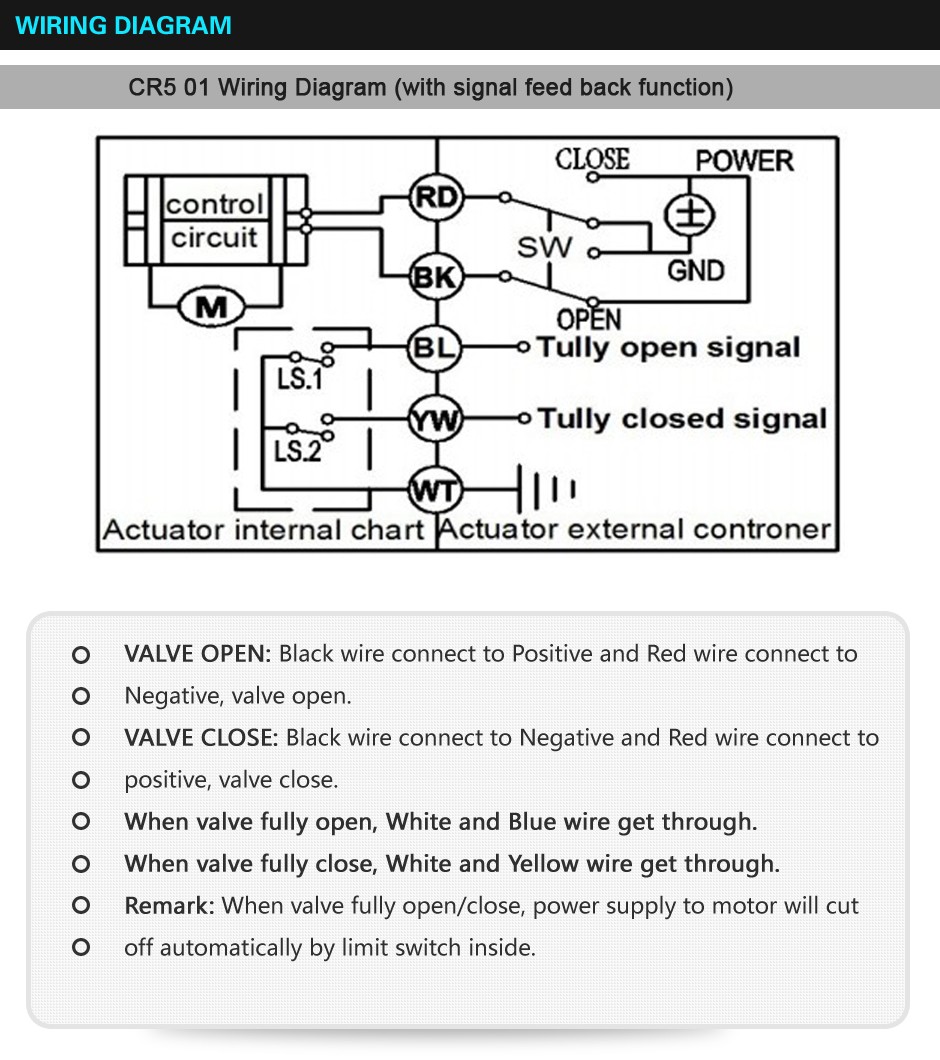

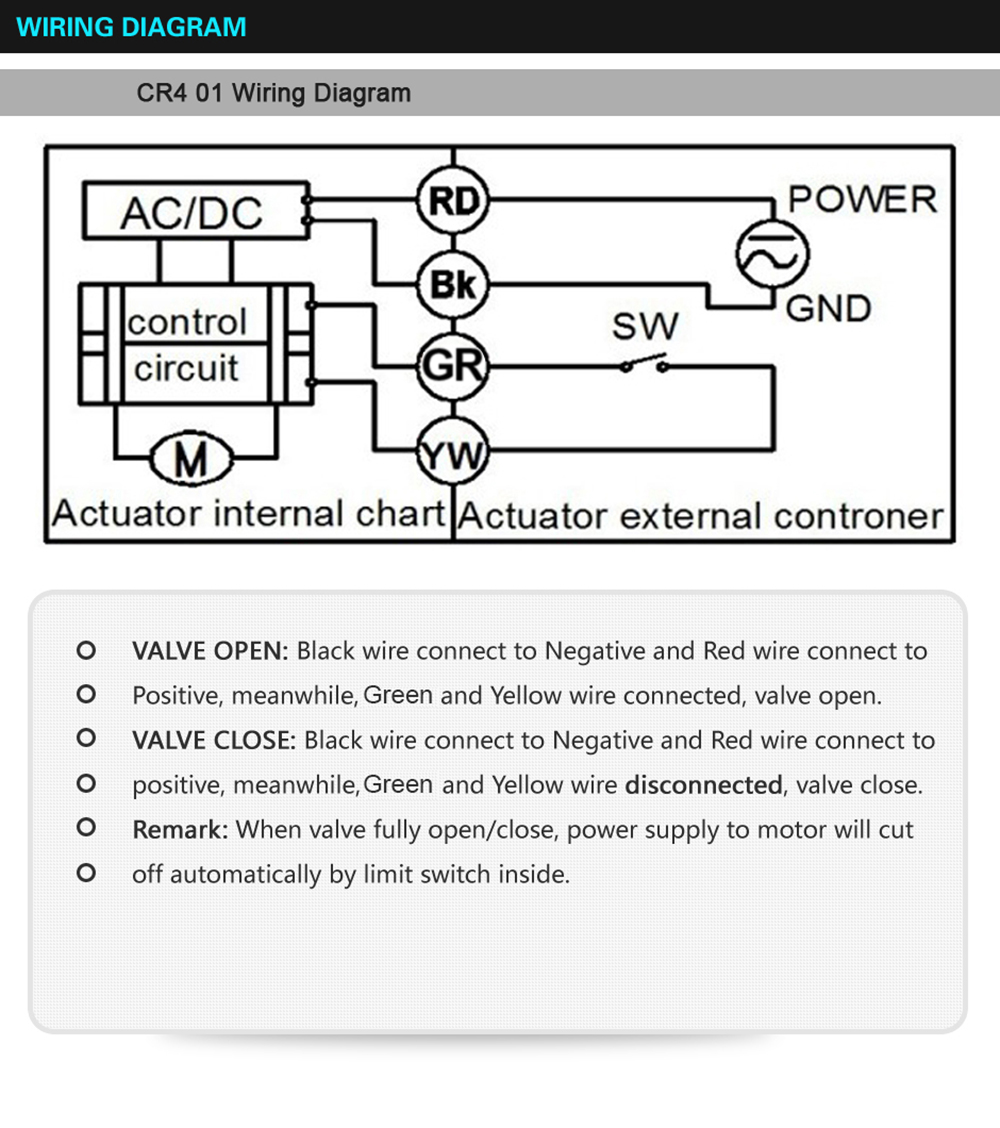

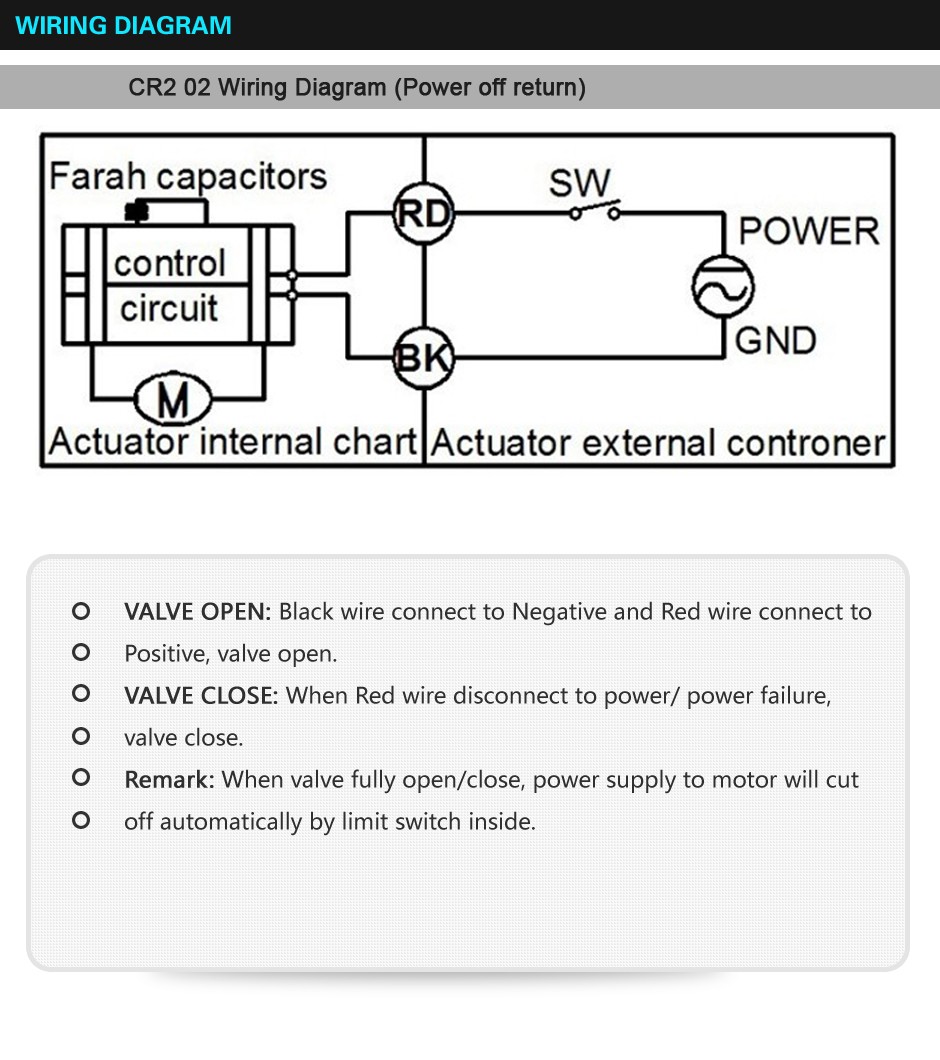

  2. Different wiring diagram to meet various control methods.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Manual override & Positing indicator optional.
  6. 100% ON/OFF testing before shipping.
