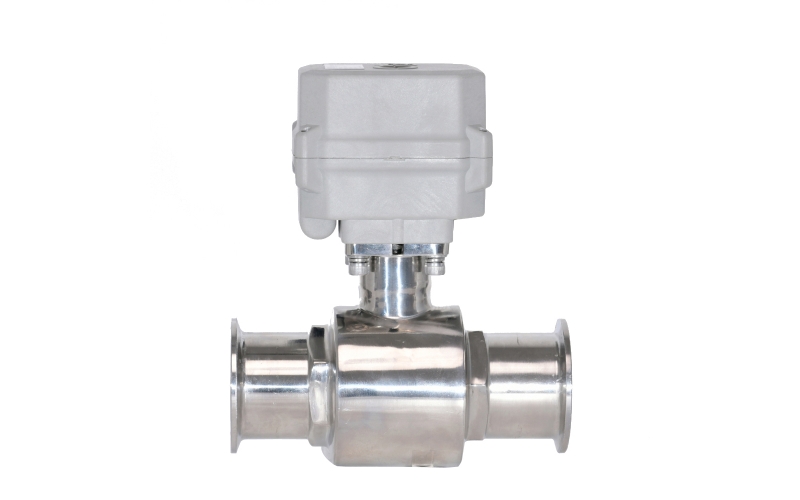

15Nm TFA150 Series Tri-clamp Electric Ball Valve Sanitary SS304/316/316L

15Nm TFA150 Series Tri-clamp Electric Ball Valve Sanitary SS304/316/316L

15Nm 2-Way Tri-Clamp Connection quck connection Sanitary Electric Ball Valve mirror polished for Chemical production

  • TFA150 Series 2 Way Tri-clamp Electric Valve:
    Features:
    1. Torque force: 15Nm
    2. Power supply: DC12V,DC24V,AC24V,AC110-230V
    3. Running time: <12 seconds
    4. Size: DN19, DN25, DN32, DN38
    5. Material: SS304/316
    6. Connection: Tri-Clamp
    7. Temperature: (2~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201, CR301 CR303, CR305, CR306, CR501, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC24VWiring:   CR301 CR303, CR305, CR306, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC110-230VWiring:   CR202,  CR303, CR305, CR306 CR401, CR502, CR703, CR704, CR705, CR706  (Optional)
Working current:1.5 A
Open/close time:12S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP67
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm
Valve body
Valve sizeφ19, φ25, φ32, φ38
Valve body material:Stainless Steel 304/316 (Optional)
Connection end:Tri-Clamp
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 90

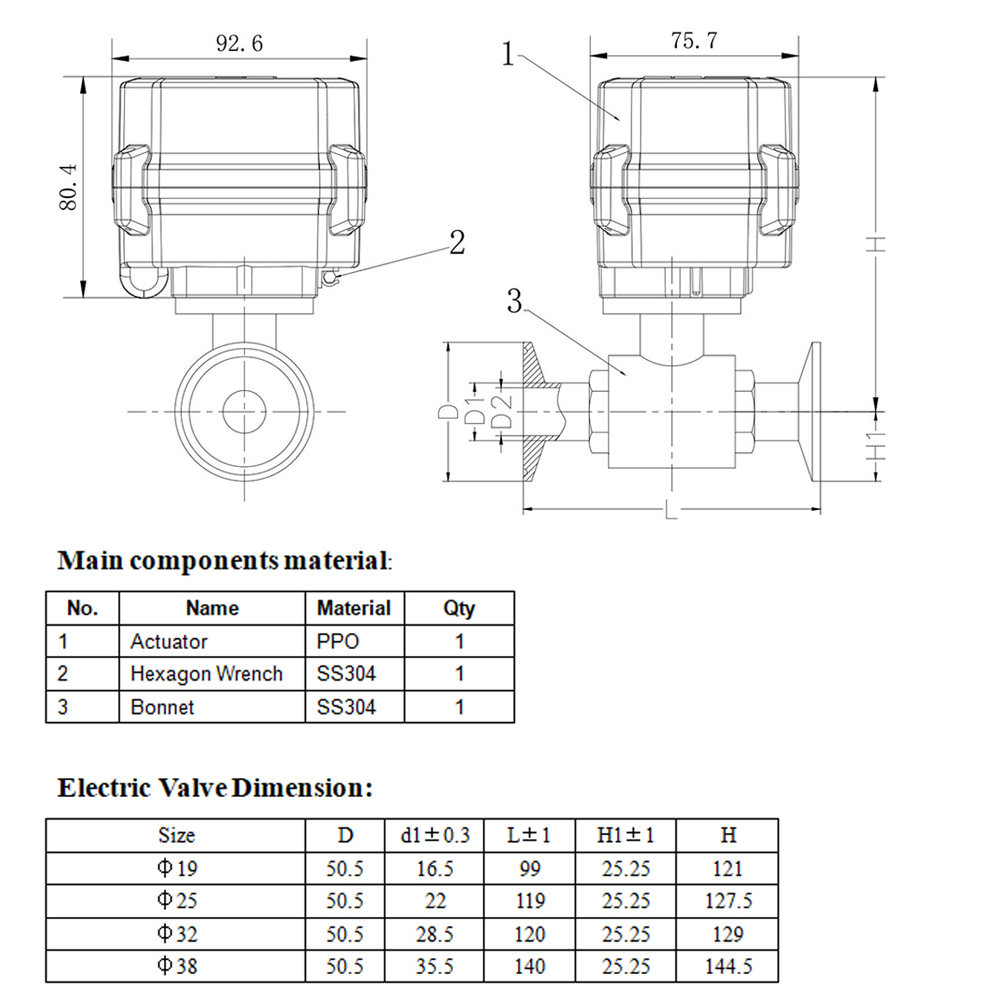

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

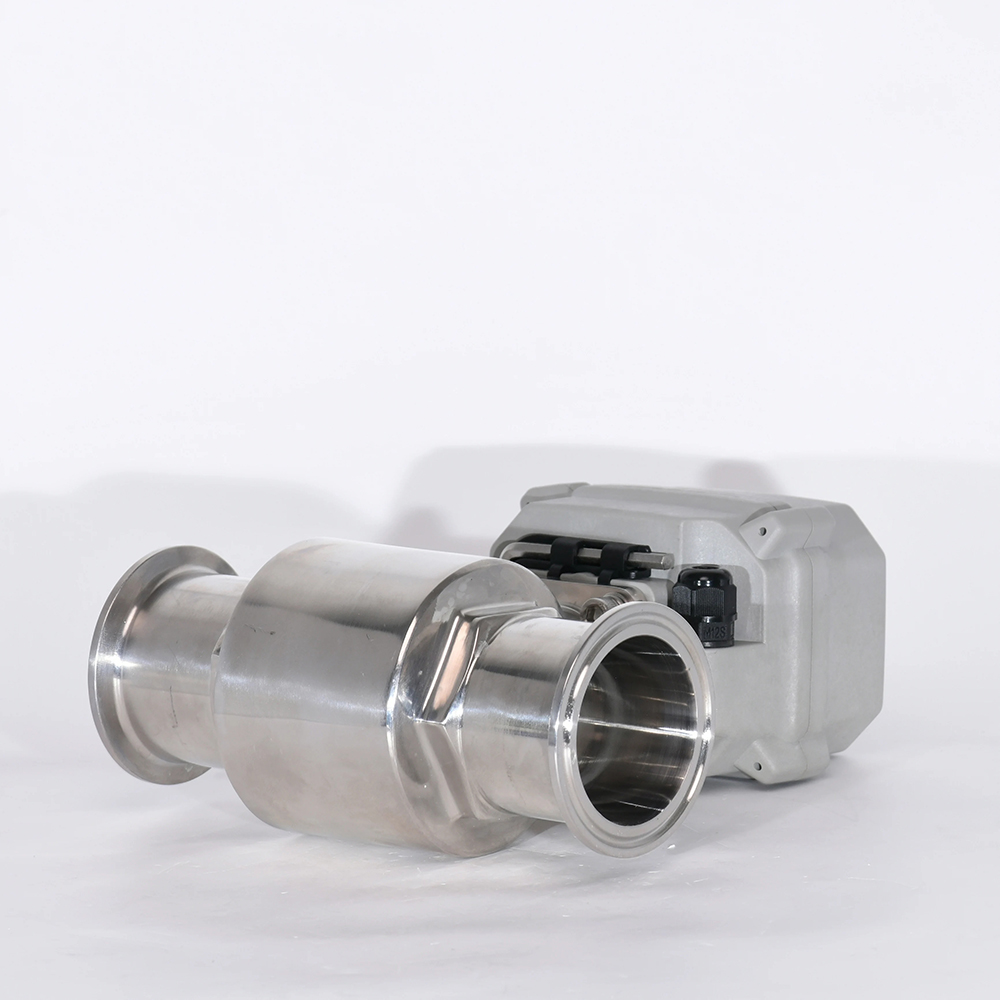

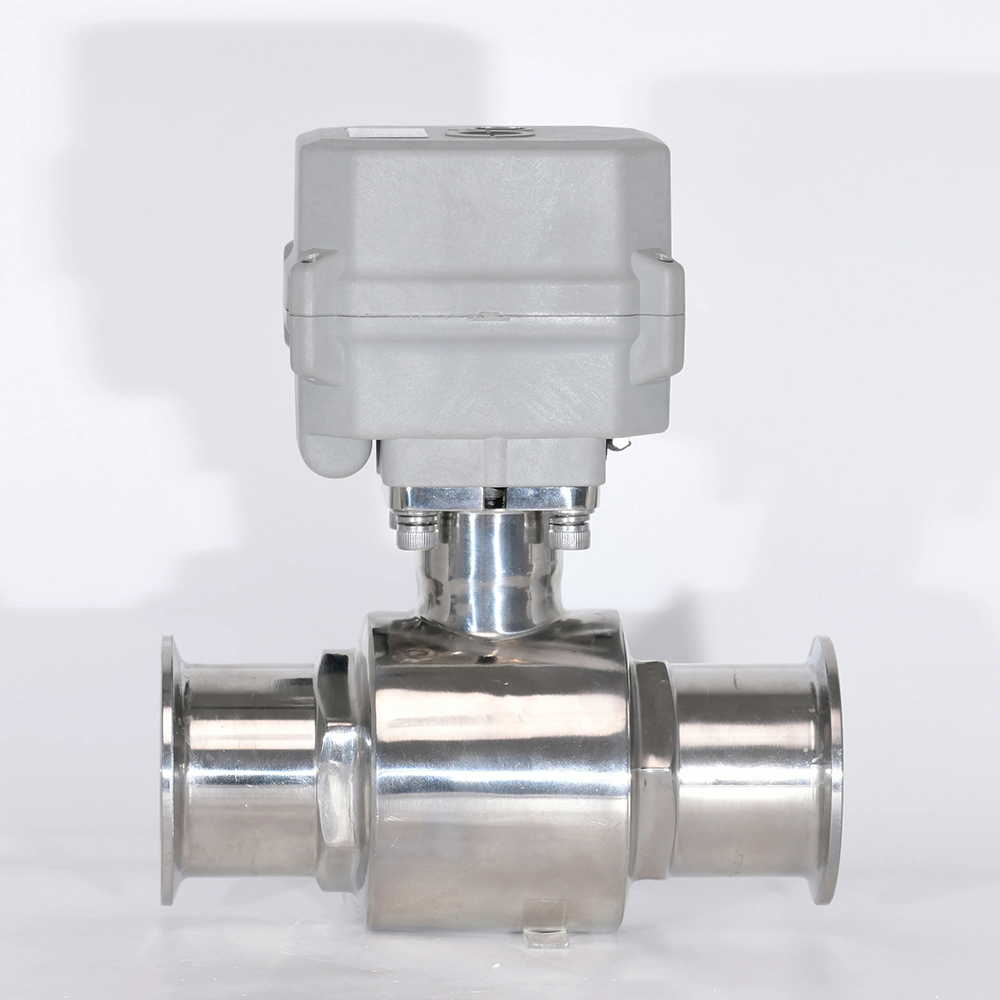

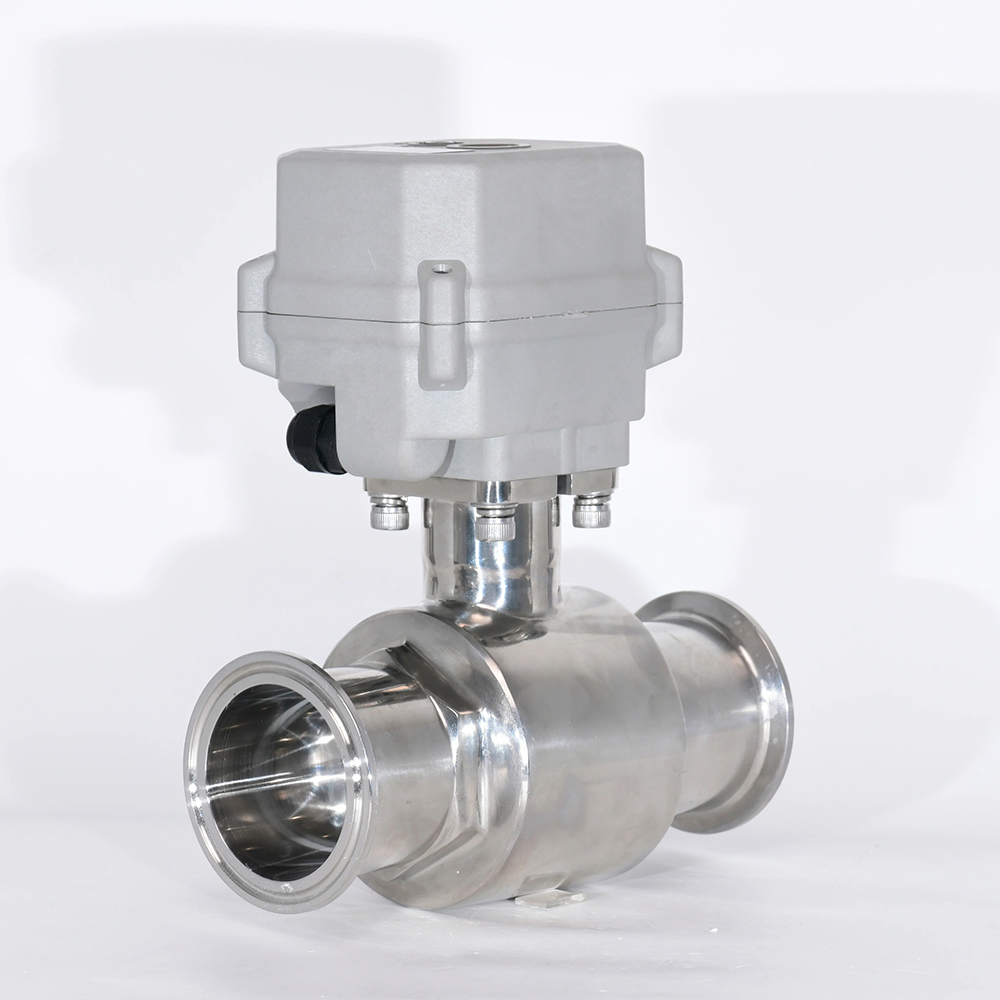

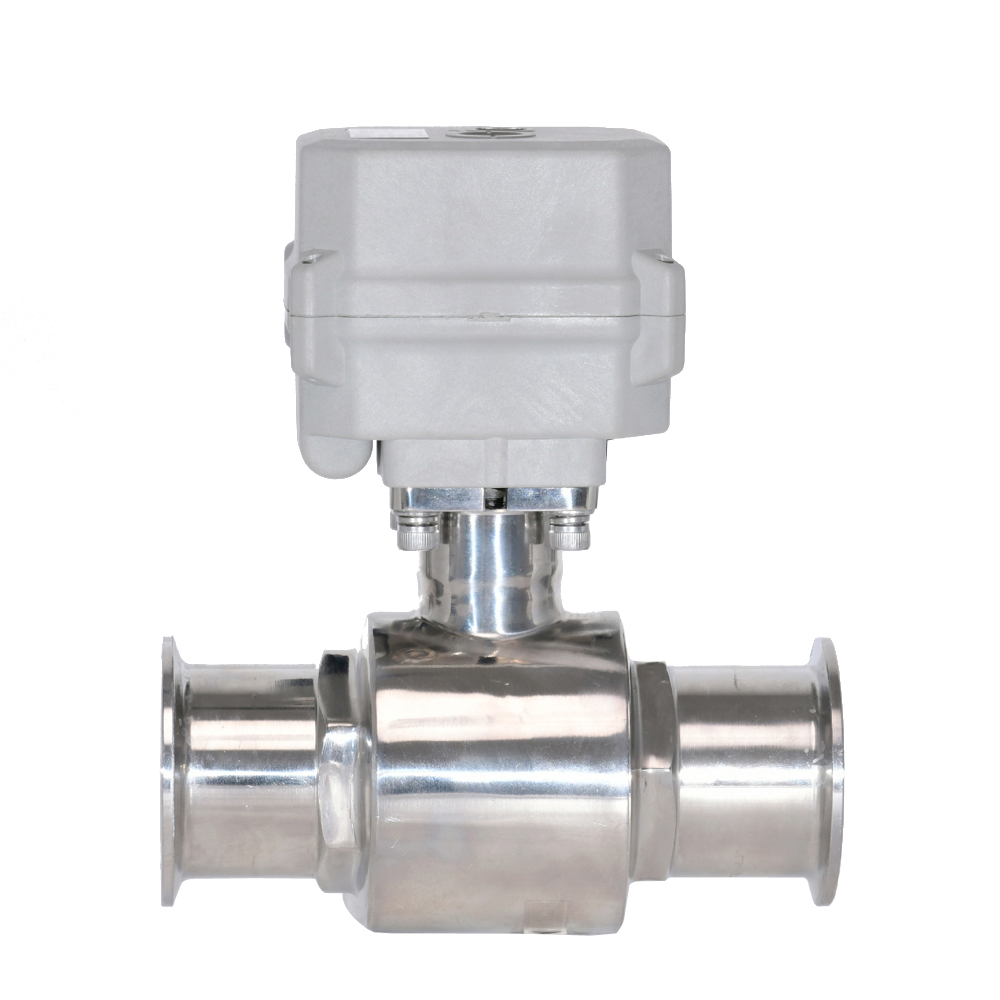

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

Applications:

MetInfo enterprise content manager system | MetInfo CMS
