15Nm Quick Open(2 Seconds Open/Close) high pressure IP68 SS304 3-pieces type Electric Ball Valve

15Nm Quick Open(2 Seconds Open/Close) high pressure IP68 SS304 3-pieces type Electric Ball Valve

15Nm 3-pieces type Electric Motorized Ball Valve; High Speed Operation Electric Valve 2 Seconds quick ON/OFF to replace solenoid valve.

  • TFA150-S2 Series 2 Way SS304:
    Features:
    1. Torque force: 15Nm
    2. Power supply: DC12V,DC24V
    3. Running time: <2 seconds
    4. Size: 1/2''-1''(DN15-DN25); BORE SIZE: 15mm-25mm;
    5. Material: SS304/316
    6. Connection: Thread(NPT,BSP)
    7. Temperature: (2~90℃);
    8) Maximum pressure: 1.6Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201,  CR303,  CR501, CR703(Optional)
Working current:2 ADC12V 1ADC24V
Open/close time:2S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP68
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm
Valve body
Valve sizeDN15, DN20, DN25 (Optional)
Valve body material:Stainless Steel 304/316 (Optional)
Connection end:NPT/ BSP thread (Optional)
Valve type2 Way
Maximum working pressure:1.6/2.5 MPa (Optional)
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15 ~ 50
Liquid temperature:2 ~ 90

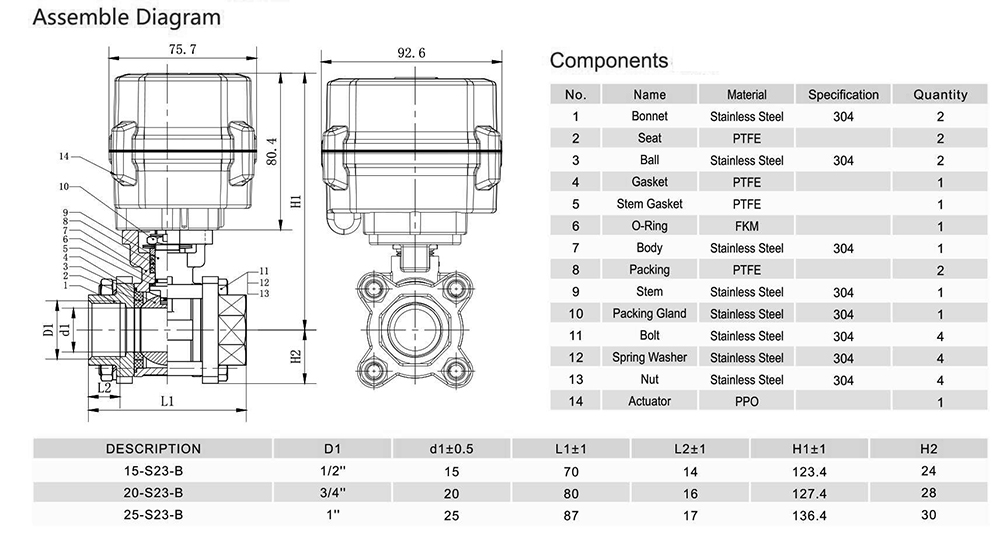

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

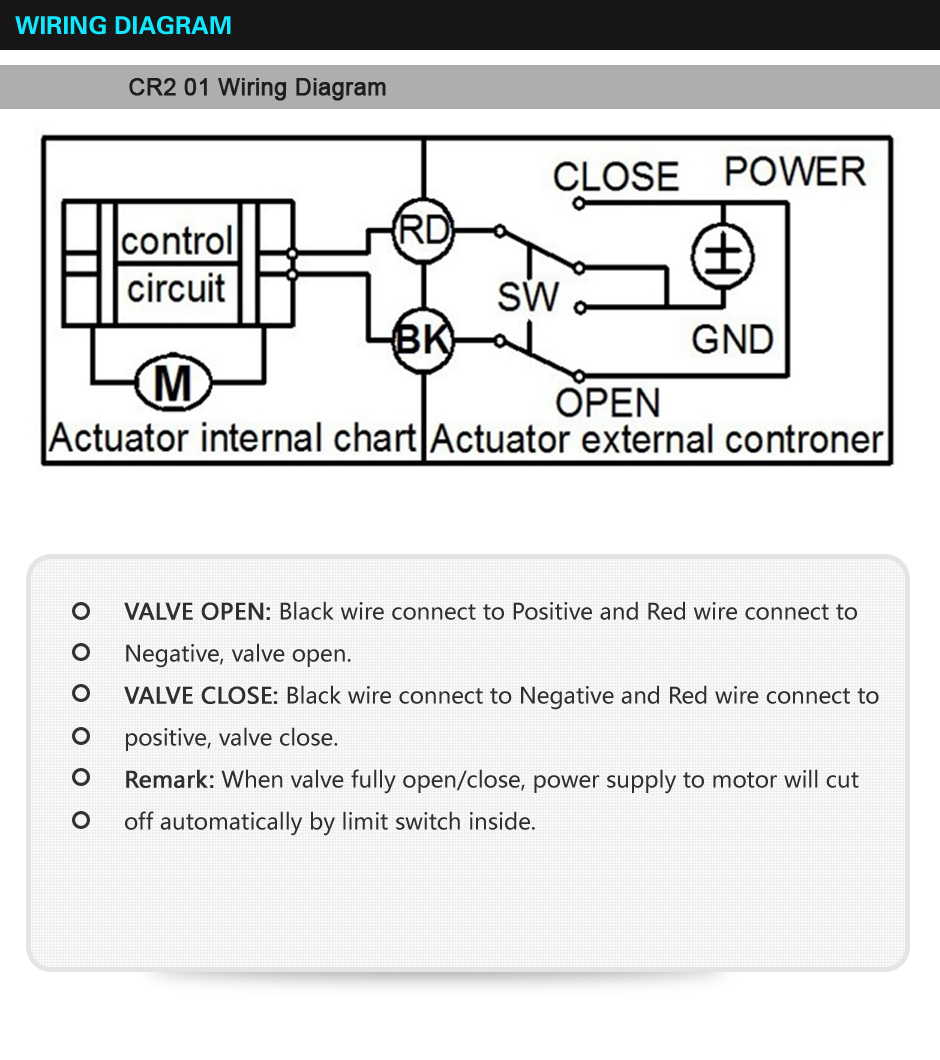

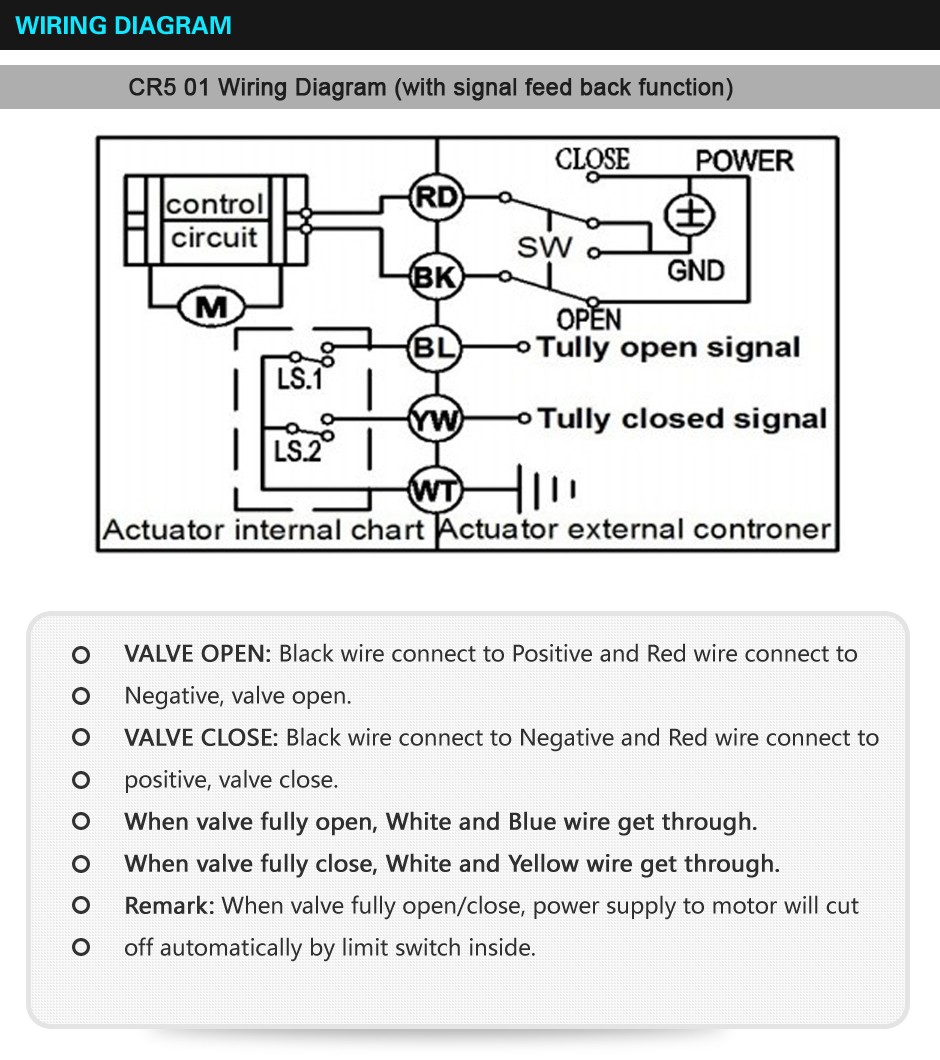

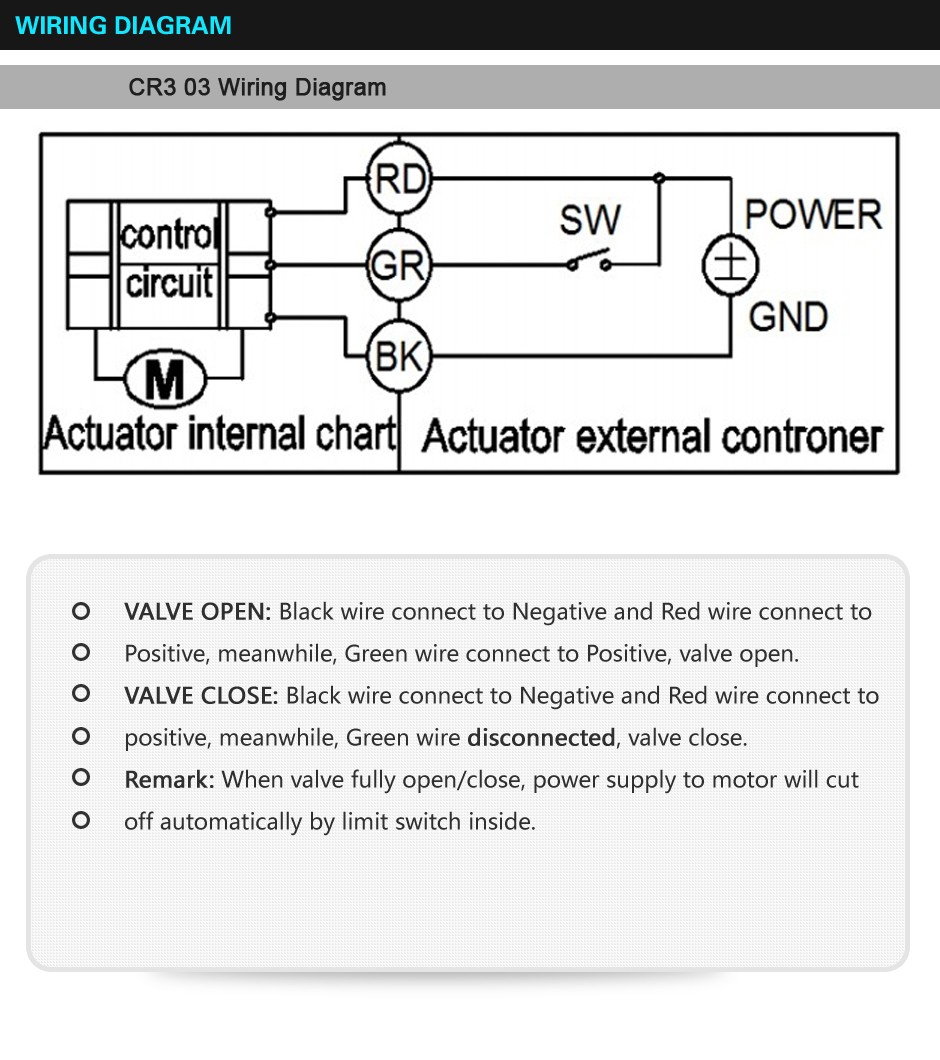

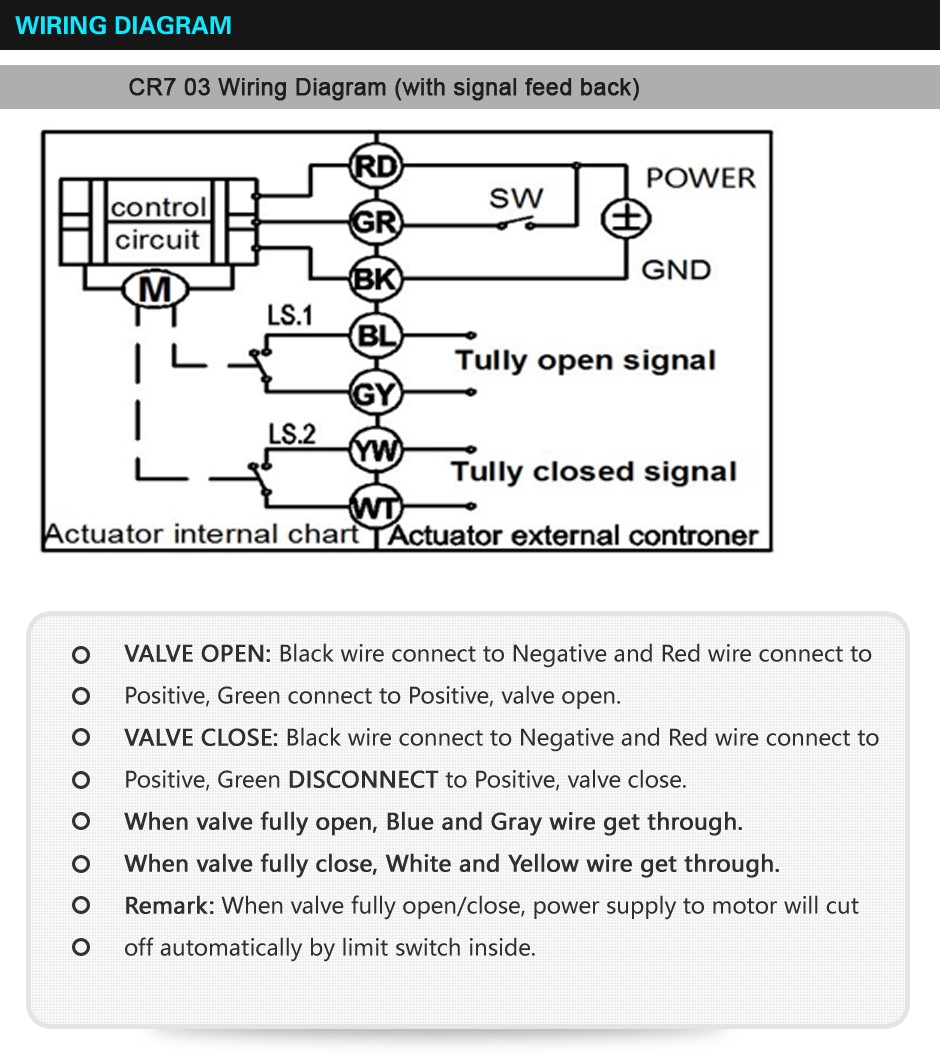

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

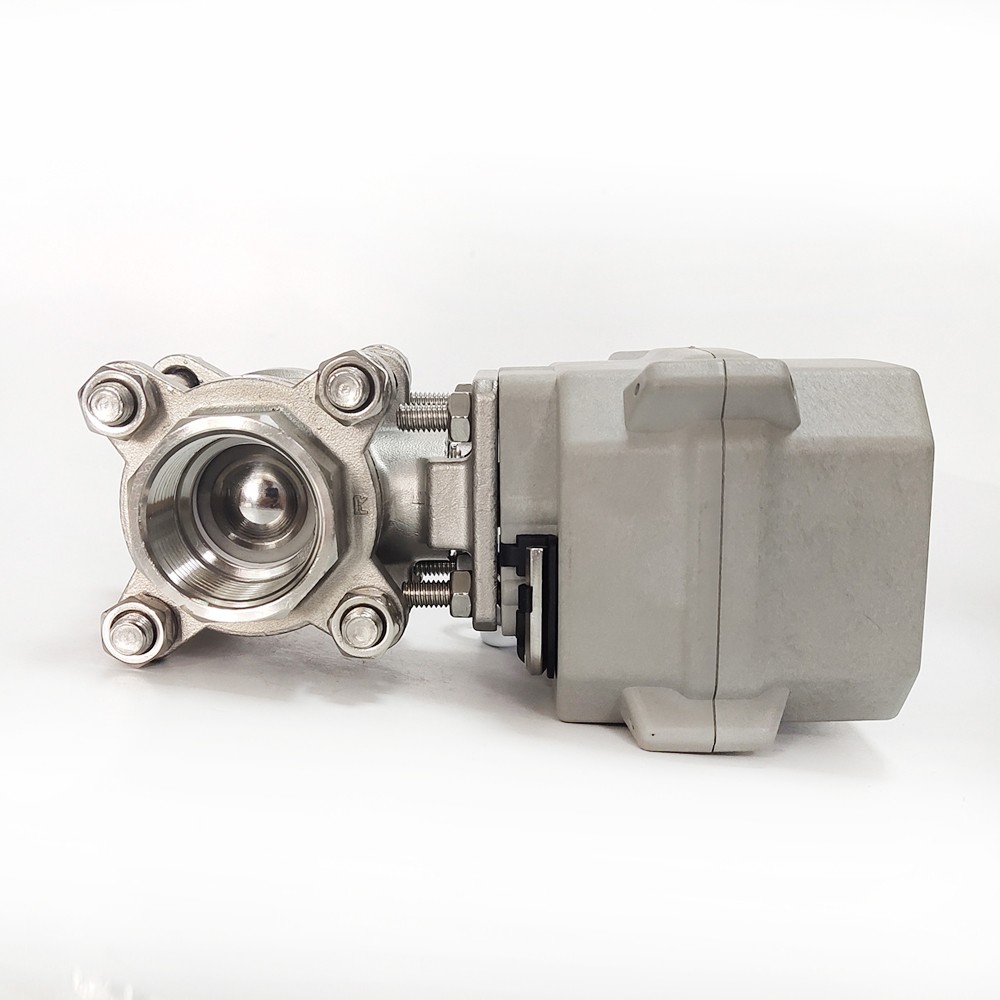

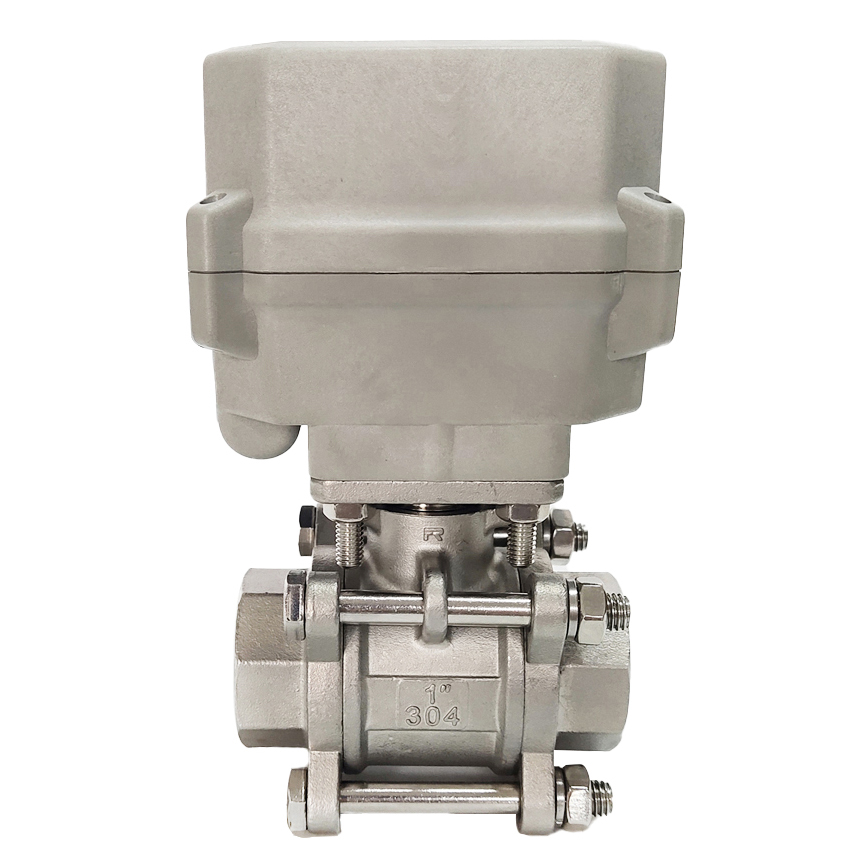

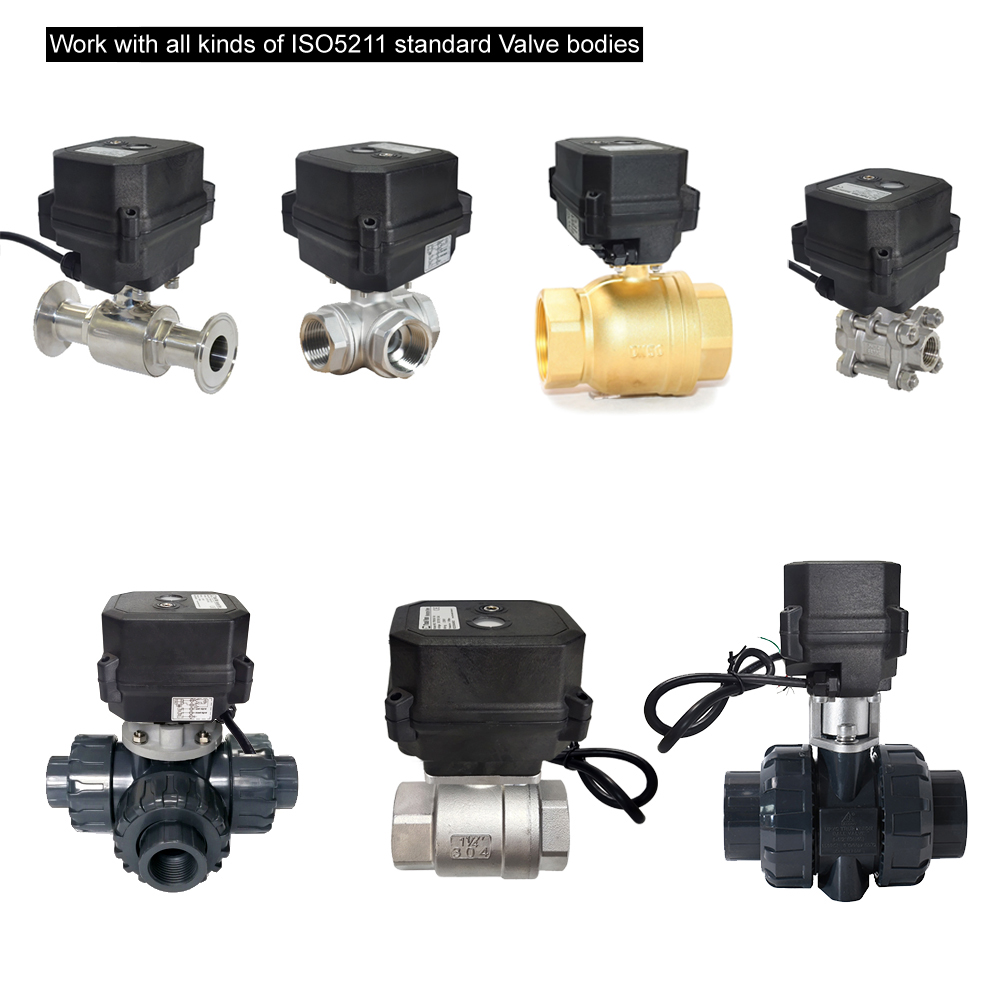

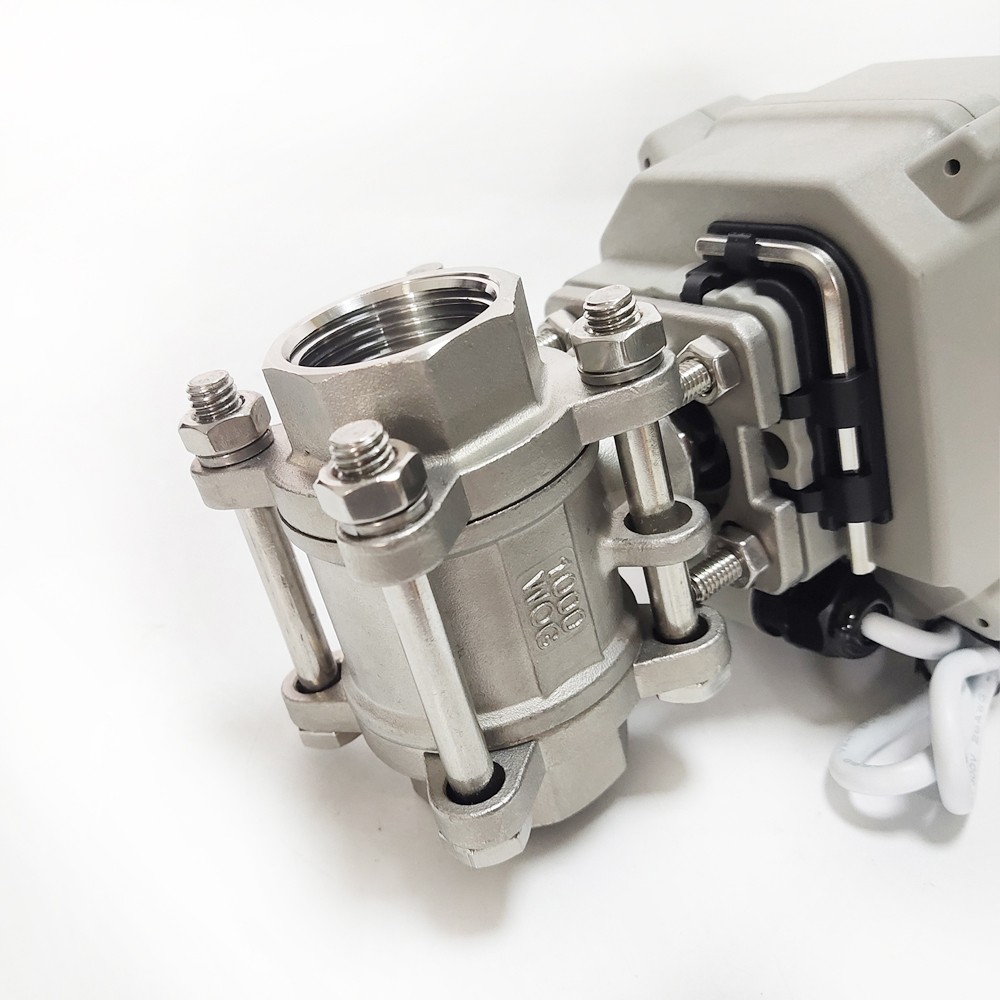

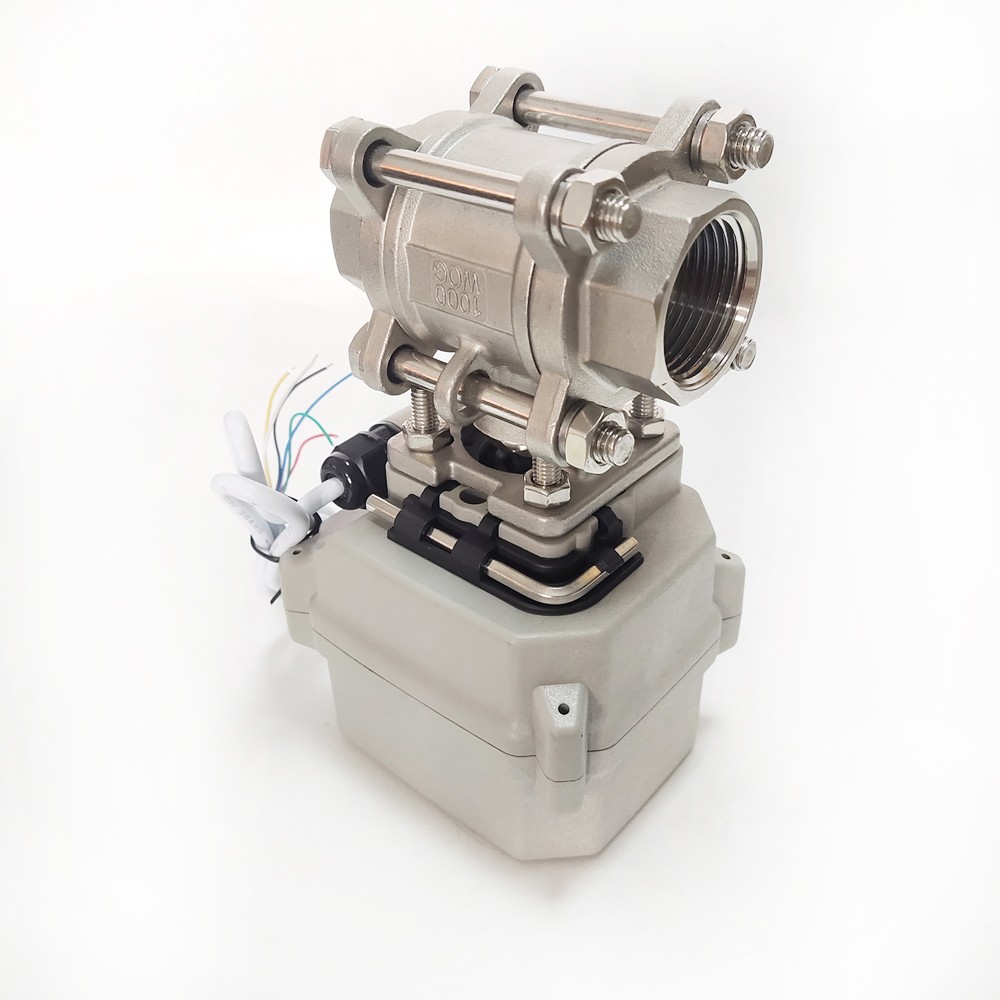

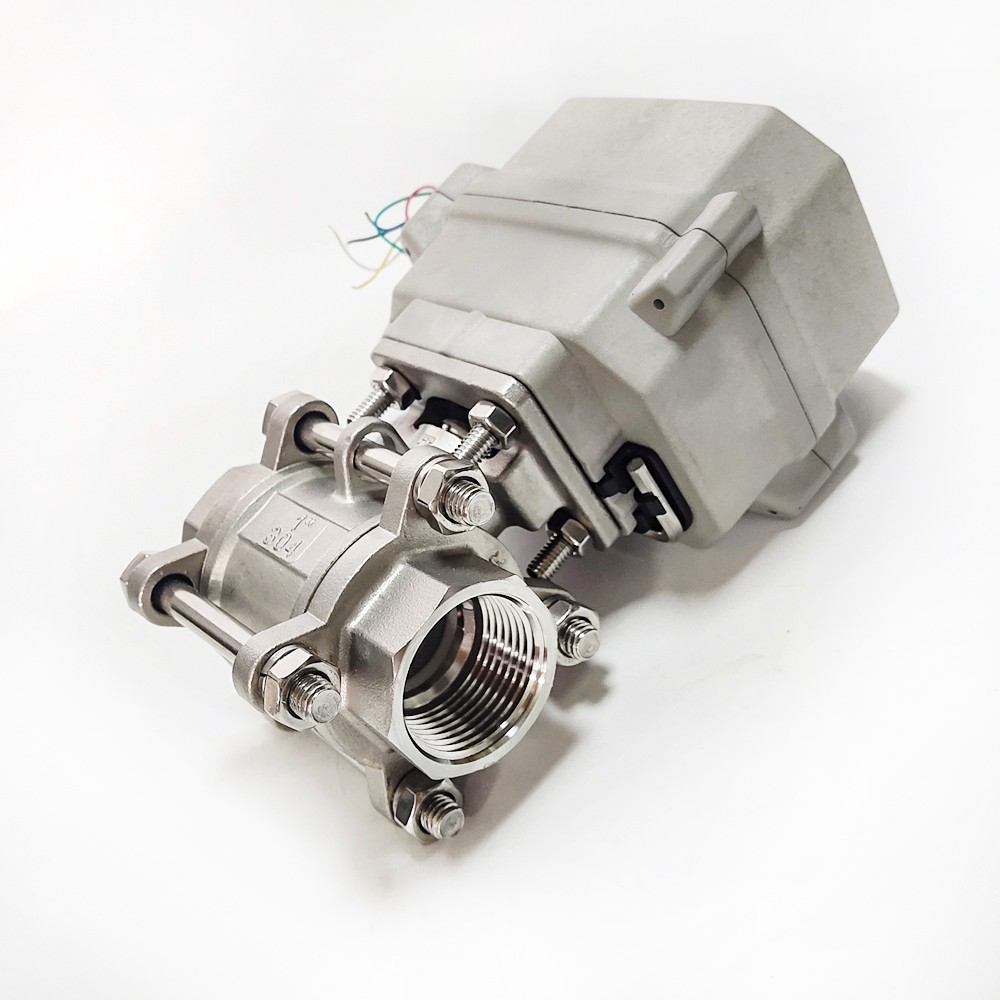

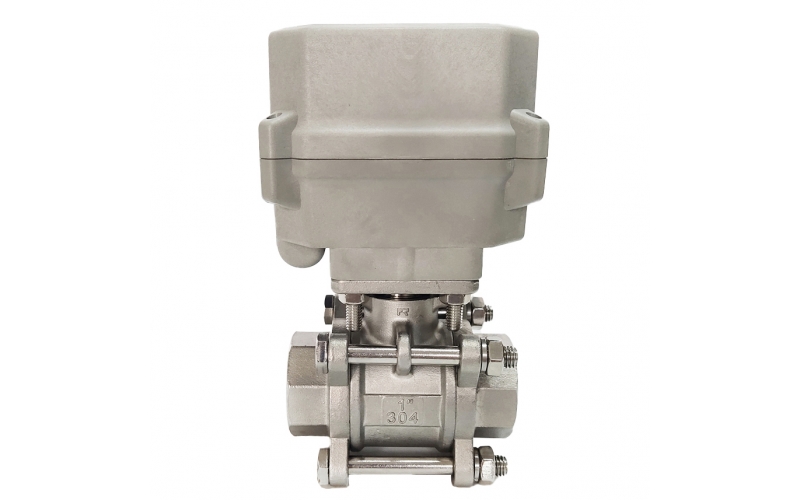

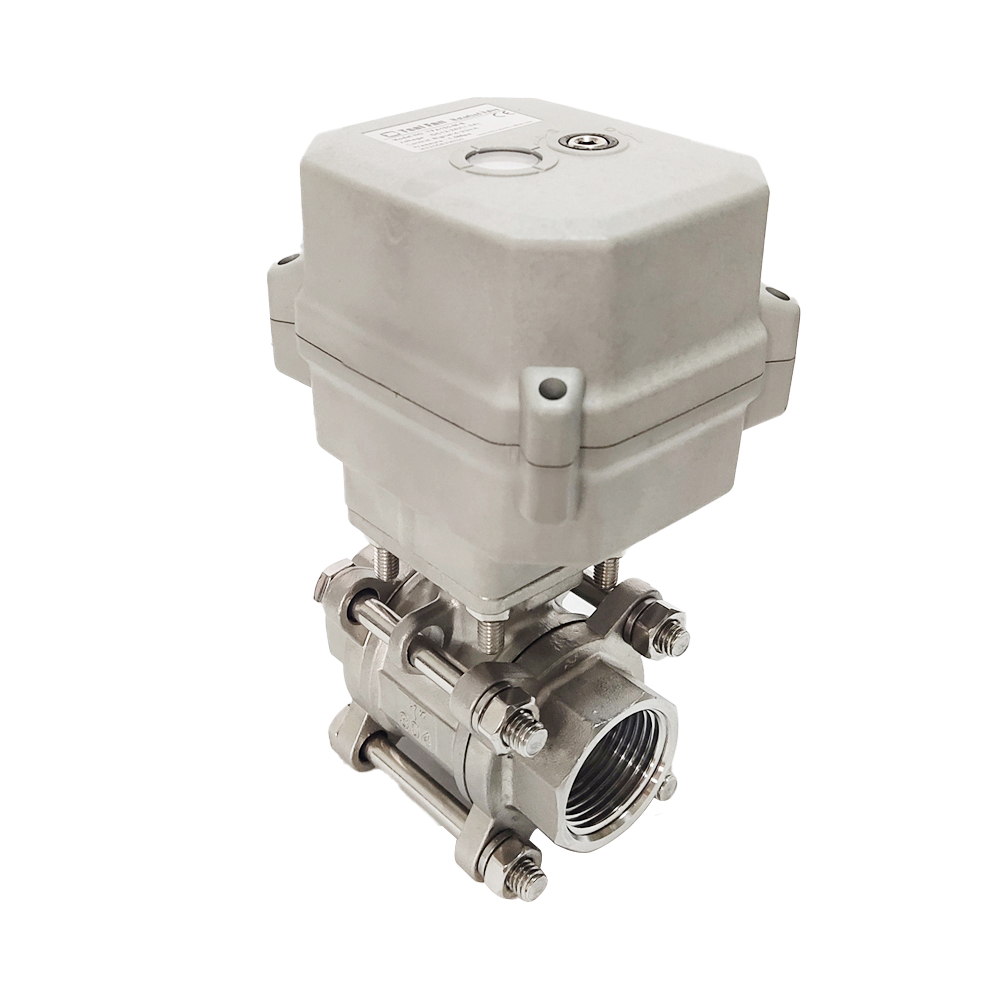

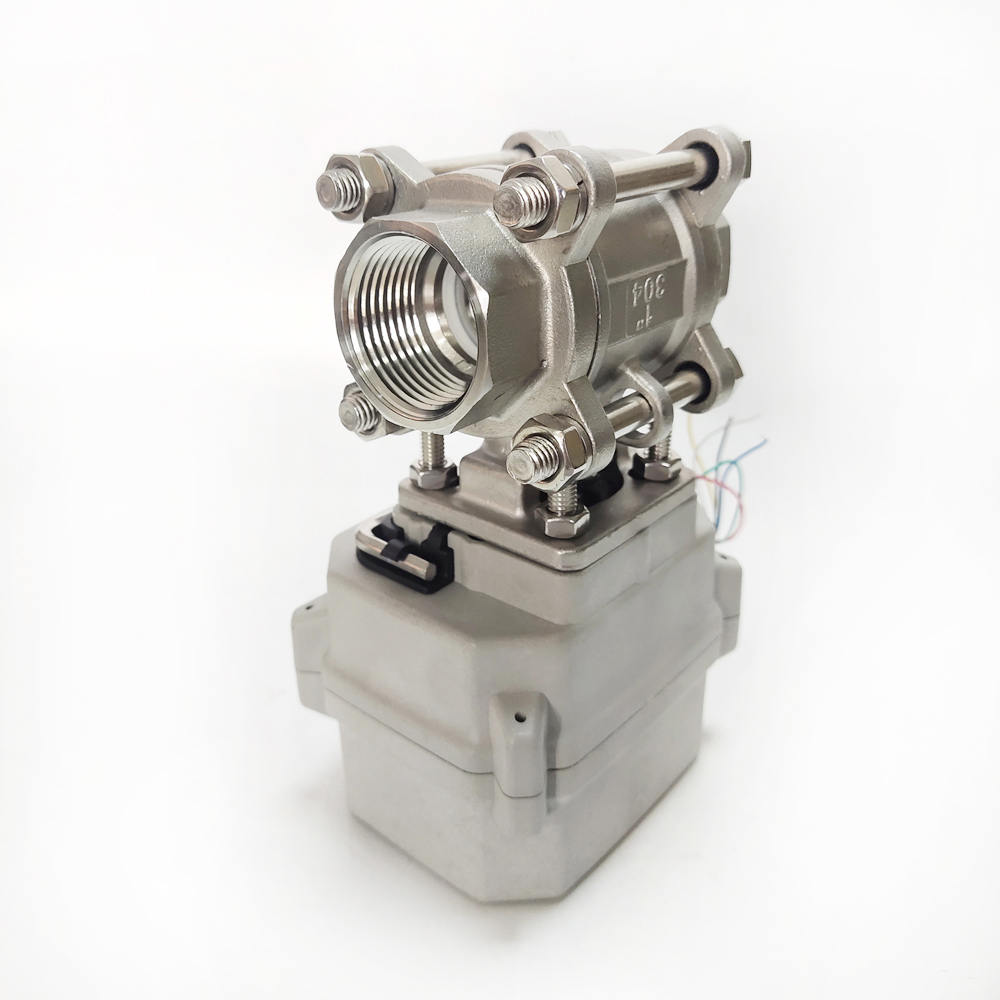

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS
