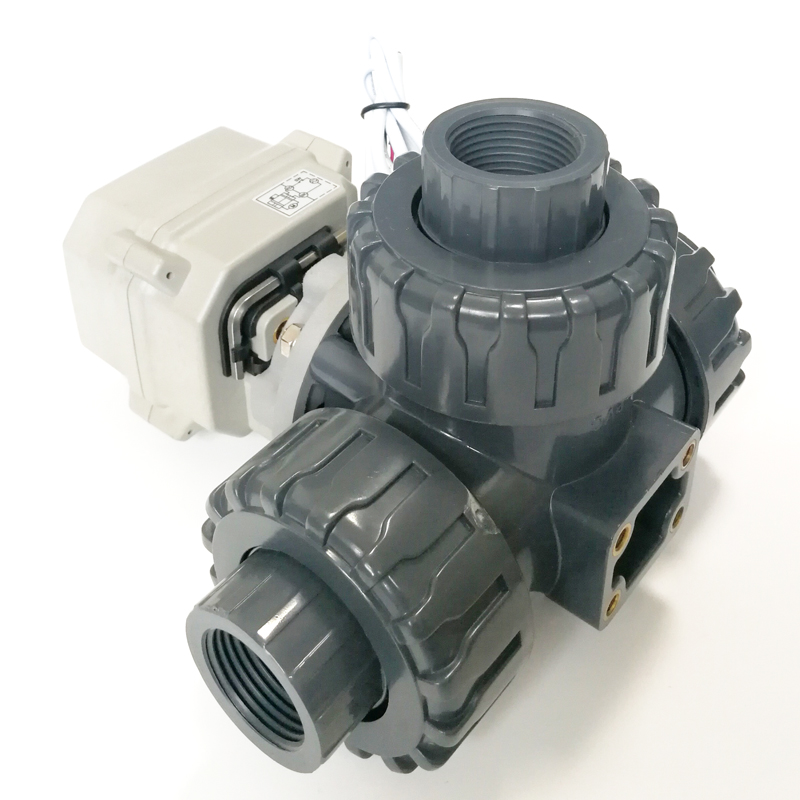

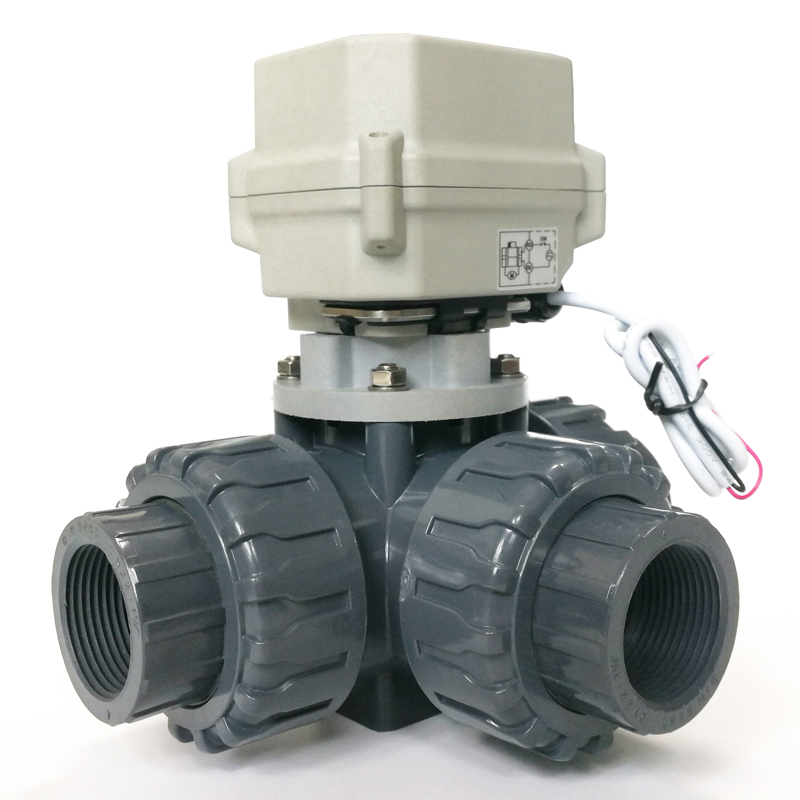

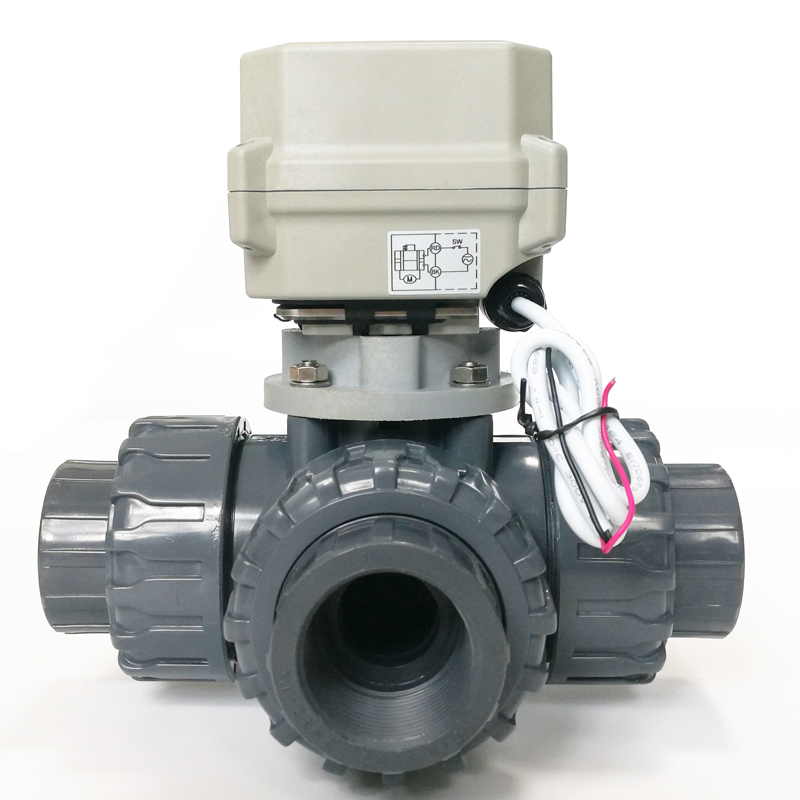

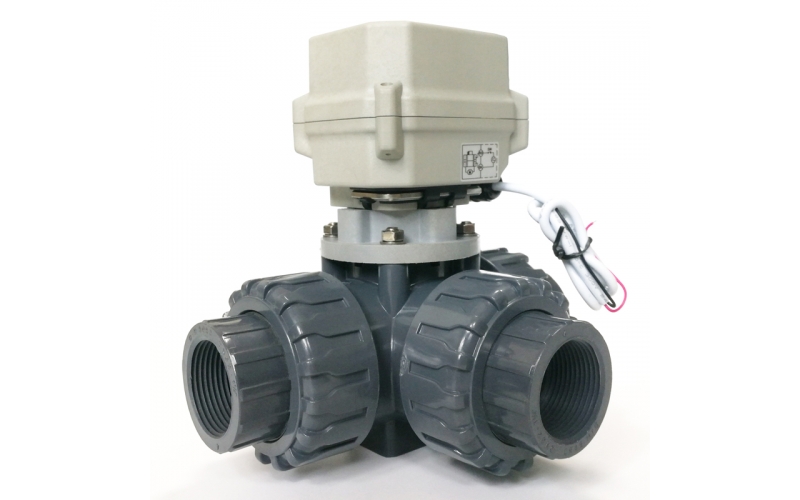

15Nm 3-Way UPVC Electric Ball Valve T port/ L port Plastic Motorized Ball Valve

15Nm 3-Way UPVC Electric Ball Valve T port/ L port Plastic Motorized Ball Valve

15Nm 3-Way Motorized Ball Valve True Union End with BSP, NPT or Glue End ISO5211 standard connections to Actuator

  • TFA150-P3 Series 3 Way UPVC Electric Valve:
    Features:
    1. Torque force: 15Nm
    2. Power supply: DC12V,DC24V,AC24V,AC110V to 230V
    3. Running time: 12 seconds
    4. Size: 1/2''-2''(DN15-DN50); BORE SIZE: 14mm-38mm;
    5. Material: UPVC
    6. Connection: Thread(NPT,BSP, Glue End)
    7. Temperature: (2~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201, CR301 CR303, CR305, CR306, CR501, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC24VWiring:   CR301 CR303, CR305, CR306, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC110-230VWiring:   CR202,  CR301,CR303, CR305, CR306 CR401, CR502, CR703, CR704, CR705, CR706  (Optional)
Working current:≤1.5 A
Open/close time:≤12S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)

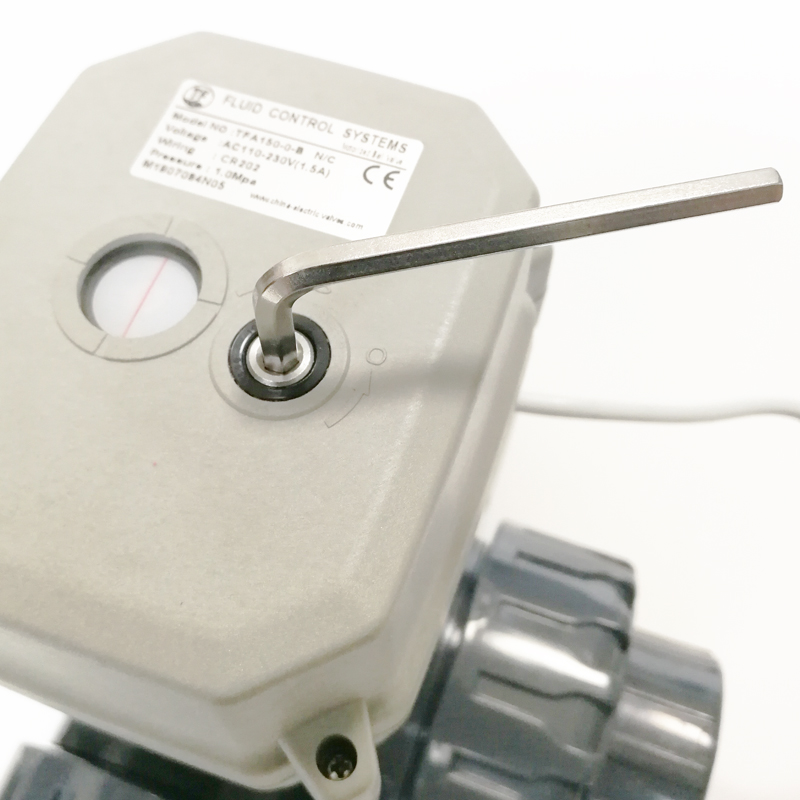

Manual override:Yes
Indicator:Yes
Protection class:IP67
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm
Valve body
Valve sizeDN15, DN20, DN25, DN32, DN40, DN50
Valve body material:UPVC
Connection end:NPT/ BSP thread/ Glue End (ANSI,DIN,JIS standard)   (Optional)
Valve type3 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15℃ ~ 50℃
Liquid temperature:2℃ ~ 55℃

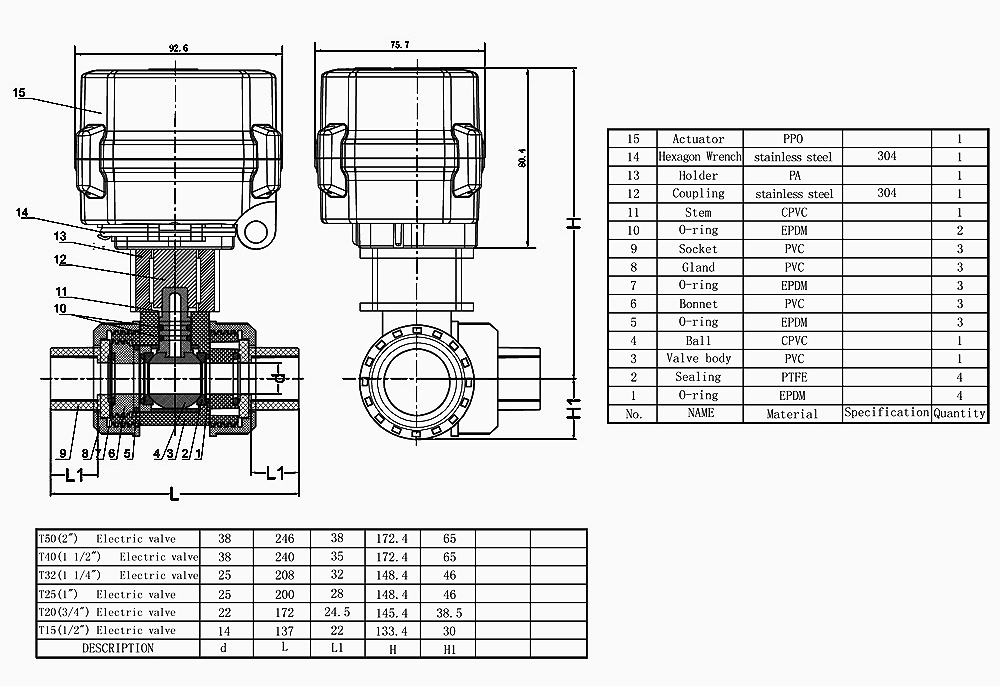

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

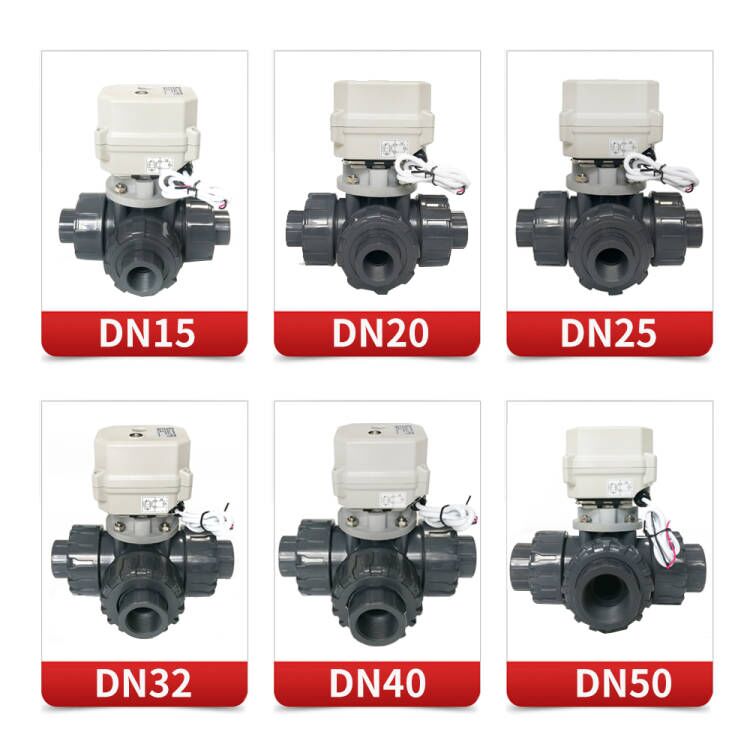

Different sizes:

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

Applications:

MetInfo enterprise content manager system | MetInfo CMS
