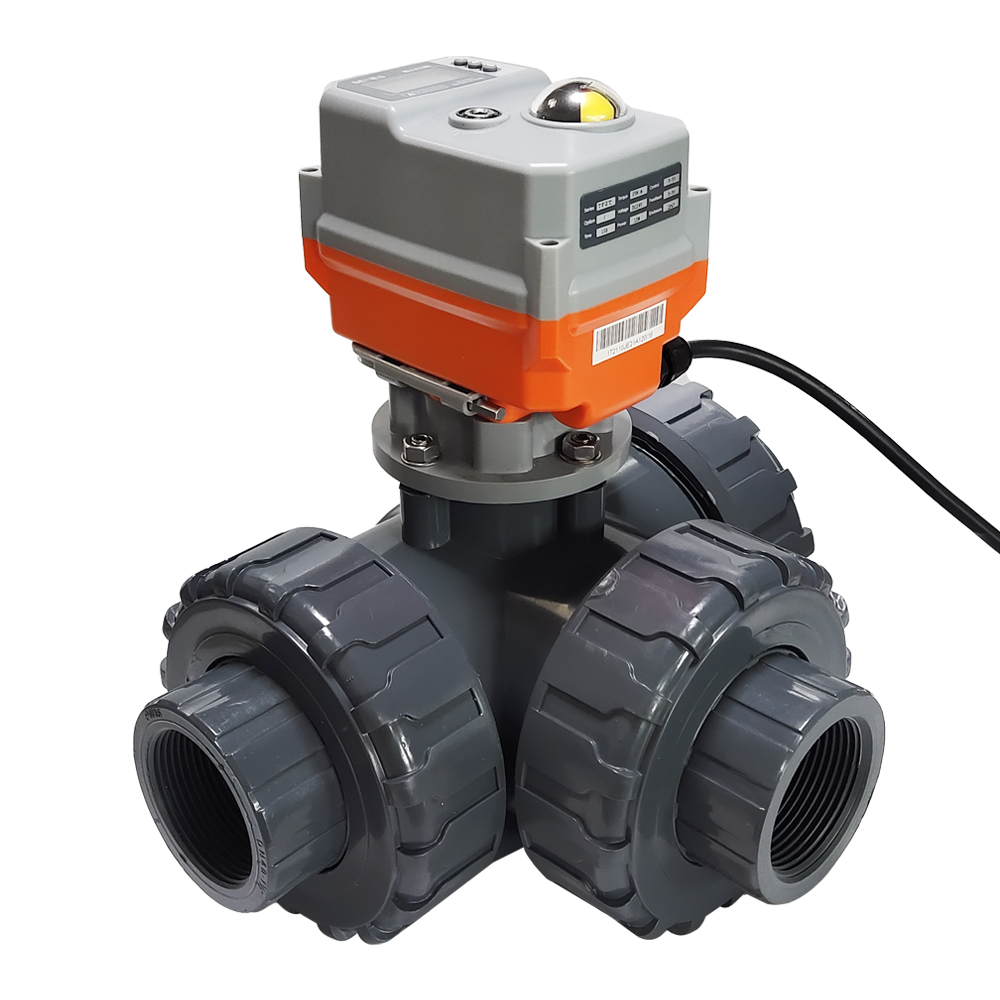

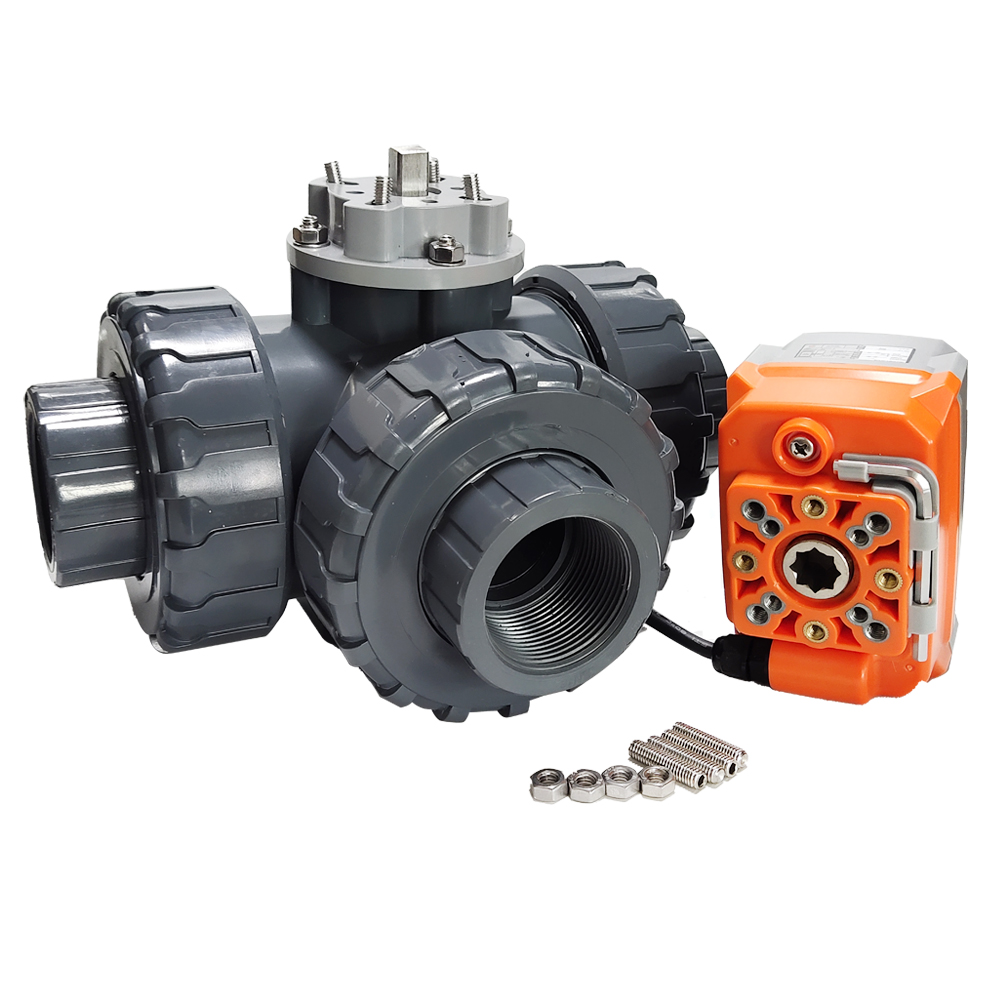

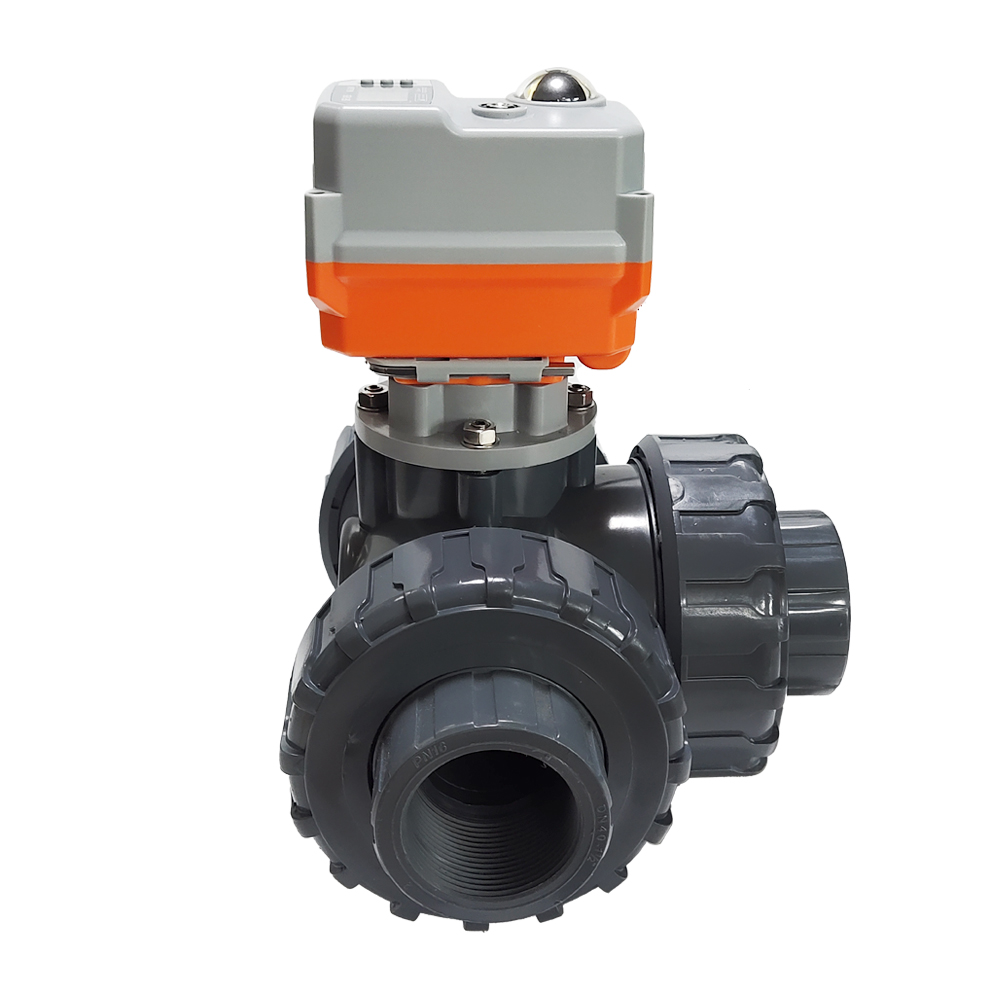

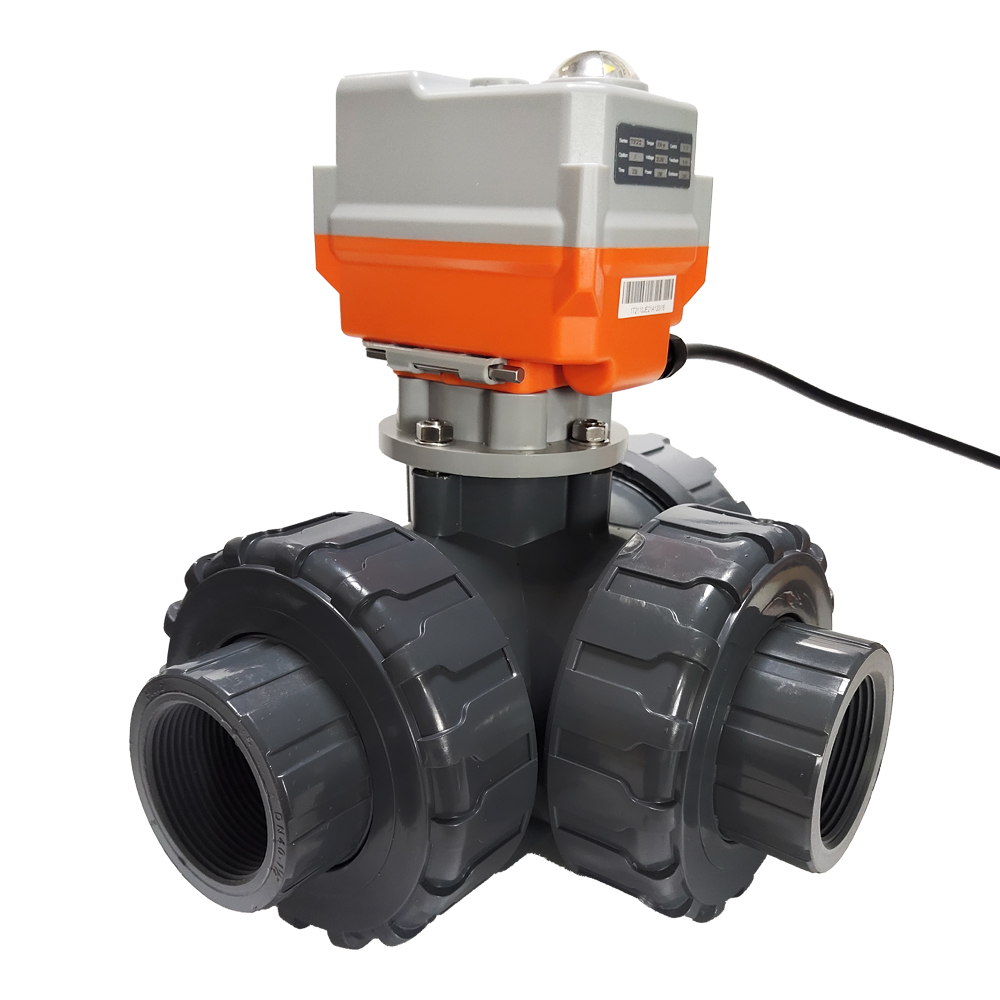

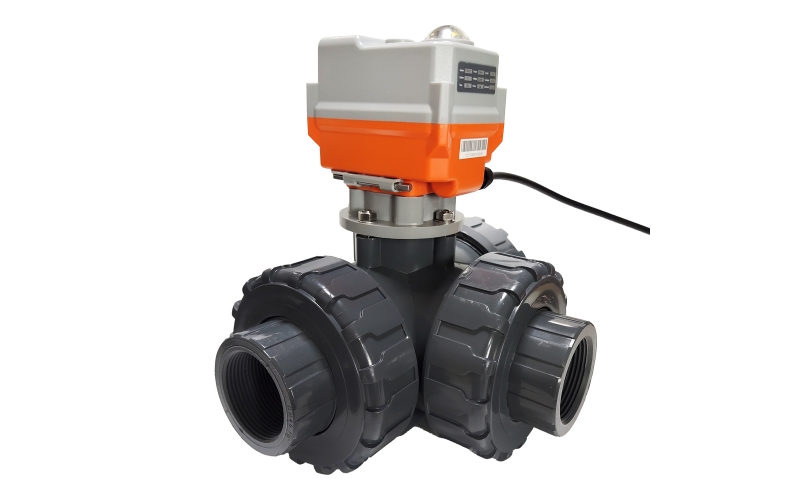

20Nm 3-Way UPVC True Union End Motorized Ball Valve with BSP, NPT or Glue End with ANSI, DIN or JIS standard
3-Way Electric Motorized Ball Valve UPVC material, True Union End with BSP, NPT, Glue connection
-
TF-02N Series 3 Way UPVC Electric Ball Valve:
Features:
1. Torque force: 20Nm
2. Power supply:,DC24V,AC24V,AC95-265V
3. Running time: <10 seconds
4. Size: DN15,DN20,DN25,DN32,DN40,DN50
5. Material: UPVC
6. Connection: BSP, NPT, Glue End(DIN,ANSI,JIS)
7. Temperature: (2~55℃);
8) Maximum pressure: 1.0Mpa
Advantages:
1. High performance Brushless Motor.
2. Electric drive, remote switching control, convenient for automation system.

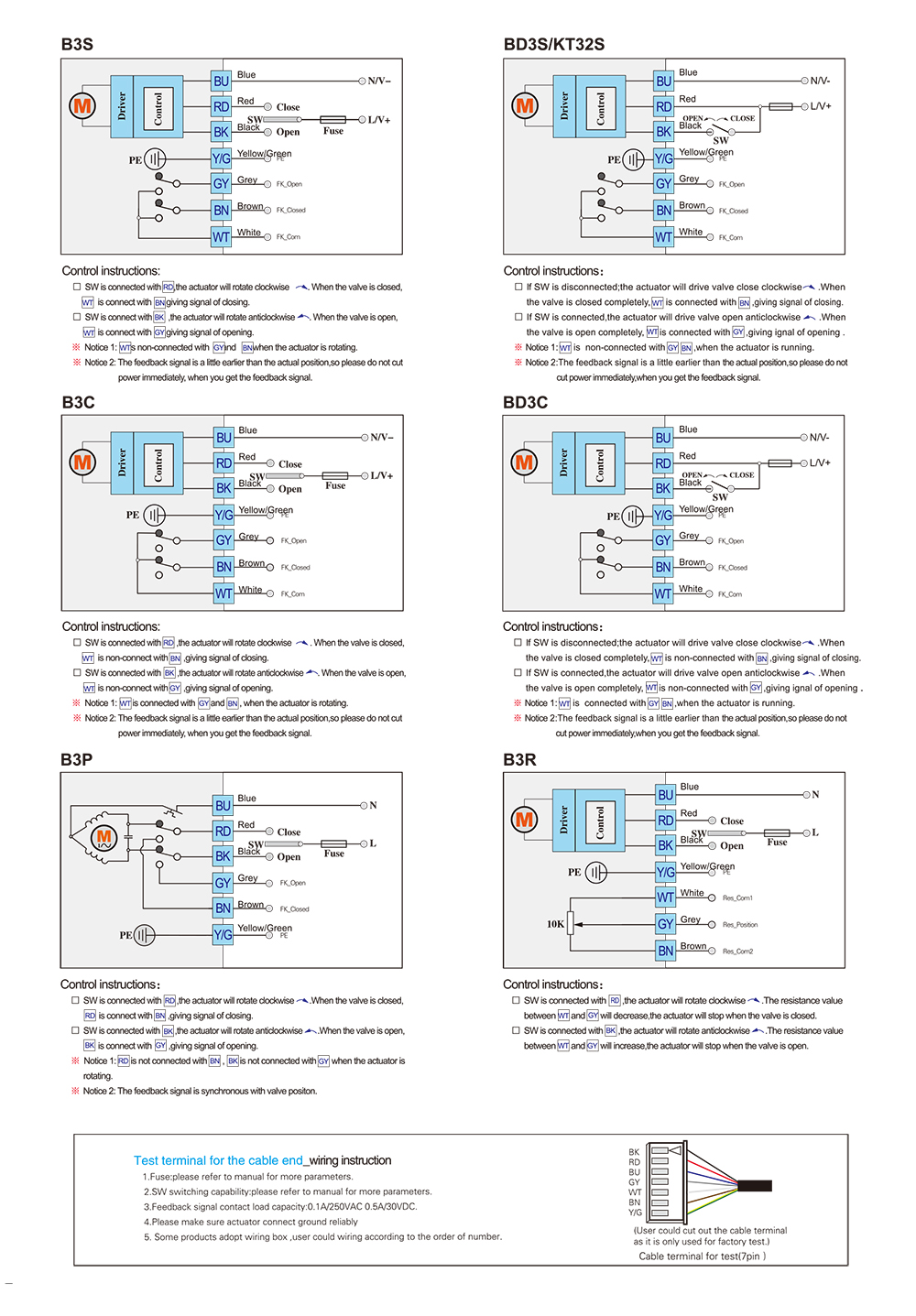

3. Different wiring diagram to meet various control methods.
4. 100% Metal Gears inside.
5. Protection grade IP67.
6. Manual override & Positing indicator optional.
7. 100% ON/OFF testing before shipping.
