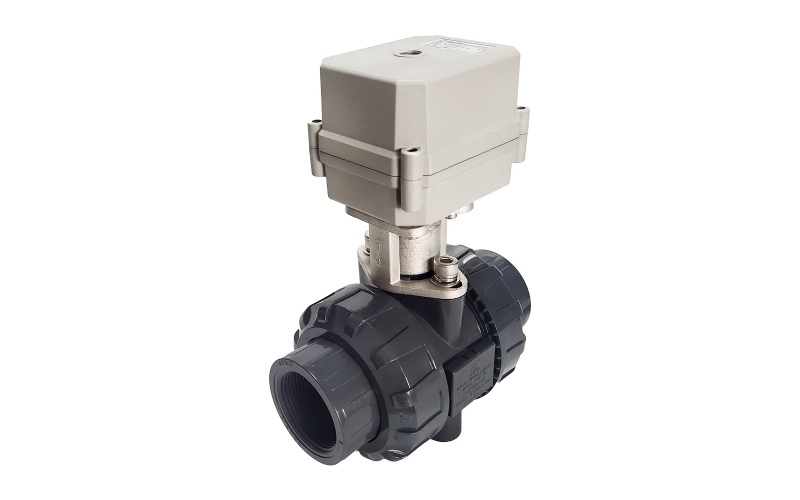

10Nm 2 Way UPVC Motorized Ball Valve True Union end with NPT,BSP or Glue End connection

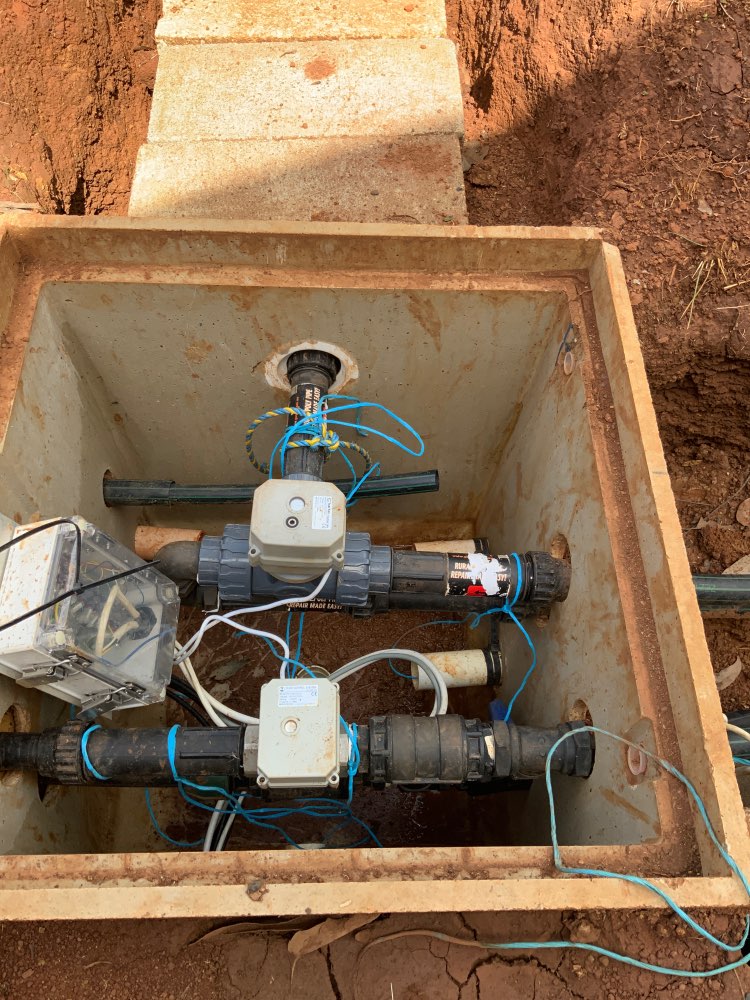

10Nm Electric Motorized Actuator with UPVC 2 Way Ball Valve, True Union End used for Swimming Pool, Sea water...

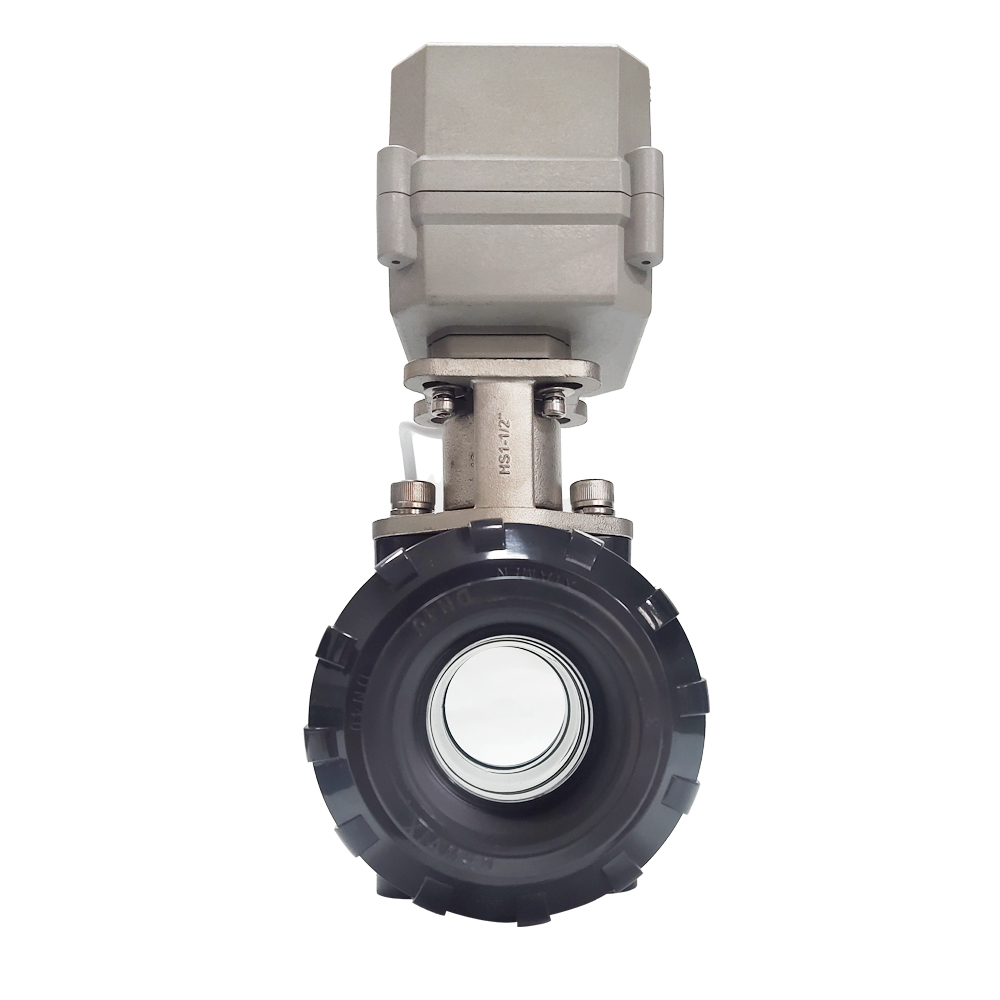

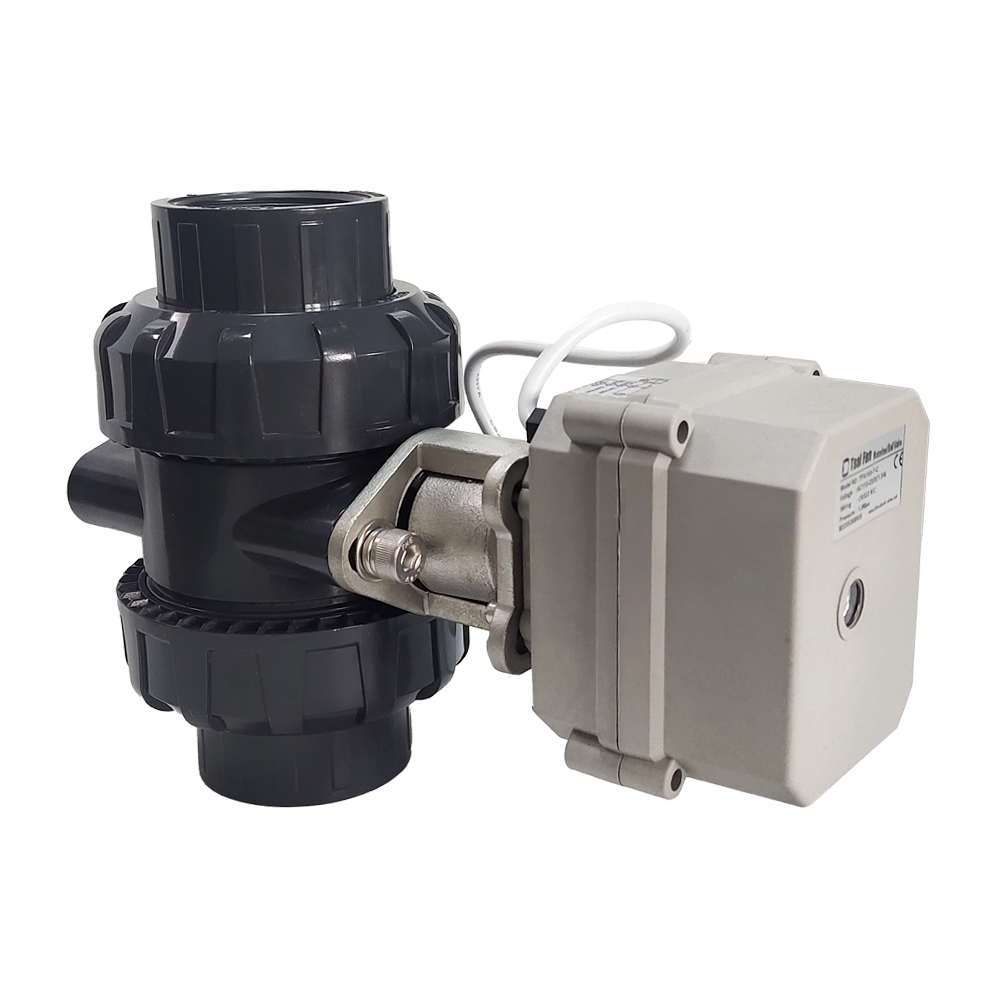

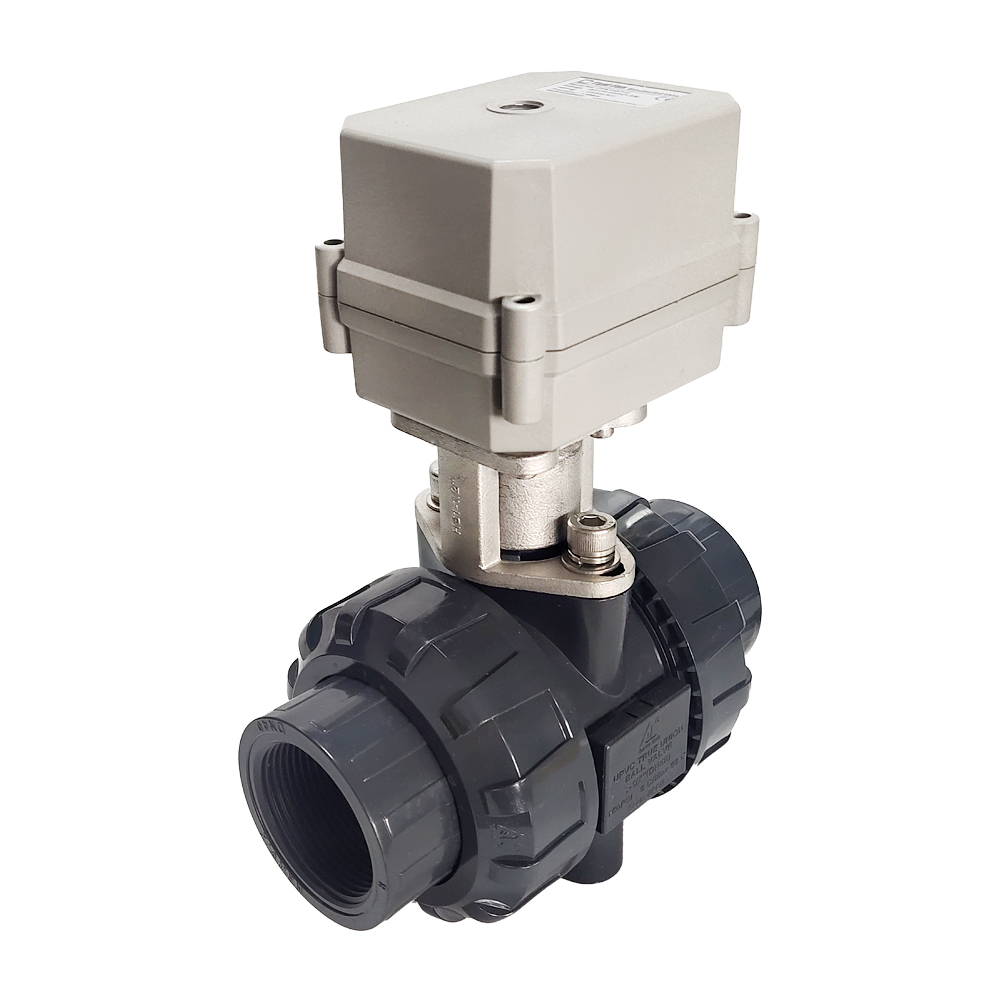

TFA100-P2 Series 2 Way UPVC Valve：
Features：
1. Torque force: 10Nm
2. Power supply: DC12V,DC24V,AC/DC9-24V,AC110-230V
3. Running time: 15 seconds
4. Size: 1/2''-2''(DN15-DN50); BORE SIZE: 15mm-50mm;
5. Material: UPVC
6. Connection: Thread(NPT,BSP, Glue End)
7. Temperature: (5~55℃);
8) Maximum pressure: 1.0Mpa

Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.

Specifications:

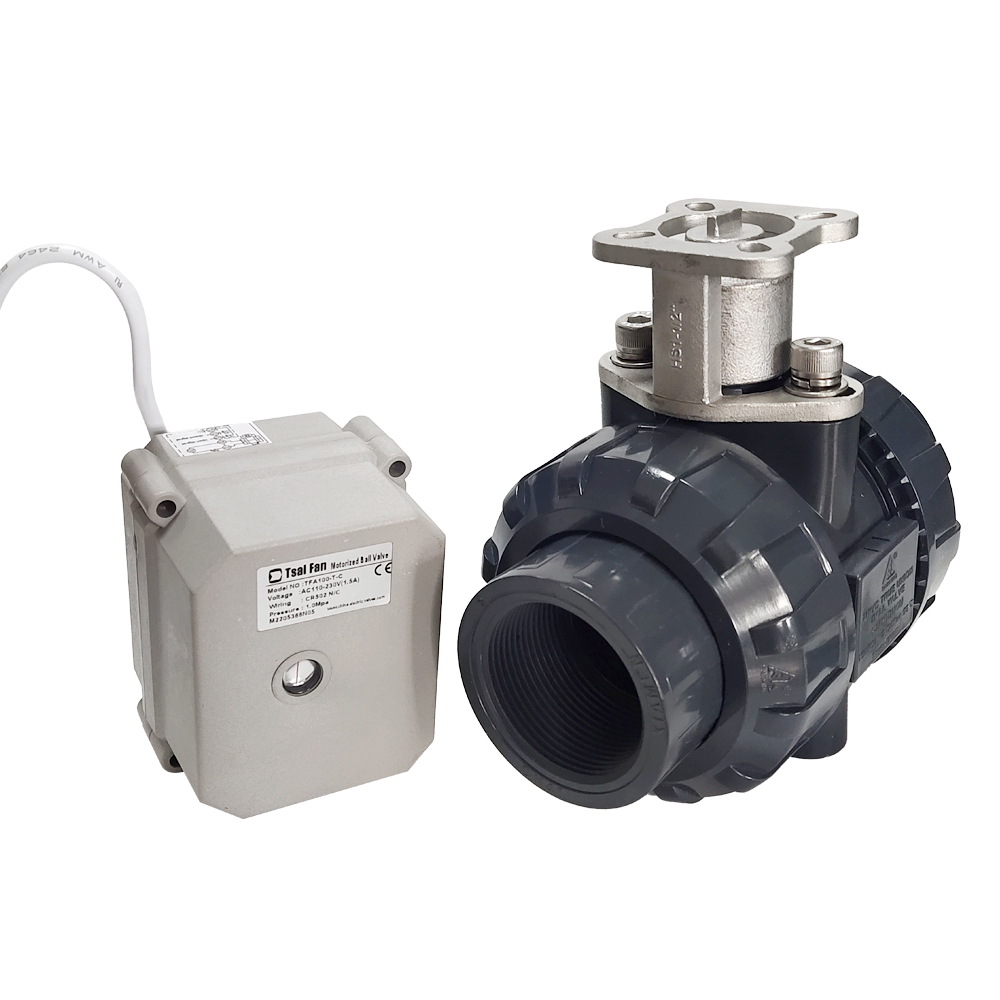

Actuator
Rated voltage: DC12V, DC24V	Wiring : CR201, CR303, CR501, CR703 (Optional)
Rated voltage: AC/DC9-24V	Wiring: CR202, CR303, CR305, CR306, CR502,CR703 (Optional)
Rated voltage: AC110-230V	Wiring: CR202, CR303, CR305, CR306 CR401, CR502, CR703, CR704, CR705, CR706 (Optional)
Working current:	≤1 A
Open/close time:	≤15S
Life time:	70000 times
Actuator material:	PPO
Gears material:	Metal Gears
Actuator rotation:	90 degree
Max. torque force:	10 Nm
Cable length:	0.5m, 1.5m(Optional)
Manual override:	No
Indicator:	Yes
Protection class:	IP67
Valve body

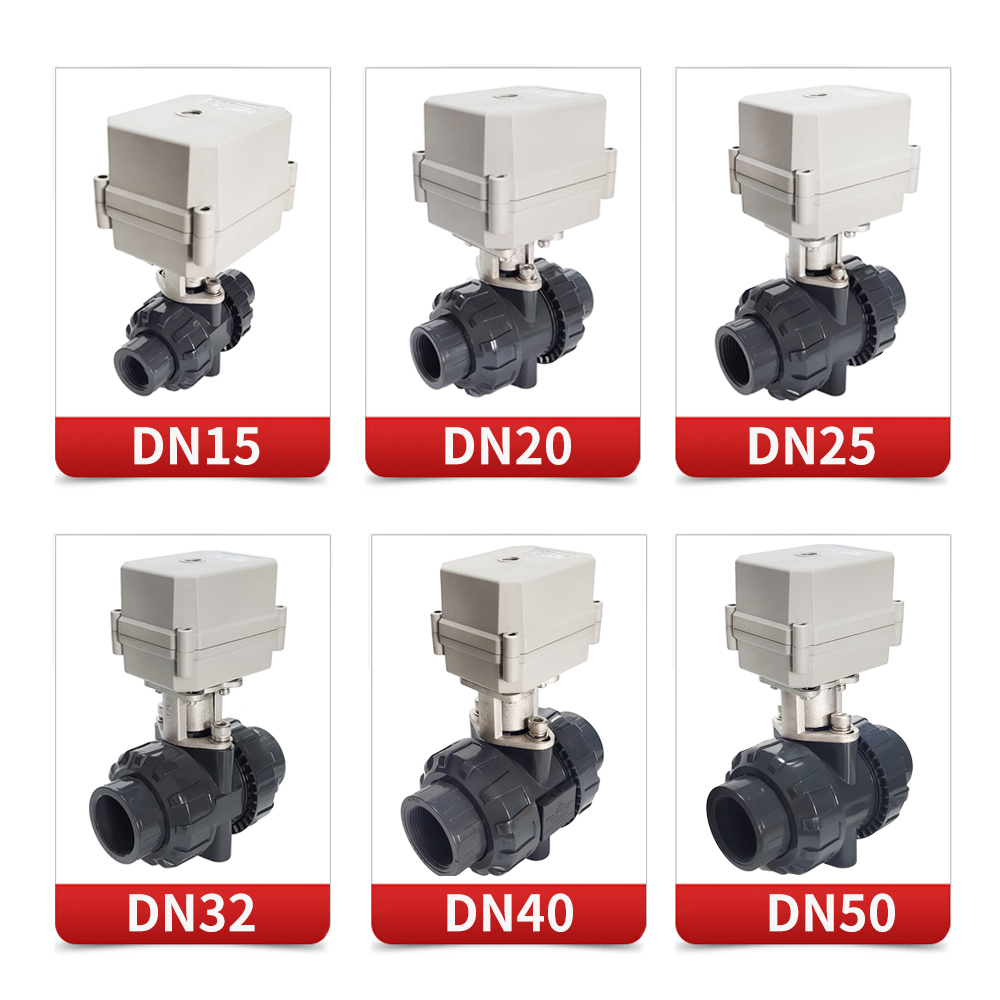

Valve size	DN15, DN20, DN25, DN32, DN40, DN50
Valve body material:	UPVC
Connection end:	NPT/ BSP thread, Glue End (Optional)
Valve type	2 Way
Maximum working pressure:	1.0MPa
Circulation medium:	Fluid, Air
Sealing material:	EPDM, PTFE, FKM (Optional)
Environment temperature:	-15℃ ~ 50℃
Liquid temperature:	2℃ ~ 55℃

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Main components material:

No.	Name	Material	Qty
1	O-ring	NBR	2
2	Sealing	PTFE	2
3	Valve body	PVC-U	1
4	Ball	PVC-U	1
5	O-ring	NBR	2
6	Bonnet	PVC-U	2
7	O-ring	NBR	2
8	Gland	PVC-U	2
9	Socket	PVC-U	2
10	O-ring	NBR	2
11	Stem	PVC-U	1
12	Coupling	SS304	1
13	Holder	SS304	1
14	Actuator	PPO	1

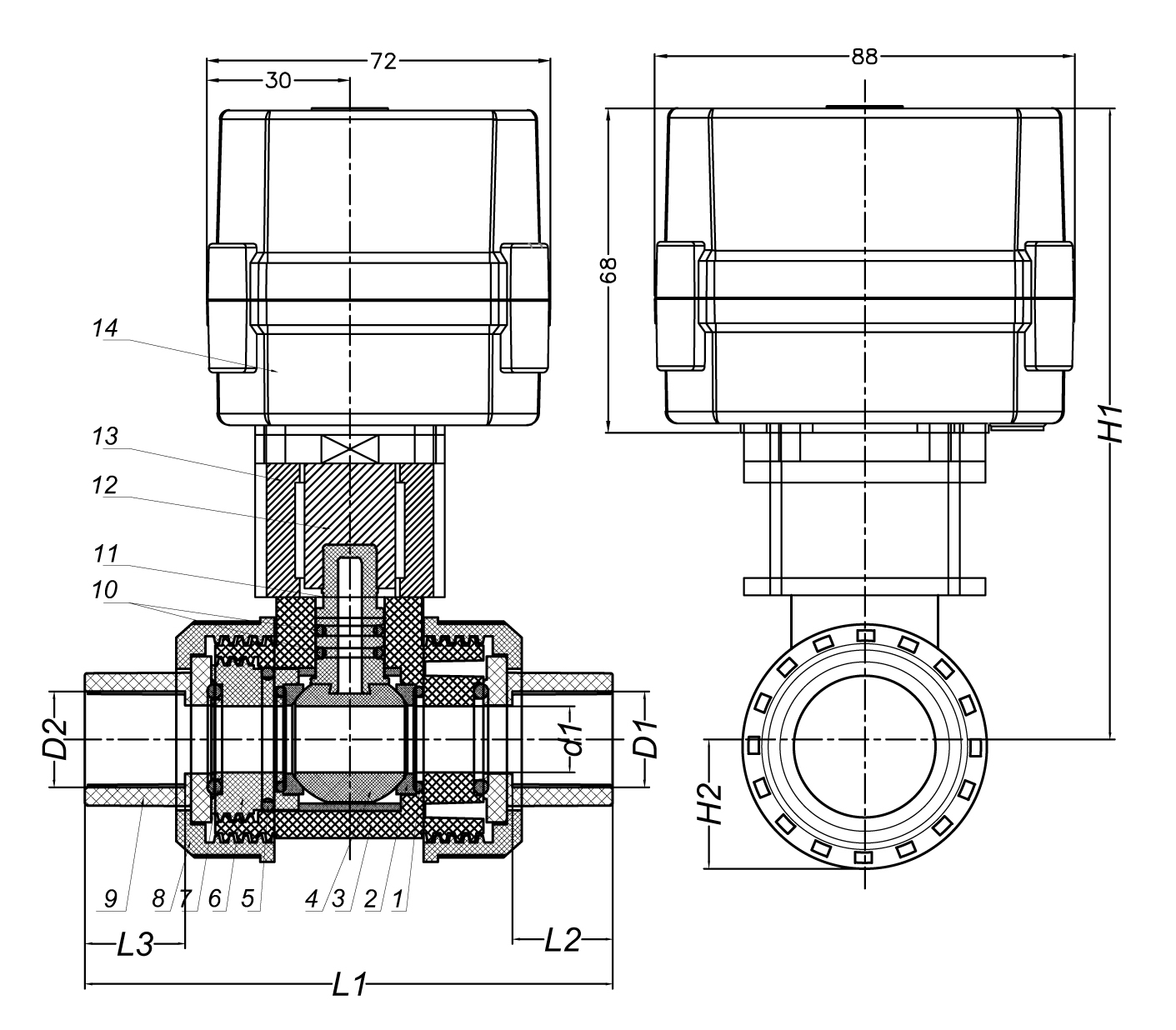

Electric Valve Dimension:

Size (mm)	D1/D2	d1	L1	L2/L3	H1	H2
TF15(1/2”) Electric valve	1/2”	15	104.8	22.3	132	27
TF20(3/4”) Electric valve	3/4”	20	113	25.5	137	32
TF25(1”) Electric valve	1”	25	127	28.6	149	37
TF32(11/4”) Electric valve	11/4”	32	142	32	159	42
TF40(11/2”) Electric valve	11/2”	40	157	35	166	50
TF50(2”)Electric valve	2”	50	174	36	185	59
