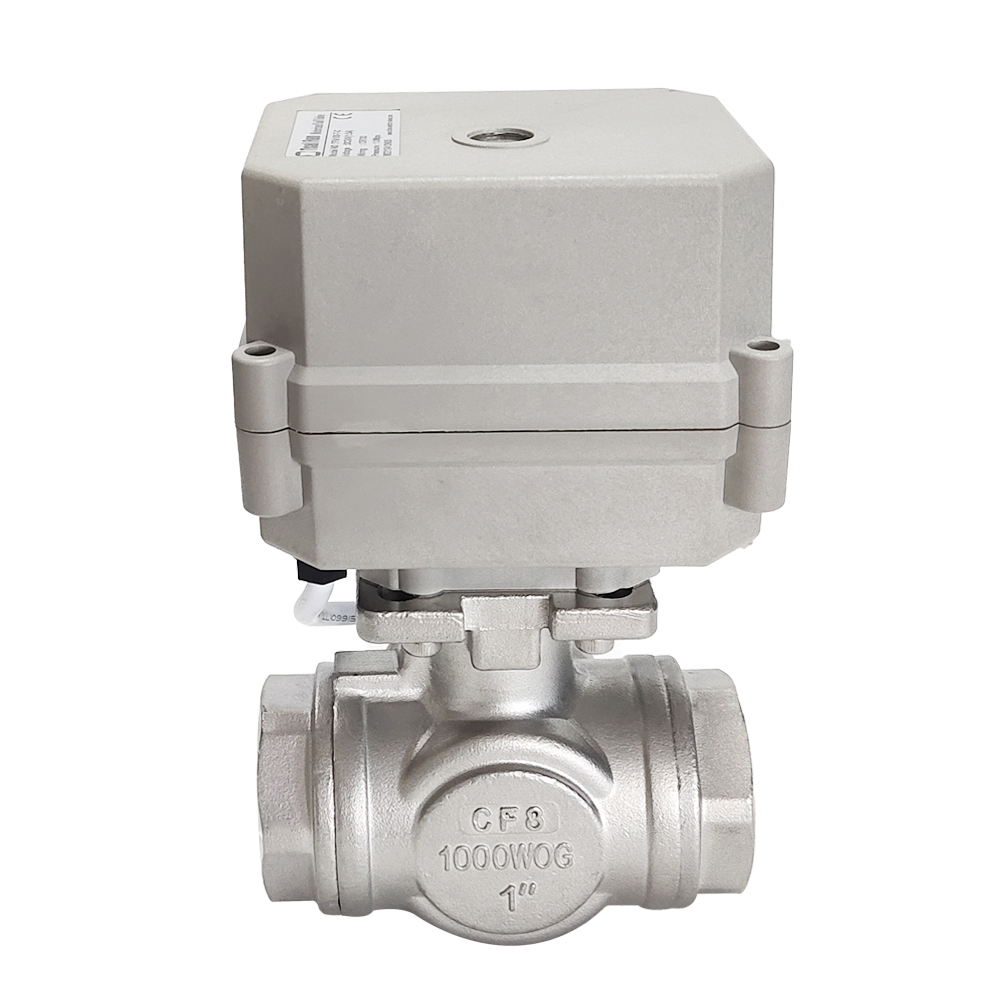

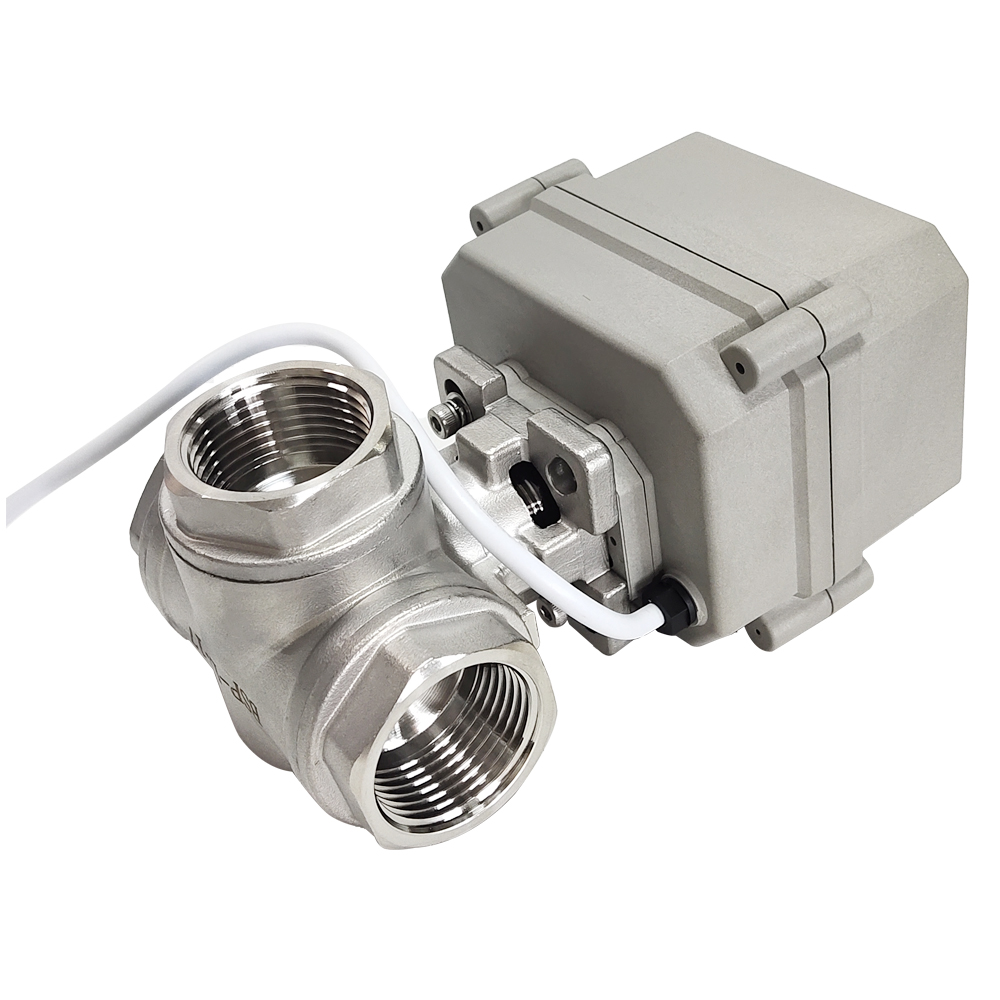

10Nm 3 Way SS304 L port/ T port Motorized Ball Valve with position indicator

10Nm 3 Way SS304 L port/ T port Motorized Ball Valve with position indicator

10Nm 3 Way L port or T port Electric Ball Valves sizes from DN15 to DN25 with position indicator

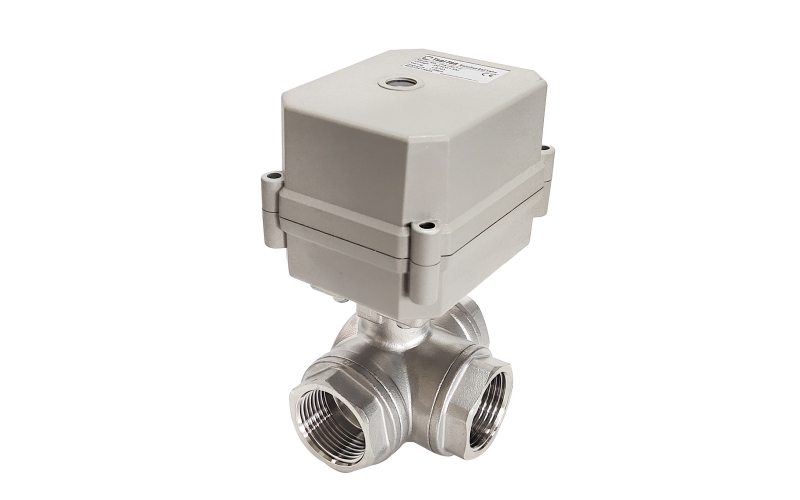

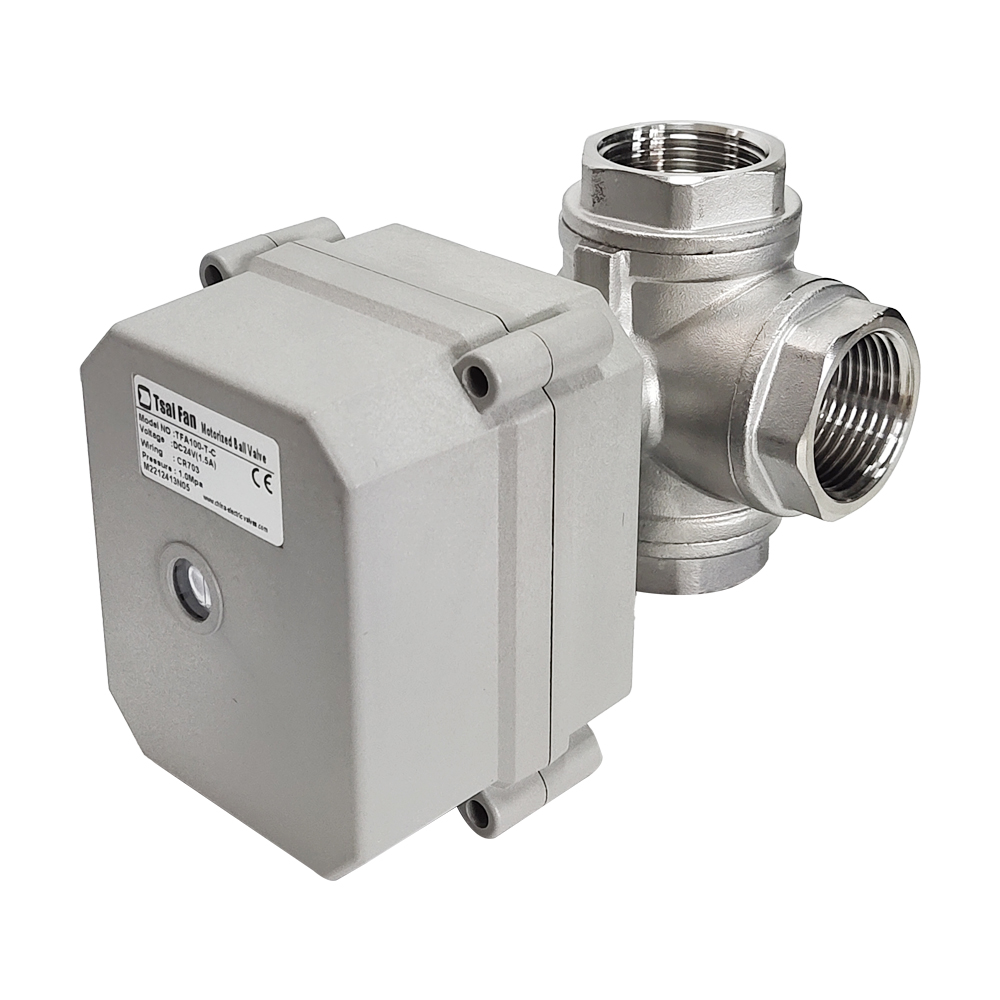

  • TFA100-S3 Series 3 Way SS304 Electric Ball Valve:
    Features:
    1. Torque force: 10Nm
    2. Power supply: DC12V,DC24V,AC/DC9-24V,AC110-230V
    3. Running time: 15 seconds
    4. Size: 1/2''-1''(DN15-DN25); BORE SIZE: 12mm-18mm;
    5. Material: SS304/SS316/SS316L
    6. Connection: Thread(NPT,BSPT)
    7. Temperature: (5~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201, CR303, CR501, CR703  (Optional)
Rated voltage:     AC/DC9-24VWiring:   CR202,  CR303, CR305, CR306, CR502,CR703  (Optional)
Rated voltage:     AC110-230VWiring:   CR202,  CR303, CR305, CR306 CR401, CR502, CR703, CR704, CR705, CR706  (Optional)
Working current:≤1 A
Open/close time:≤15S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:10 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:No
Indicator:Yes
Protection class:IP67
Valve body
Valve sizeDN15 to DN25
Valve body material:Stainless Steel 304
Connection end:NPT or BSP thread (Optional)
Valve type3 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15℃ ~ 50℃
Liquid temperature:2℃ ~ 90℃

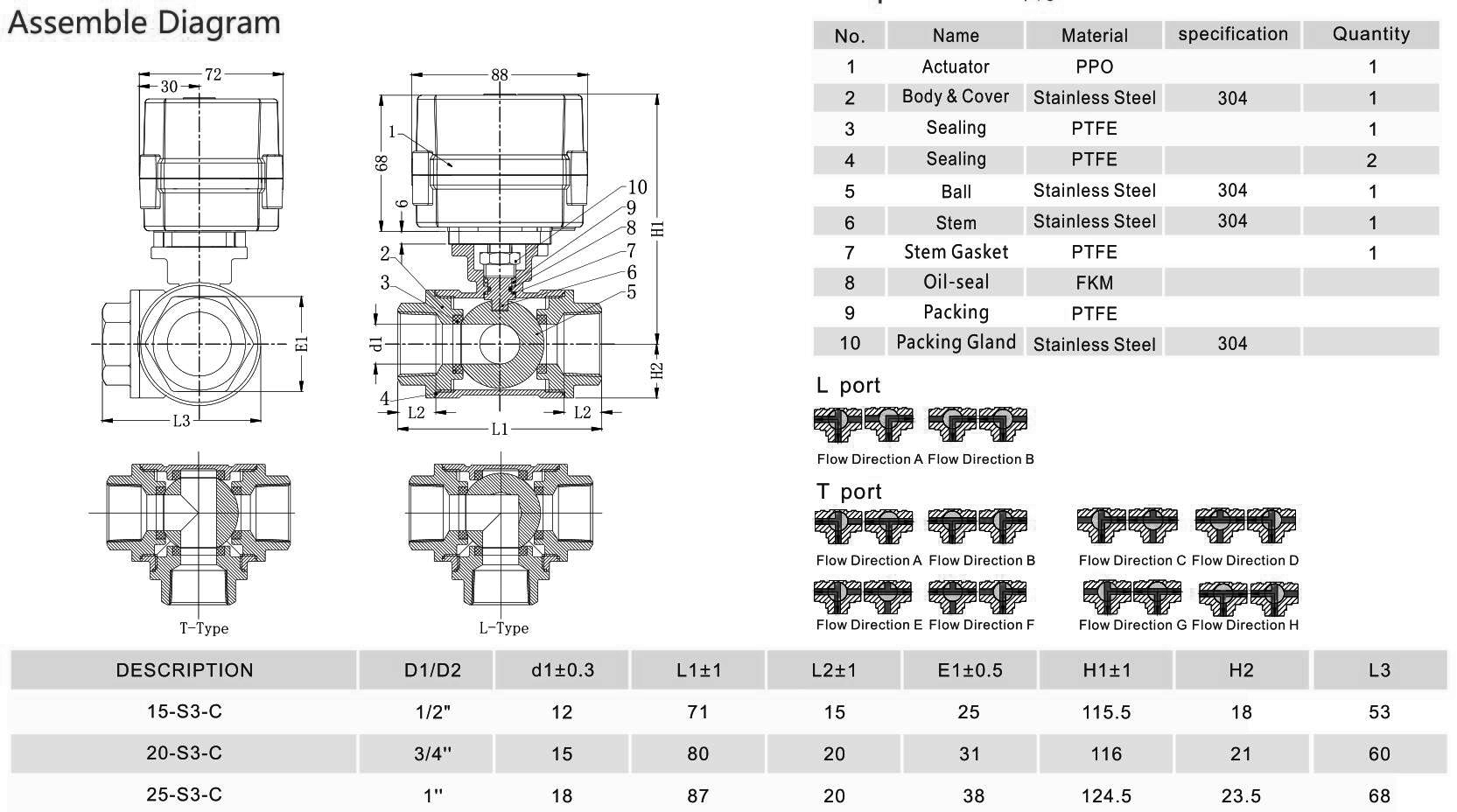

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMSMetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

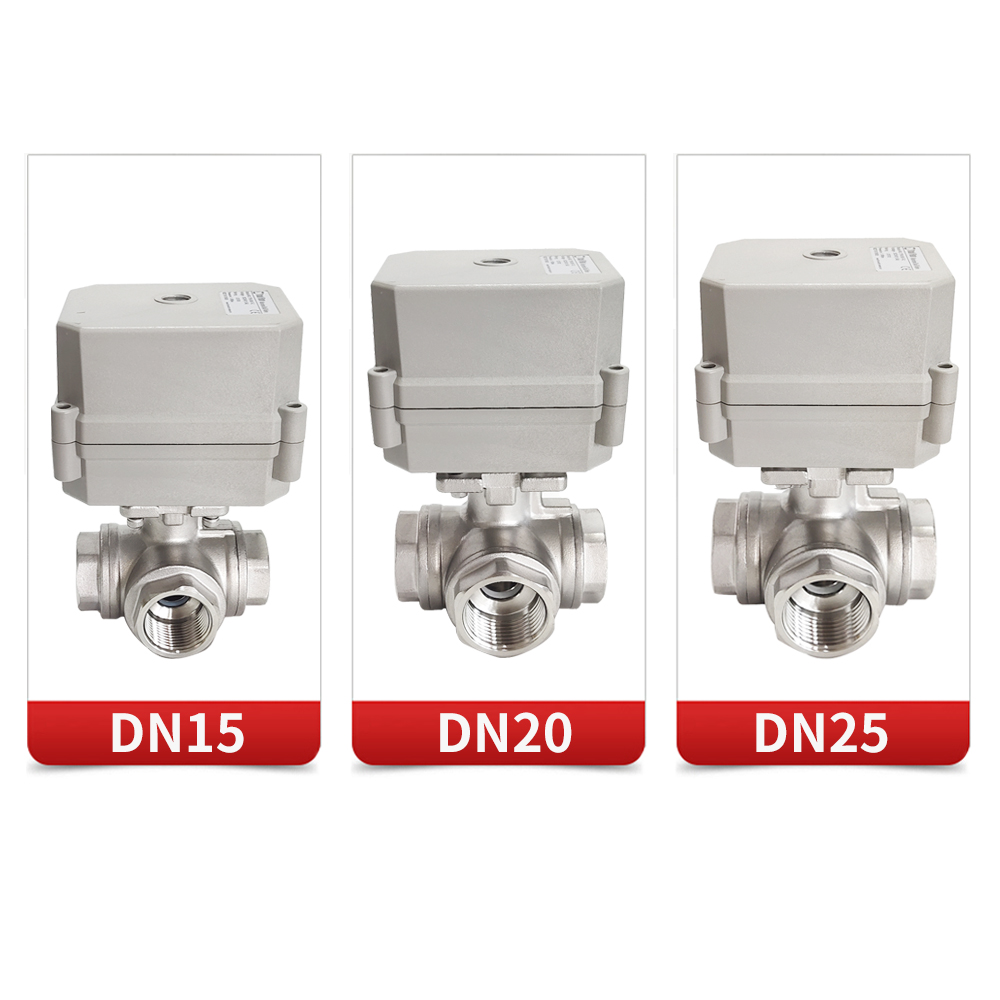

Different sizes:

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

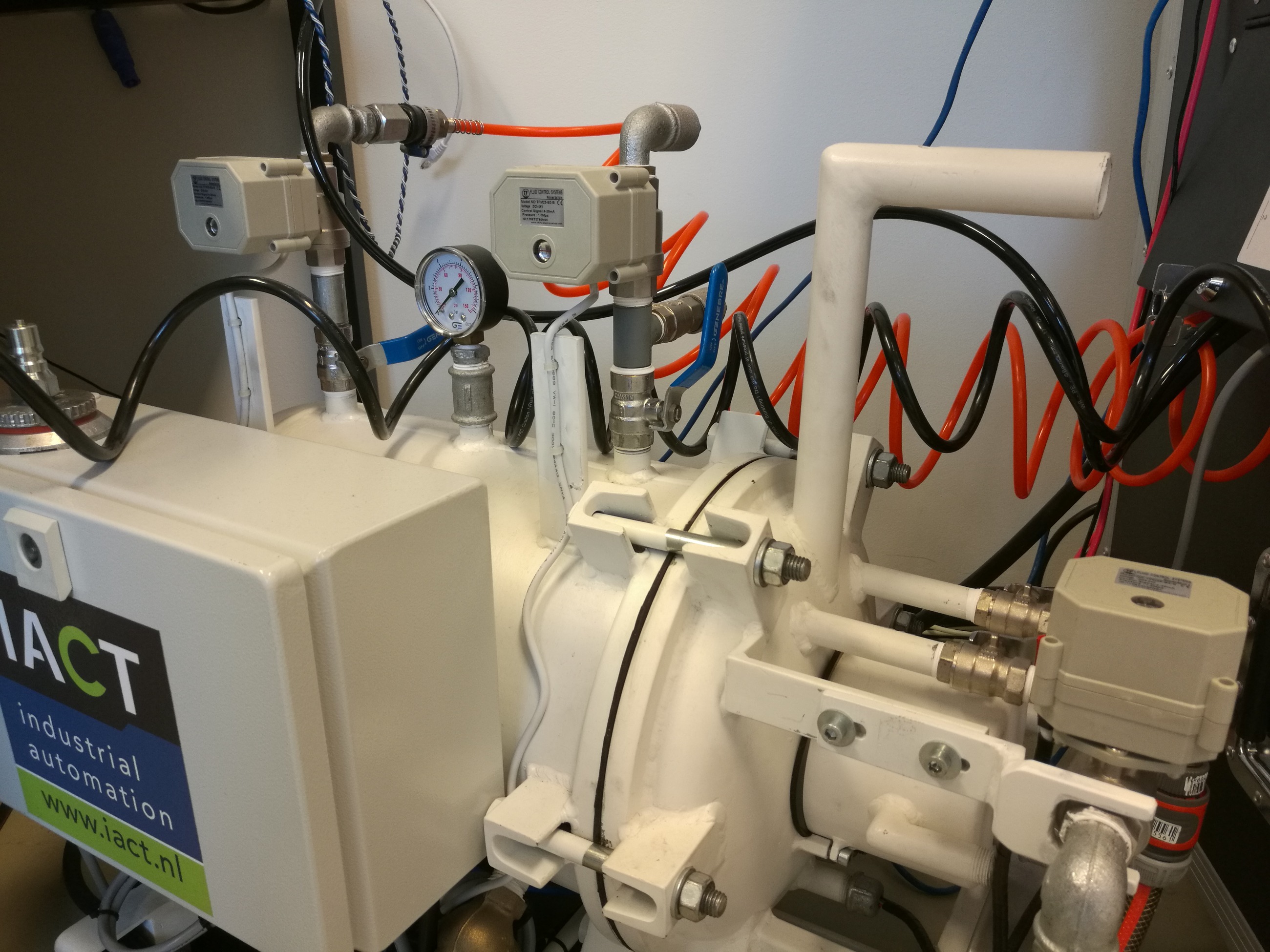

Applications:
