10Nm 2 Way Stainless Steel Grade304 Electric Ball Valve NSF for dringking water
10Nm Electric Ball Valve with position indicator only, CE certified, IP67, Metal Gears
-
TFA100-S2 Series 2 Way SS304 Electric Ball Valve:
Features:
1. Torque force: 10Nm
2. Power supply: DC12V,DC24V,AC/DC9-24V,AC110-230V
3. Running time: 15 seconds

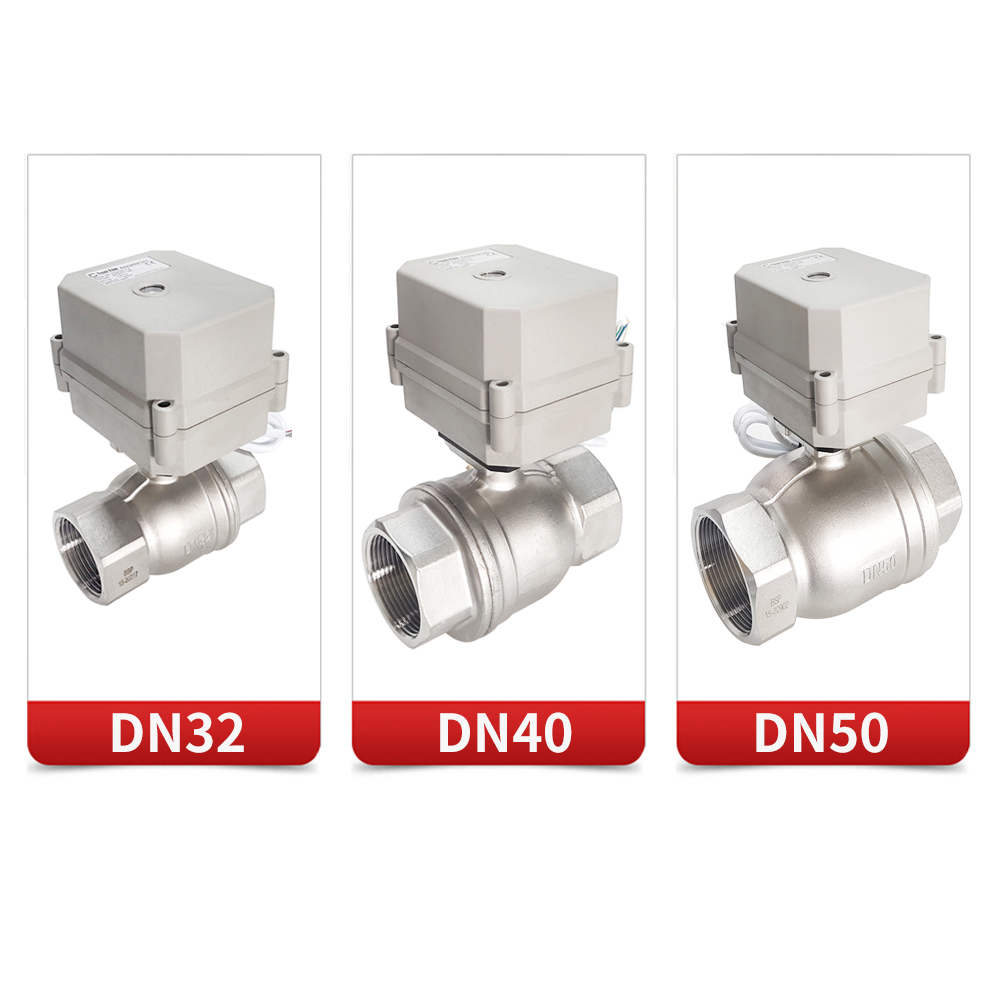

4. Size: 1/2''-2''(DN15-DN50); BORE SIZE: 15mm-49mm;
5. Material: SS304/SS316/SS316L
6. Connection: Thread(NPT,BSPT)
7. Temperature: (5~90℃);
8) Maximum pressure: 1.0Mpa
Advantages:
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.
