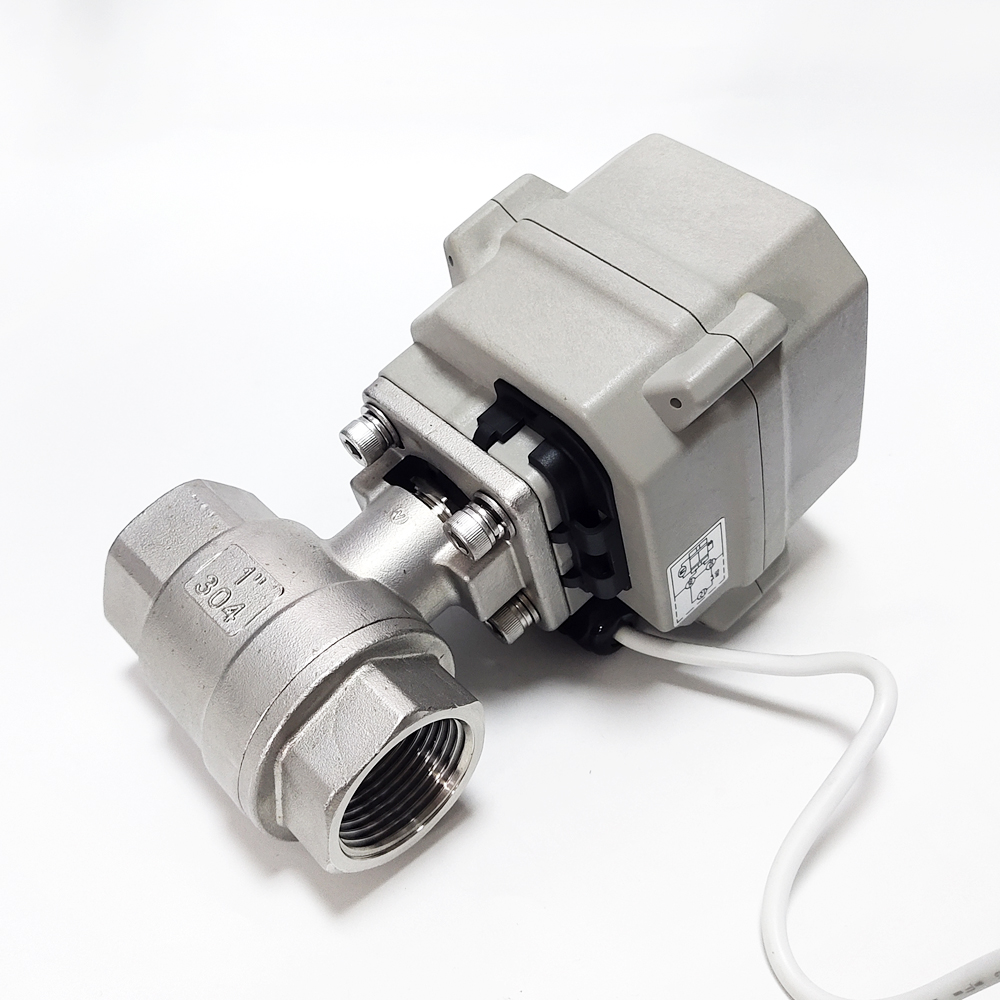

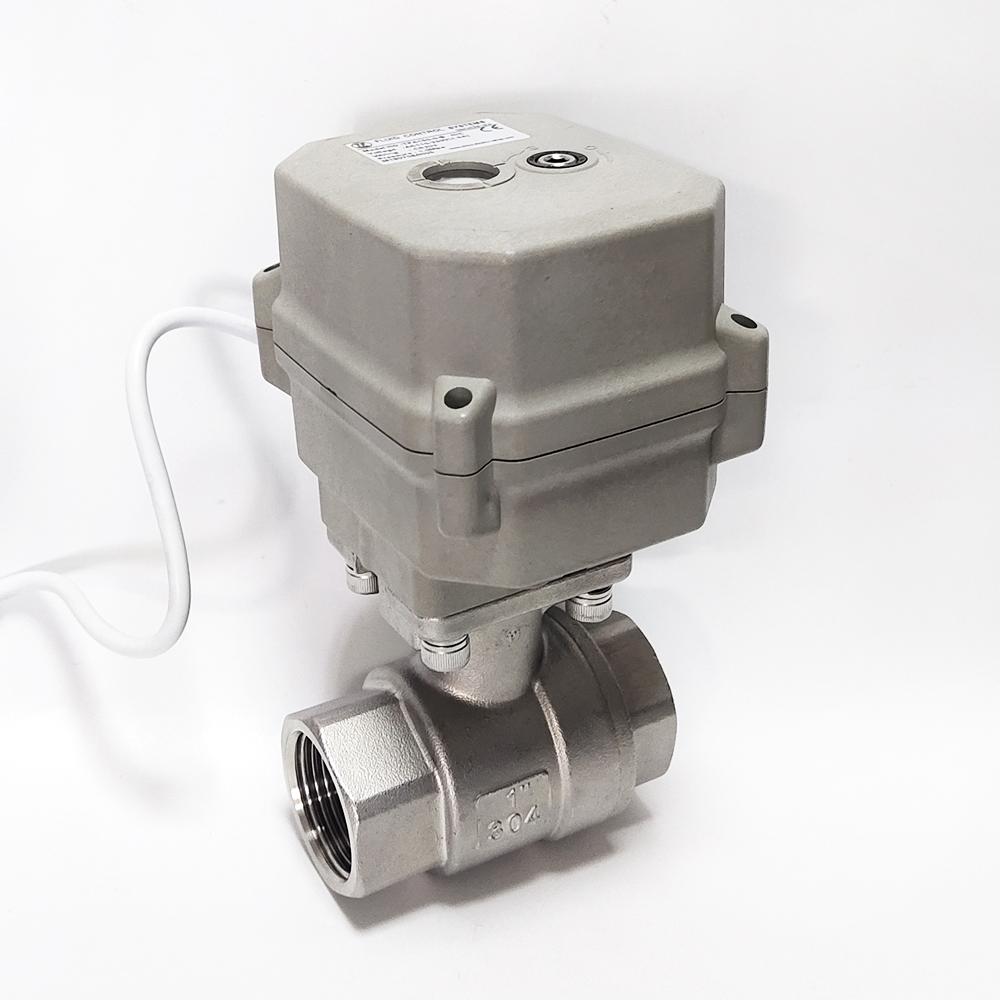

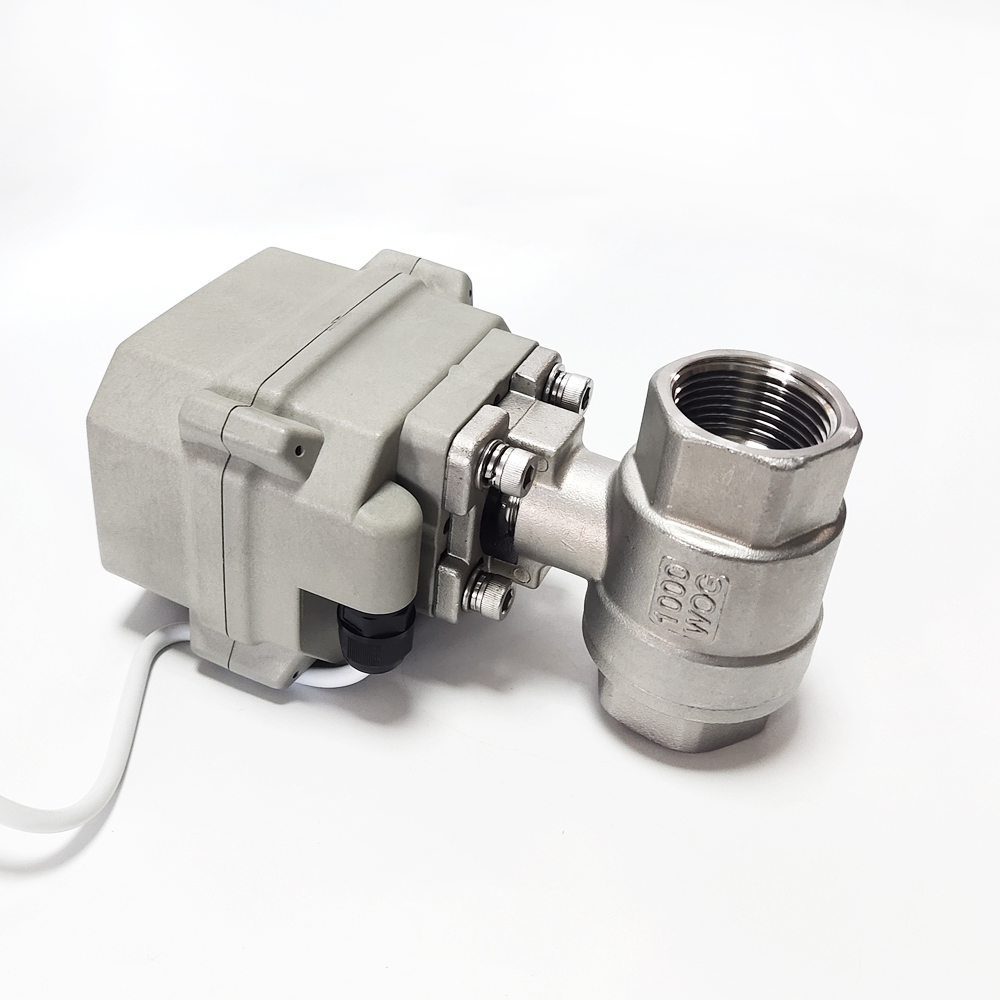

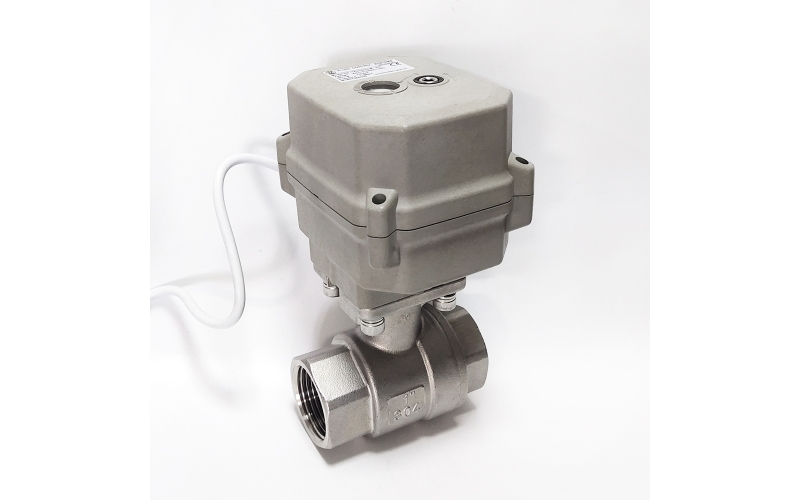

15Nm SS304 2 Way Motorized Ball Valve with Manual override and position indicator
15Nm 2 Way Stainless 304 Electric Ball Valves with Manual override and position indicator CE, Metal gears, IP67 Protection
-
TFA150-S2 Series 2 Way SS304：
Features：
1. Torque force: 15Nm
2. Power supply: DC12V,DC24V,AC24V,AC110-230V
3. Running time: 12 seconds
4. Size: 1/2''-2''(DN15-DN50); BORE SIZE: 15mm-50mm;
5. Material: SS304/316/316L
6. Connection: Thread(NPT,BSP)
7. Temperature: (5~90℃);
8) Maximum pressure: 1.0Mpa
Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.

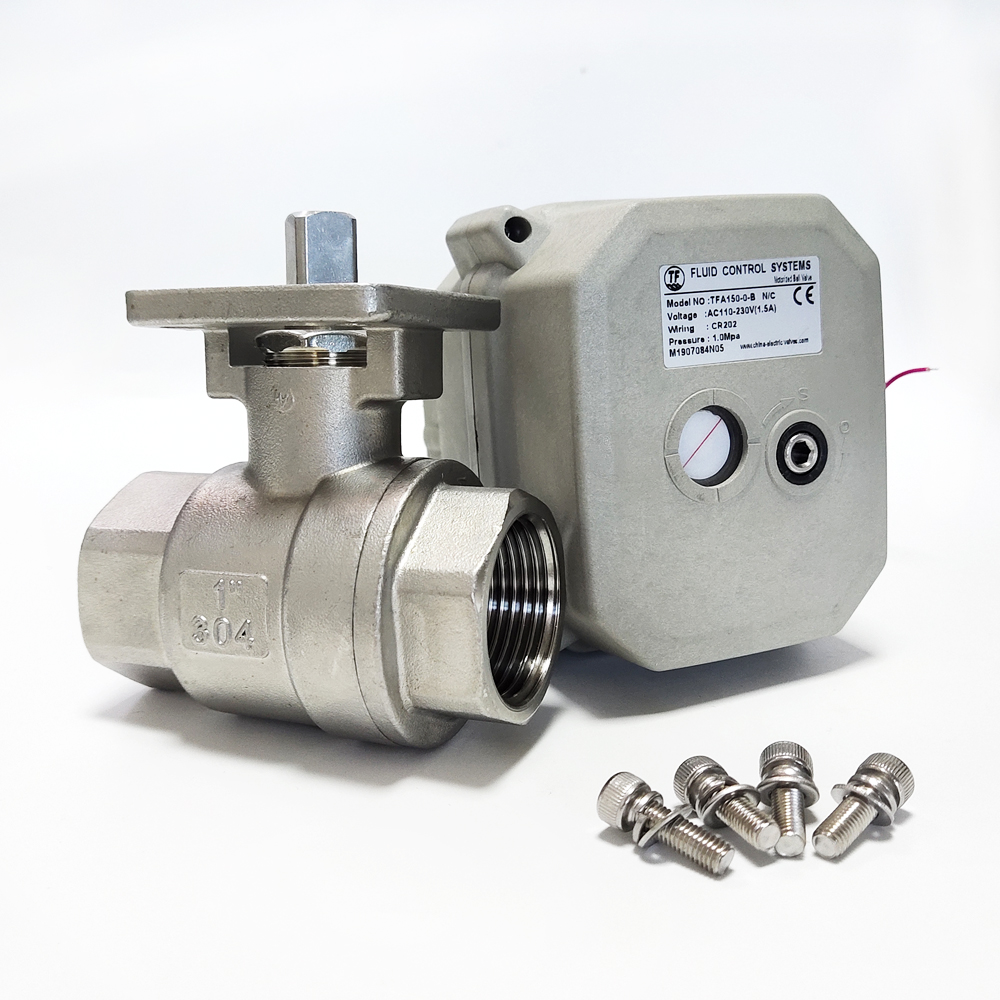

5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.
