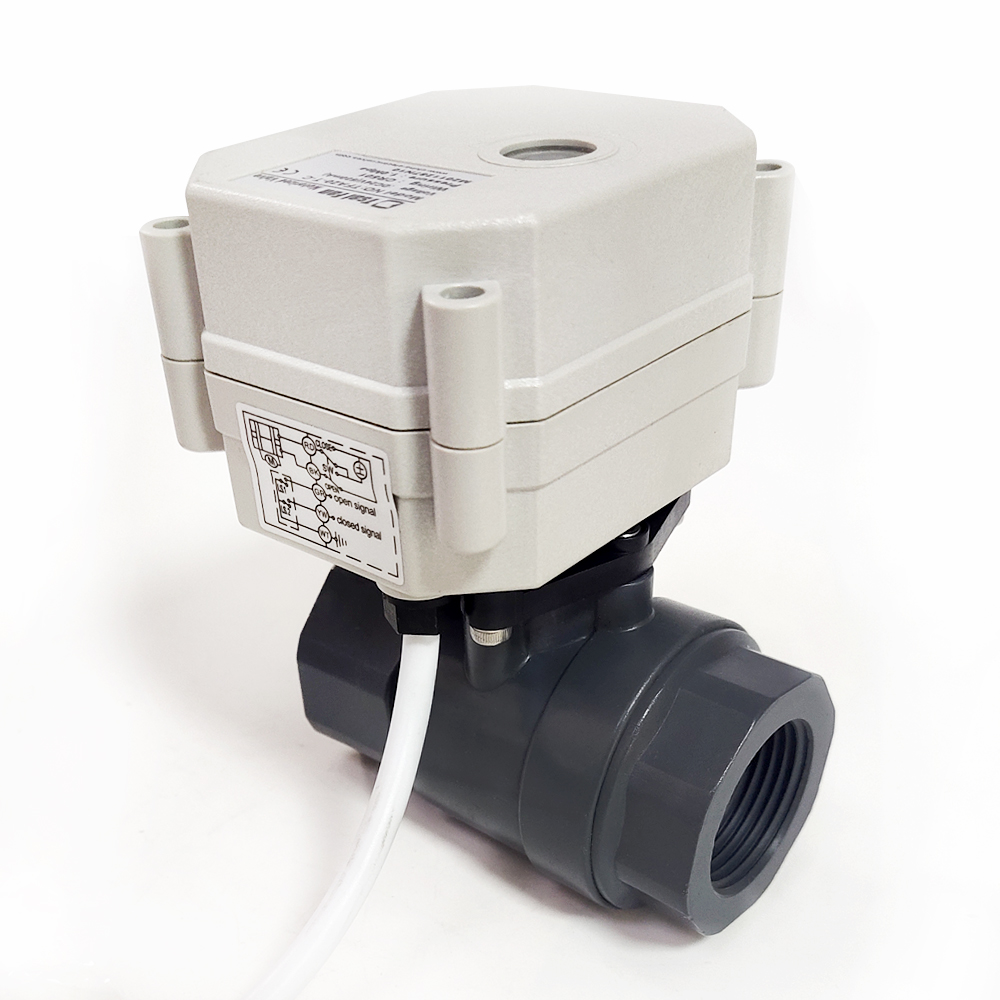

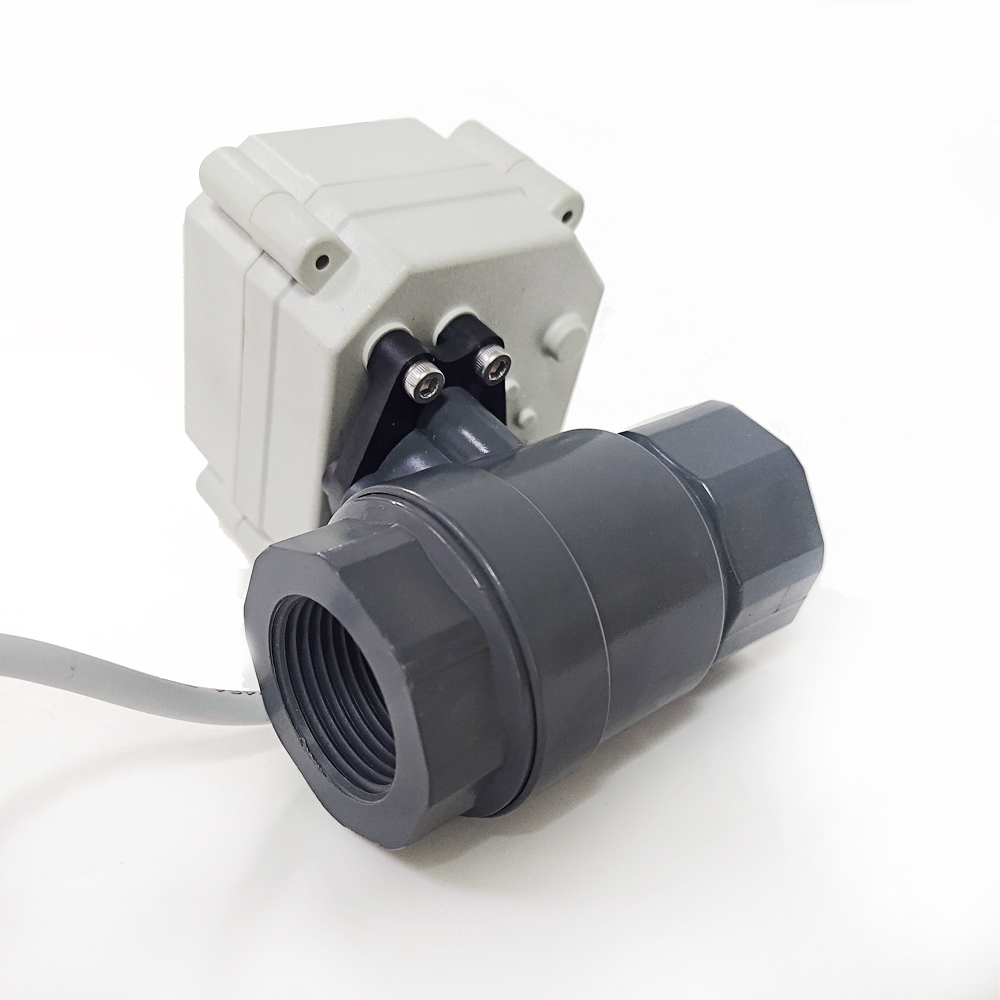

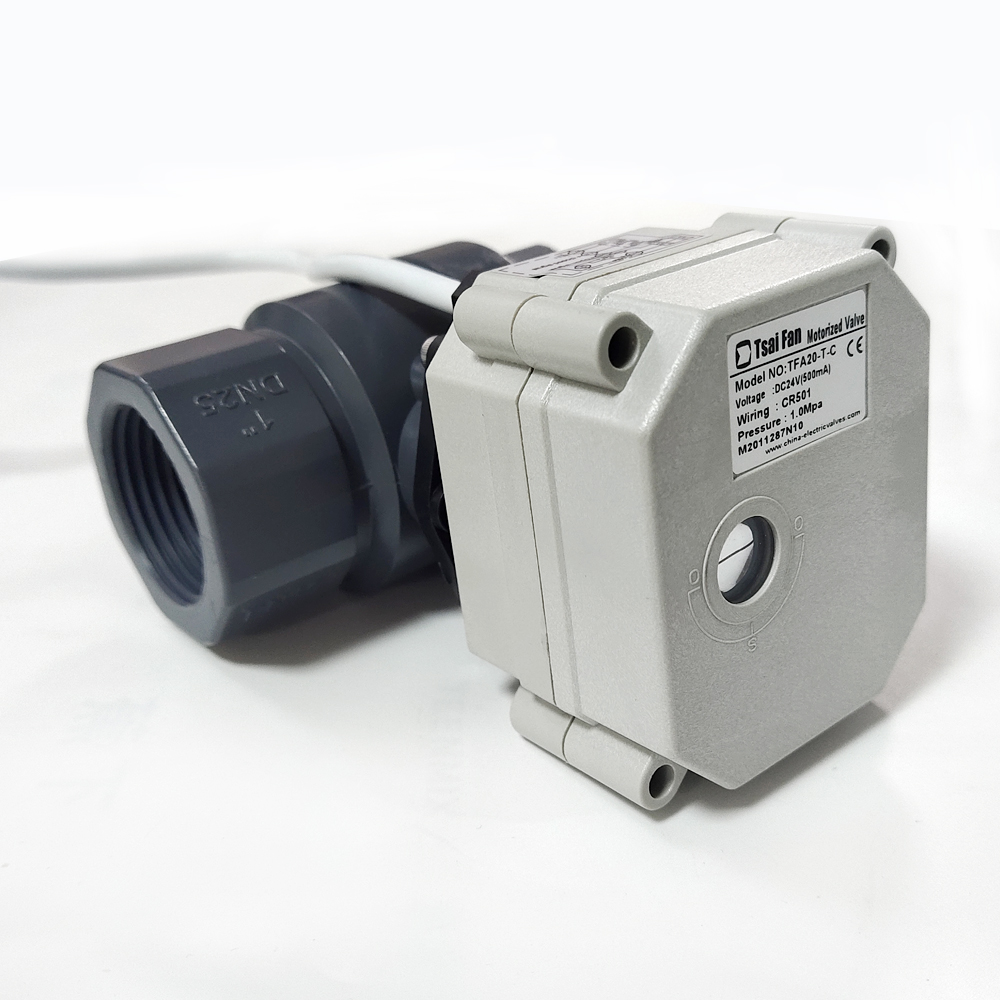

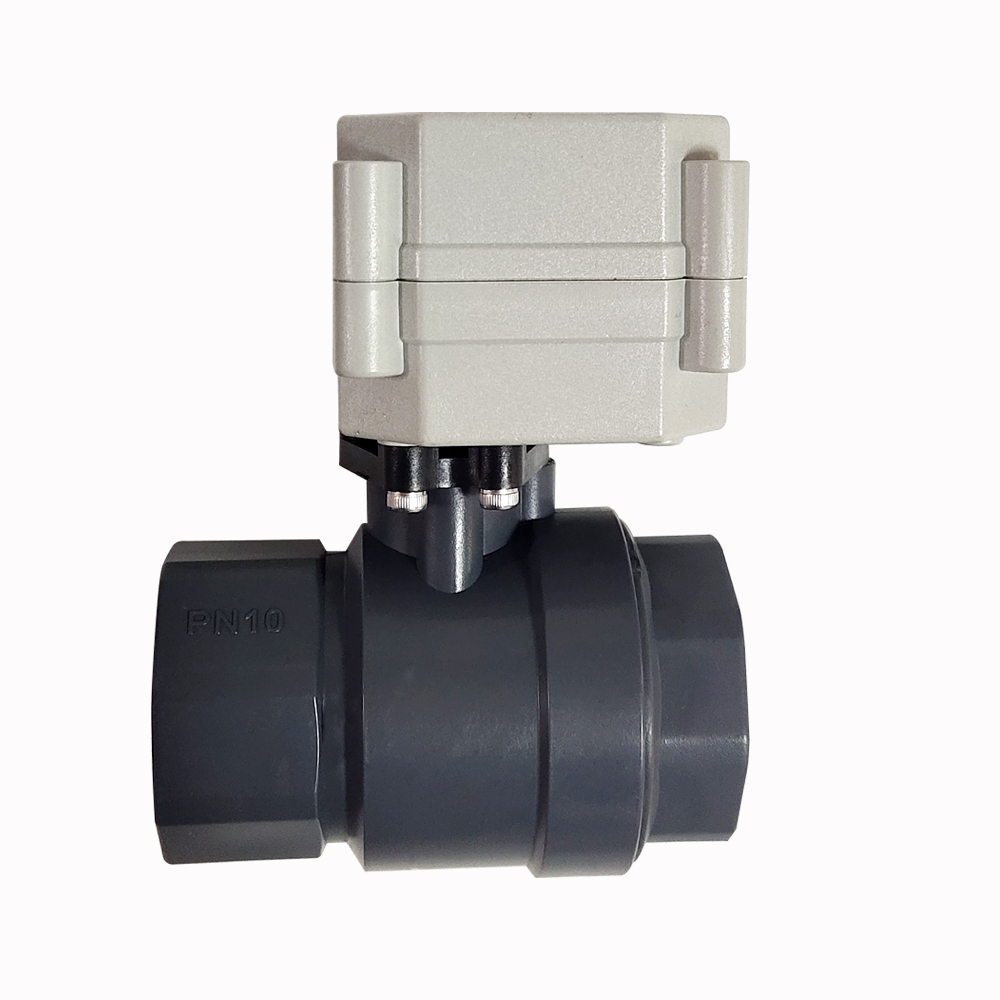

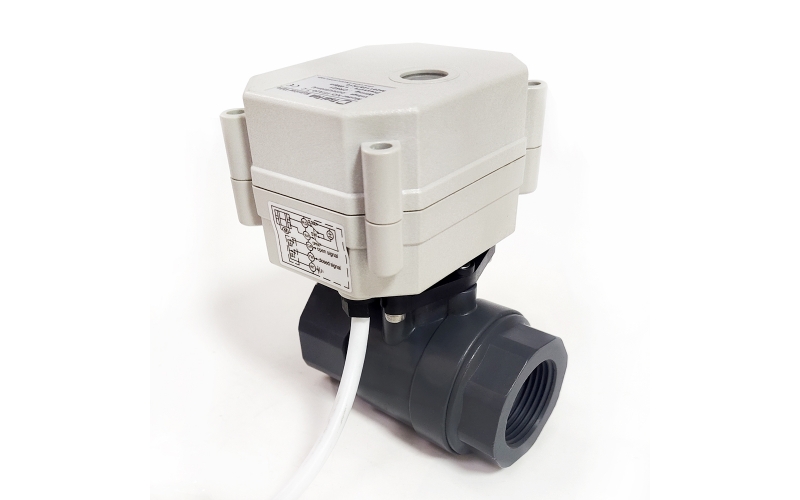

3Nm PVC Electric Ball Valve 2-pieces type with Position indicator

2 Way PVC 2-pieces type Electric Valve with Position indicator. Metal Gears, CE, IP67

• TFA20-P2 Series 2 Way PVC：
  Features：
  1. Torque force: 3Nm
  2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V,AC110-230V
  3. Running time: 5 seconds

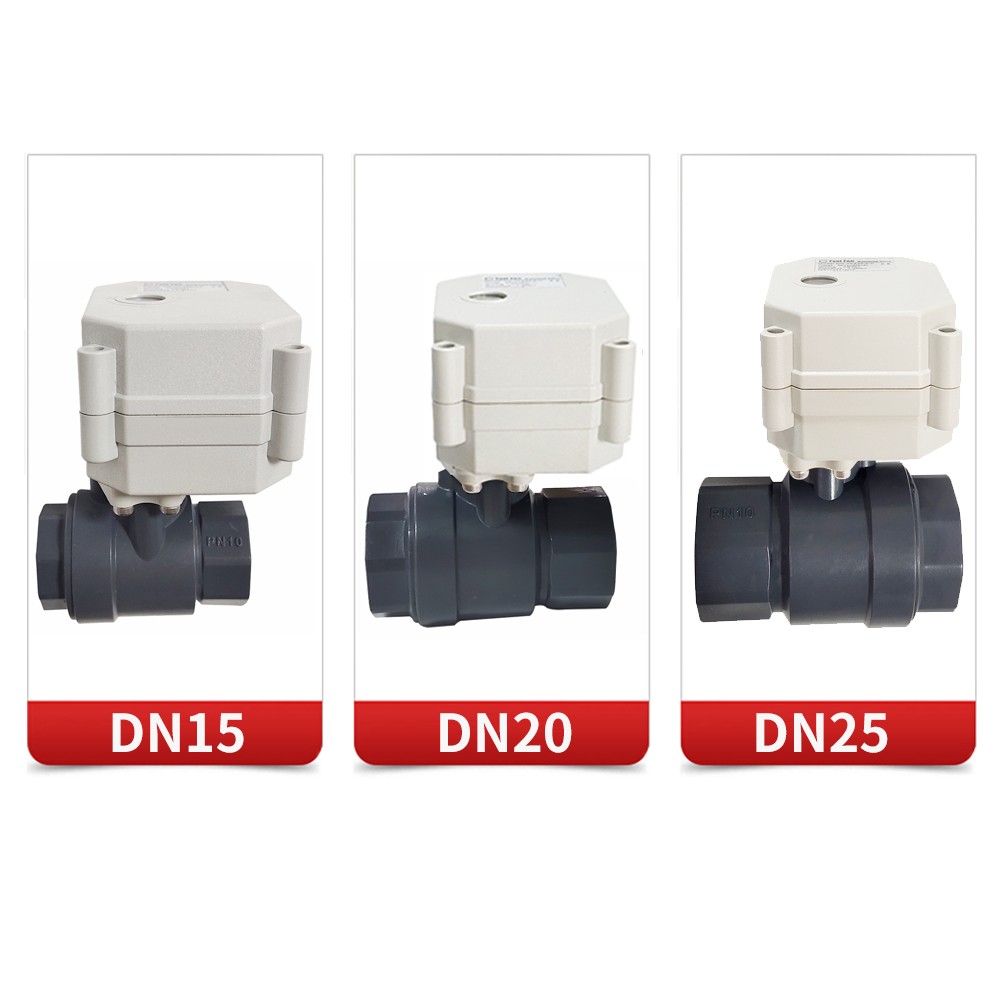

  4. Size: 1/2''-1''(DN15-DN32); BORE SIZE: 14mm-26mm;
  5. Material: PVC
  6. Connection: Thread(NPT,BSPT, Glue End)
  7. Temperature: (5~55℃);
  8) Maximum pressure: 1.0Mpa

  Advantages：
  1. Electric drive, remote switching control, convenient for automation system.
  2. Different wiring diagram to meet various control methods.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Manual override & Positing indicator optional.
  6. 100% ON/OFF testing before shipping.
