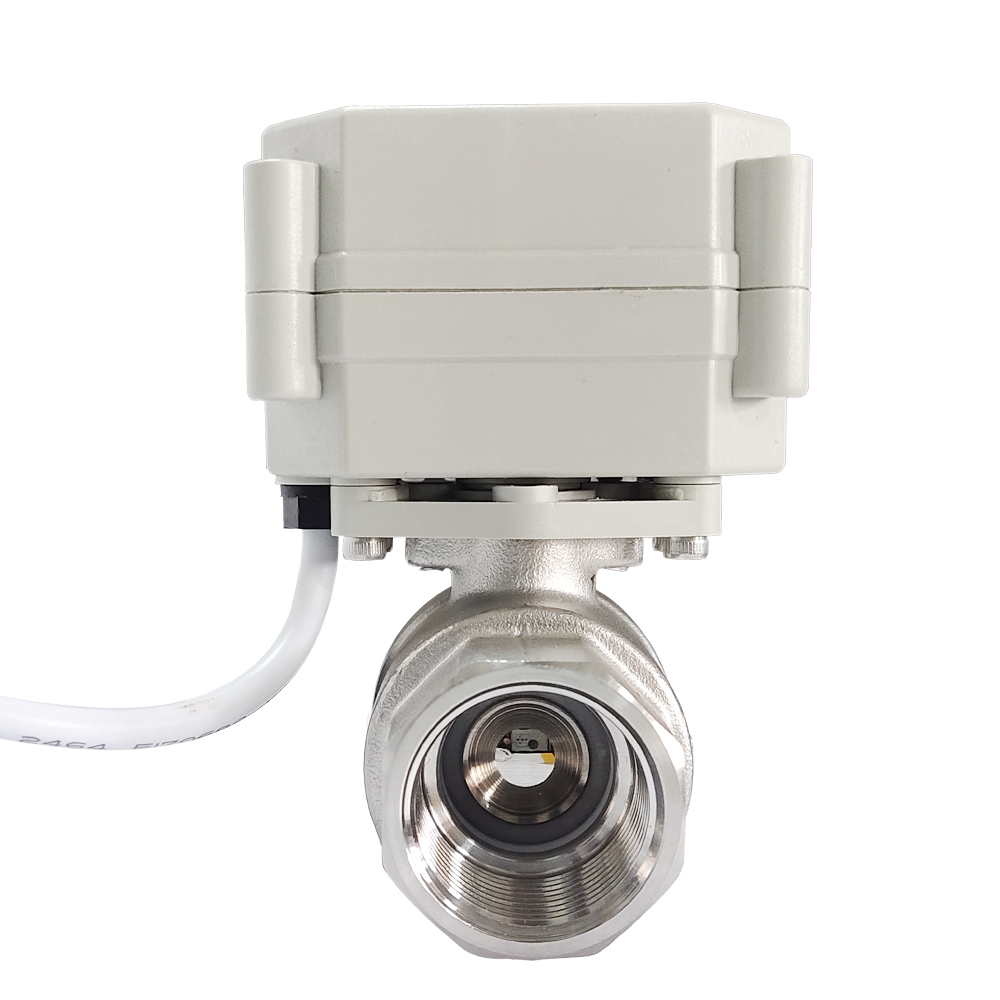

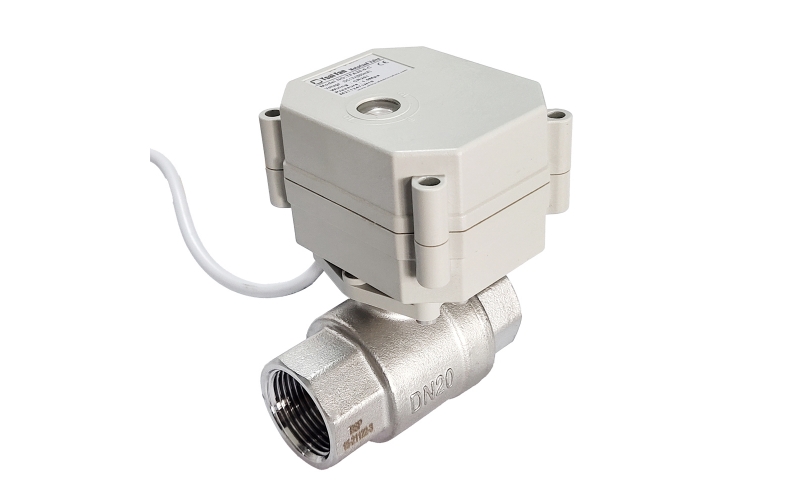

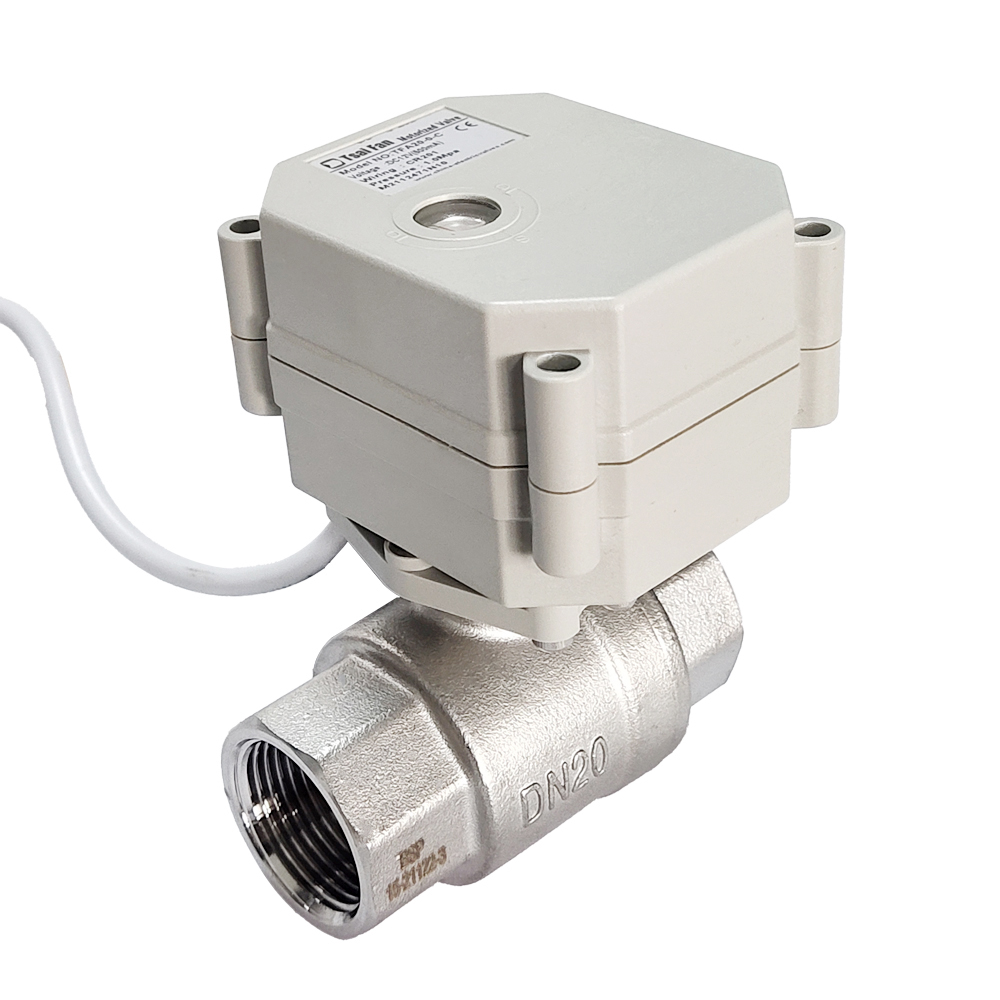

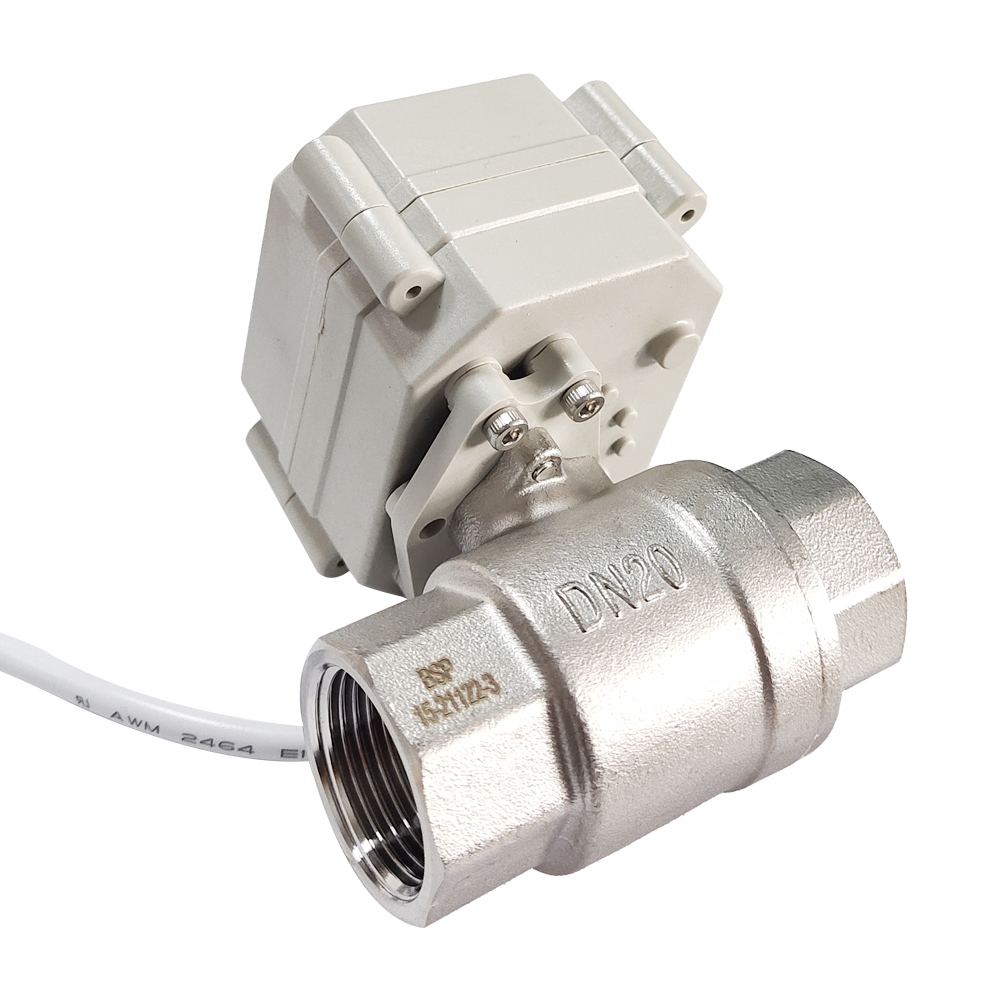

3Nm 2 Way Stainless Steel 304 Electric Valve with Position indicator only size from DN8 to DN25

2 Way SS304 Mtorized Ball Valve with position indicator only CE certified, IP67, Metal Gears, Full Bore

TFA20-S2 Series 2 Way Stainless Valve：
Features：
1. Torque force: 3Nm
2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V,AC110-230V
3. Running time: 5 seconds
4. Size: 1/4''-1''(DN8-DN25); BORE SIZE: 10mm-25mm;
5. Material: Stainless Steel Grade304
6. Connection: Thread(NPT,BSPT)
7. Temperature: (5~90℃);
8) Maximum pressure: 1.0Mpa

Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.

Spefications:

Actuator
Rated voltage: DC5V	Wiring : CR201, CR301, CR501, CR702 (Optional)
Rated voltage: DC12V, DC24V	Wiring : CR201, CR301, CR501, CR702 (Optional)
Rated voltage: AC/DC9-24V	Wiring: CR202, CR303, CR305, CR306, CR502,CR703 (Optional)
Rated voltage: AC110-230V	Wiring: CR202, CR303, CR305, CR306 CR401, CR502, CR703, CR704 (Optional)
Working current:	≤500MA
Open/close time:	≤5S
Life time:	70000 times
Actuator material:	Engineering plastics
Gears material:	Metal Gears
Actuator rotation:	90 degree
Max. torque force:	3 Nm
Cable length:	0.5m, 1.5m(Optional)
Manual override:	No

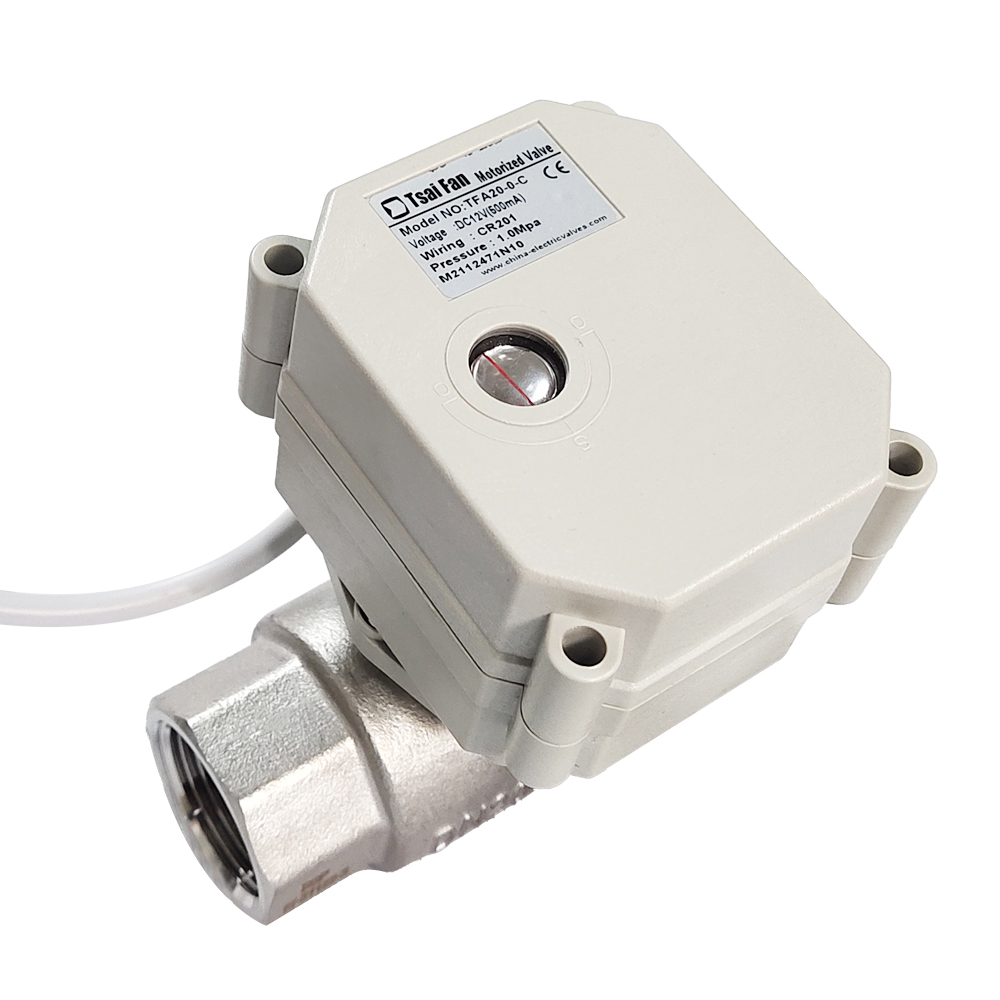

Indicator:	Yes
Protection class:	IP67
Valve body
Valve size	DN8 to DN25
Valve body material:	Stainless Steel Grade304, 316, 316L
Connection end:	NPT or BSP thread (Optional)
Valve type	2 Way
Maximum working pressure:	1.0MPa
Circulation medium:	Fluid, Air
Sealing material:	EPDM, PTFE, FKM (Optional)
Environment temperature:	-15℃ ~ 50℃
Liquid temperature:	2℃ ~ 90℃

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Main components material:

No.	Name	Material	Qty
1	Actuator	PPO	1
2	Body cover	SS304	1
3	O-ring	FKM	2
4	Sealing	PTFE	2
5	Ball	SS304	1
6	Steam	SS304	2
7	O-ring	FKM	2

Electric Valve Dimension:

Size (mm)	D1/D2	d	L1	L2	E1	H1	H2
TF8(1/4”)Electric valve	1/4”	10	51	12	21	82	14
TF10(3/8”)Electric valve	1/4”	10	51	12	21	82	14
TF15(1/2”) Electric valve	1/2”	15	63	14	25	83	17
TF20(3/4”) Electric valve	3/4”	20	72	17	31	87	20
TF25(1”) Electric valve	1”	25	81	18	38	95	24
