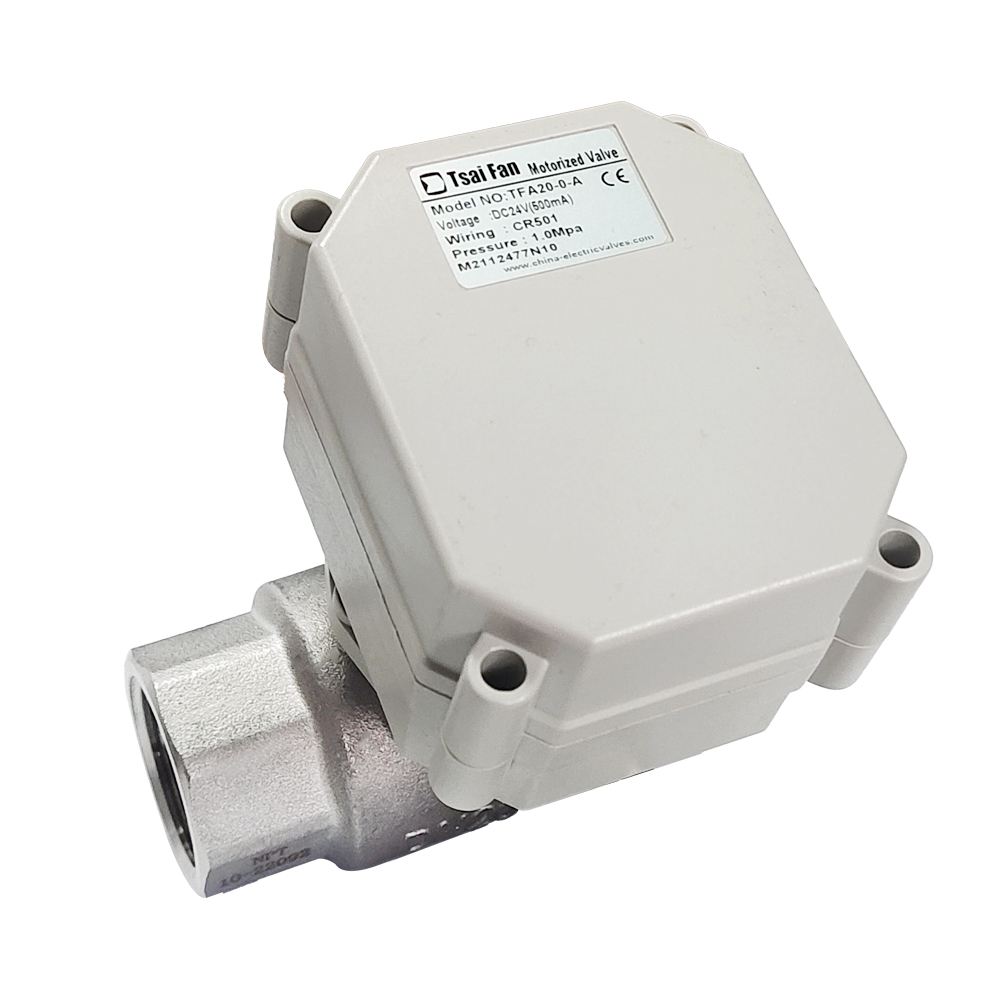

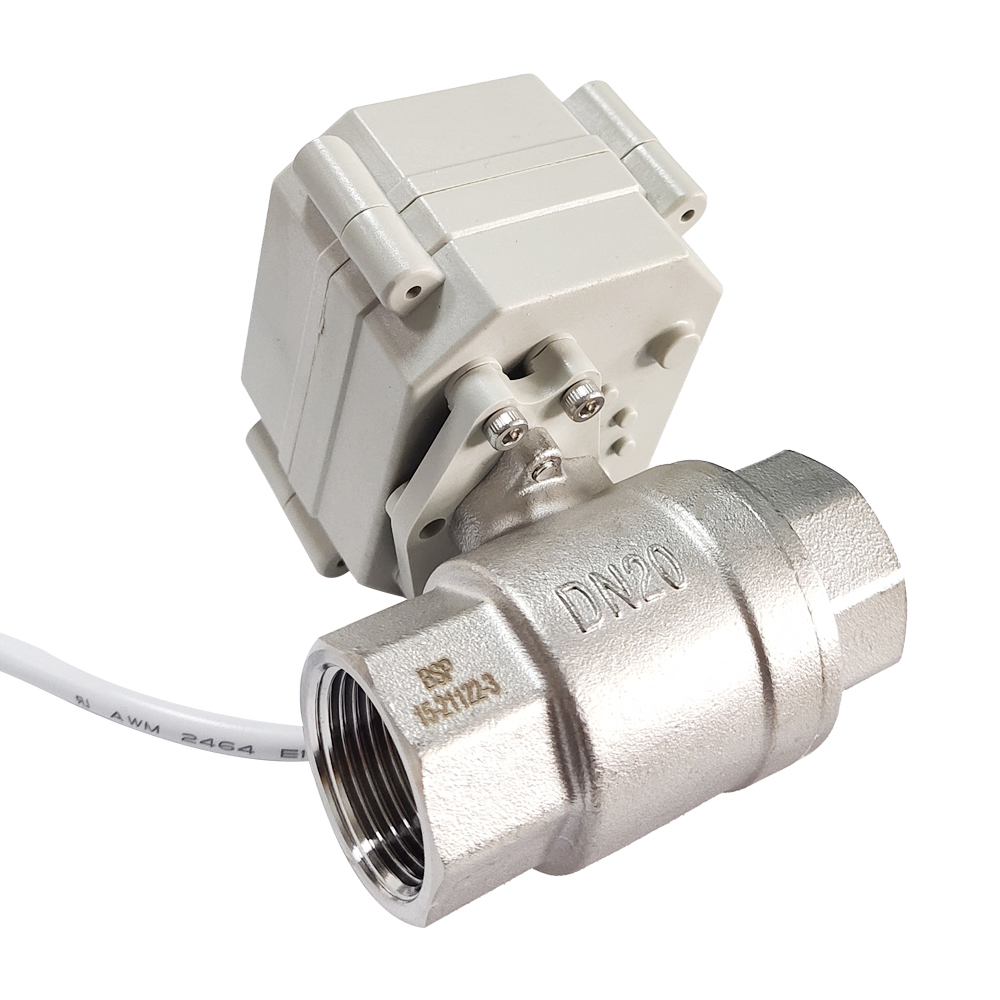

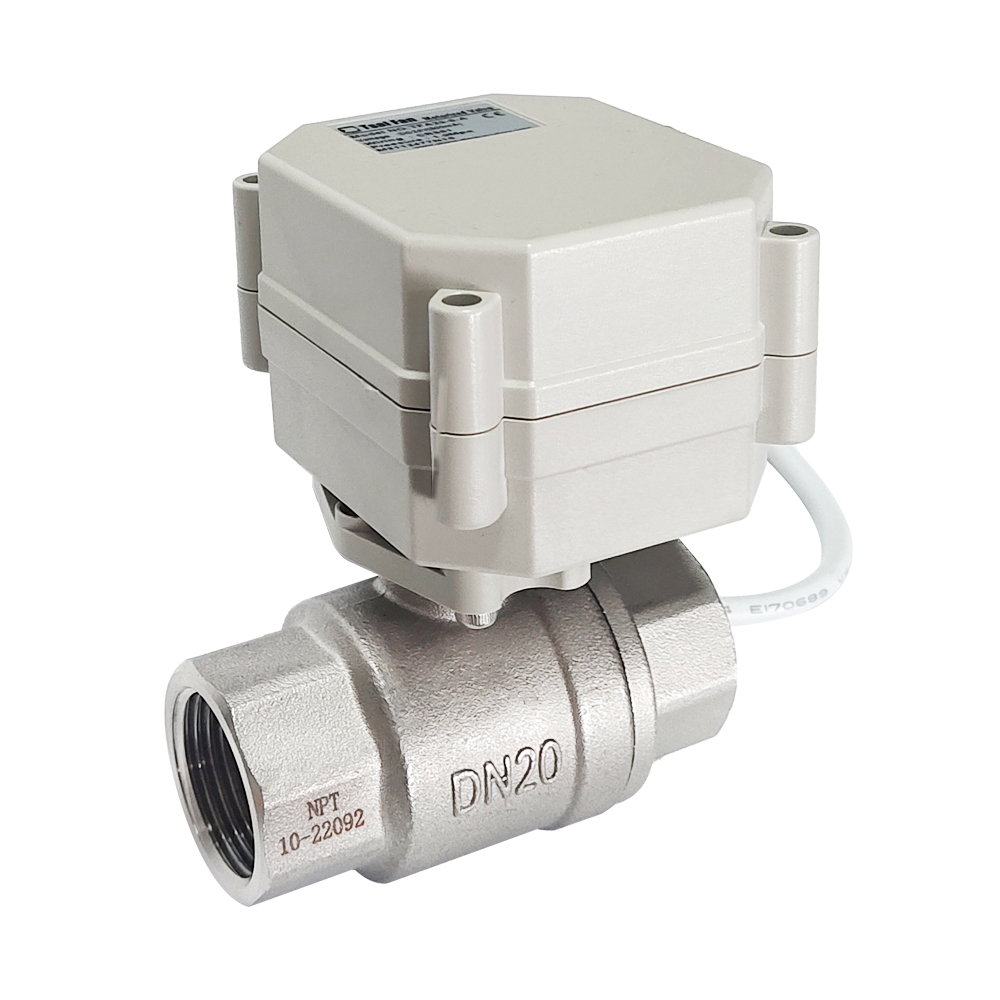

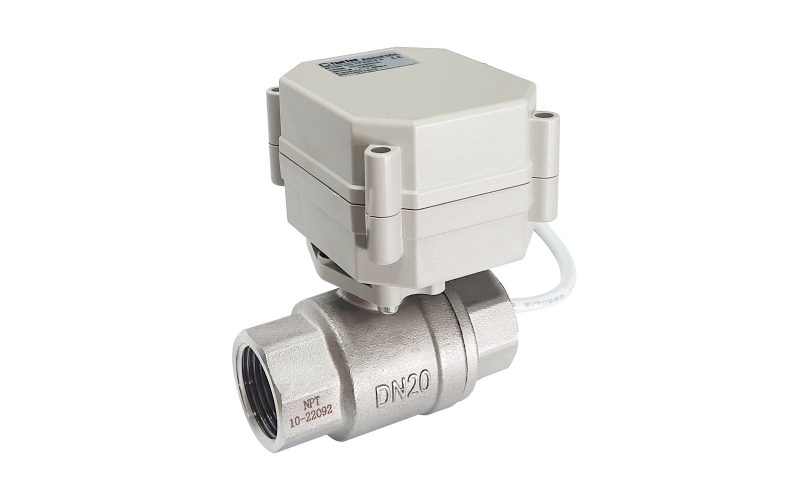

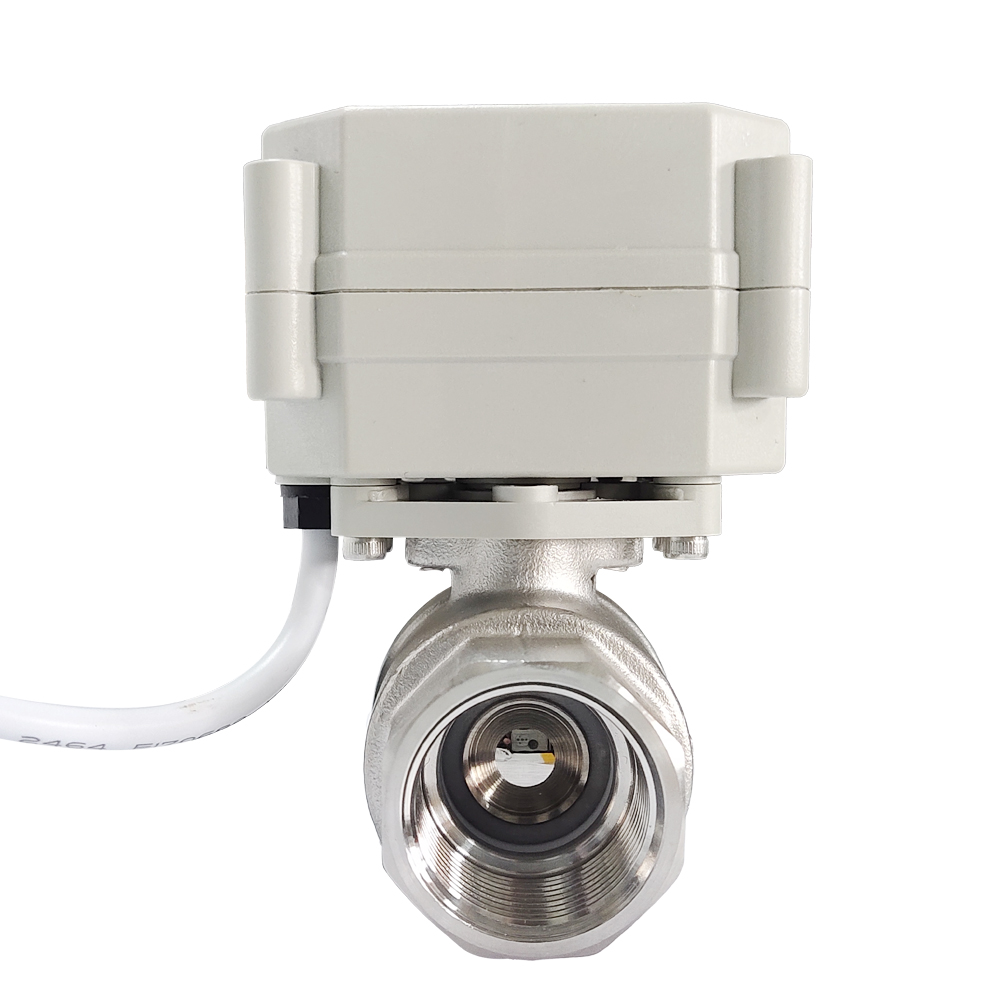

  • TFA20-S2 Series 2 Way Stainless Valve:
    Features:
    1. Torque force: 3Nm
    2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V
    3. Running time: 5 seconds
    4. Size: 1/4''-1''(DN8-DN25); BORE SIZE: 10mm-25mm;
    5. Material: Stainless Steel Grade304
    6. Connection: Thread(NPT,BSPT)
    7. Temperature: (5~90℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC5VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     DC12V, DC24VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     AC/DC9-24VWiring:   CR202,  CR303, CR305, CR306, CR502,CR703  (Optional)
******
Working current:≤500MA
Open/close time:≤5S
Life time:70000 times
Actuator material:Engineering plastics
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:3 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:No
Indicator:No
Protection class:IP67
Valve body
Valve sizeDN8 to DN25
Valve body material:Stainless 304, 316,316L
Connection end:NPT or BSP thread (Optional)
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15℃ ~ 50℃
Liquid temperature:2℃ ~ 90℃


Dimensions:

MetInfo enterprise content manager system | MetInfo CMS


Main components material:

No.

Name

Material

Qty

1

Actuator

PPO

1

2

Body cover

SS304

1

3

O-ring

FKM

2

4

Sealing

PTFE

2

5

Ball

SS304

1

6

Steam

SS304

2

7

O-ring

FKM

2

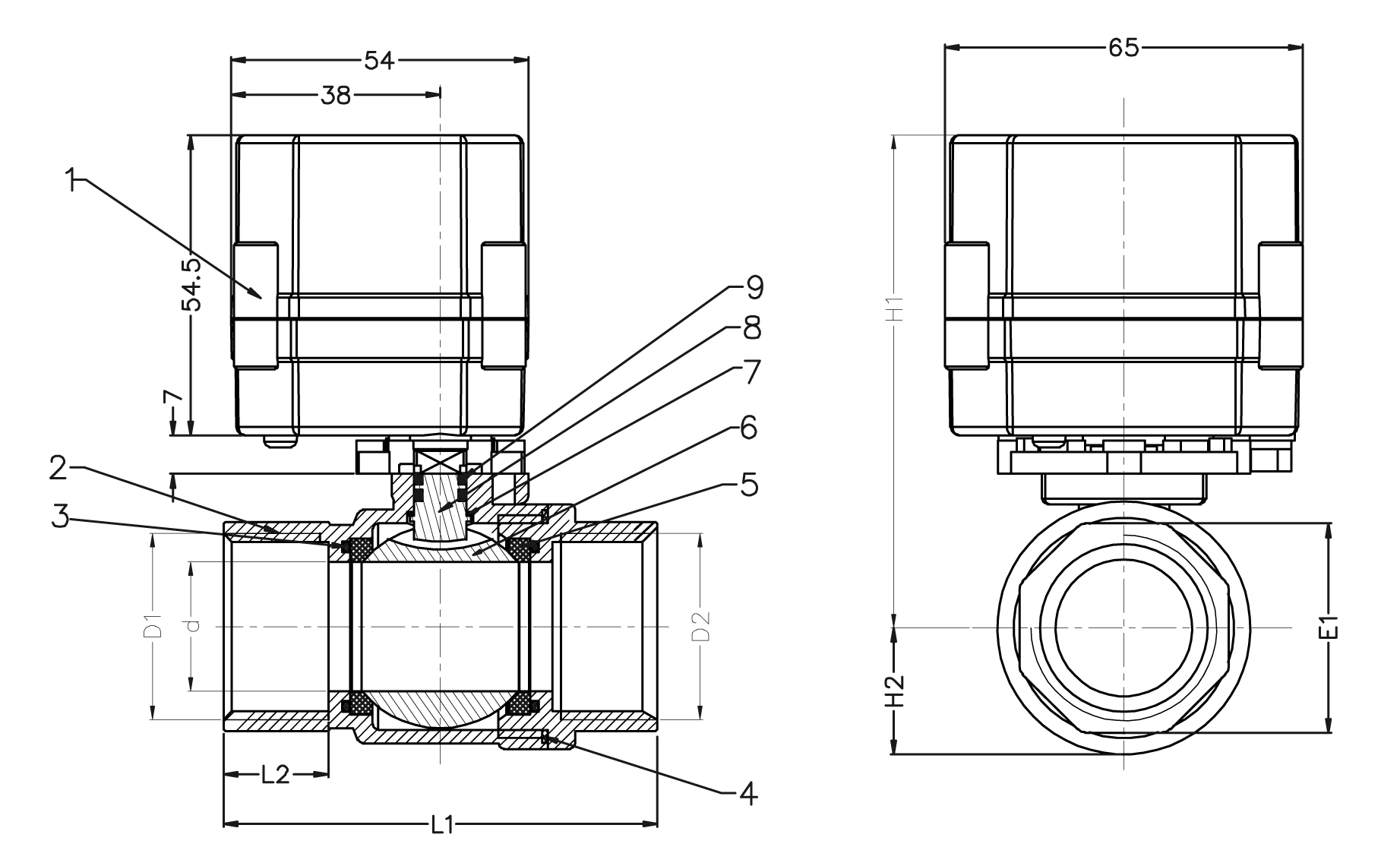

Electric Valve Dimension:

Size (mm)

D1/D2

d

L1

L2

E1

H1

H2

TF8(1/4”)Electric valve

1/4”

10

51

12

21

82

14

TF10(3/8”)Electric valve

1/4”

10

51

12

21

82

14

TF15(1/2”) Electric valve

1/2”

15

63

14

25

83

17

TF20(3/4”) Electric valve

3/4”

20

72

17

31

87

20

TF25(1”) Electric valve

1”

25

81

18

38

95

24

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

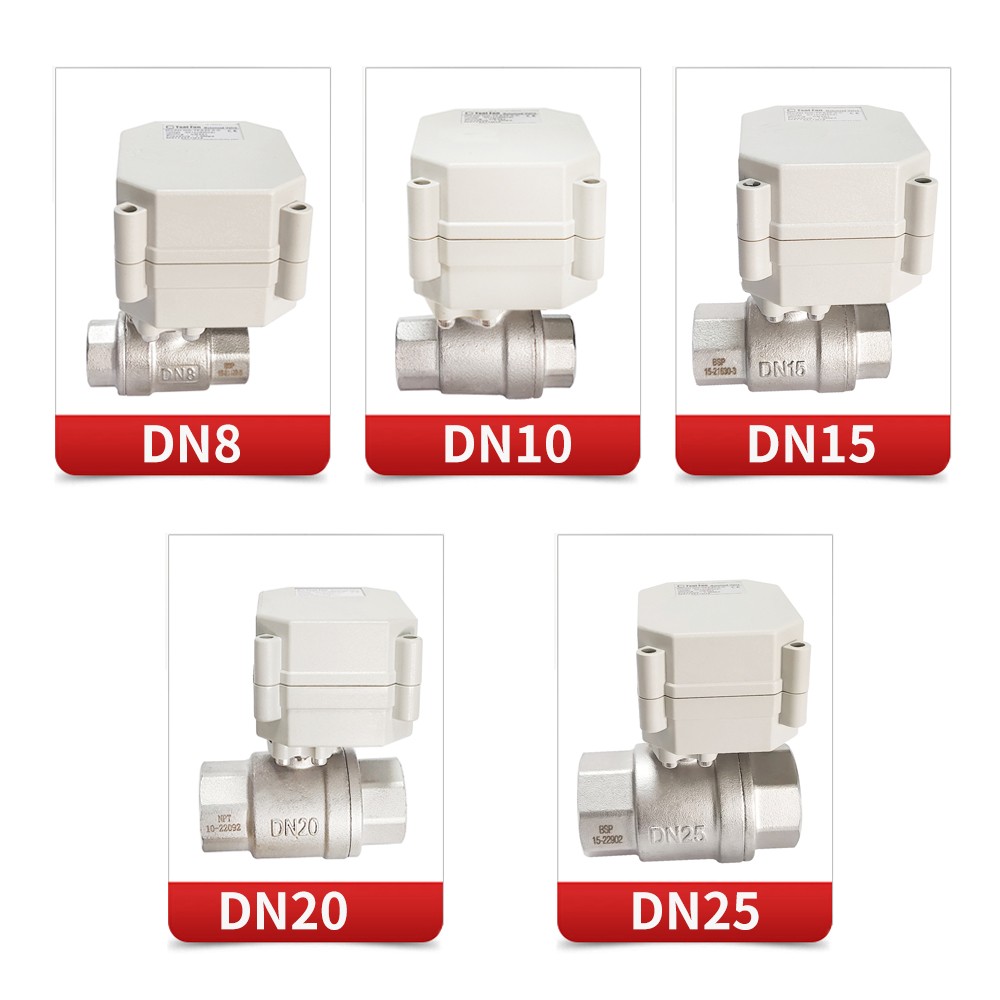

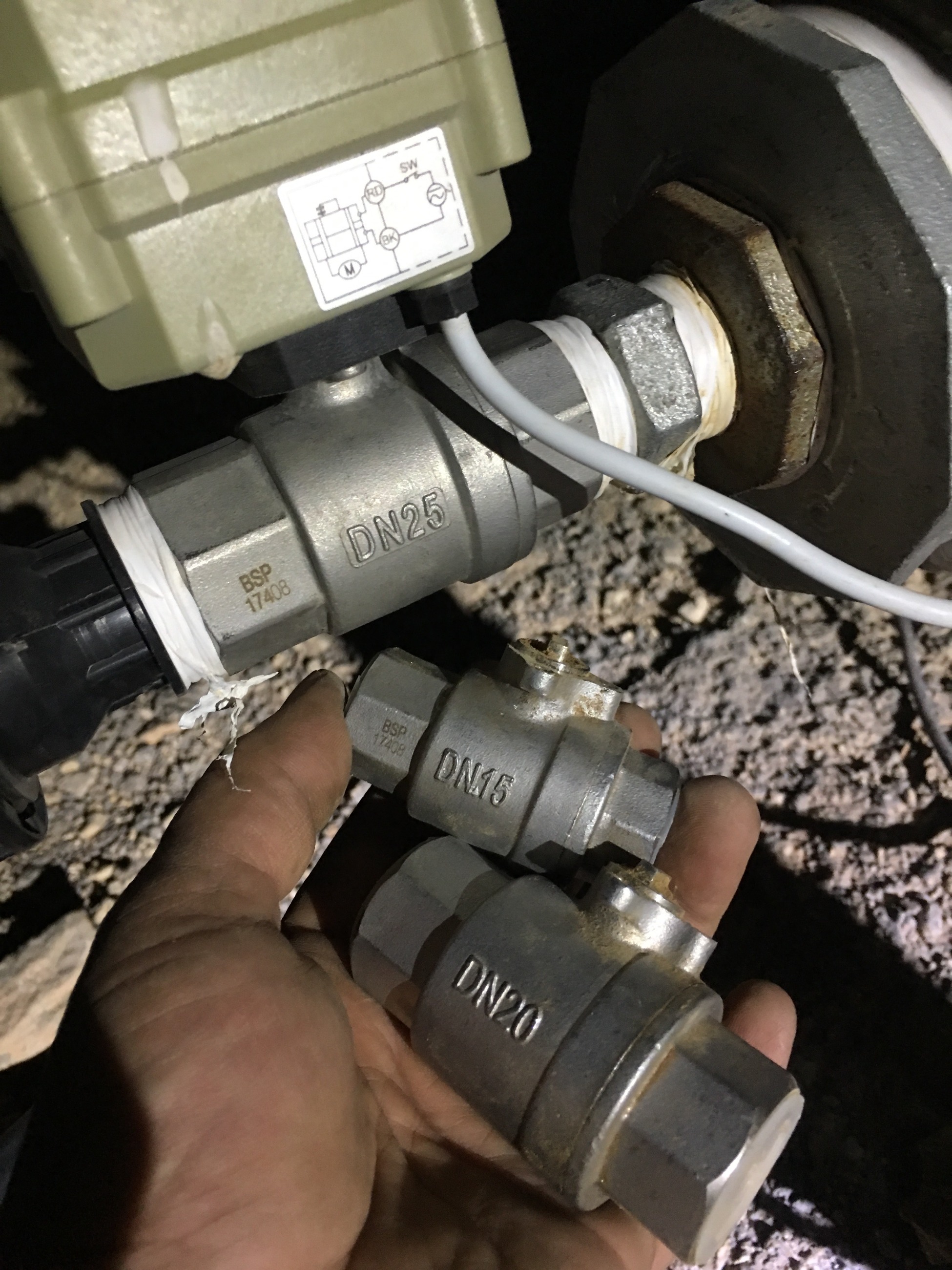

Different Sizes:
