3Nm 2 Way SS304 Electric Ball Valve with Manual Override Full bore CE certified Metal Gears

3Nm Electric Ball valve 2 way SS304 with manual override and position indicator. CE certified, IP67, Metal gears, Full bore

• TFA20-S2 Series 2 Way Stainless Valve：
  Features：
  1. Torque force: 3Nm
  2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V,AC110-230V
  3. Running time: 5 seconds

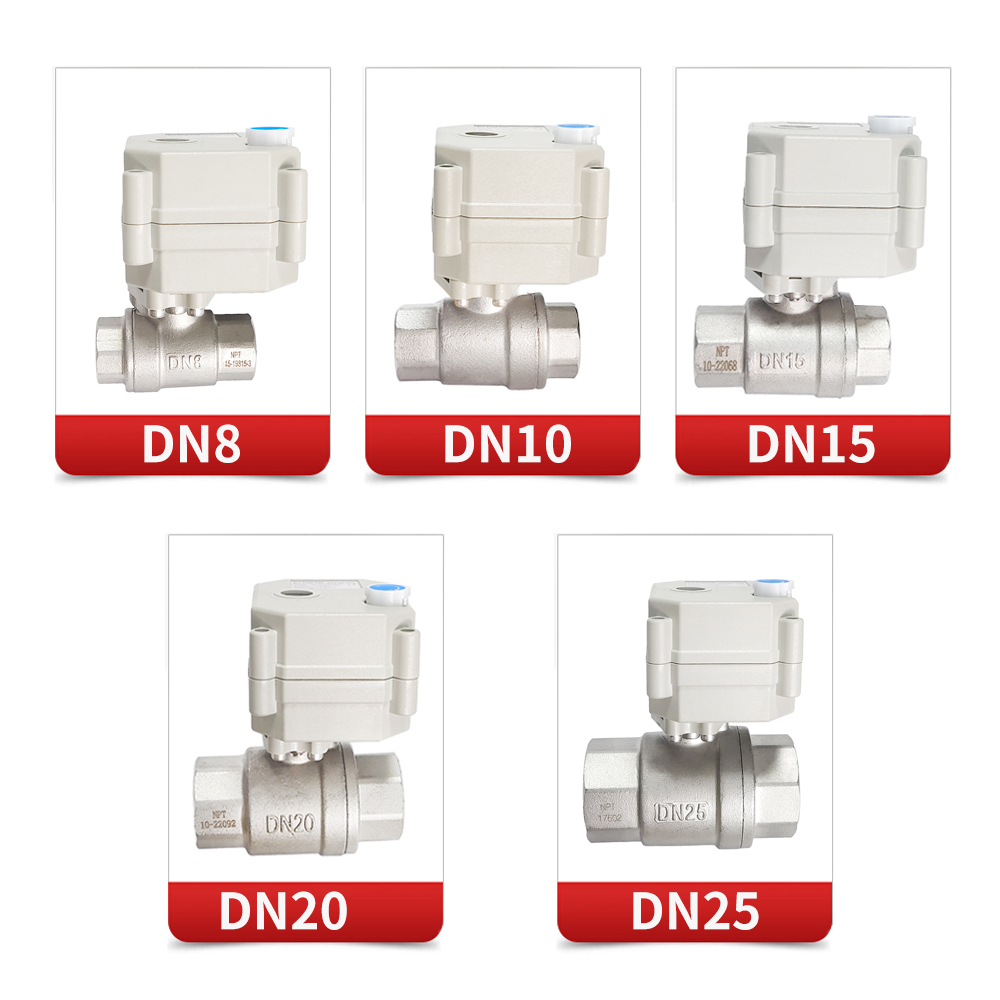

  4. Size: 1/4''-1''(DN8-DN25); BORE SIZE: 10mm-25mm;
  5. Material: Stainless Steel Grade304
  6. Connection: Thread(NPT,BSPT)
  7. Temperature: (5~90℃);
  8) Maximum pressure: 1.0Mpa

  Advantages：
  1. Electric drive, remote switching control, convenient for automation system.
  2. Different wiring diagram to meet various control methods.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Manual override & Positing indicator optional.
  6. 100% ON/OFF testing before shipping.
