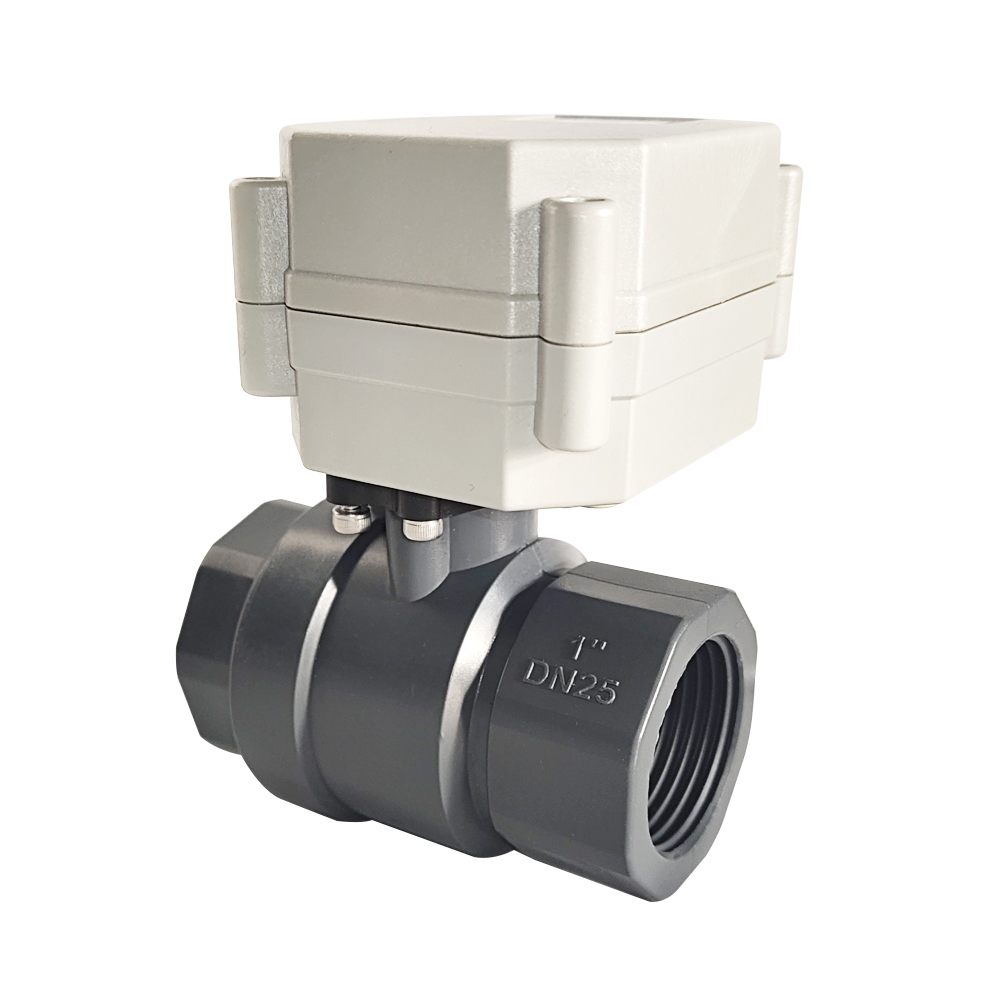

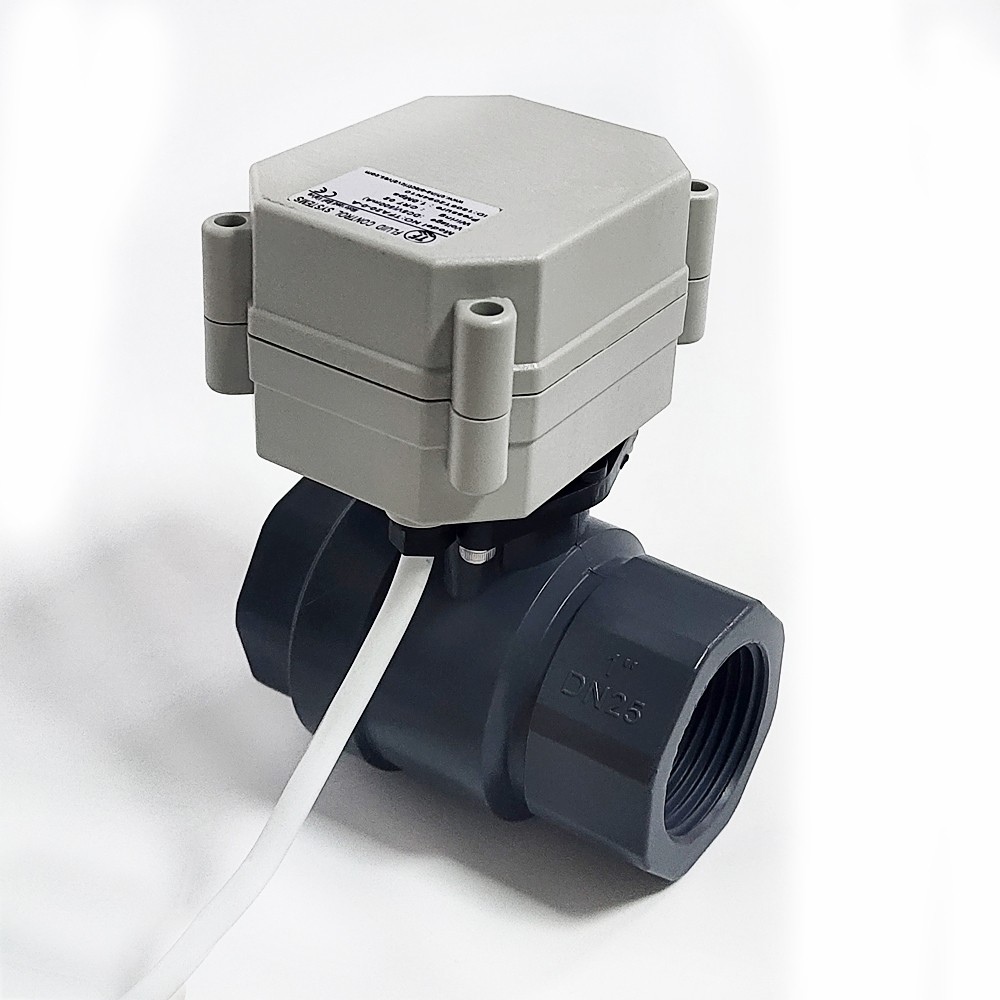

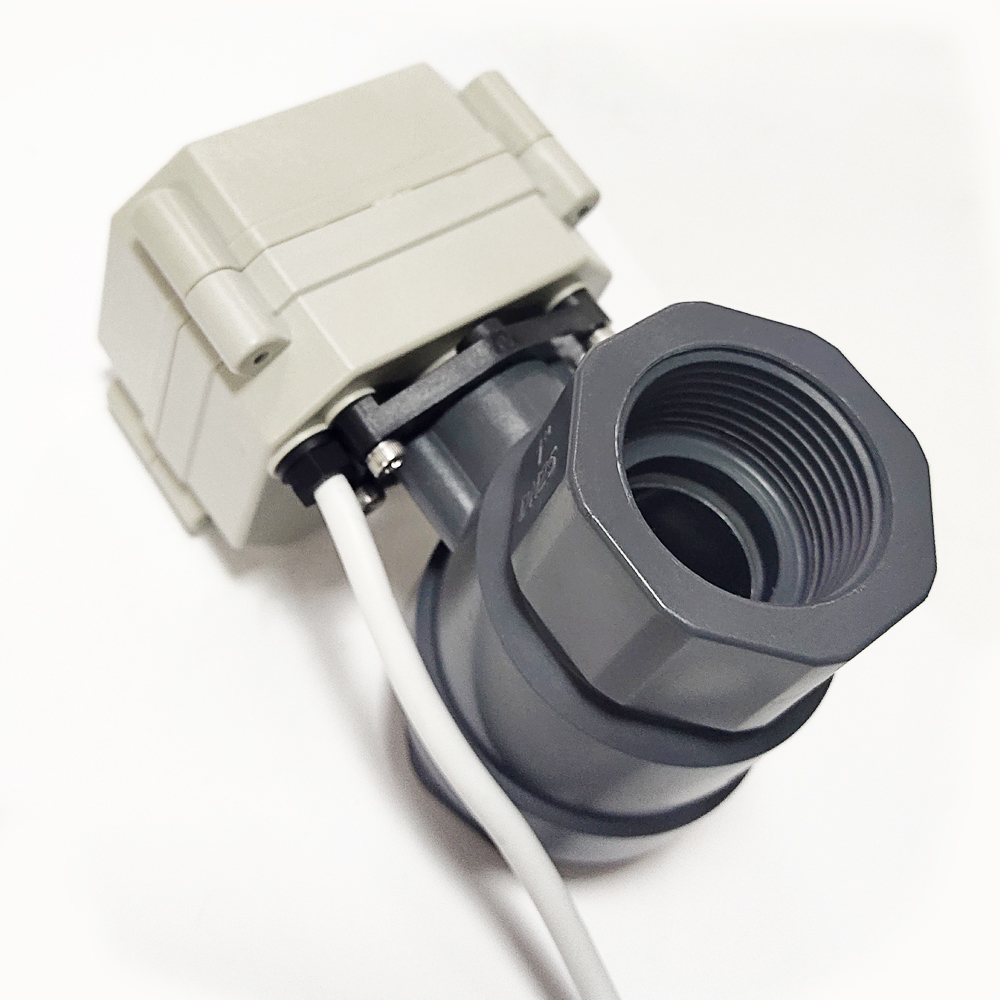

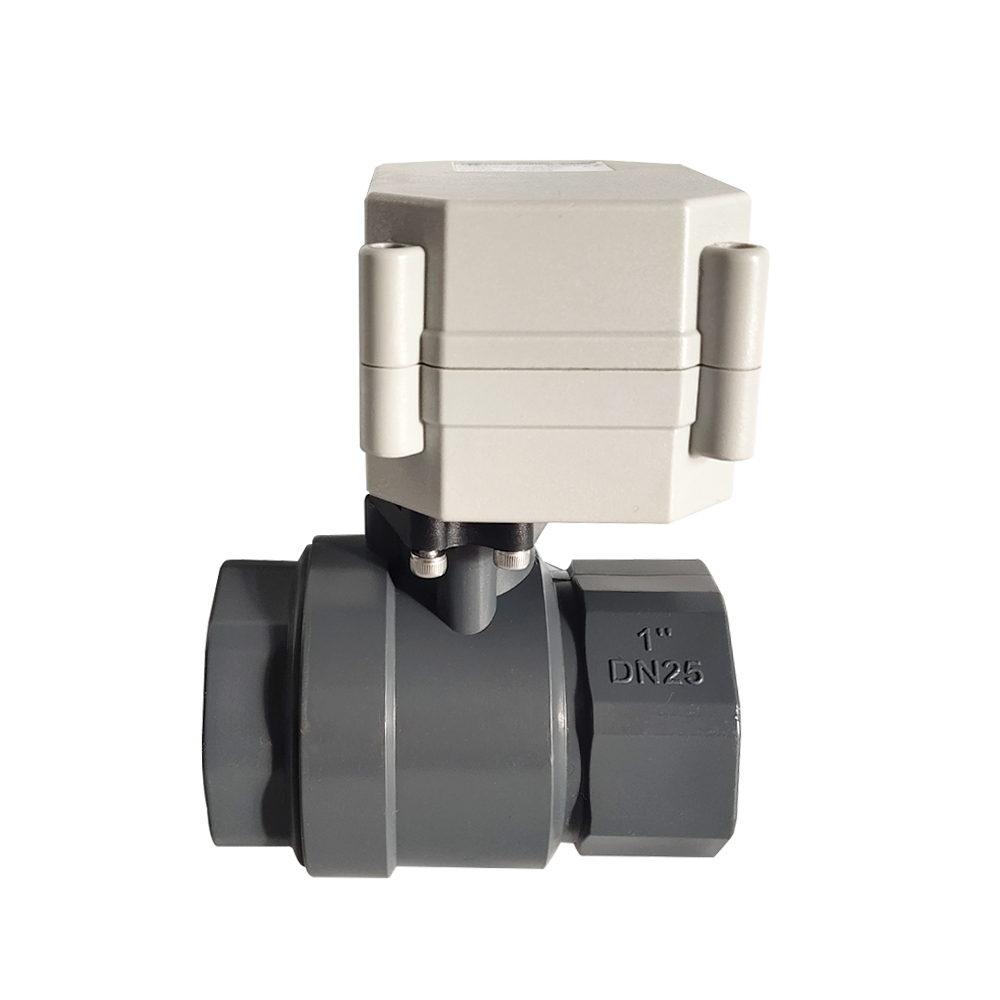

3Nm PVC Electric Ball Valve 2-pieces type BSP/NPT thread and Glue End Optional

3Nm PVC Electric Ball Valve 2-pieces type BSP/NPT thread and Glue End Optional

2 Way PVC 2-pieces type Electric Valve with BSP,NPT and Glue end connections for choice. Metal Gears, CE, IP67

  • TFA20-P2 Series 2 Way PVC:
    Features:
    1. Torque force: 3Nm
    2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V
    3. Running time: 5 seconds
    4. Size: 1/2''-1''(DN15-DN32); BORE SIZE: 14mm-26mm;
    5. Material: PVC
    6. Connection: Thread(NPT,BSPT, Glue End)
    7. Temperature: (5~55℃);
    8) Maximum pressure: 1.0Mpa

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override & Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

Actuator
Rated voltage:     DC5VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     DC12V, DC24VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     AC/DC9-24VWiring:   CR202,  CR303, CR305, CR306, CR502,CR703  (Optional)
Working current:≤500MA
Open/close time:≤5S
Life time:70000 times
Actuator material:Engineering plastics
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:3 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:No
Indicator:No
Protection class:IP67
Valve body
Valve sizeDN15 to DN32
Valve body material:PVC
Connection end:NPT, BSP thread, Glue End (Optional)
Valve type2 Way
Maximum working pressure:1.0MPa
Circulation medium:Fluid, Air
Sealing material:EPDM, PTFE, FKM (Optional)
Environment temperature: -15℃ ~ 50℃
Liquid temperature:2℃ ~ 55℃

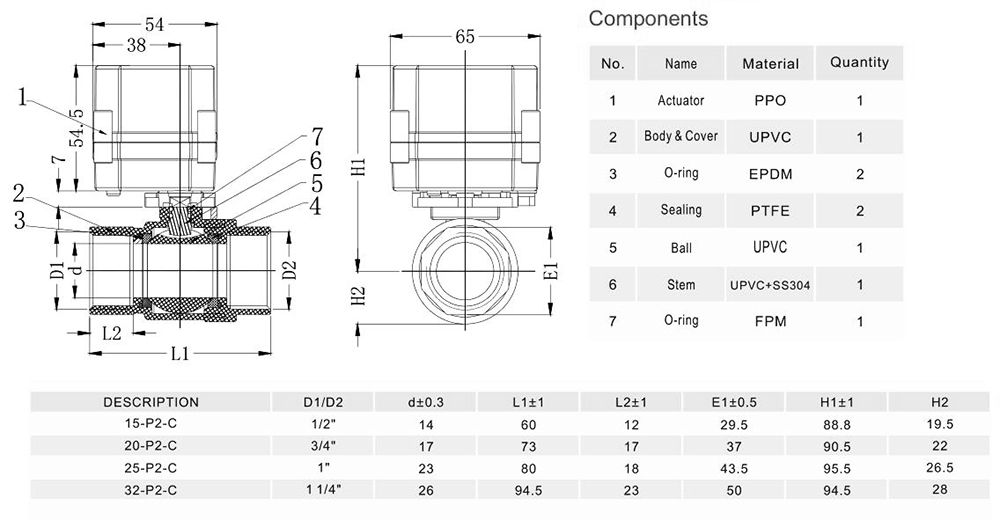

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

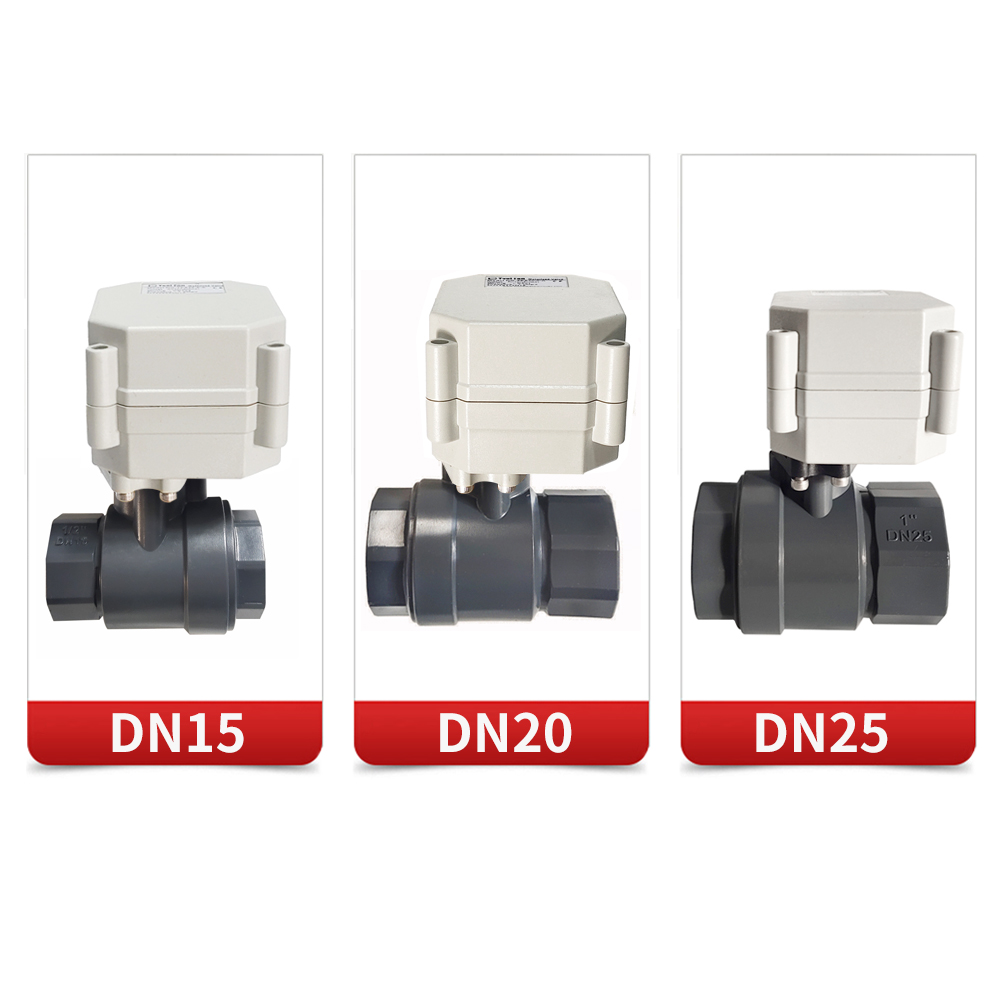

Different Sizes:

MetInfo enterprise content manager system | MetInfo CMS

Factory:

MetInfo enterprise content manager system | MetInfo CMS

Applications:

MetInfo enterprise content manager system | MetInfo CMS
