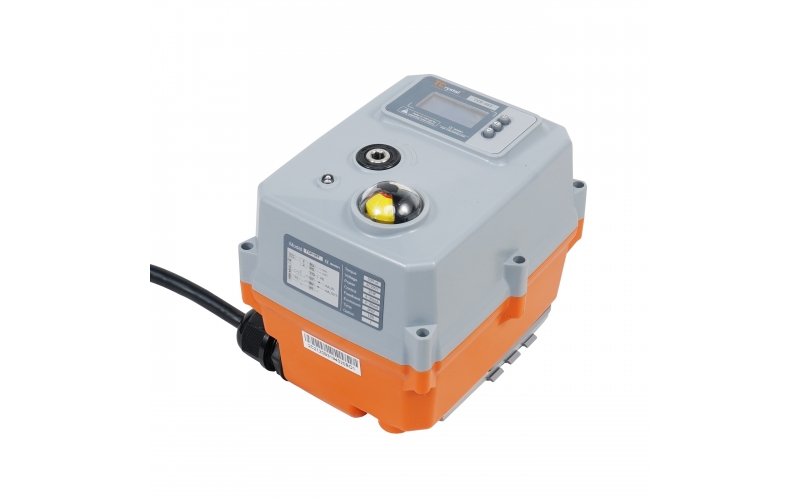

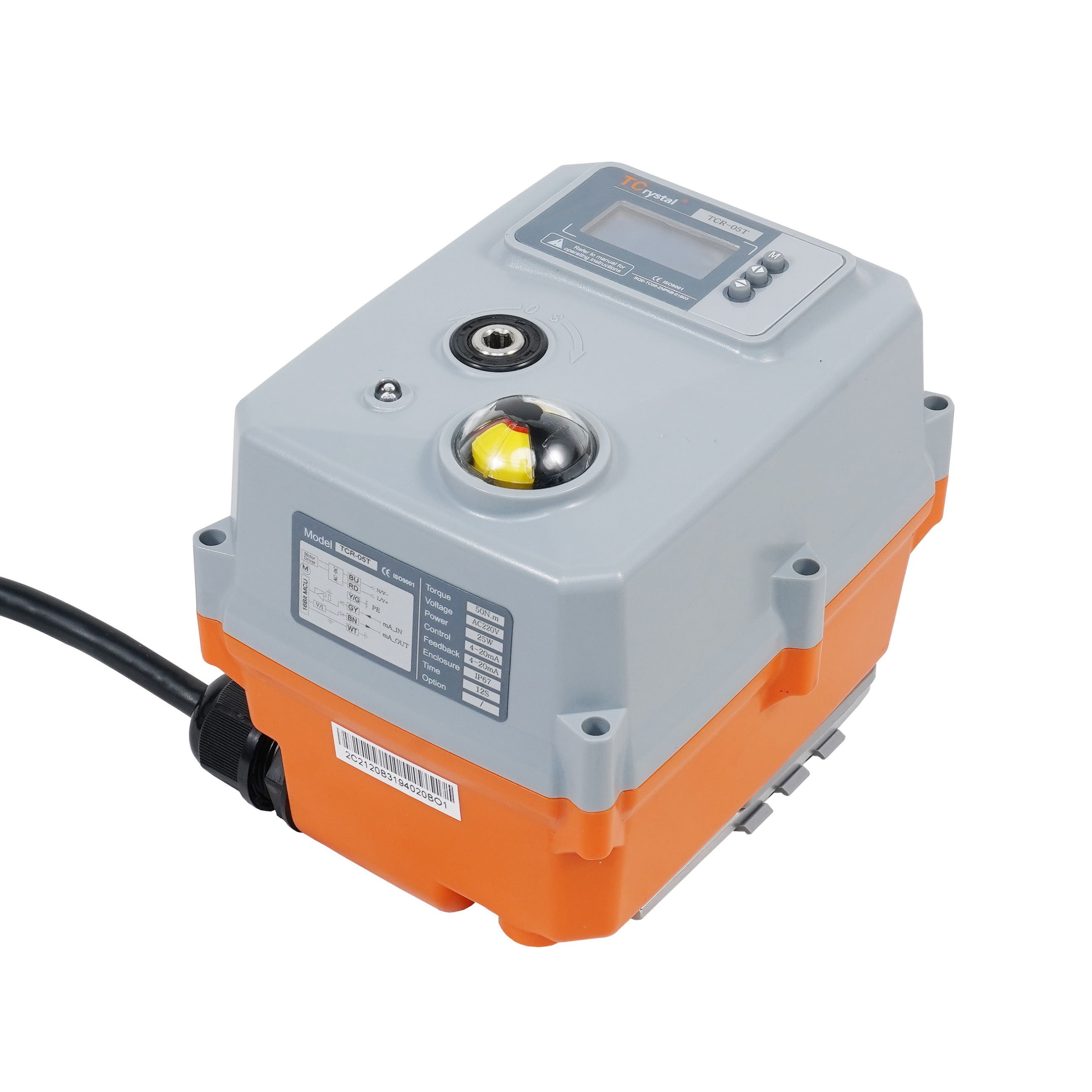

50Nm Proportional Valve Actuator AC/DC24V Powered Modulating Valve drive analog Control Signal 0-5V, 0-10V, 4-20mA

50Nm Torque force Electric Proportional Actuator with High performance Brushless Motor, Control signal 4-20mA,0-20mA,0-10V,0-5V,1-5V,2-10V CE certified, Metal Gears, IP67 protection

• TF05T Series Intelligent Proportional Actuator：
  Features：
  1. Torque force: 50Nm
  2. Power supply: DC12V, AC/DC24V, AC/DC95-265V
  3. Control signal: 4-20mA,0-20mA,0-10V,0-5V,1-5V,2-10V

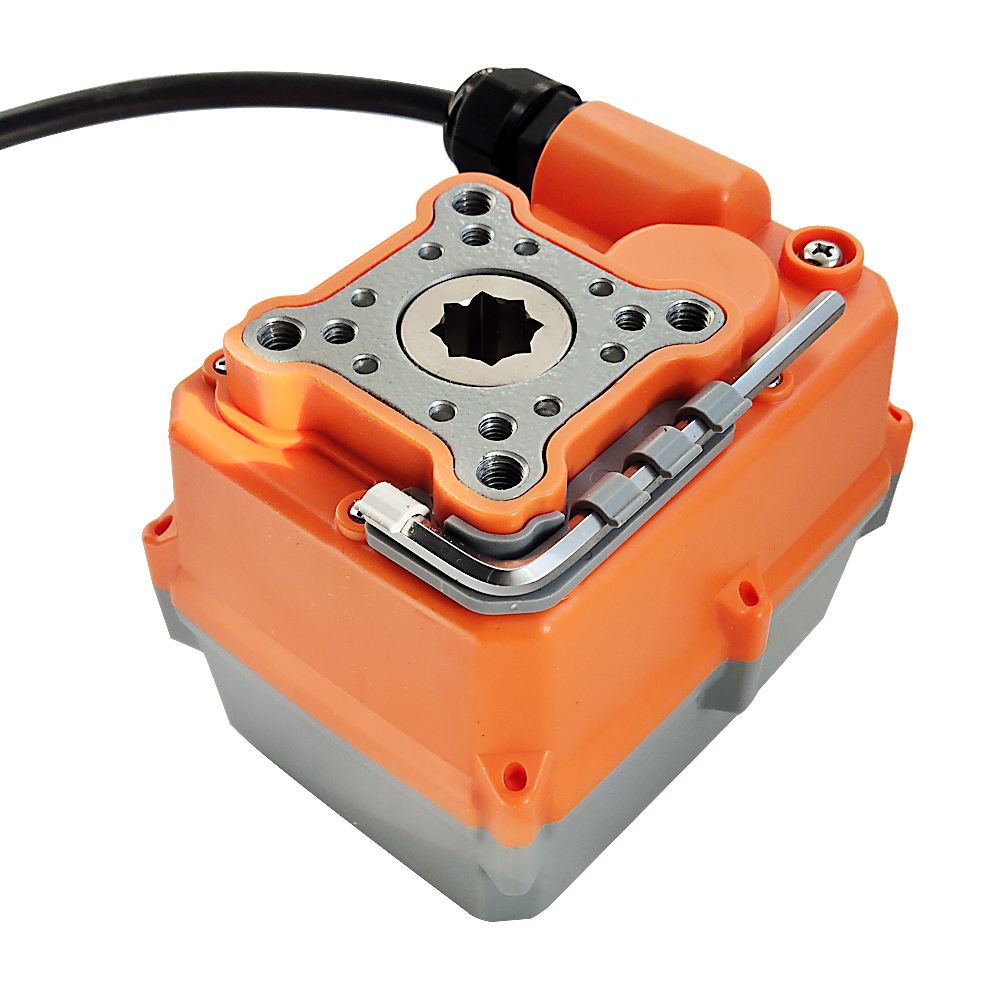

  4. Connection standard: ISO5211 F05、F07
  5. Stem: 14X14MM

  Advantages：
  1. High performance brushless motor.
  2. Overload protection of internal motor.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Open angle adjustable(within 360 degree).
