Product Specifications:
△ 1.3” OLED screen,no visual dead angle,highly bright,energy saving and eco-friendly,real time to show valve opening angle
and external control command.Enter sleeping state automatically after about 5 minutes,while it could prompt location state
and its control command at sleeping time.
△ Original valve adjustment mode--free cover-opening and interactive:
step1:saving “anticlockwise full open position ” by using the button to control valve;
step2:saving “clockwise full close position ” by using the button to control valve;it makes valve adjustment easier.
Thoroughly eliminate the complex and inconvenience caused by mechanical positioning.
△ Adopt 16 High-performance microcontrollers,12 high-precision AD conversion,built-in unique algorithm,thoroughly eliminate
mechanical hysteresis,greatly reduce valve position control error.
△ ※TCR-08/11 total series and other DC24Vseries:built-in motor control module,motor frequency speed control can realize
accurate positioning.
△ Adopt non contact positioning,control unit module design and potting processing,guarantee components reliability and greatly
improve product service life;Interface use standard connectors,convenient for installment,adjustment and replacement.
△ Menu can report real-time failure,including stuck or other reasons which lead actuator fail to realize valve on/off integrally,
and output failure warning signal.
△ Menu can realize valve control command exchange.
△ Menu can switch freely between remote control and local setting,by pressing the button to adjust valve position locally,built
in position limit and show limit status.
△ Menu can set valve close position deviation to on or off direction,thoroughly eliminate the complex and inconvenience bring
by “Simple On/Off mechanical positioning” to local valve adjustment.
△ Menu can restore factory default setting.

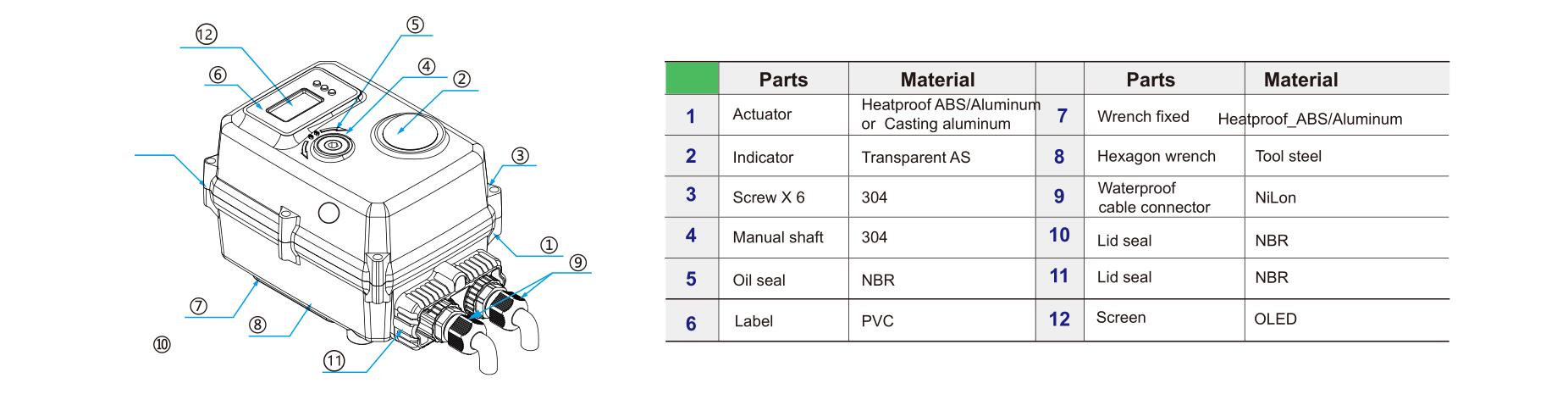

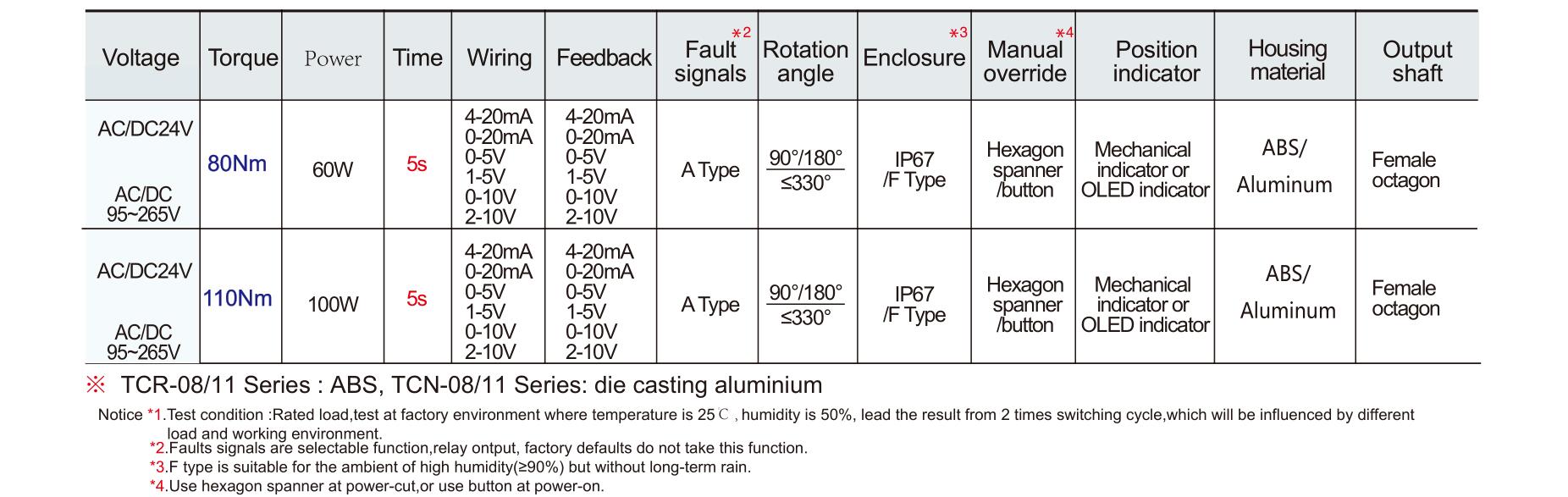

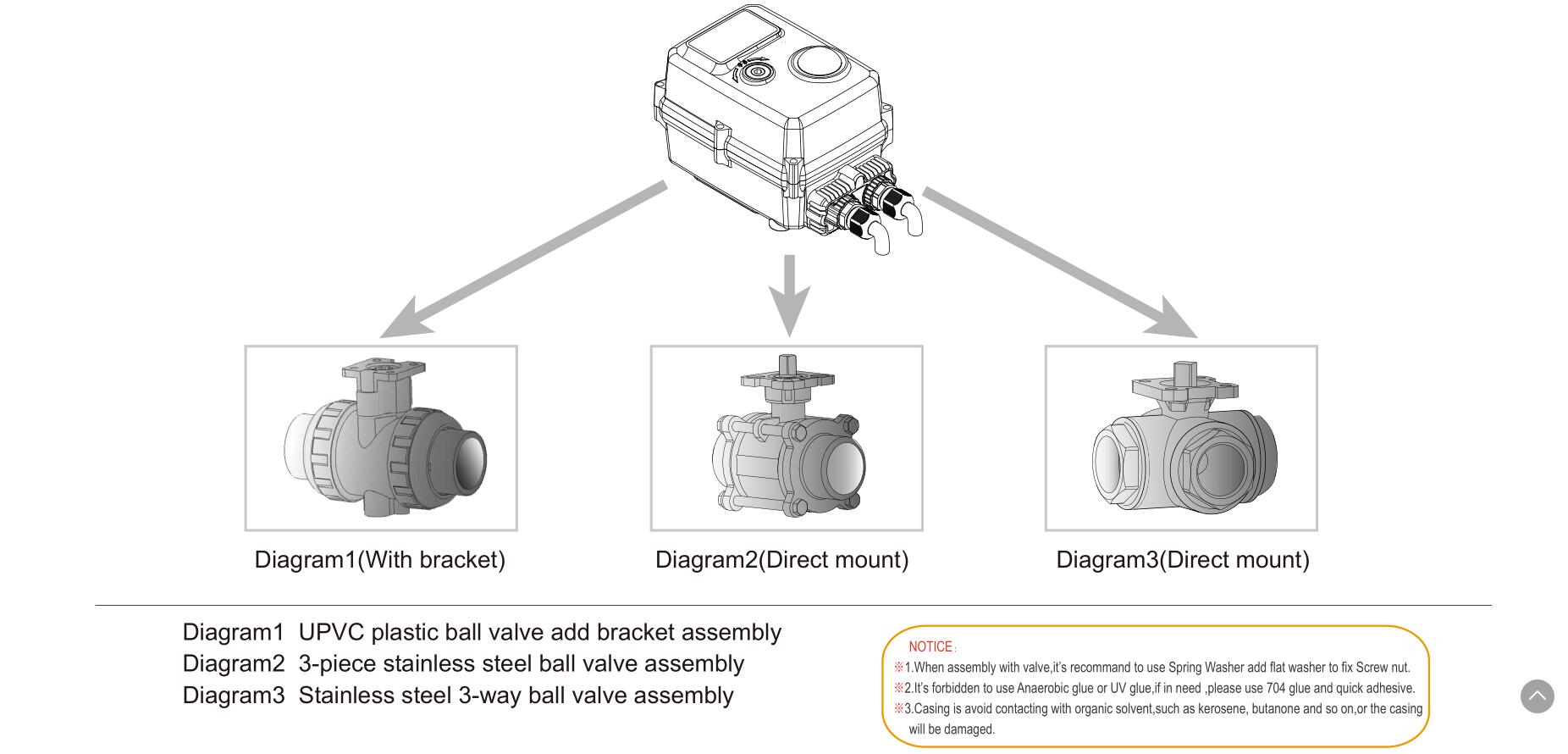

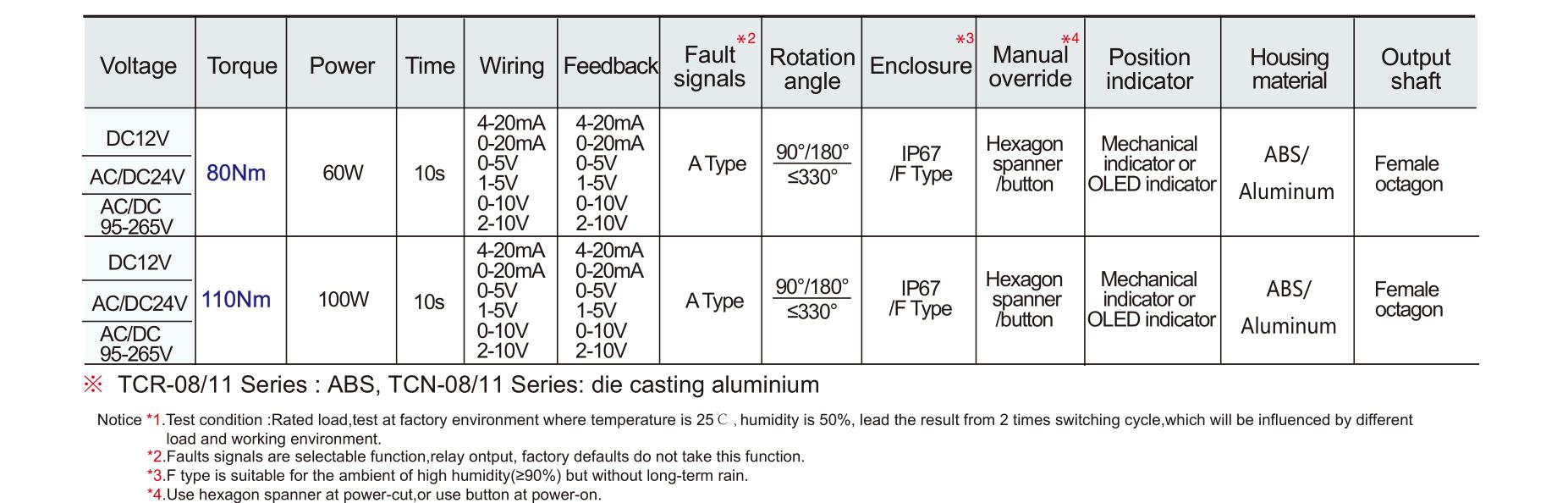

Standard product data sheet

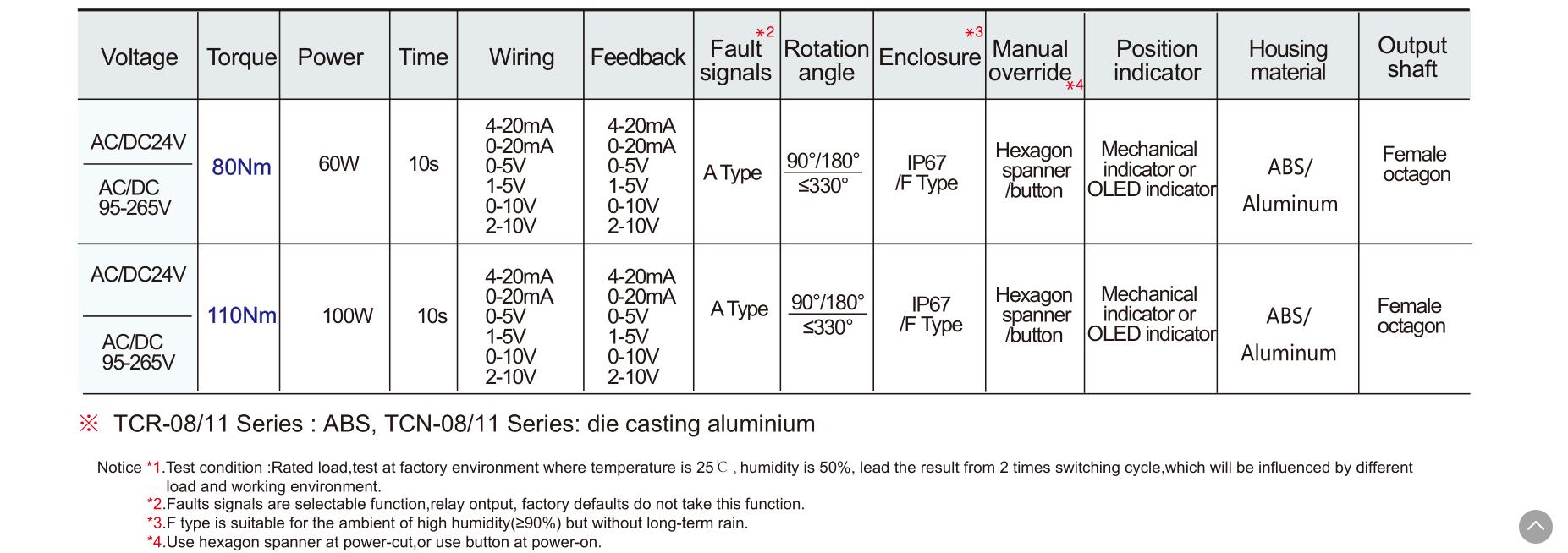

High Speed Type
Power Off/Fail Return Type

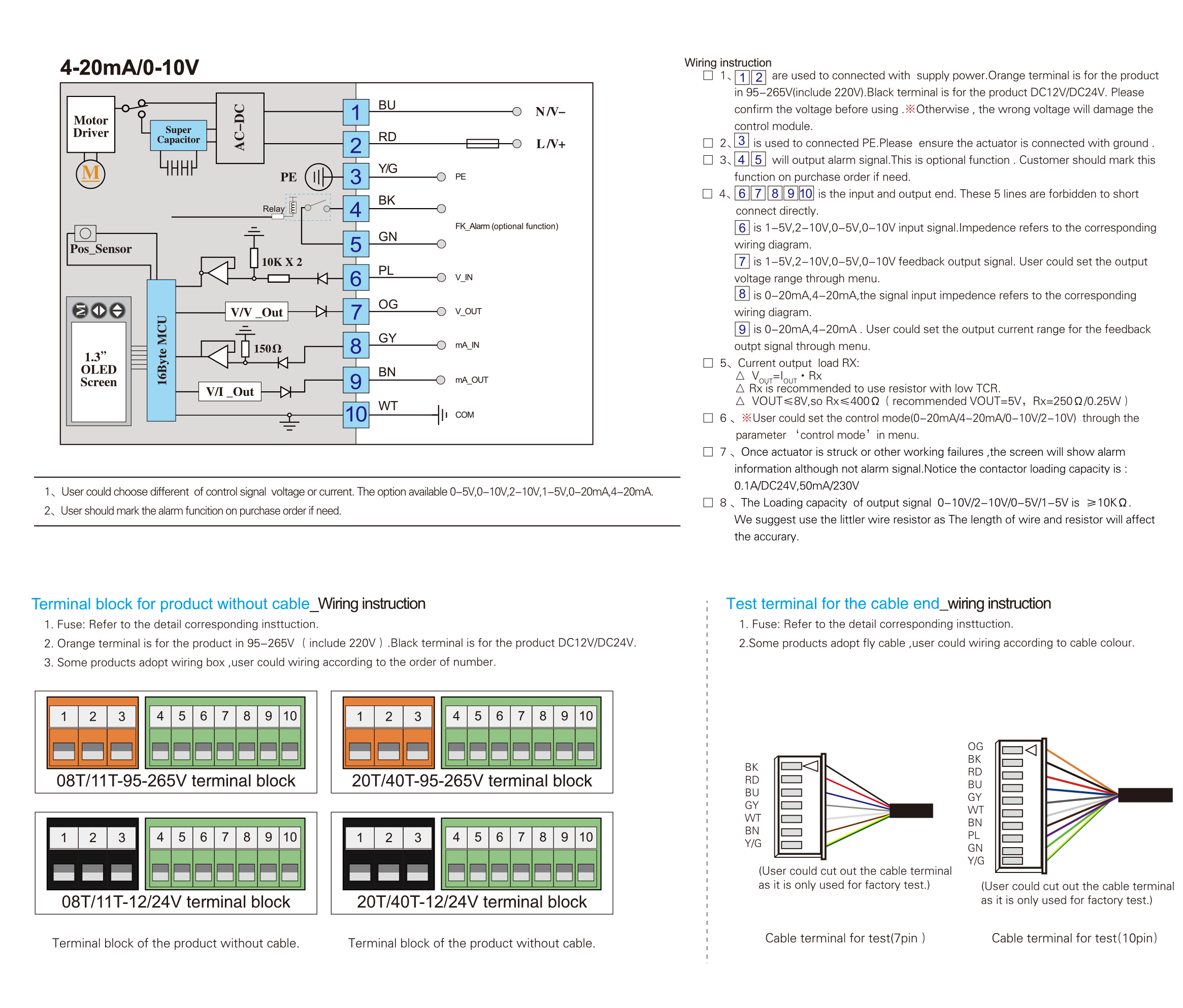

Wiring diagrams

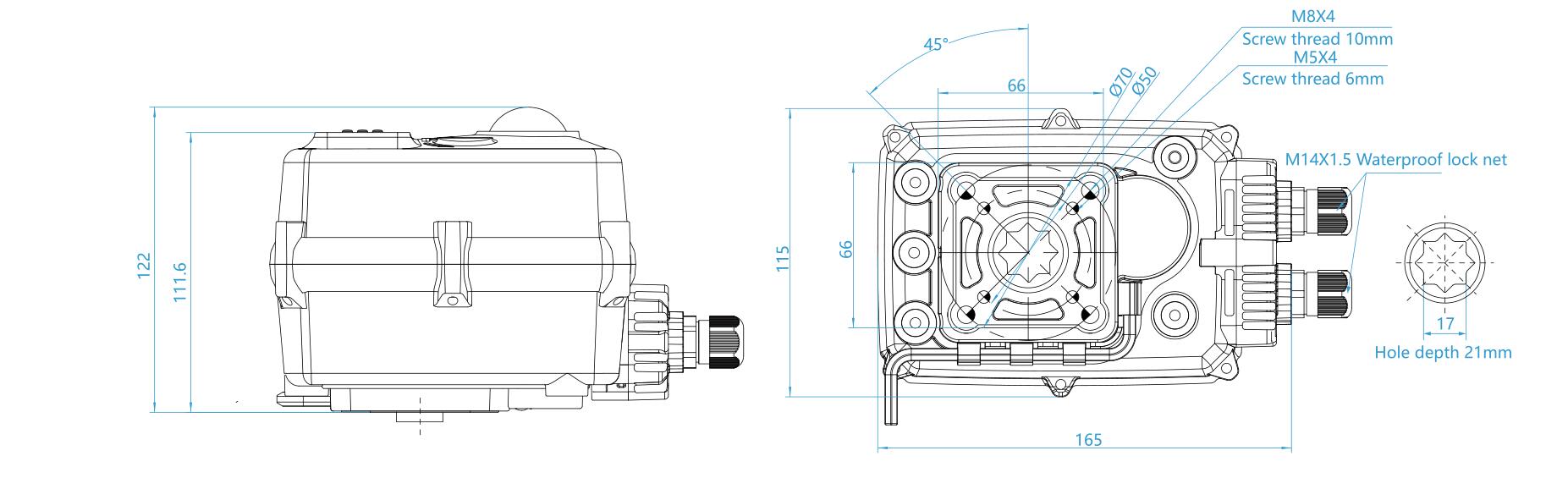

Dimensions

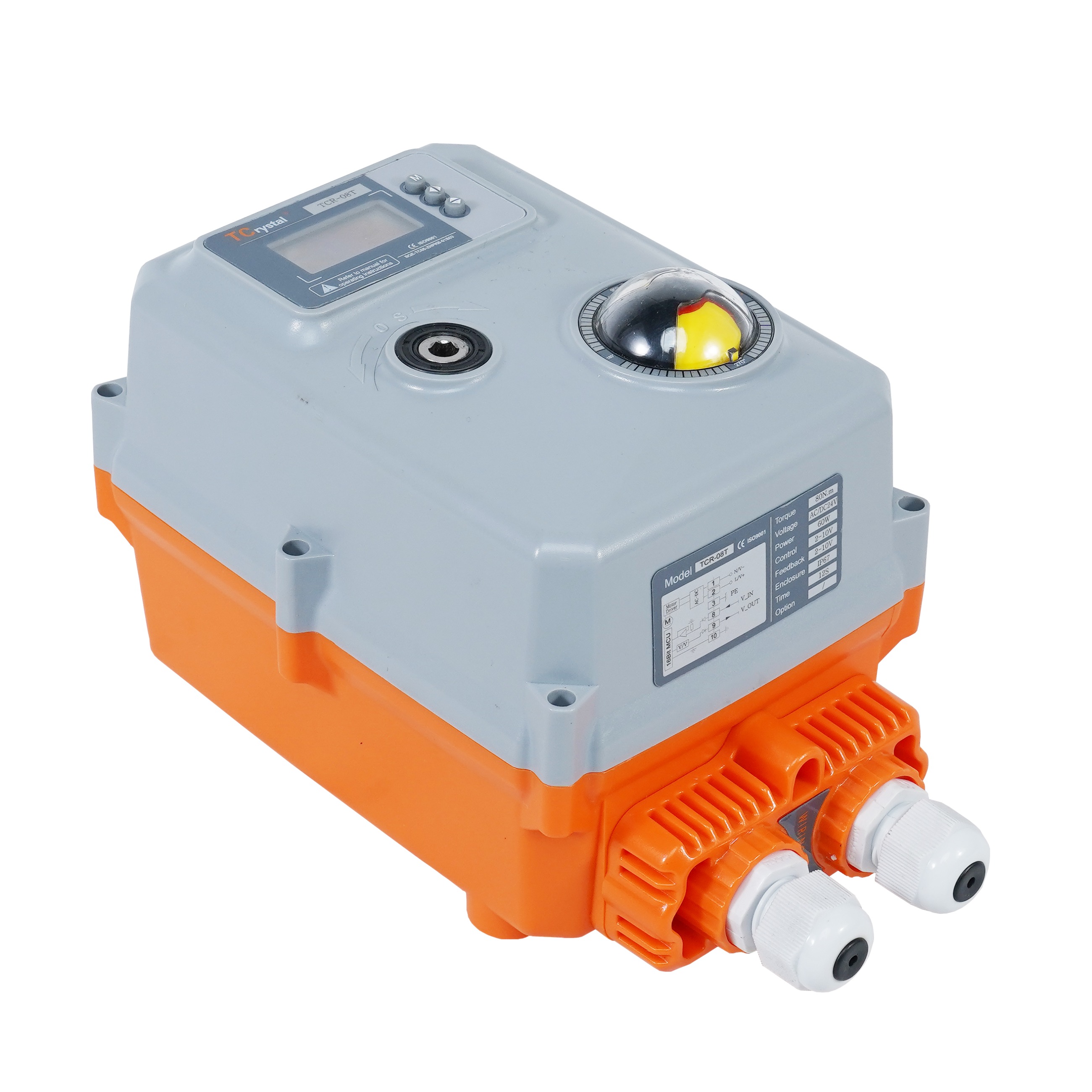

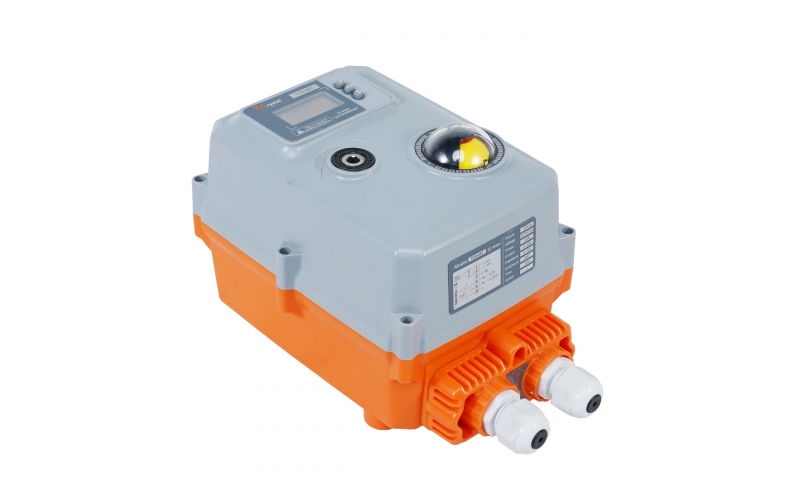

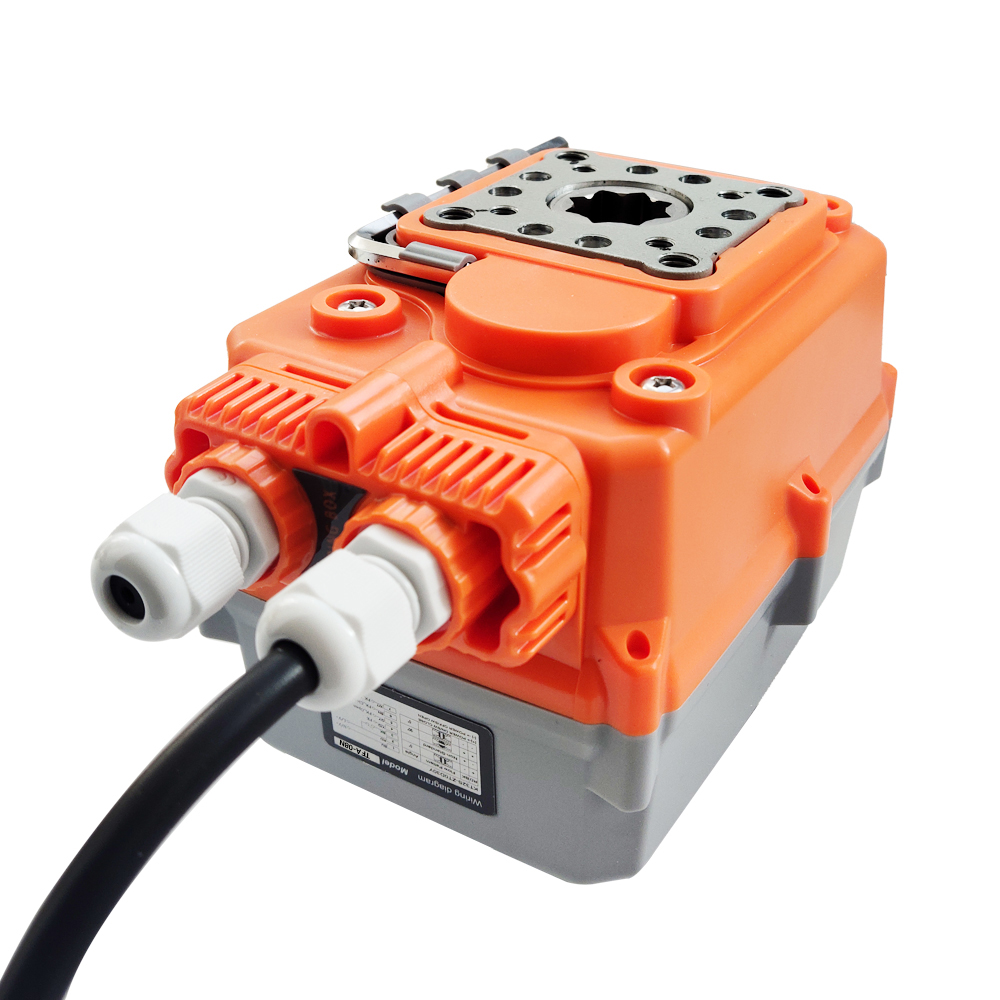

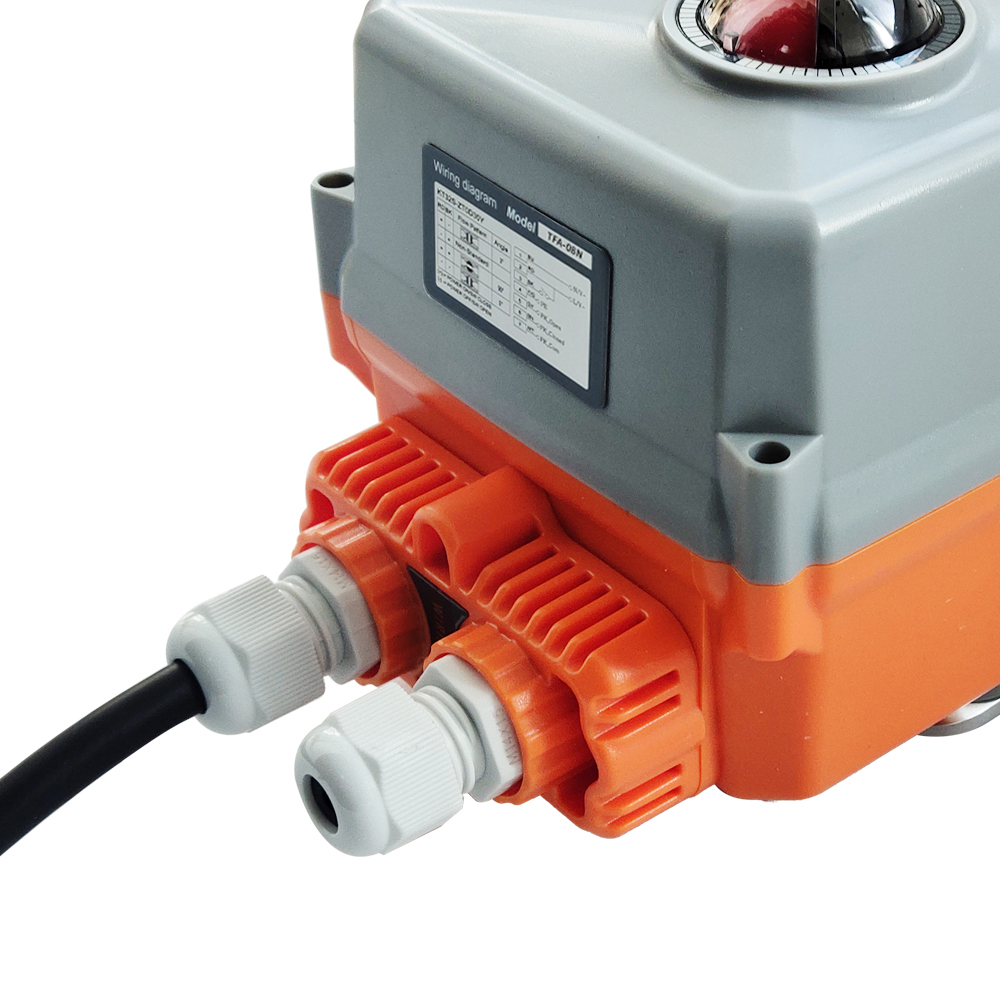

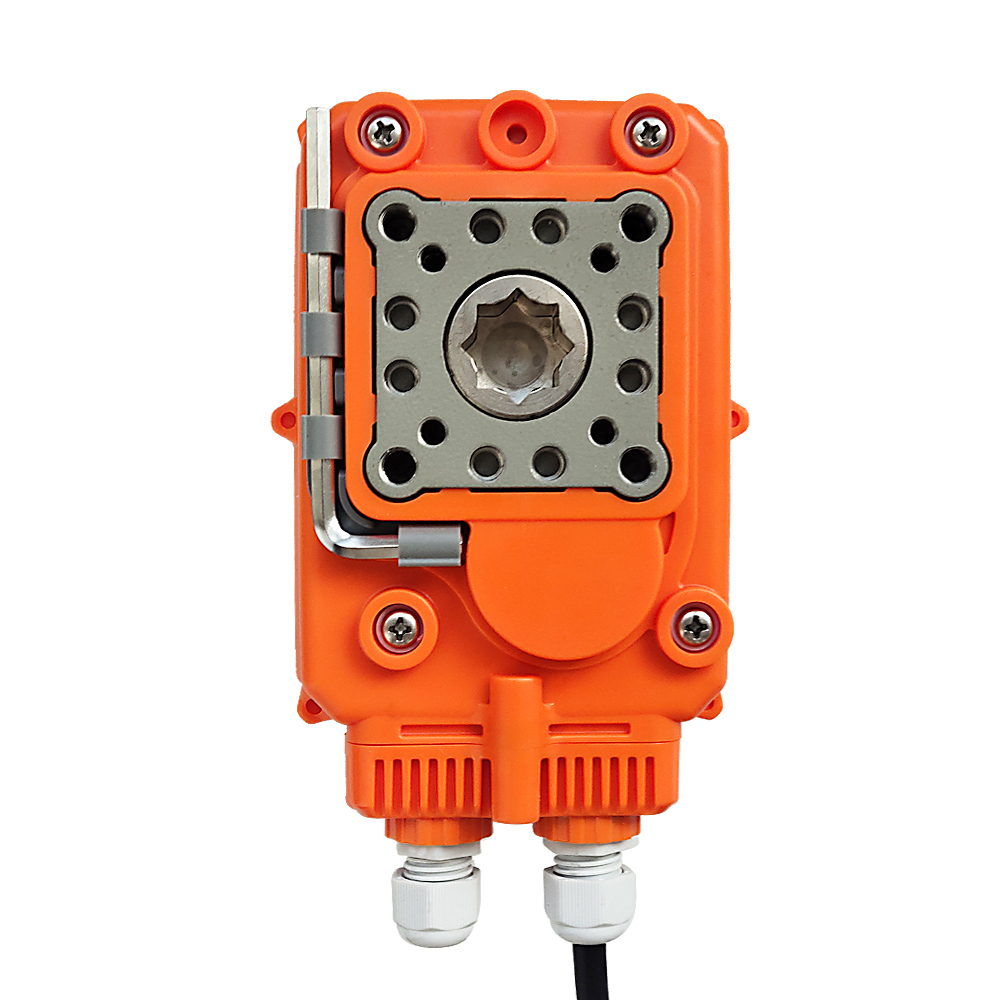

Photos
