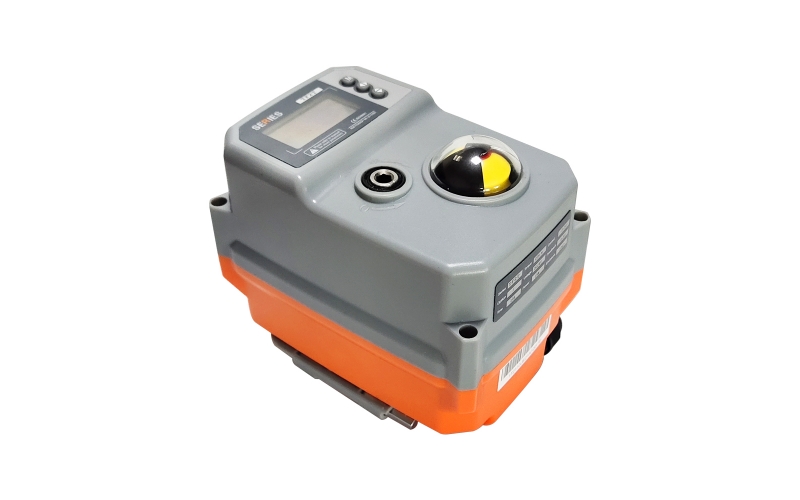

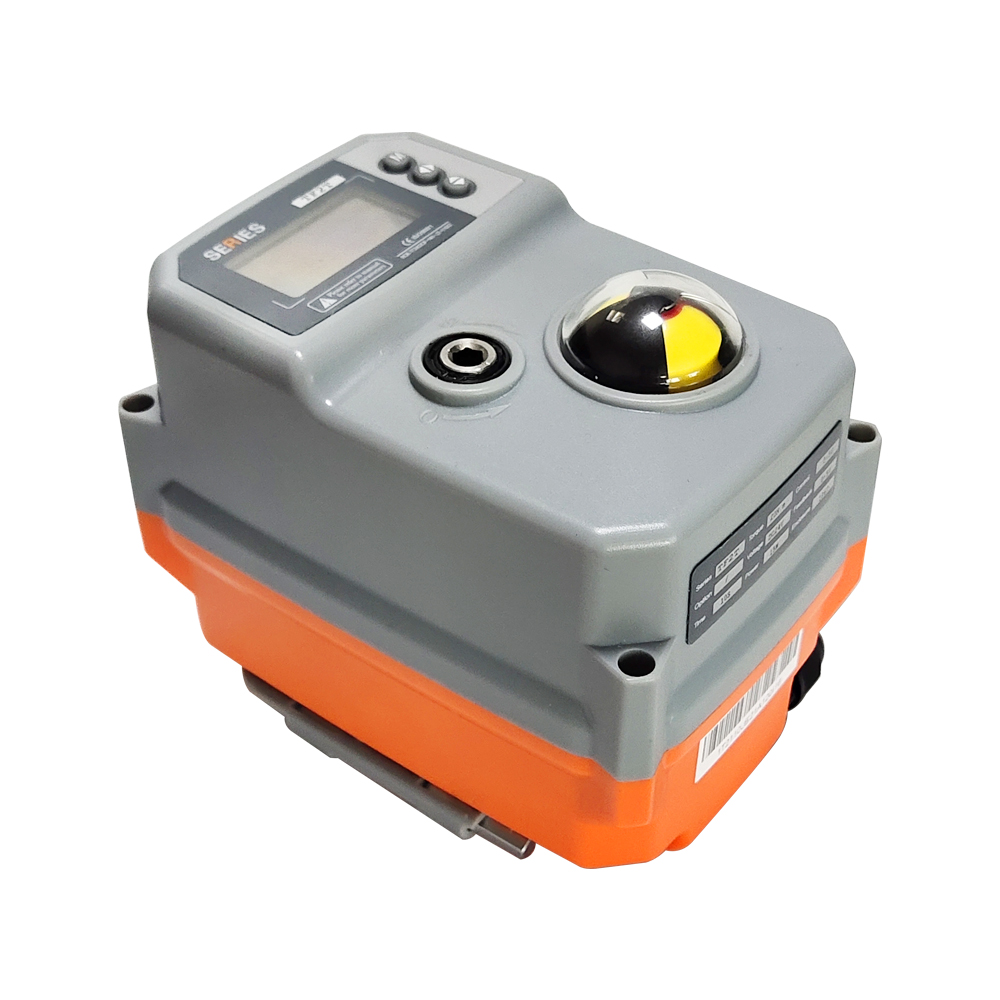

20Nm Intelligent Proportional Actuator with power off return function, Electric control valve actuator 0-5V, 0-10V, 4-20mA

20Nm Intelligent Proportional Actuator with power off return function, Electric control valve actuator 0-5V, 0-10V, 4-20mA

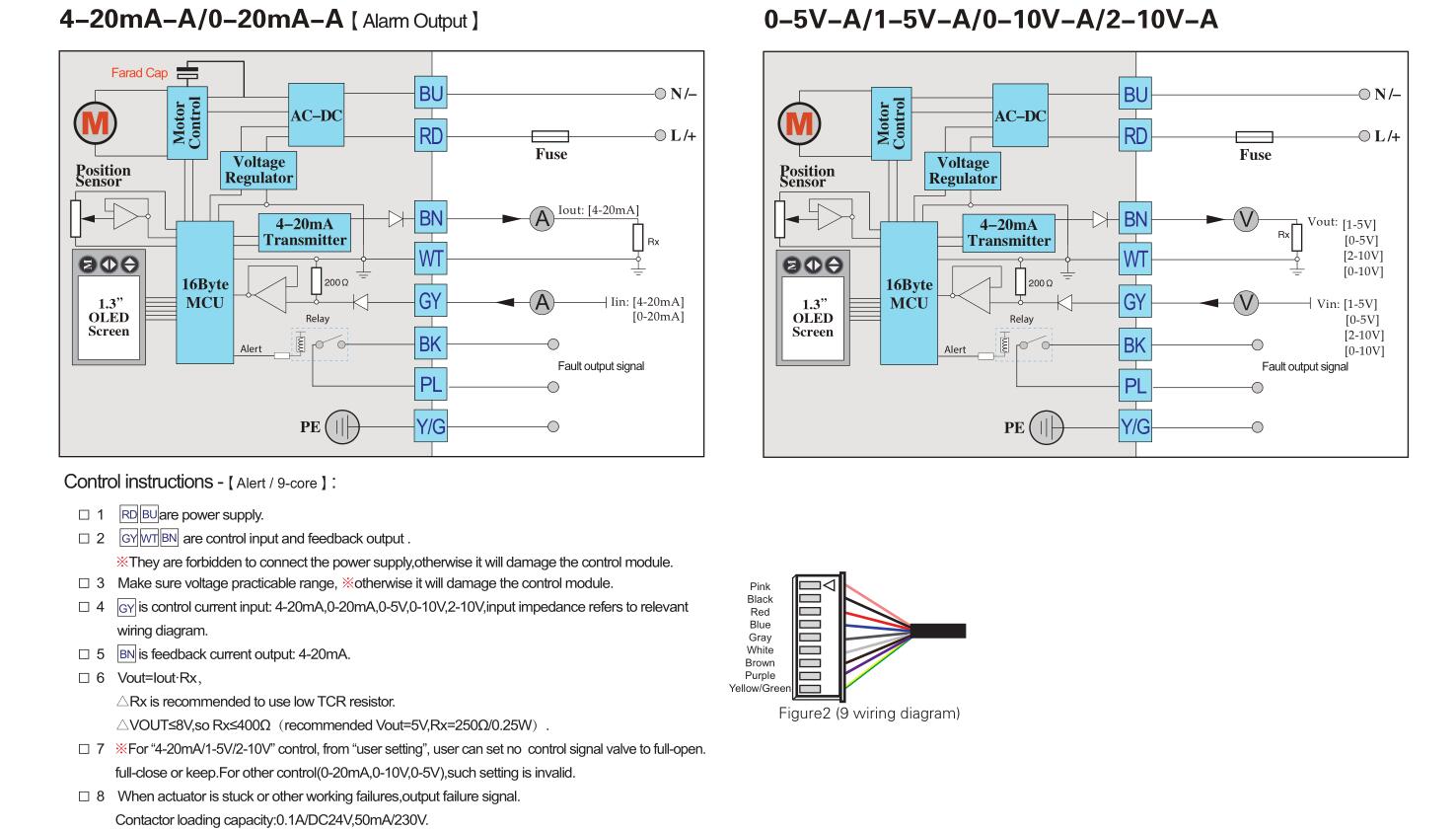

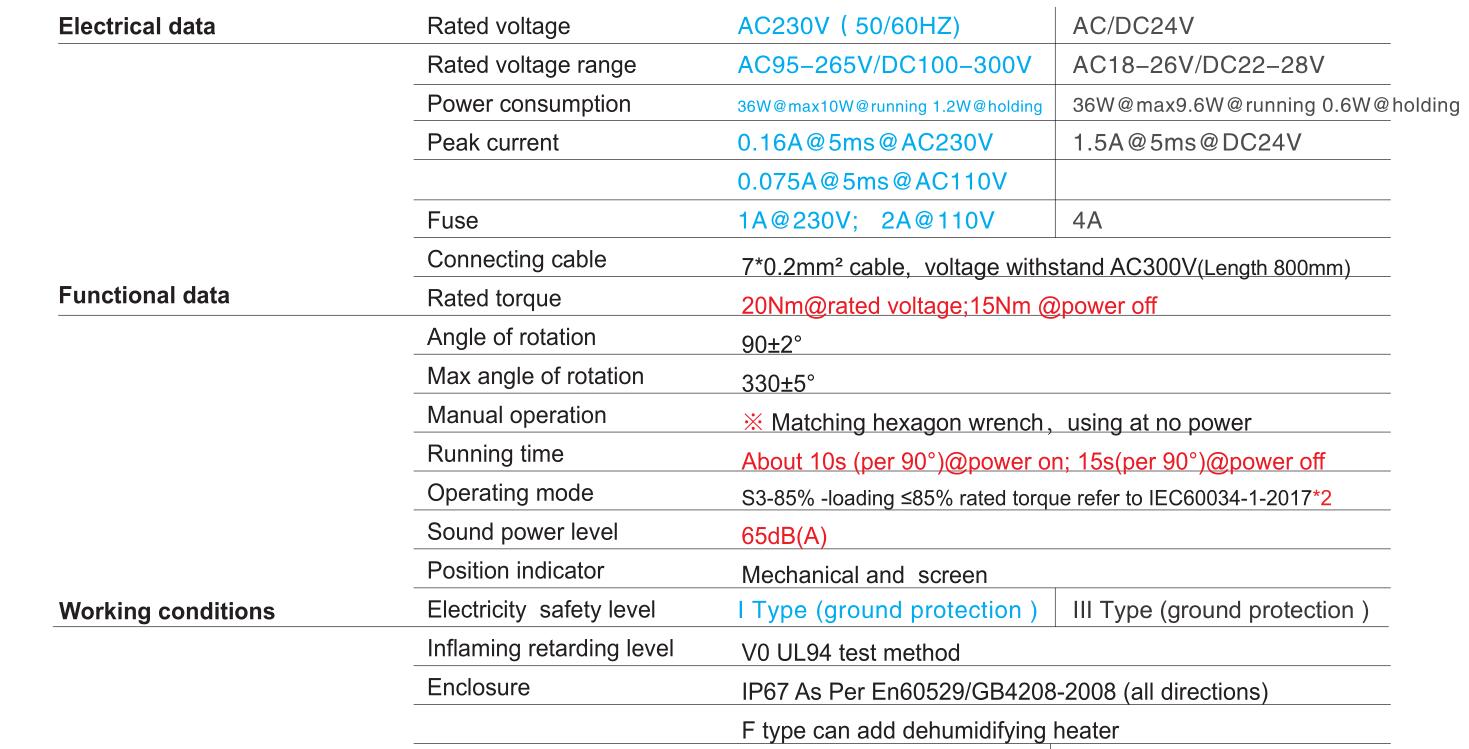

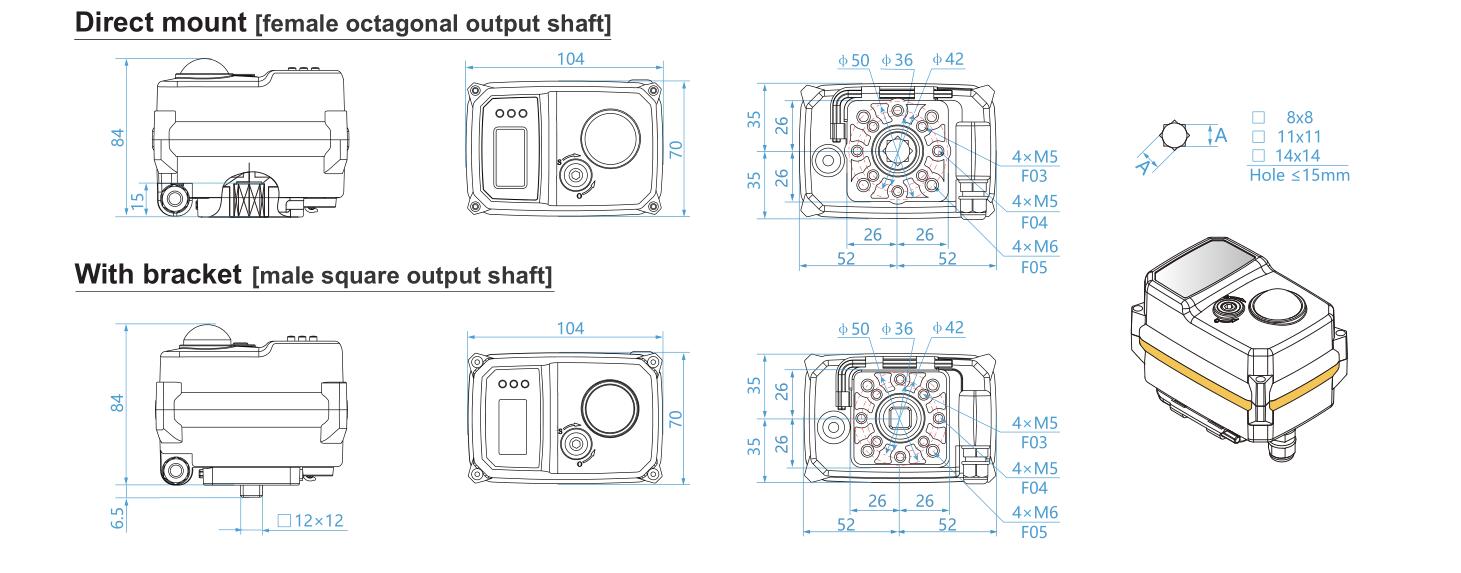

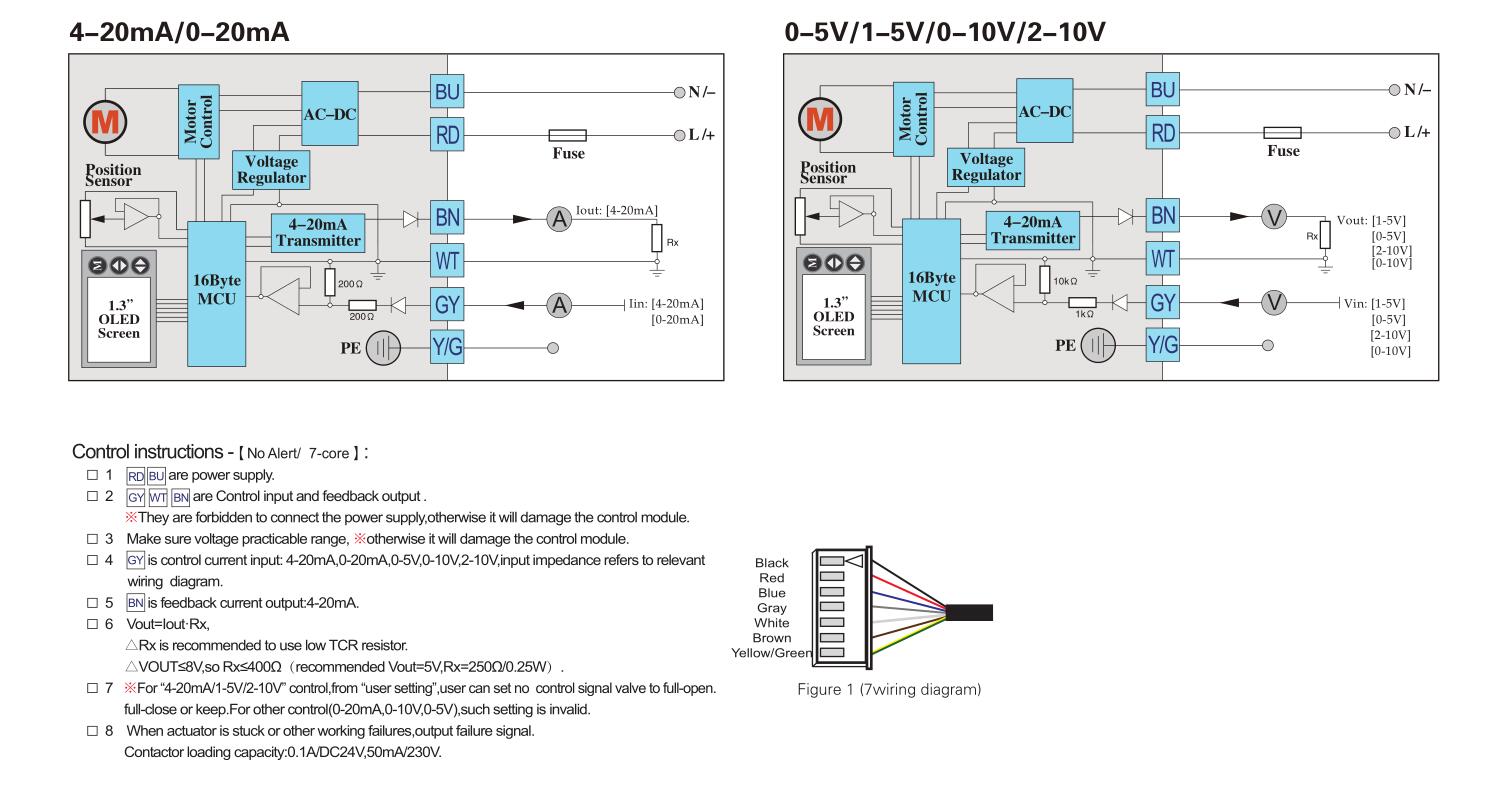

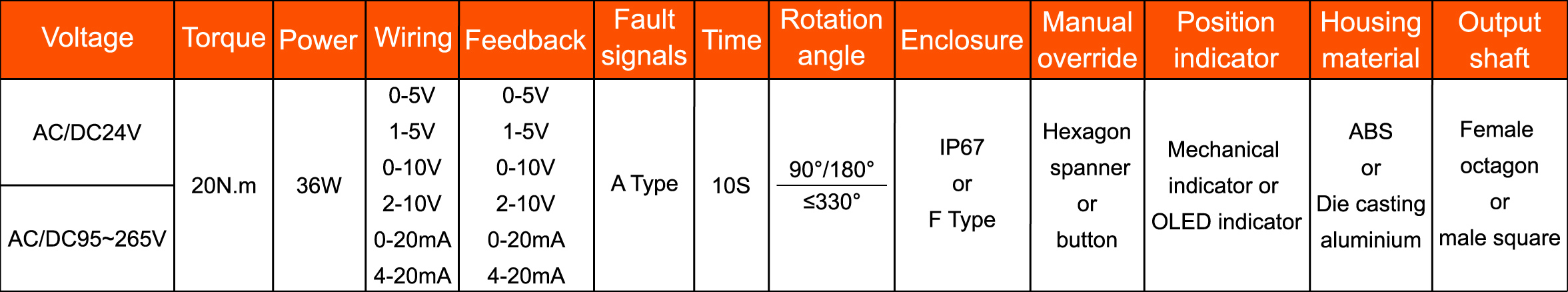

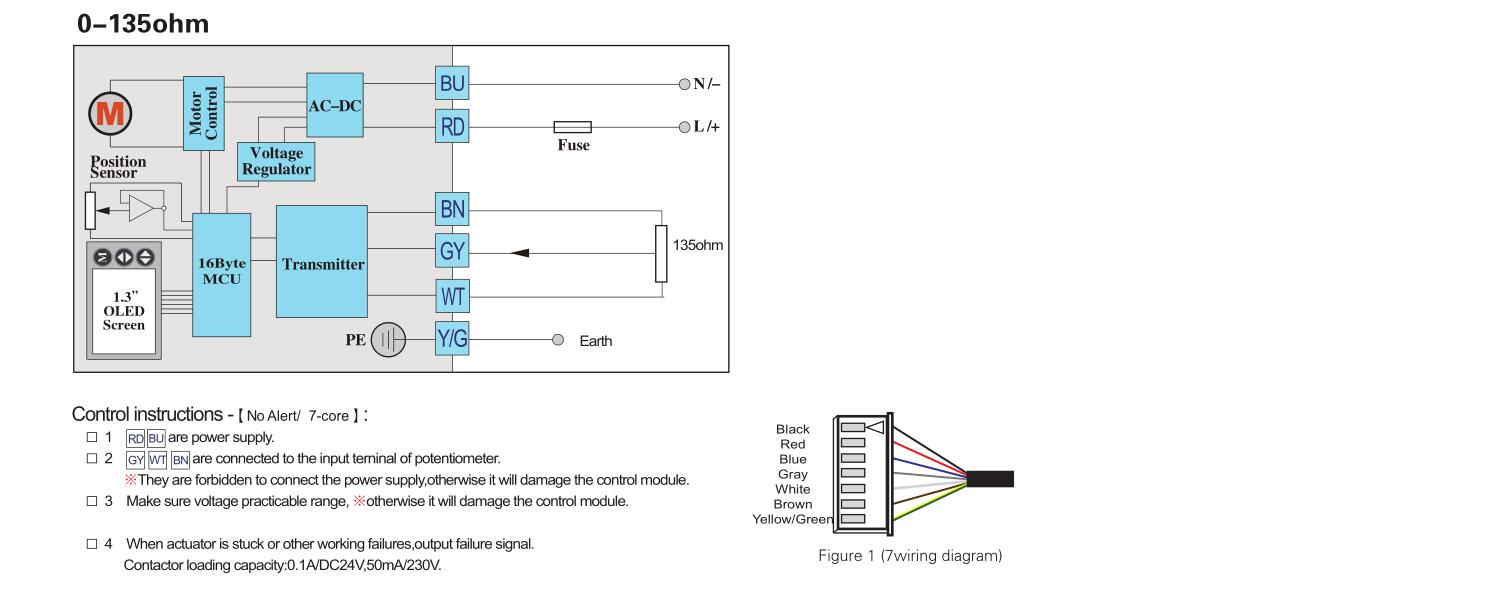

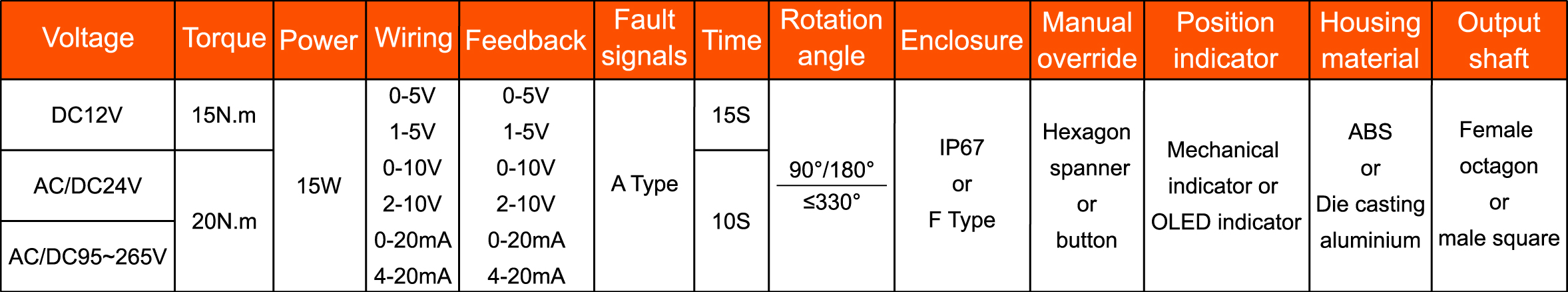

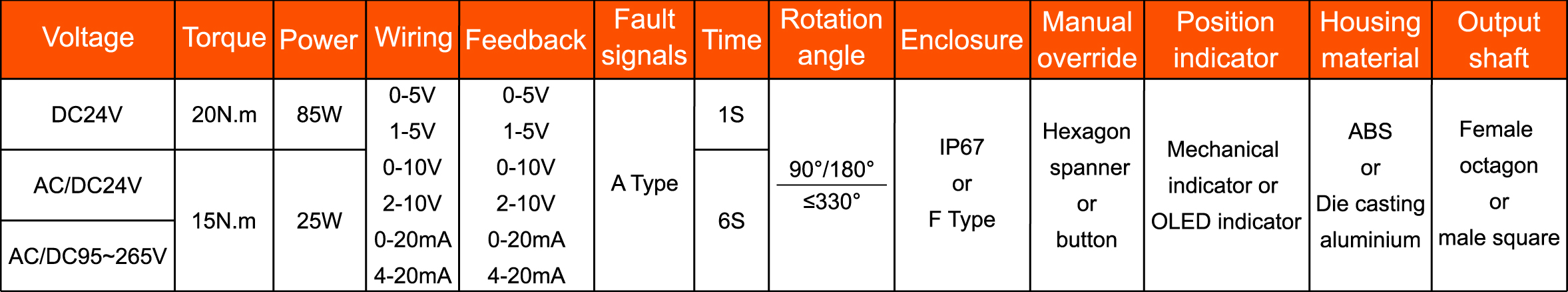

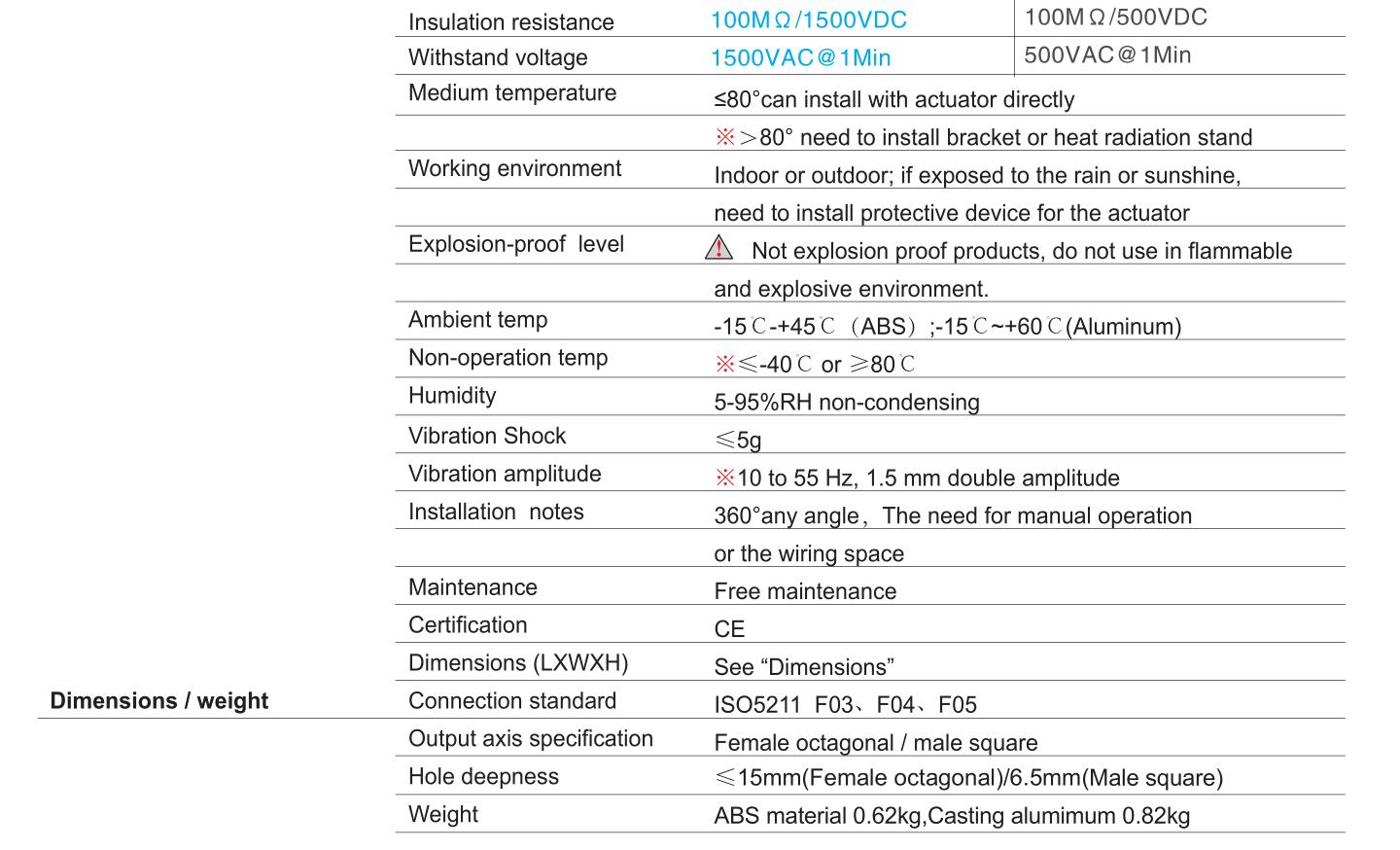

Specifications:Standard product data sheetHigh Speed type:Power off return type:Wiring diagrams:Dimensions:Photos:

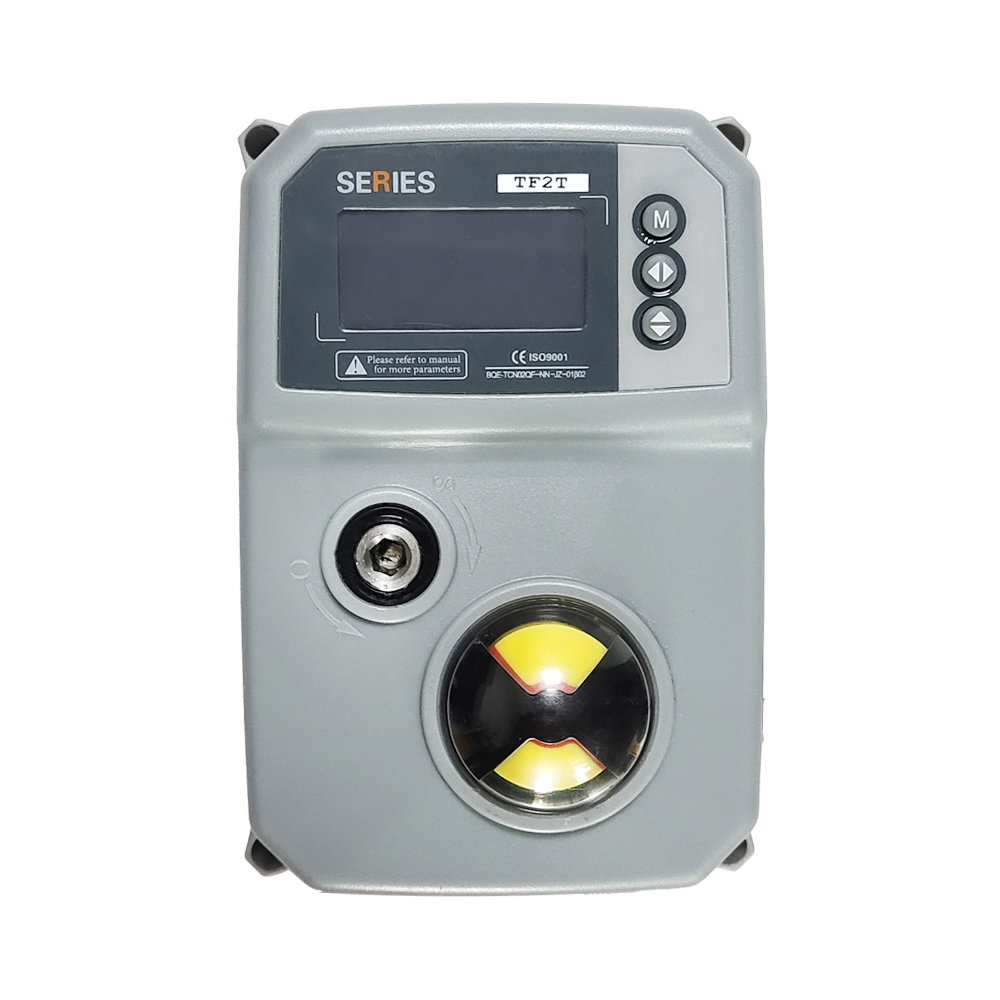

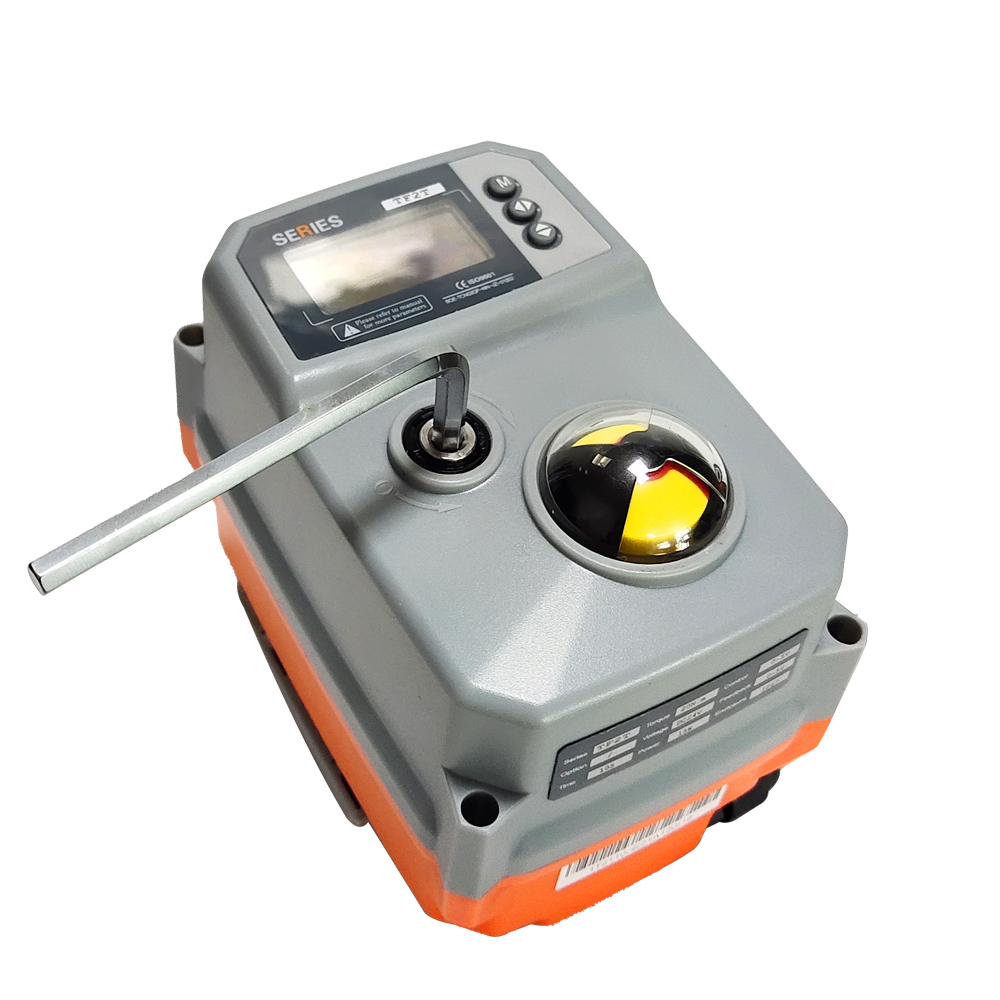

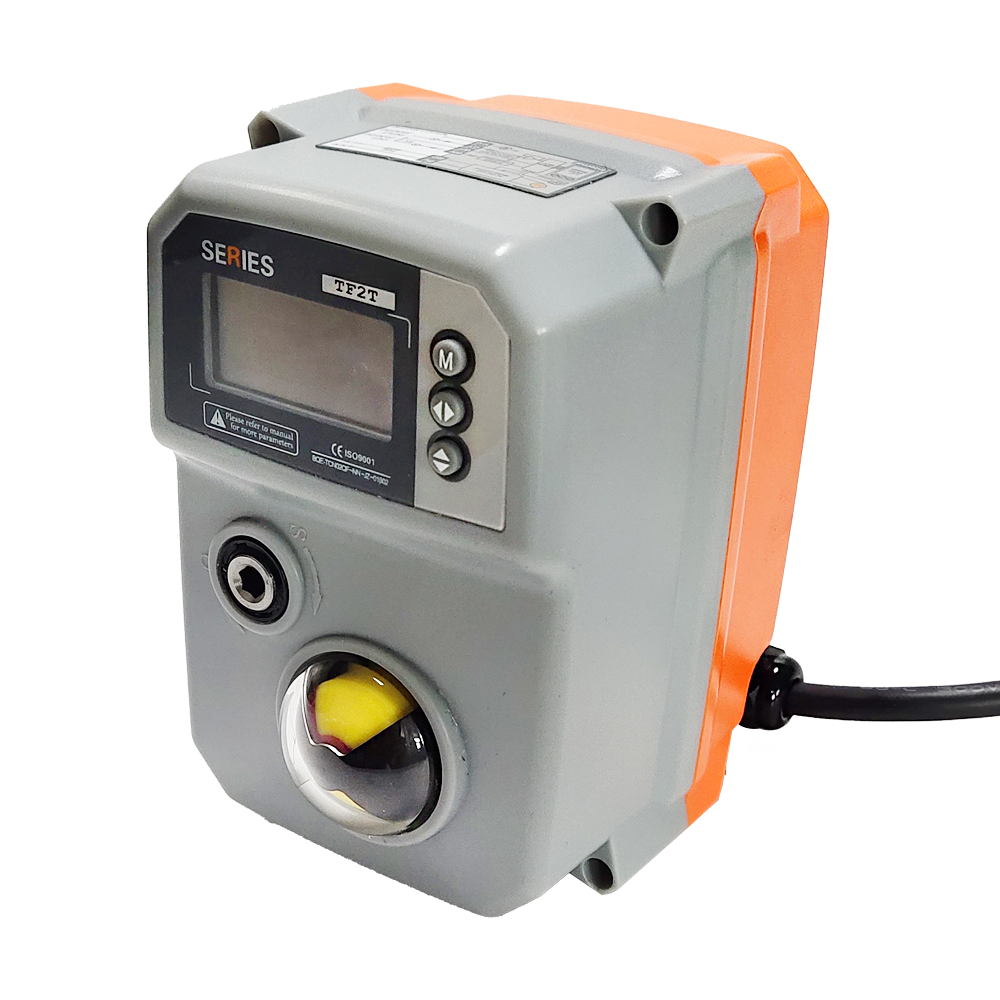

  • TF02T Series Intelligent Proportional Actuator:
    Features:
    1. Torque force: 20Nm
    2. Power supply: AC/DC24V, AC/DC95-265V
    3. Control signal: 0-5V,0-10V, 4-20mA
    4. Connection standard: ISO5211 F03、F04、F05
    5. Stem: 8X8MM, 11X11MM, 14X14MM

    Advantages:
    1. High performance brushless motor.
    2. Overload protection of internal motor.
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Open angle adjustable(within 360 degree).
