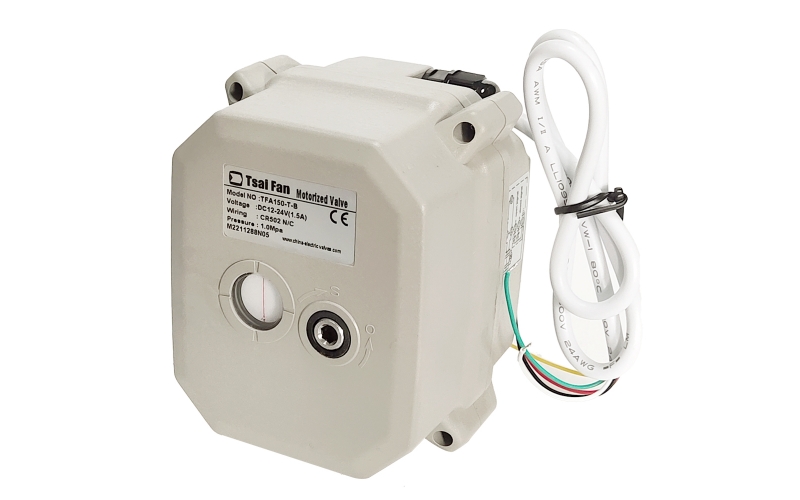

15Nm Electric Valve Actuator with Manual Override ISO5211 F03,F05 Connection face

15Nm Electric Valve Actuator with Manual Override ISO5211 F03,F05 Connection face

15Nm Electric Motorized Actuator with manual override, CE certified, IP67 Grade protection, All metal Gears, Connection face ISO5211 F03,F05 standard work with valves from 1/8 inch to 2 inch; stem size 9mm or 11mm

Specifications:

TFA150 Series Electric Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201,CR202, CR301 CR303, CR305, CR306, CR501, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC24VWiring:   CR202, CR301 CR303, CR305, CR306, CR502, CR702, CR703, CR705, CR706  (Optional)
Rated voltage:     AC110-230VWiring:   CR202,  CR303, CR305, CR306 CR401, CR502, CR703, CR704, CR705, CR706  (Optional)
Working current:1.5 A
Open/close time:12S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP67
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

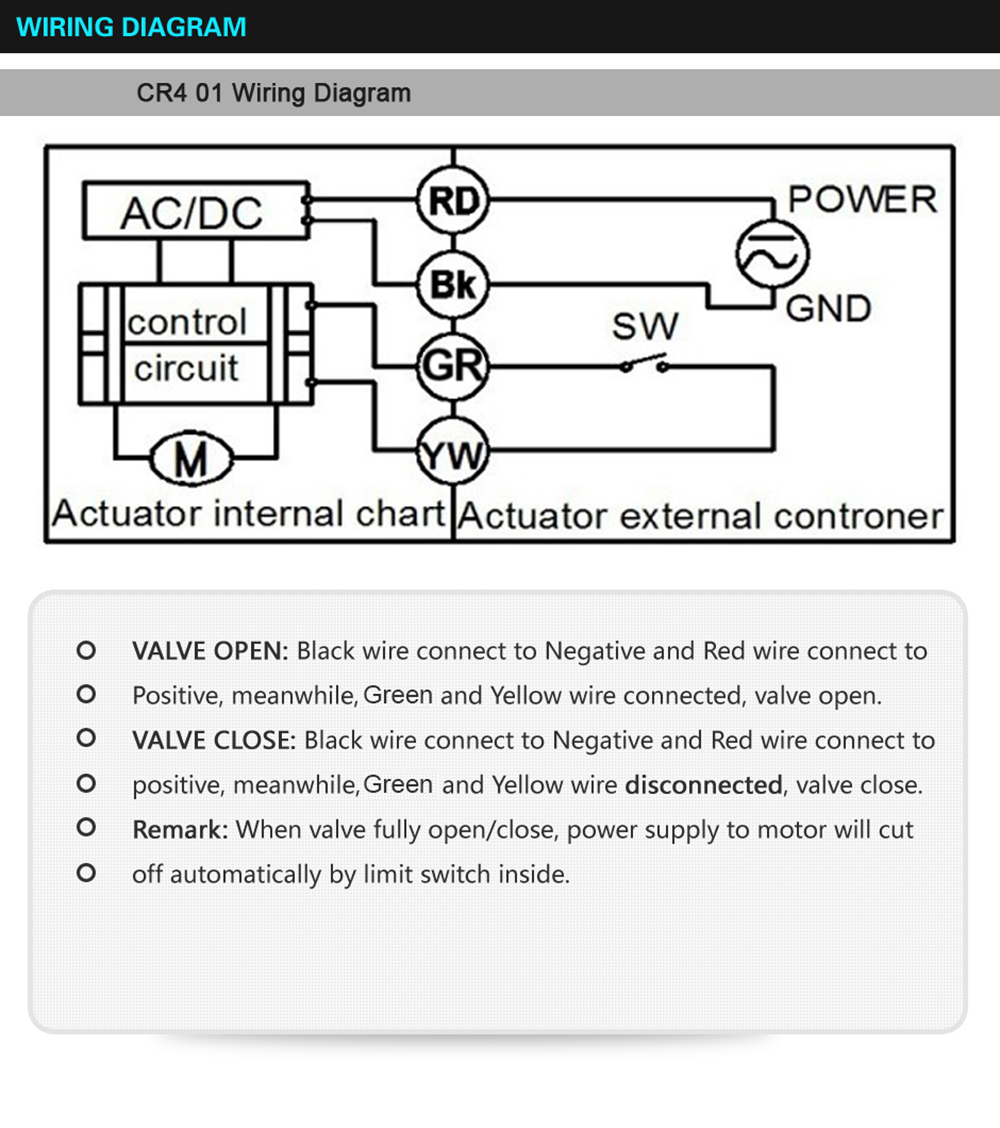

Wiring Diagrams:
