3Nm Proportional Valve Actuator with analog 0-5V,0-10V, 4-20mA Control signal output PWM or 4-20mA Signal

3Nm Proportional Valve Actuator with analog 0-5V,0-10V, 4-20mA Control signal output PWM or 4-20mA Signal

3Nm Proportional Actuator with Position indicator only, All metal Gears, IP67, CE certified, ON/OFF time 7 seconds work with valve body from DN8 to DN25

  • TFM20-T-C PROPORTIONAL ACTUATOR: Features: 1. Torque force: 3Nm 2. Power supply: DC9-24V 3. Control Signal:0-5V/0-10v/4-20mA 4. Output Signal: PWM Signal or 4-20mA 3. Running time: 7 seconds Advantages: 1. Electric drive, remote switching control, convenient for automation system. 2. Different wiring diagram to meet various control methods. 3. 100% Metal Gears inside. 4. Protection grade IP67. 5. Manual override & Positing indicator optional. 6. 100% ON/OFF testing before shipping.

Specifications:

Proportional Actuator
Power supply:     DC9-24V
Control Singal: 0-5V, 0-10V or 4-20mA  (Optional)
Position feedback outputPWM or 4-20mA (Optional)
Control positions75-80 Positions
Working current:≤500MA
Open/close time:7S
Life time:70000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:3 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:No
Indicator:Yes
Protection class:IP67

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

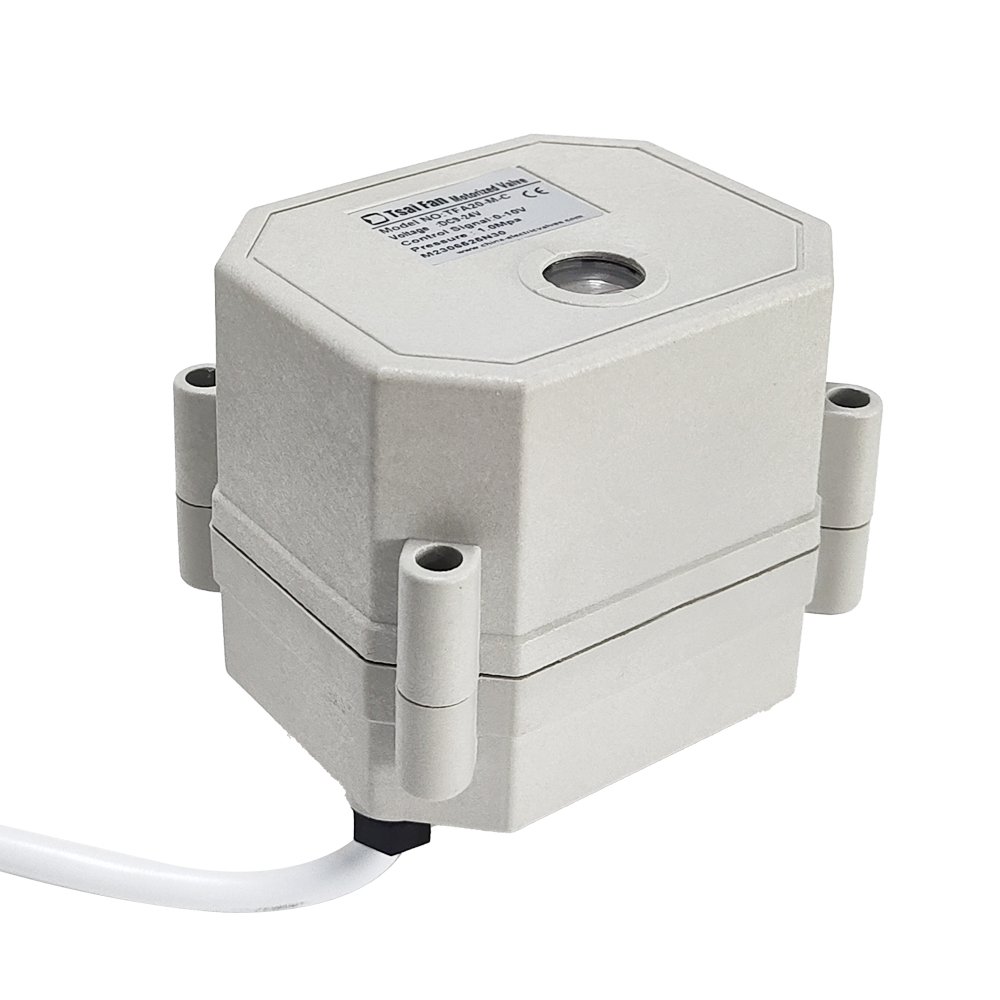

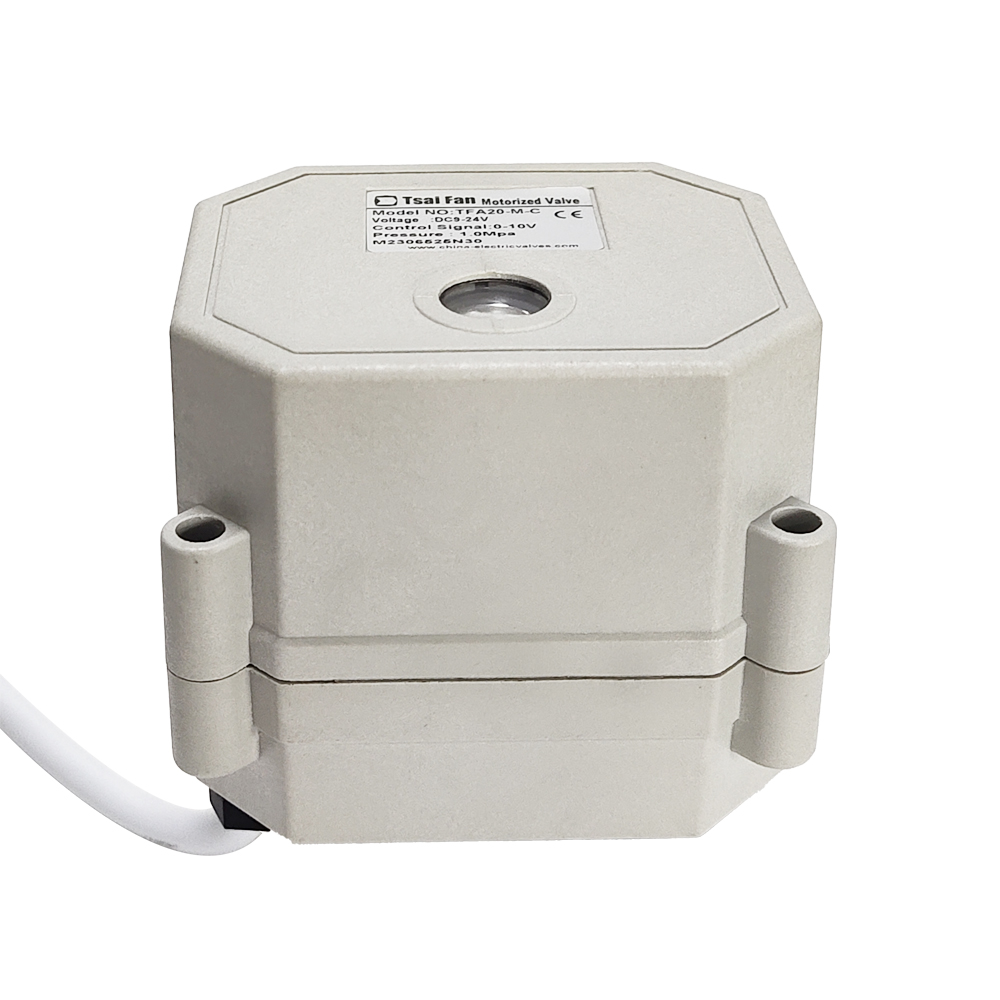

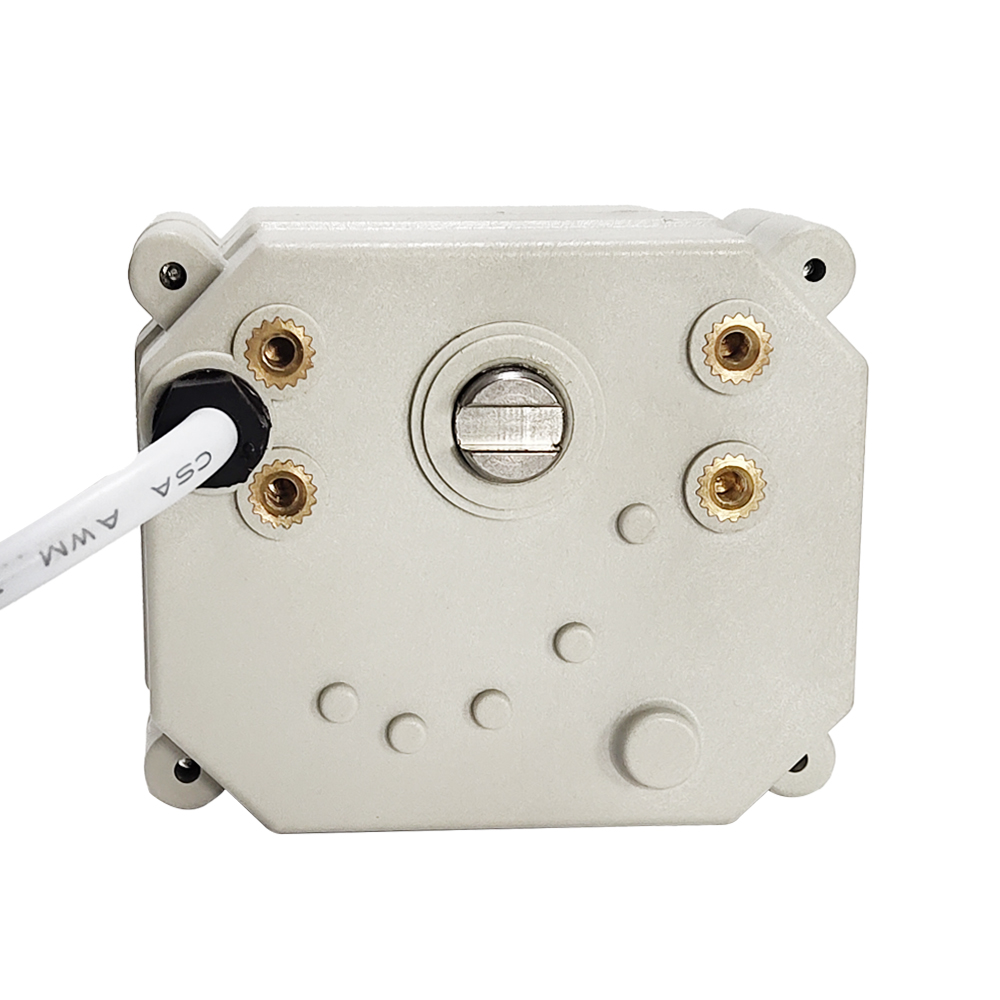

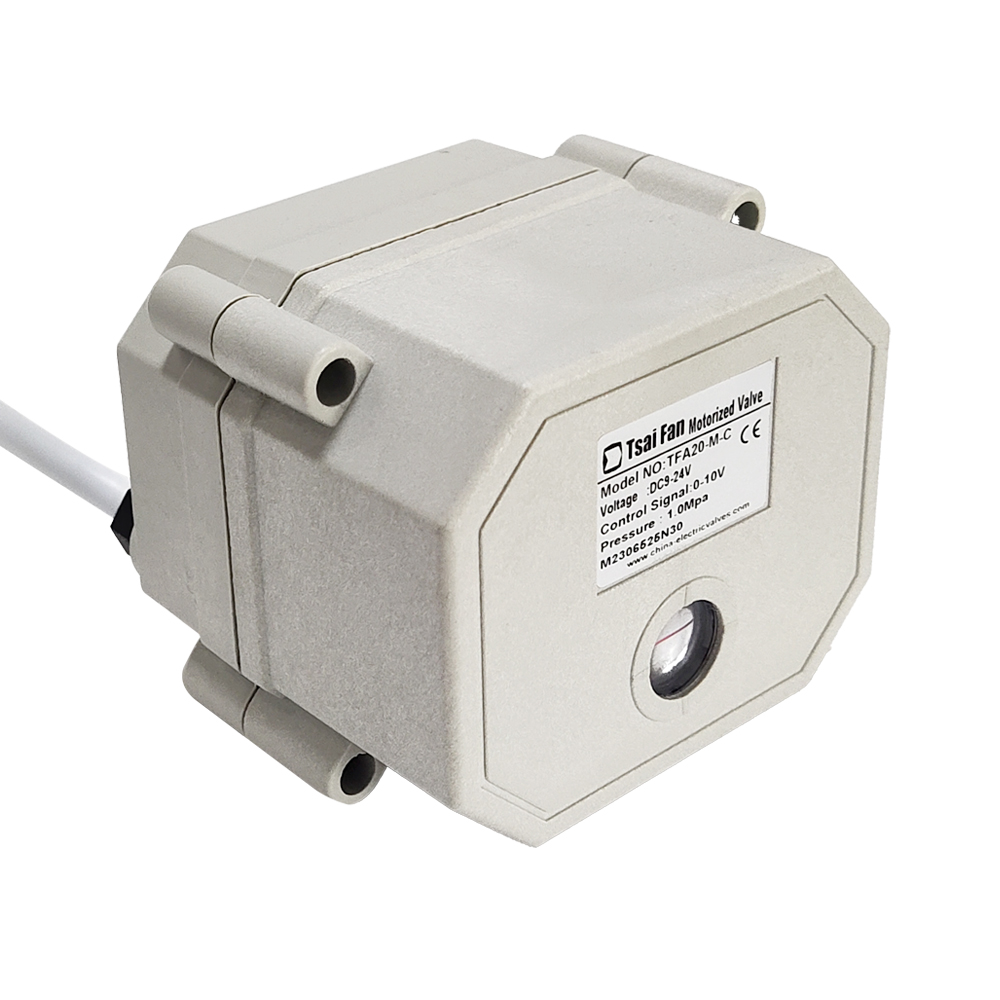

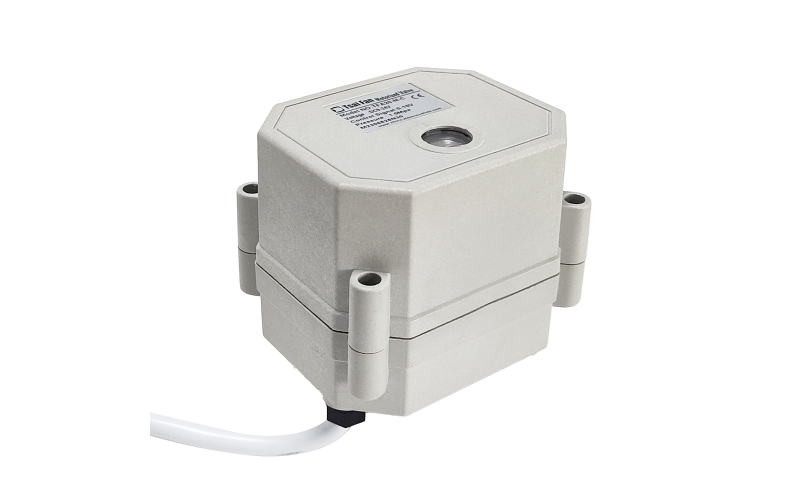

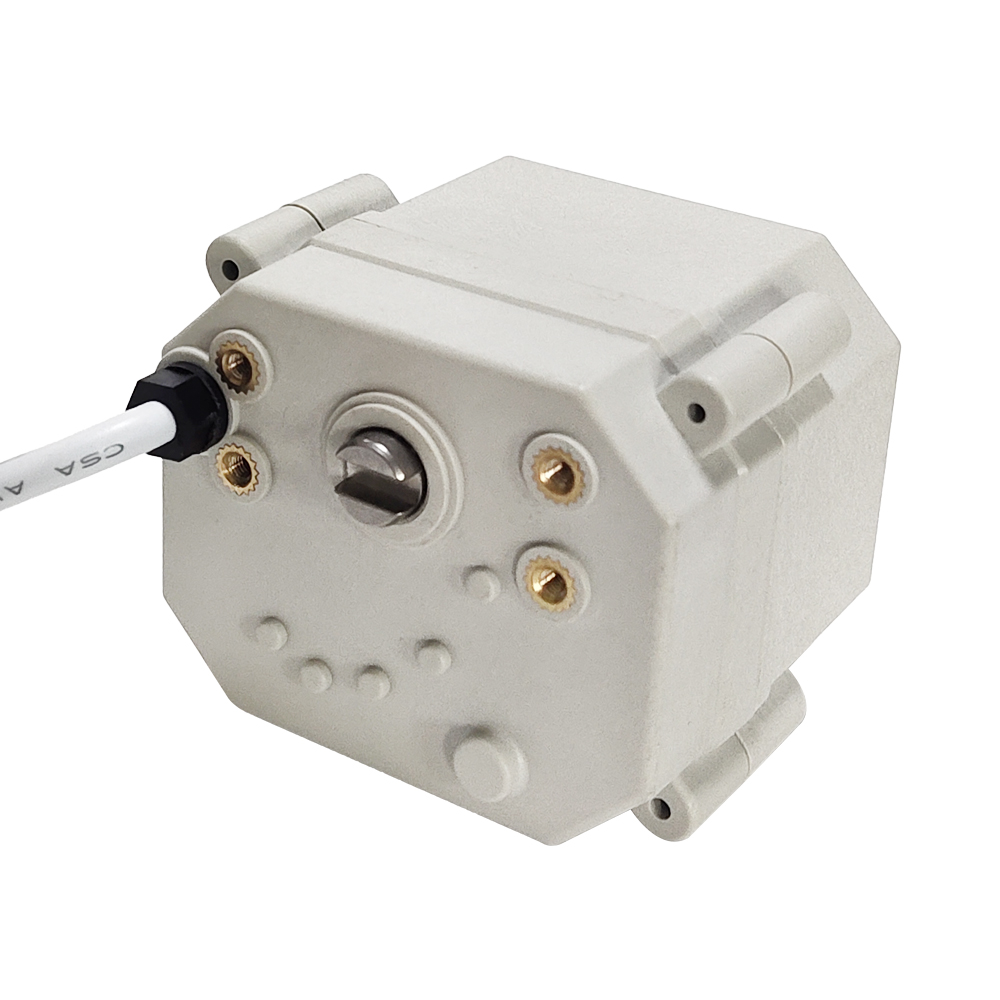

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS
