Quick open/close Actuator 2 seconds ON/OFF Electric Actuator 15Nm High-Speed Valve Actuator

Quick open/close Actuator 2 seconds ON/OFF Electric Actuator 15Nm High-Speed Valve Actuator

Specifications:TFB150-T-B Quick Operating ActuatorRated voltage: DC12V, DC24VWiring : CR201,CR303, CR501, CR703,(Optional)Working current:≤2 A(DC12V) ≤1A(DC24V)Open/close time:≤2S/90°Life time:50000 t

  • TFB150-T-B QUICK OPERATING ACTUATOR:
    Features:
    1. Torque force: 15Nm
    2. Power supply: DC12V,DC24V
    3. Running time: 2 seconds
    4. Working current: ≤2 A(DC12V) ≤1A(DC24V) 5. Connection face: ISO5211 F05,F07
    6. Connection Stem: 11x11mm/9x9mm

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods.
    3. 100% Metal Gears inside.
    4. Protection grade IP68.
    5. With Manual override & Position indicator.
    6. 100% ON/OFF testing before shipping.

Specifications:

TFB150-T-B Quick Operating Actuator
Rated voltage:     DC12V, DC24VWiring :  CR201,CR303, CR501, CR703,(Optional)
Working current:≤2 A(DC12V) ≤1A(DC24V)
Open/close time:≤2S/90°
Life time:50000 times
Actuator material:PPO
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:15 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes
Indicator:Yes
Protection class:IP68
Connection StandardISO5211 F03,F05
Output axis9*9mm, 11*11mm

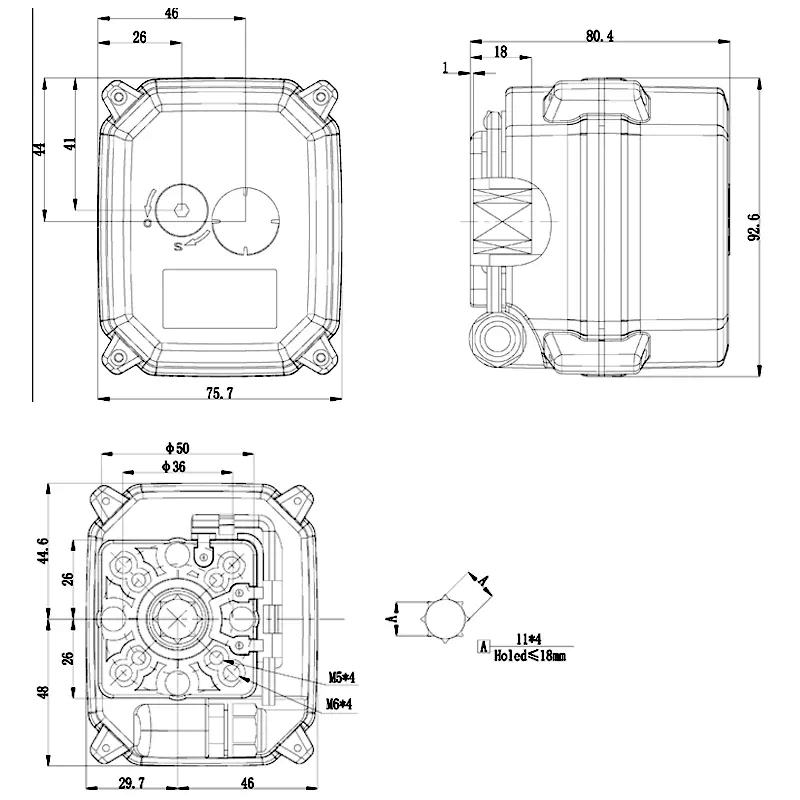

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

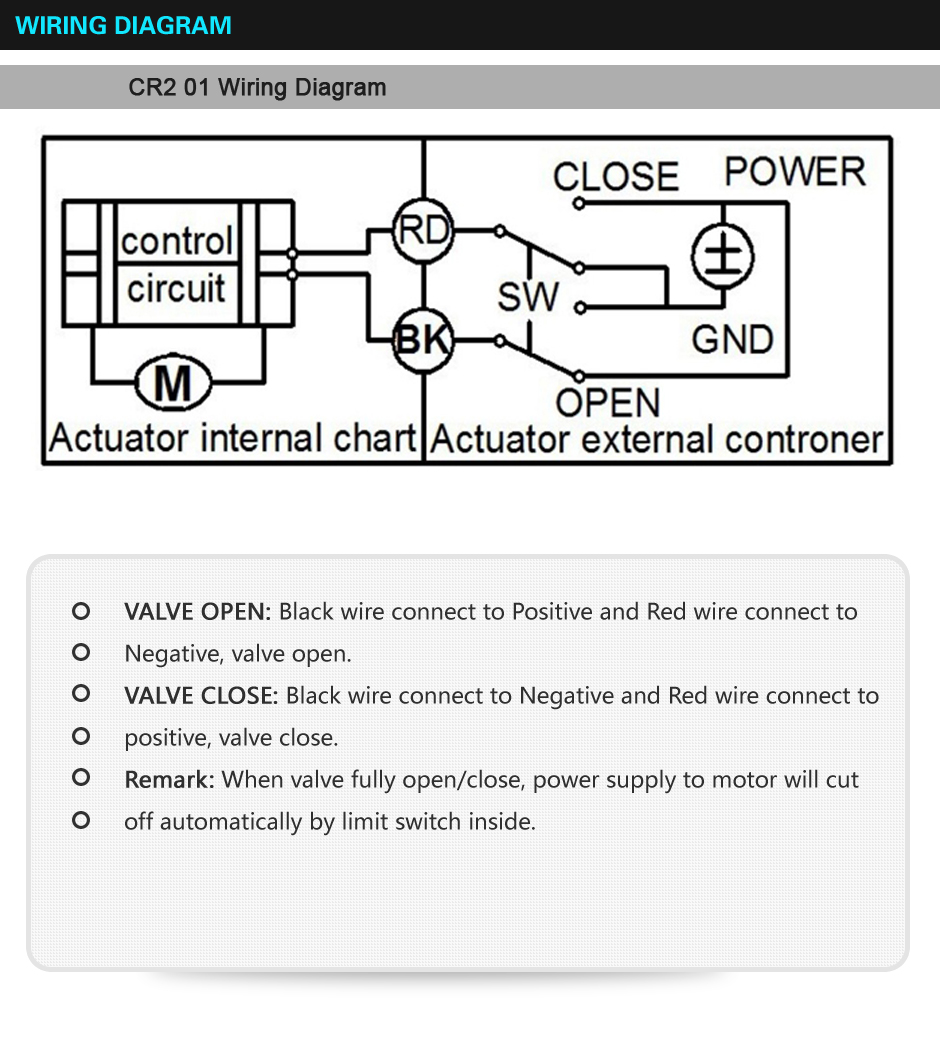

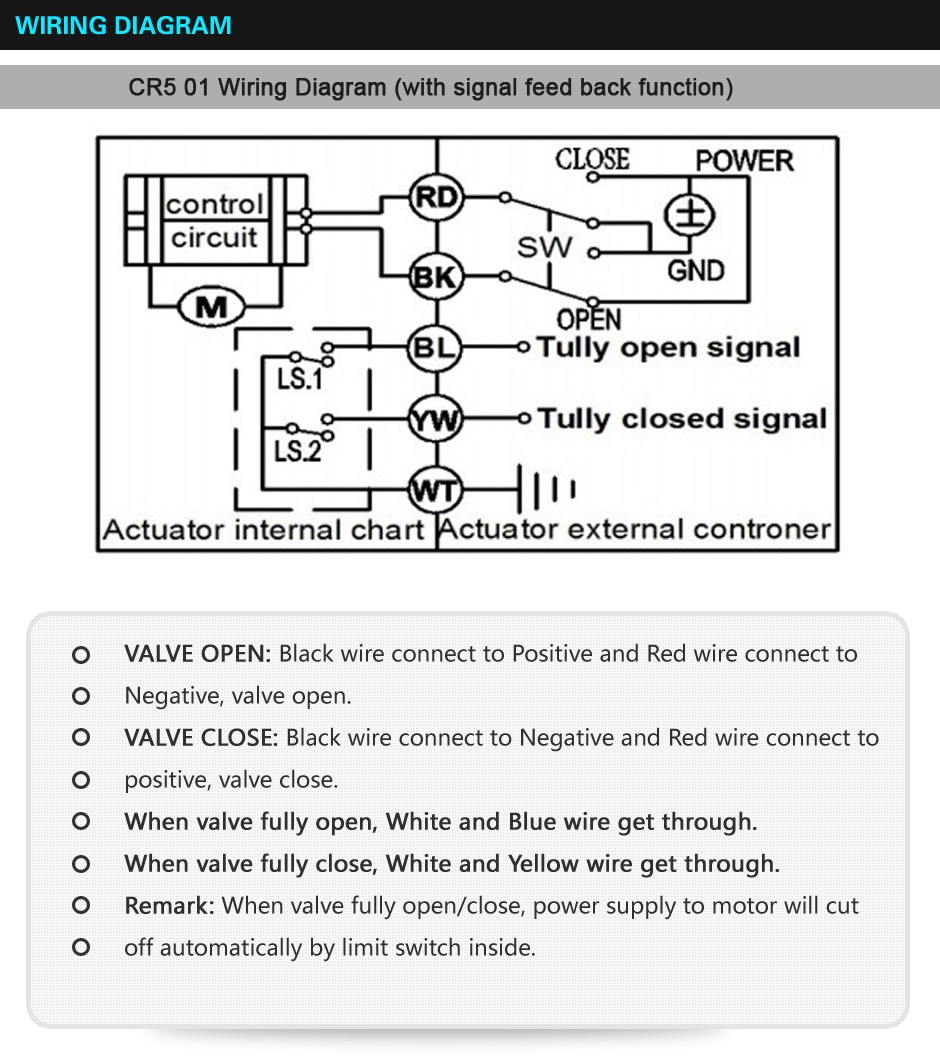

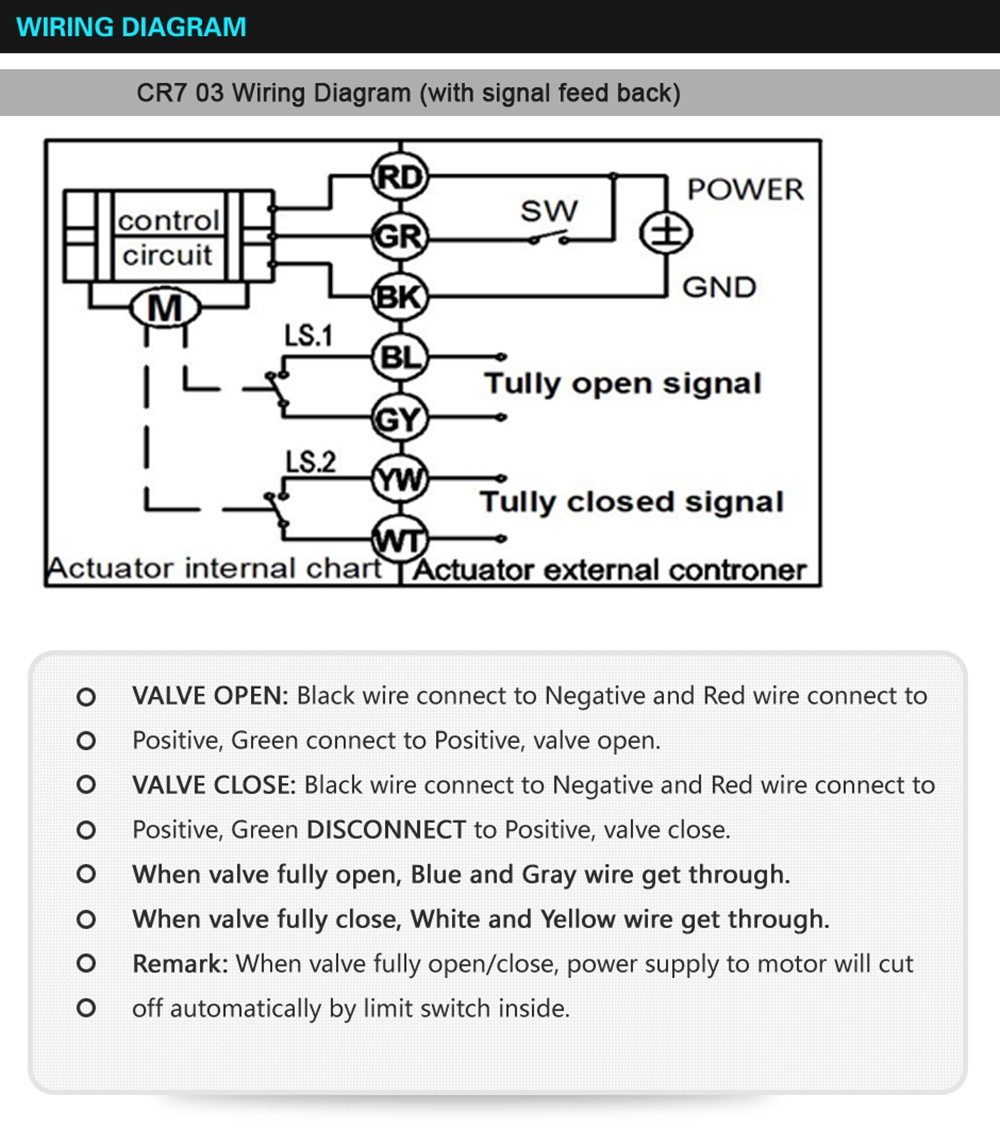

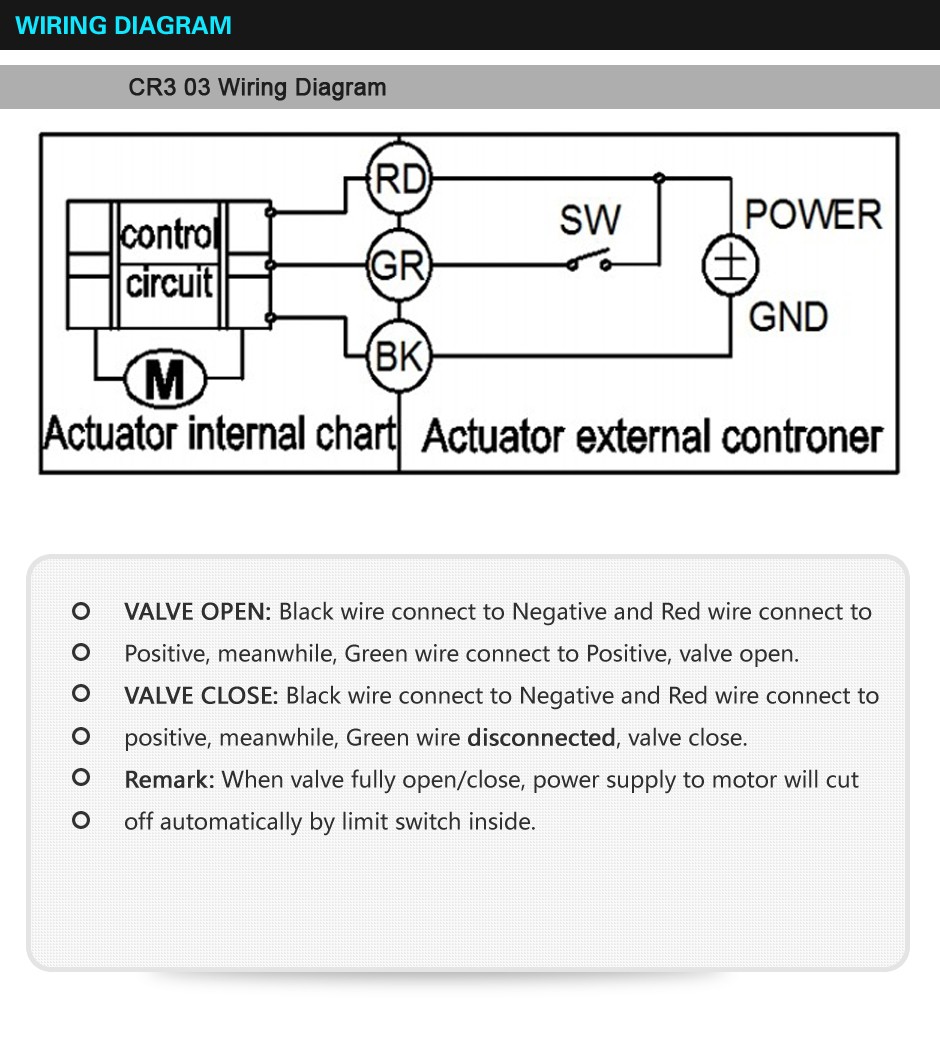

Wiring diagrams:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

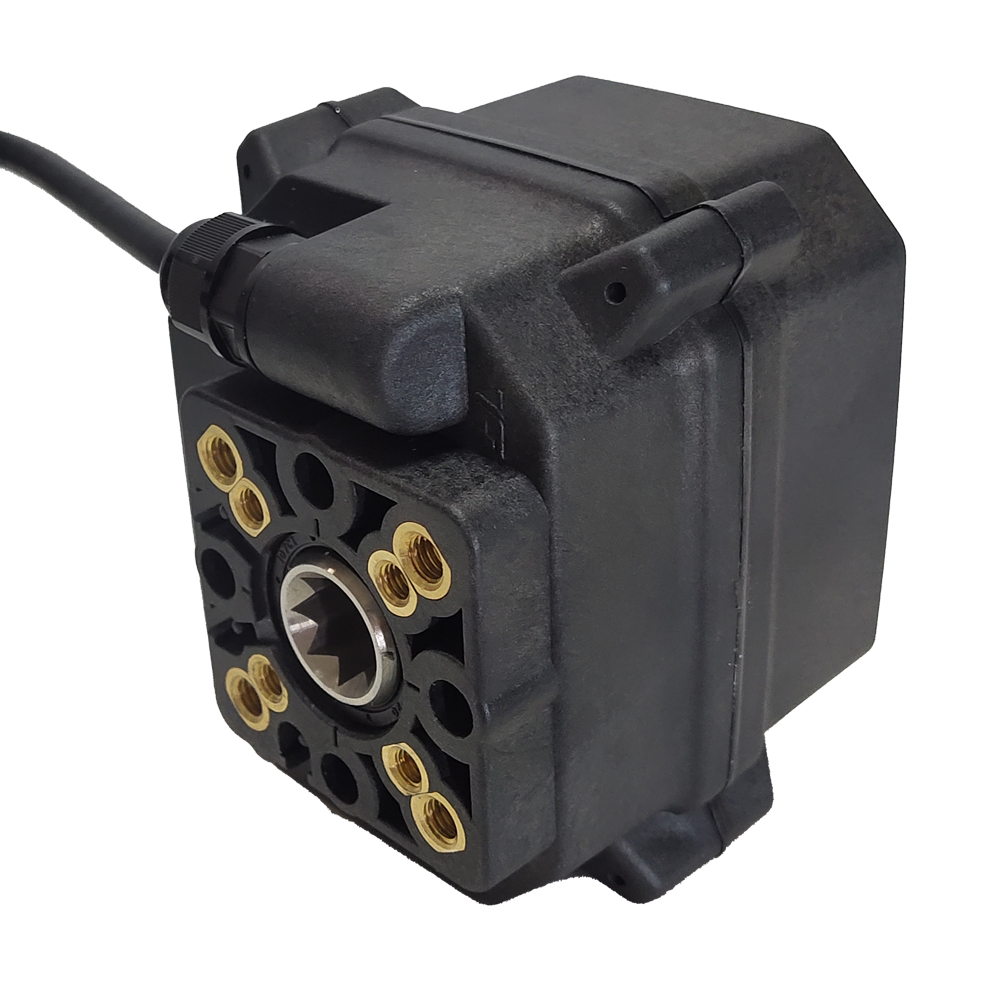

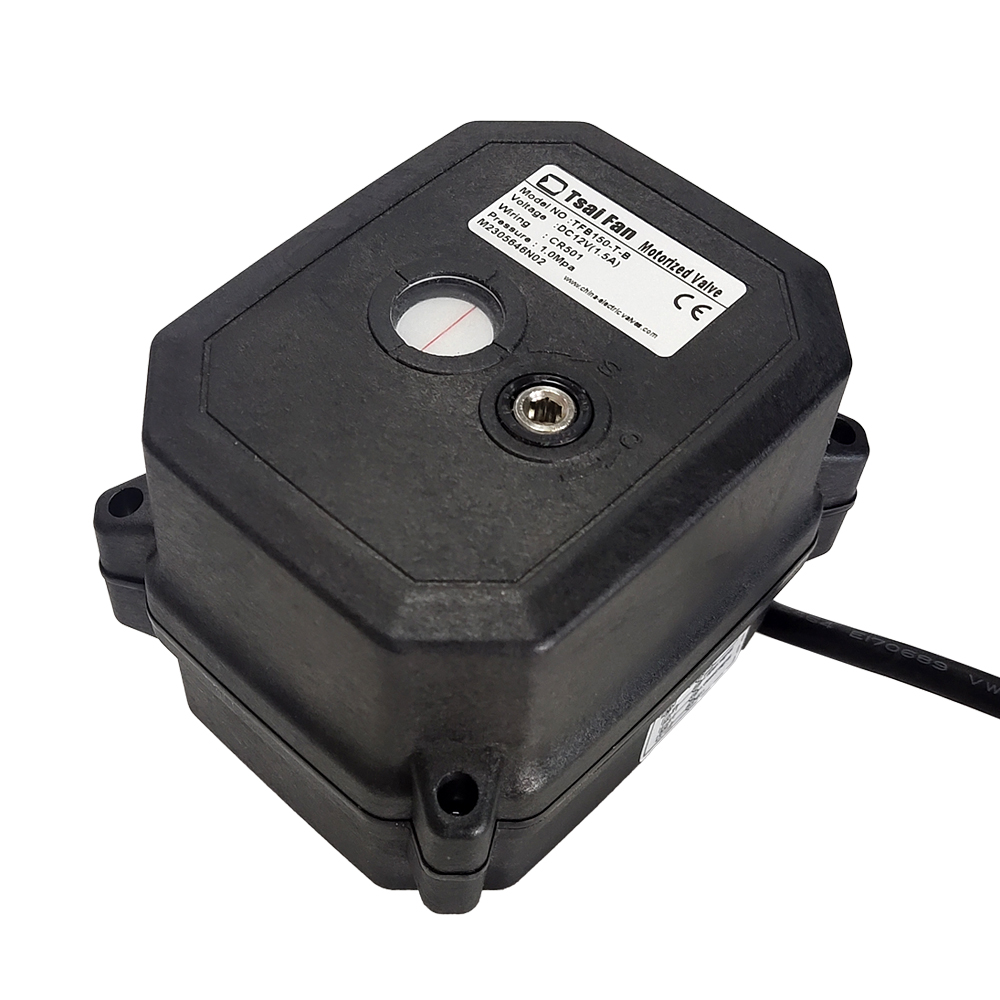

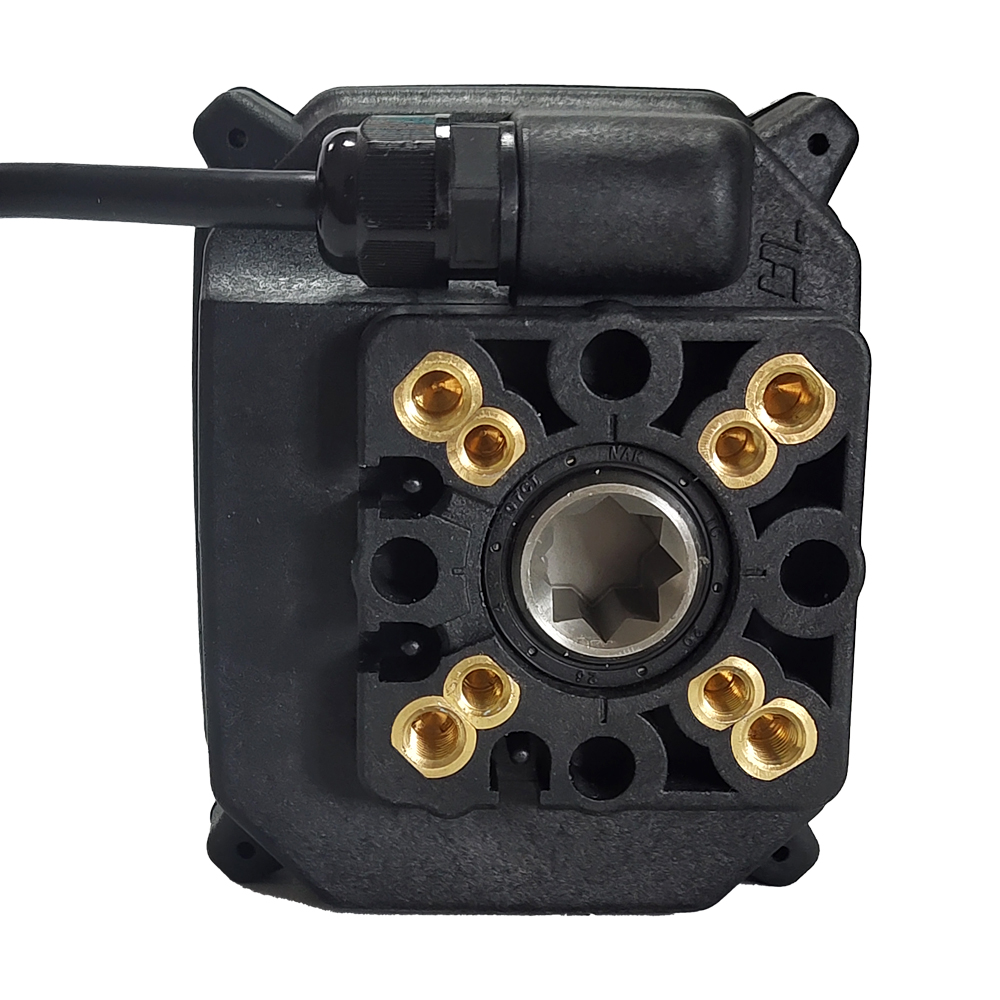

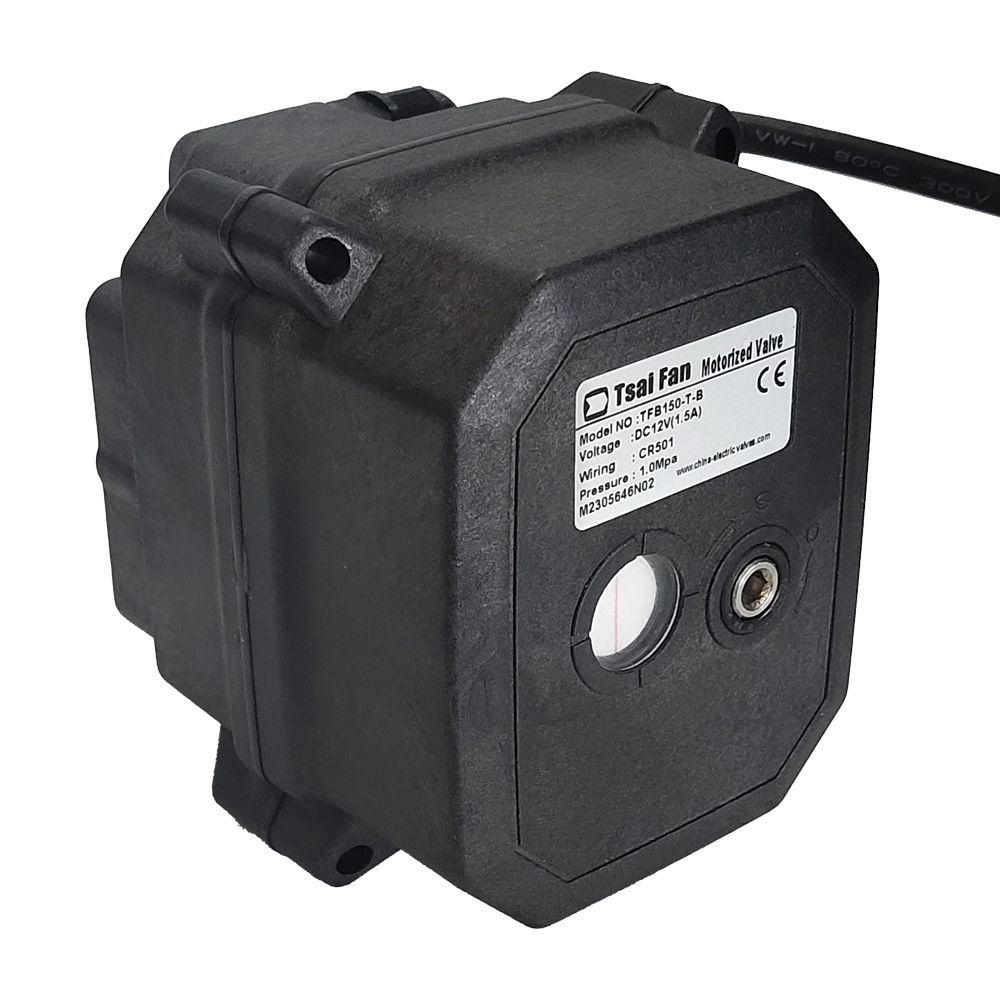

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS
