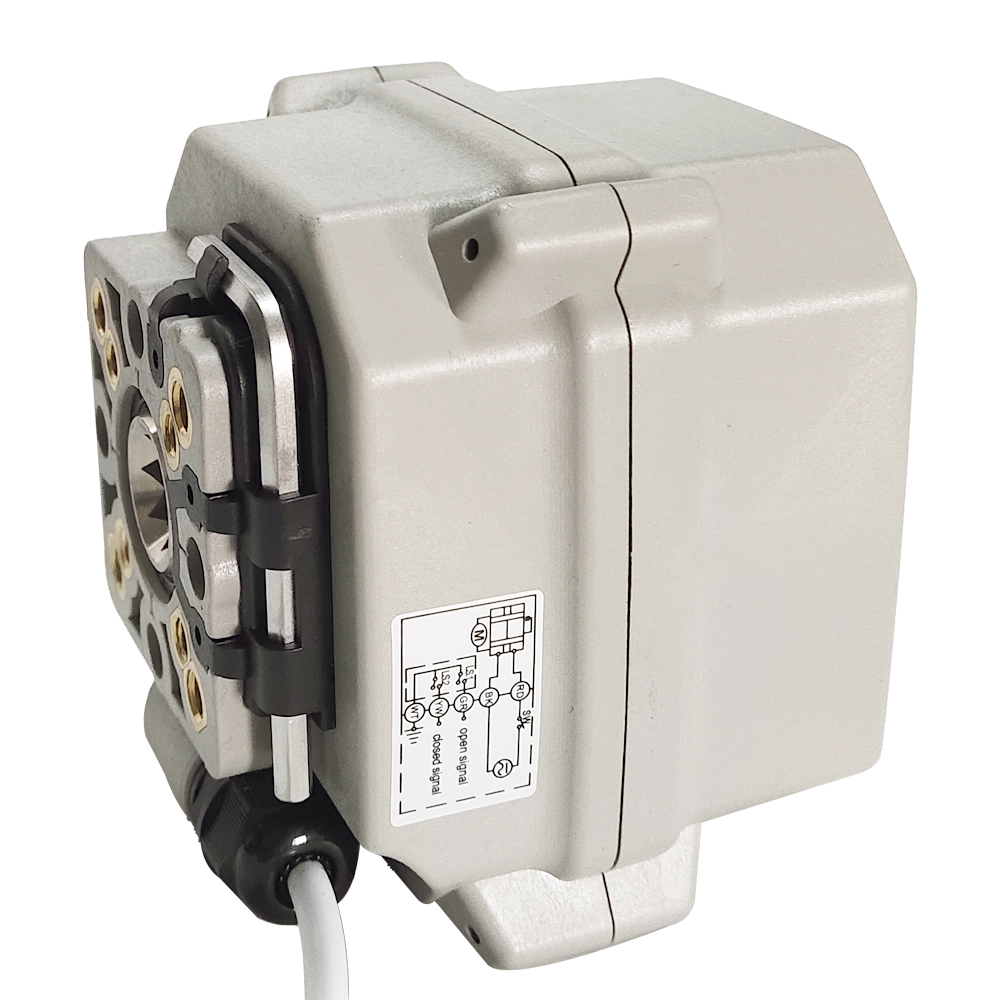

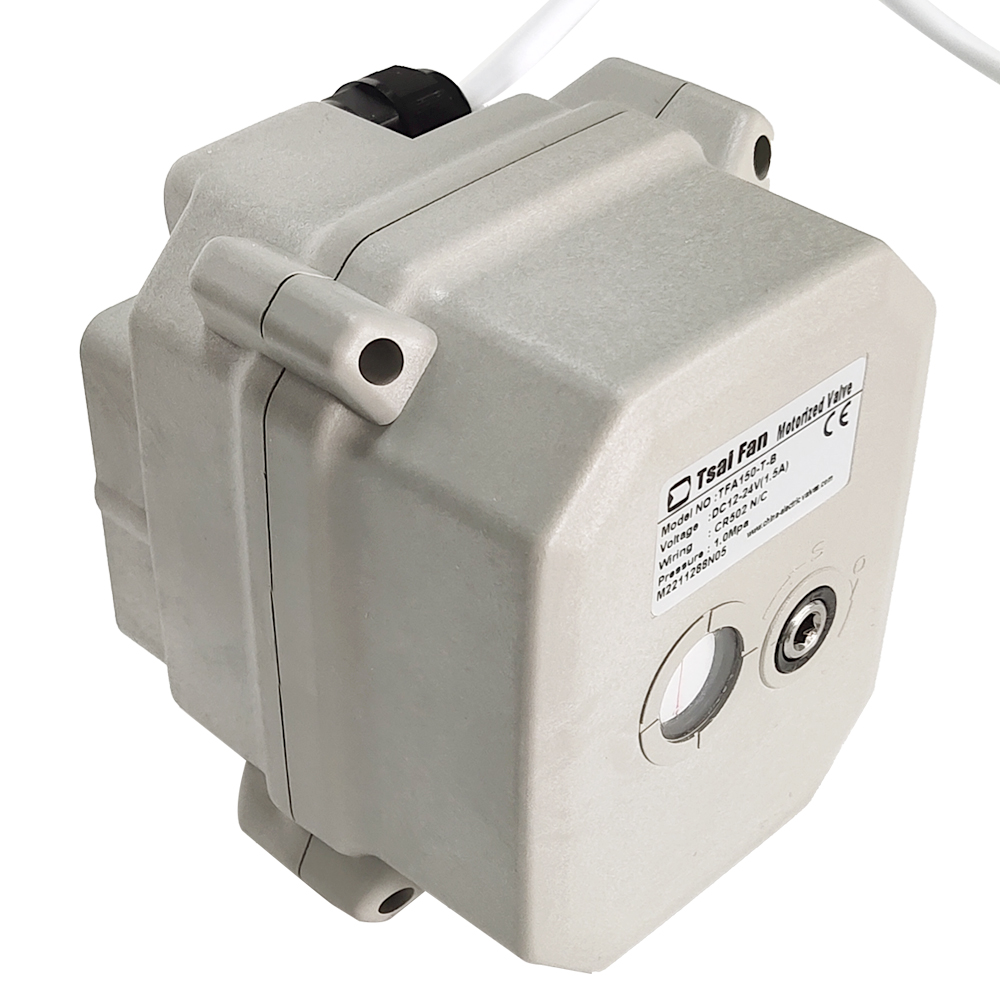

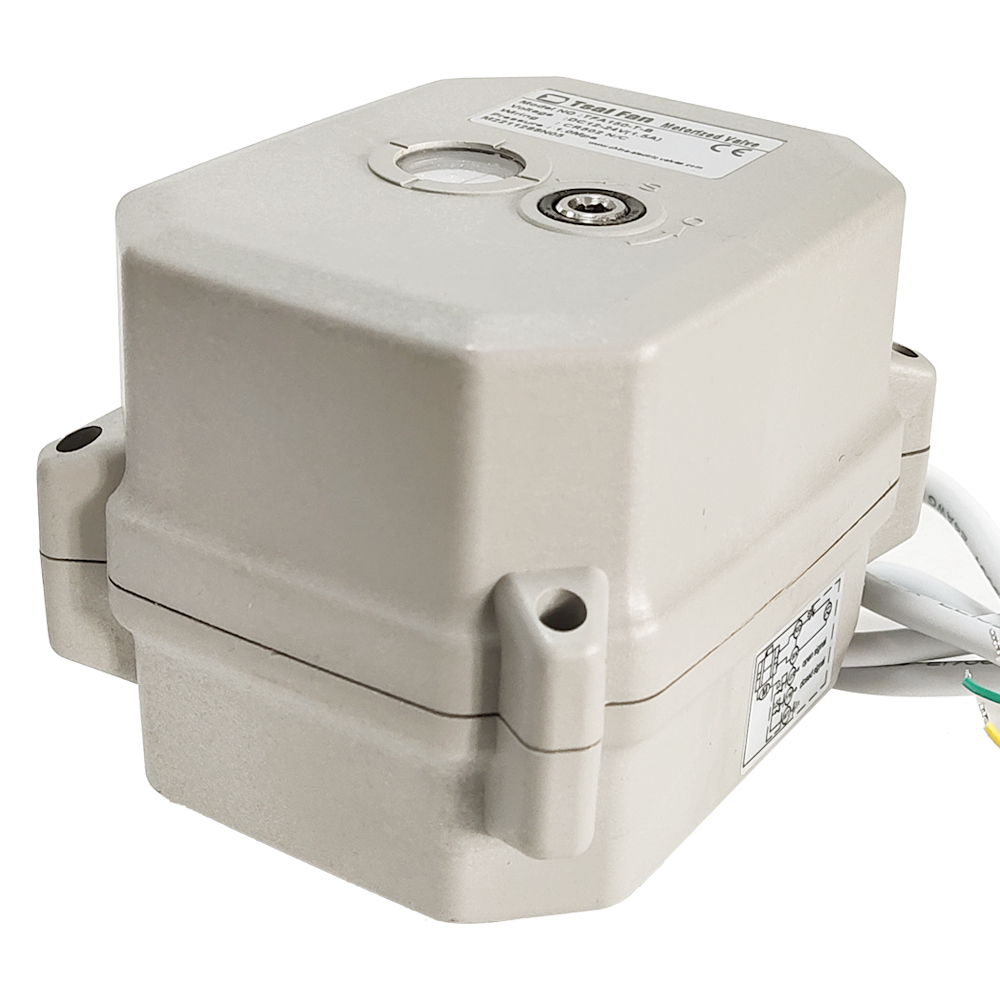

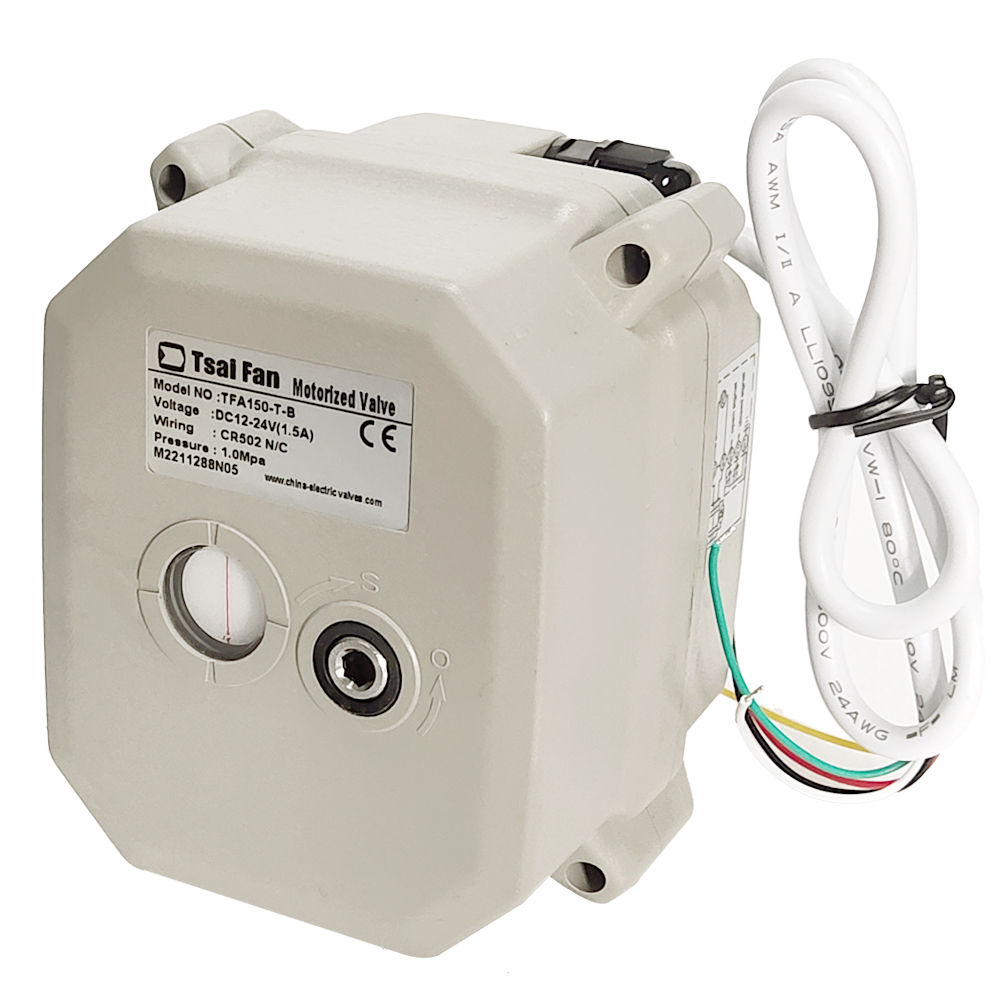

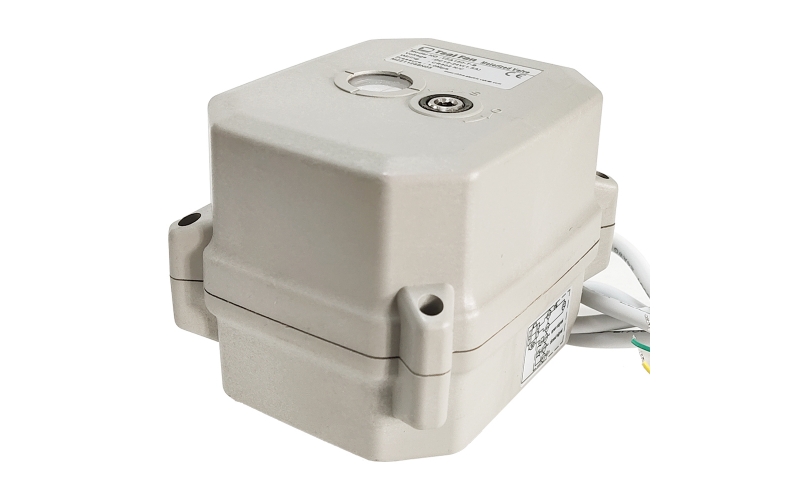

15Nm Proportional Acuator analog signal 0-5V,0-10V,4-20mA Electric Control valve for Flow regulating

15Nm Electric Proportional Actuator with manual override, CE certified, IP67 Grade protection, All metal Gears, Connection face ISO5211 F03,F05 standard 0-5V/1-5V/0-10V/2-10V/4-20mA

TFM150-T-B PROPORTIONAL ACTUATOR： Features：
1. Torque force: 15Nm
2. Power supply: DC12-24V 3. Control Signal:0-5V/1-5V/0-10V/2-10V/4-20mA 4. Output Signal: 4-20mA 5. Connection face: ISO5211 F03,F05

Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Different wiring diagram to meet various control methods.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. With Manual override & Position indicator.
6. 100% ON/OFF testing before shipping.

Detailed information

Specifications:

TFM150-M-B Proportional Actuator
Power supply:	DC12 - 24V
Control Singal:	0-5V, 1-5V, 0-10V, 2-10V, 4-20mA (Optional)
Position feedback output	4-20mA
Control positions	≤1.5 A
Open/close time:	≤12S
Life time:	70000 times
Actuator material:	PPO
Gears material:	Metal Gears
Actuator rotation:	90 degree
Max. torque force:	15 Nm

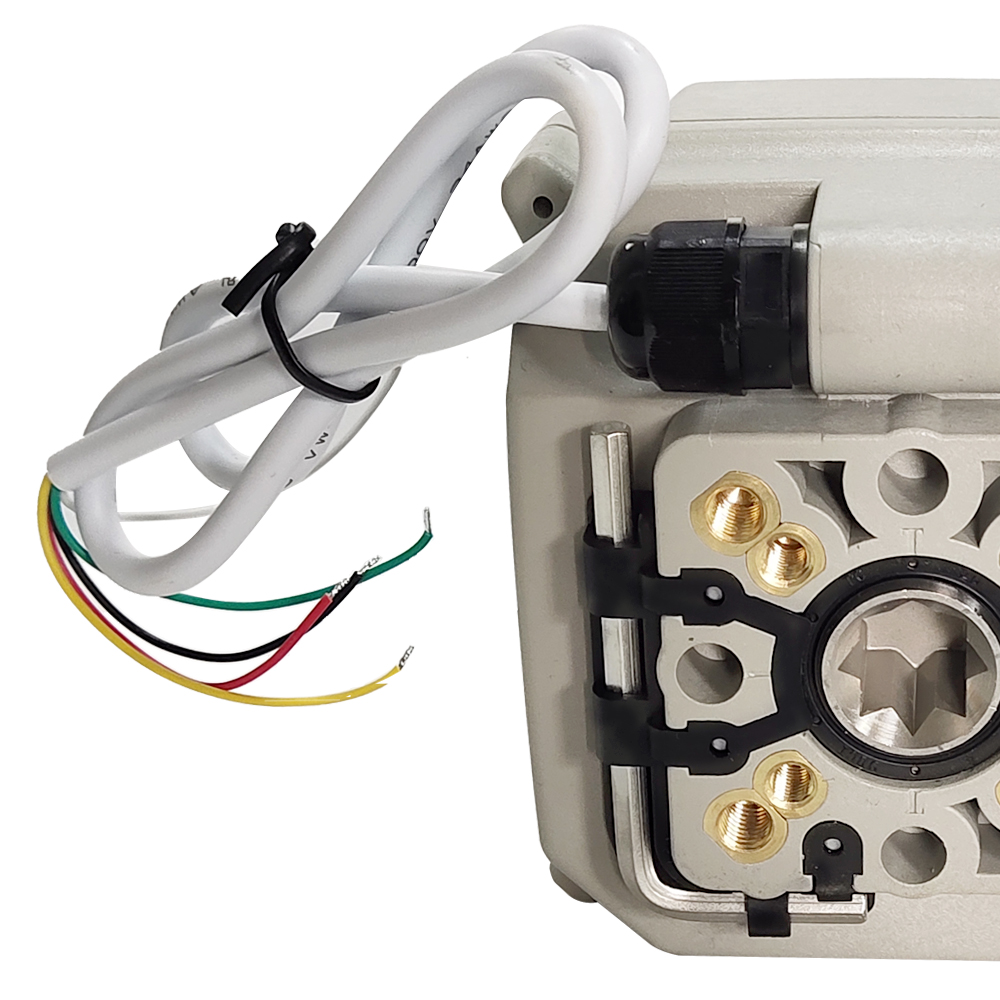

Cable length:	0.5m, 1.5m(Optional)
Manual override:	Yes
Indicator:	Yes
Protection class:	IP67

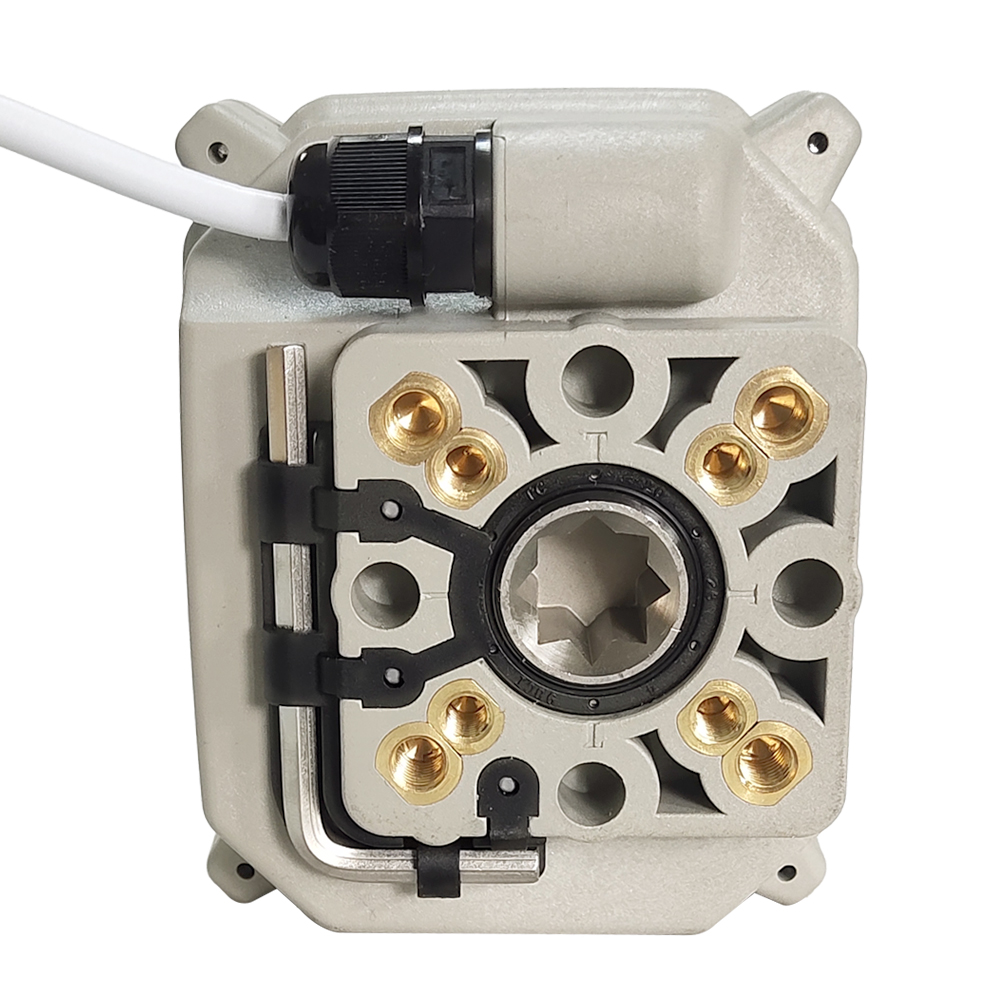

Connection Standard	ISO5211 F03,F05
Output axis	99mm, 1111mm
