Intelligent Water leak Alarm system close valve automatically when leak detected

Intelligent water leak automatic protector, shut off Electric valve automatically when water leak detected

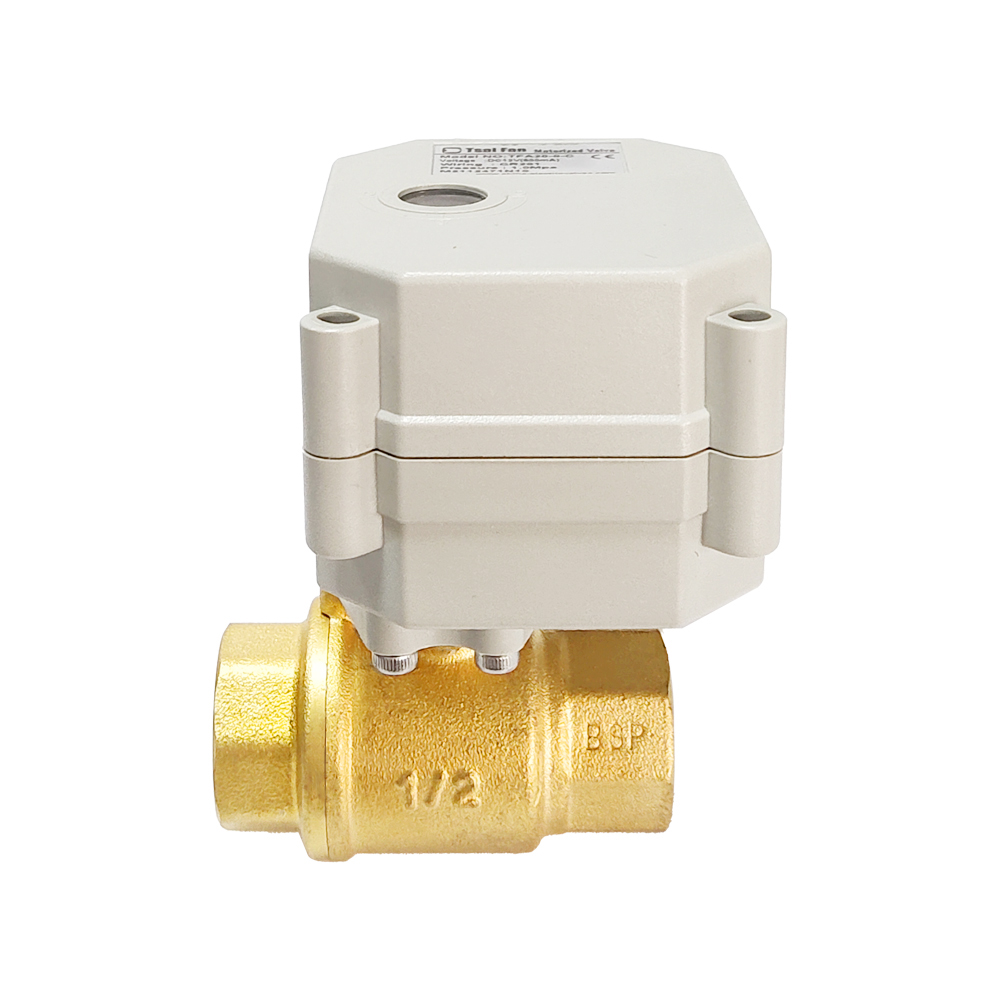

Water leak protection system Brass Valve：
Features：
1. Torque force: 3Nm
2. Power supply: 3VDC (2AA 5 # Battery drive)
3. Valve Open/Close time: <7 Seconds

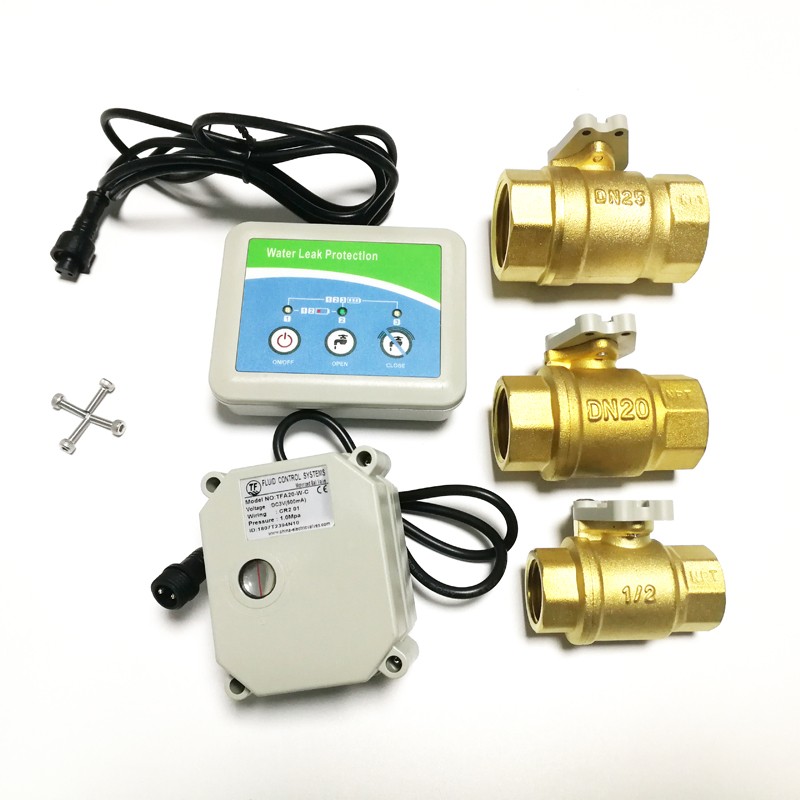

4. Size: DN8, DN10, DN15, DN20, DN25
5. Material: Brass , Nickel Plated Brass
6. Connection: BSP,NPT thread
7. Temperature: (2~90℃);
8) Maximum pressure: 1.0Mpa

Advantages：
1. Electric drive, remote switching control, convenient for automation system.
2. Alarm and Close Valve automatically when water leak detected.
3. 100% Metal Gears inside.
4. Protection grade IP67.
5. Manual override & Positing indicator optional.
6. 100% ON/OFF testing before shipping.

The controller detects the slightest water leakage, turn off the water valve and alerts.

With the controller you get a security both at home and when travelling away.

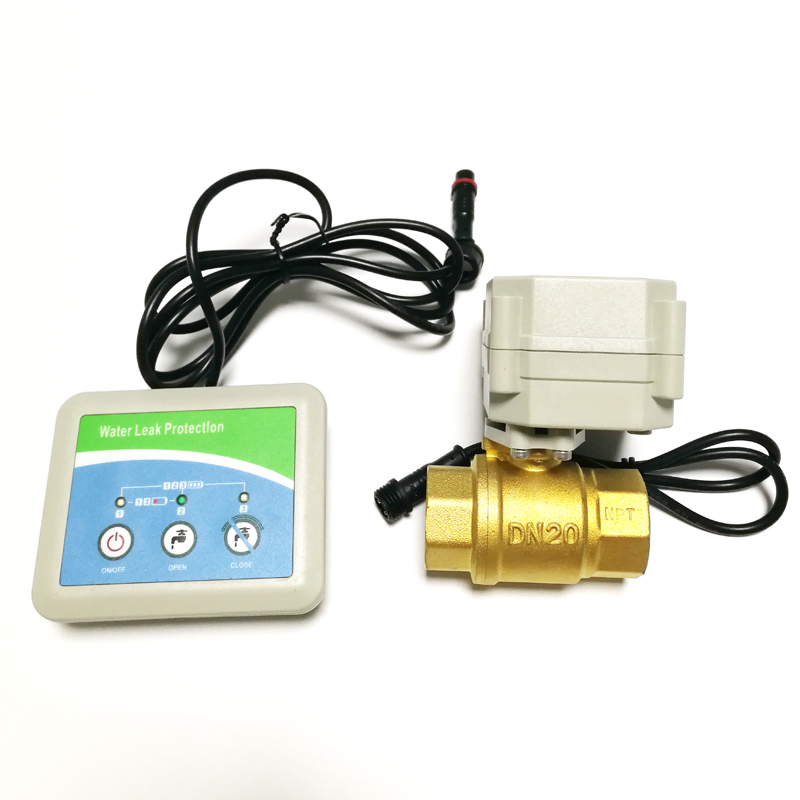

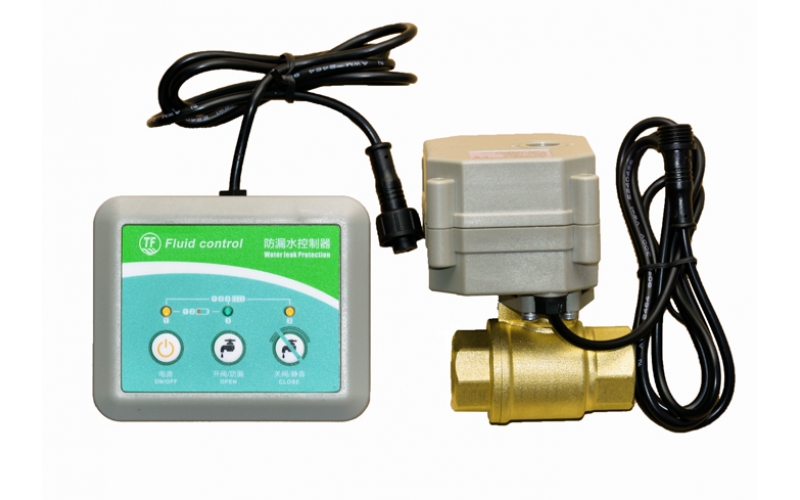

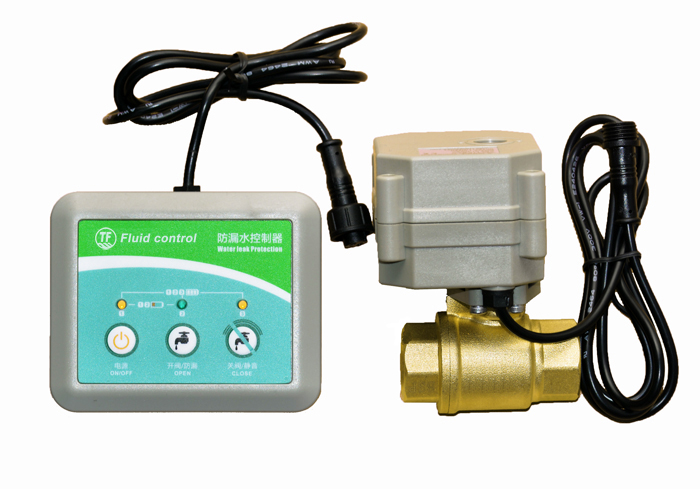

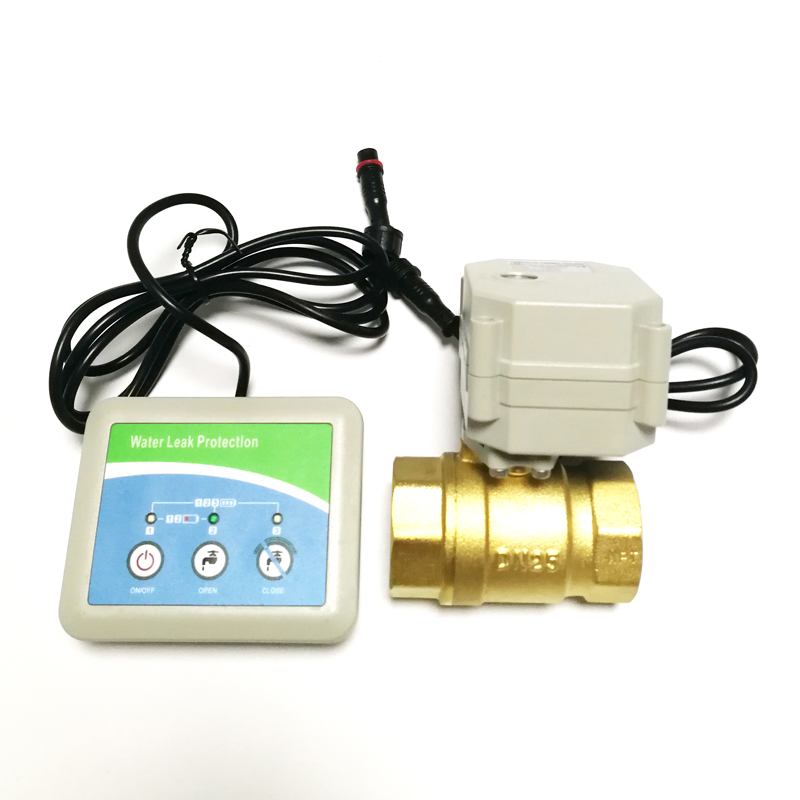

Automatic Shut off Motorized ball valves when water leak detected	Intelligent water leak sensor/alarm/controller/protecter	Installation example

Functions and Features:

* Valves close automatically when leakage, and alarm.

* Power Supply with 2 AA, 5 batteries.

* Automatically alarm when power is lower, and valve close eight hours later

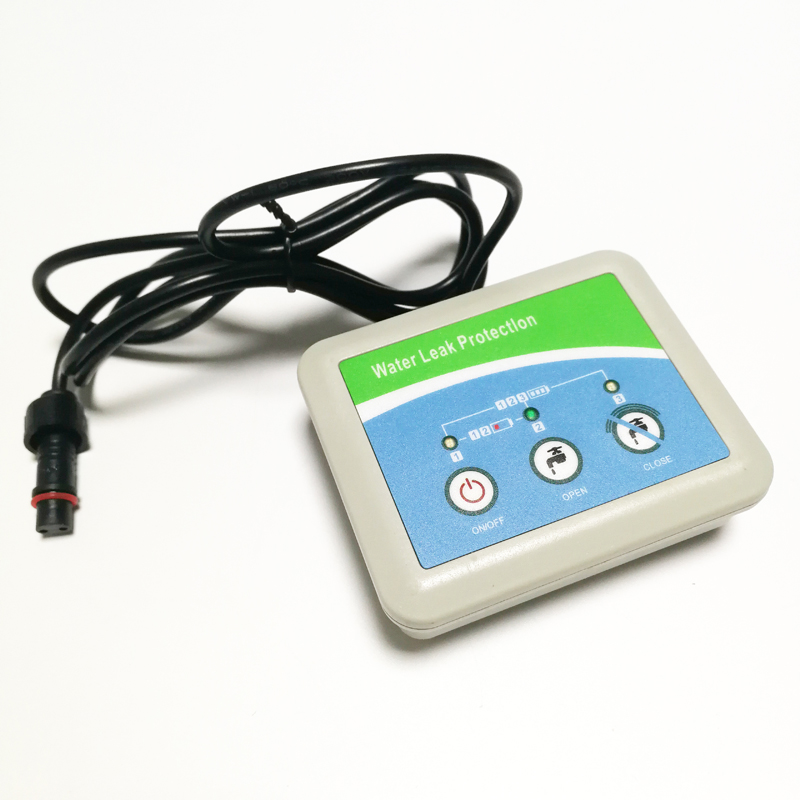

* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)

* Easy to install.

* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.

* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .

Technical parameters:

Operating voltage: 3VDC (2 . AA, 5 batteries)

Operating Current: Typically 0.015mA, max 300.0mA

Cable length: 1.0M

Valve Size: 1/4", 3/8", 1/2 ",3/4", 1"

Valve Material: Brass

Valve Thread: BSP or NPT

Ambient temperature: -20 degrees to 80 degrees C

Withstand pressure: 1.0Mpa

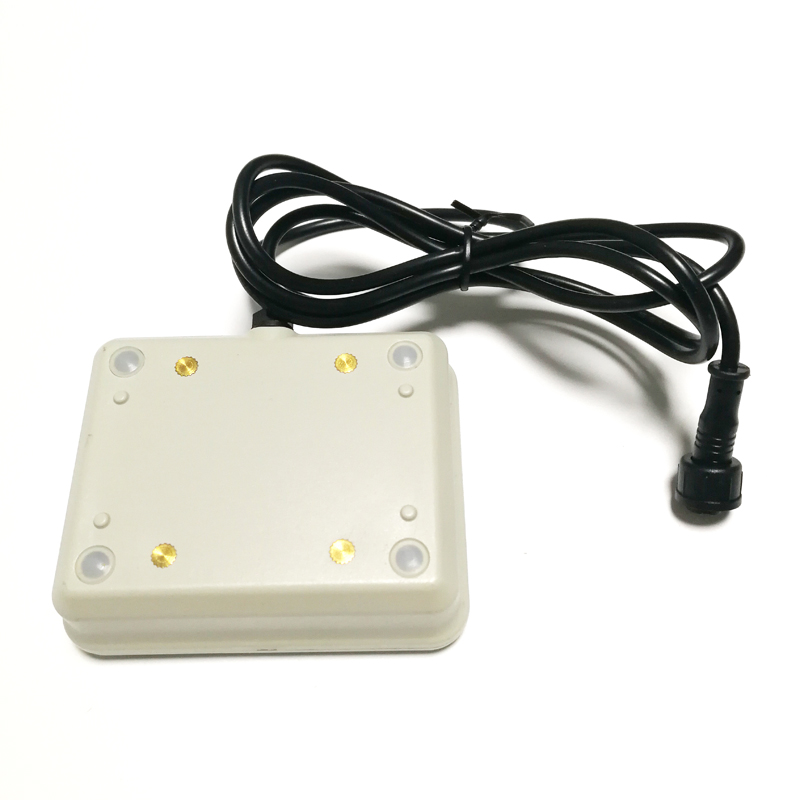

Leakage detection: Put the metal face of senser controller down the place most likely leaky places, such as near the water purifier.

MetInfo enterprise content manager system | MetInfo CMS

Application:

MetInfo enterprise content manager system | MetInfo CMS

PRODUCTS

Intelligent Water leak Alarm system close valve automatically when leak detected

The controller detects the slightest water leakage, turn off the water valve and alerts.

With the controller you get a security both at home and when travelling away.
