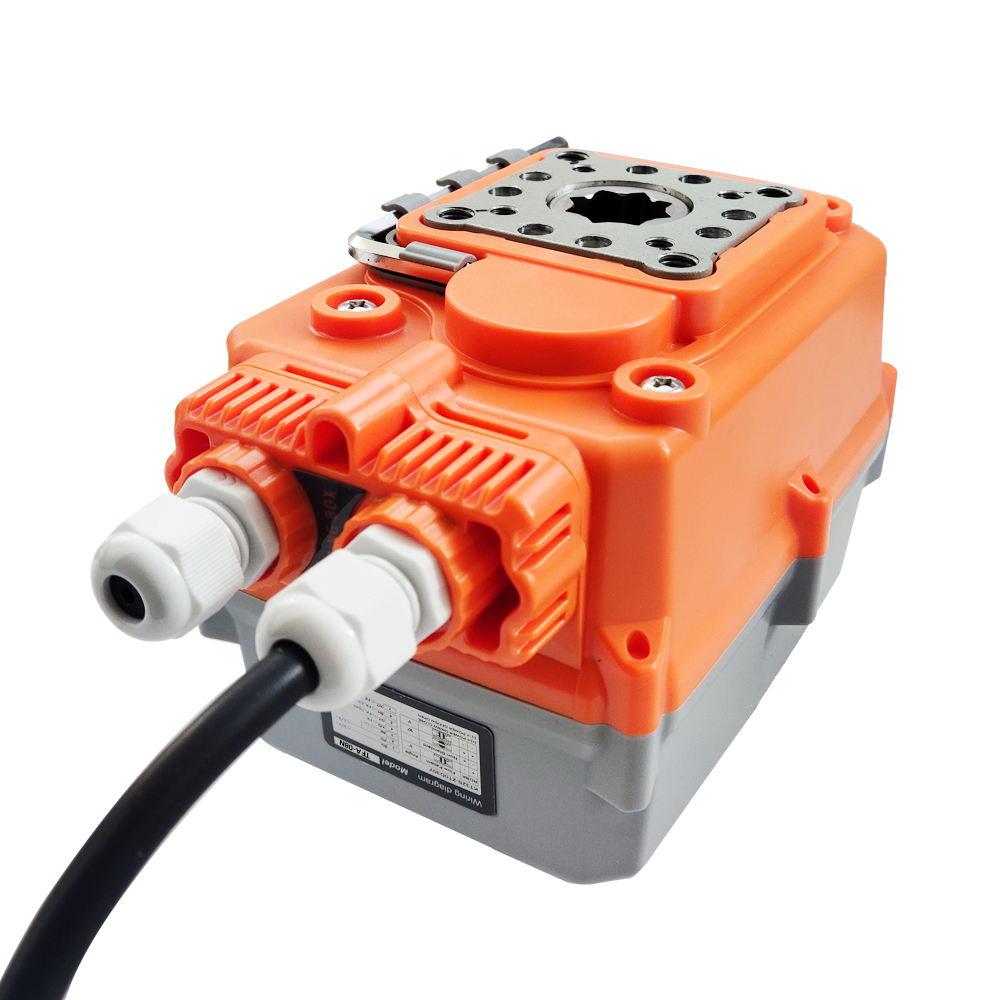

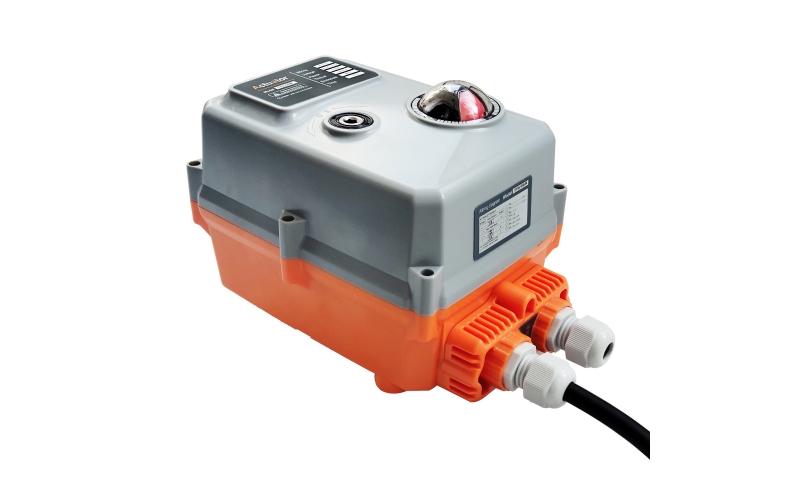

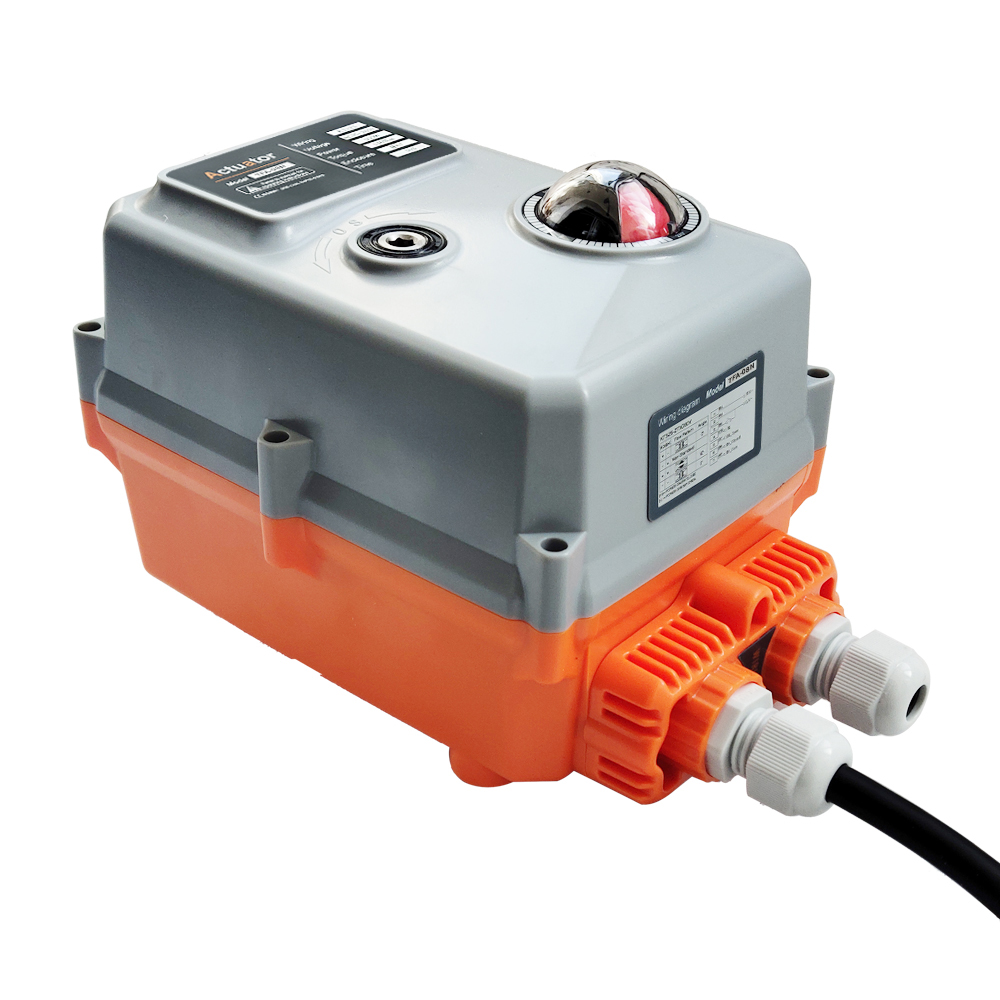

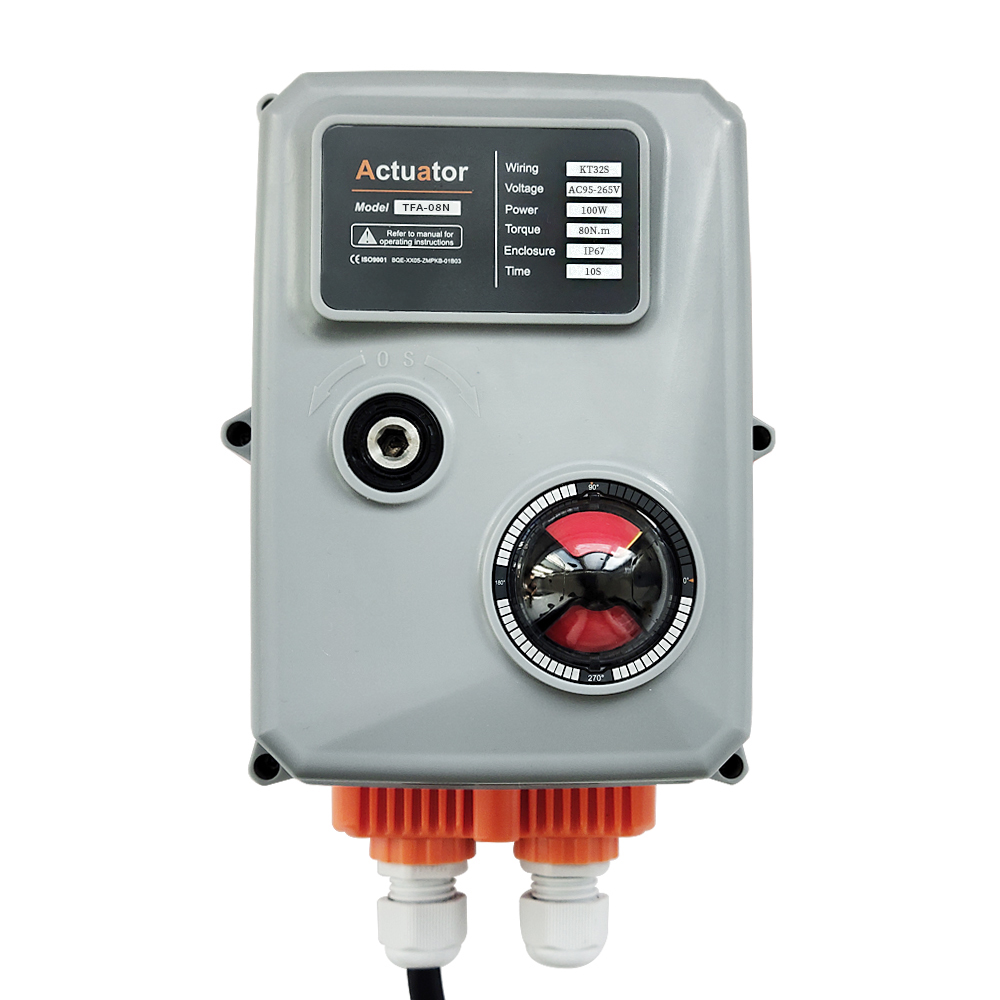

80Nm/110Nm Torque Force Electric Motor Contor Acuator CE certified Metal Gears IP67 protection

80Nm/110Nm Large Torque force Electric Actuator with ISO5211 F05,F07 connection face, CE certified, Metal Gears, Brushless Motor and Signal feedback wires

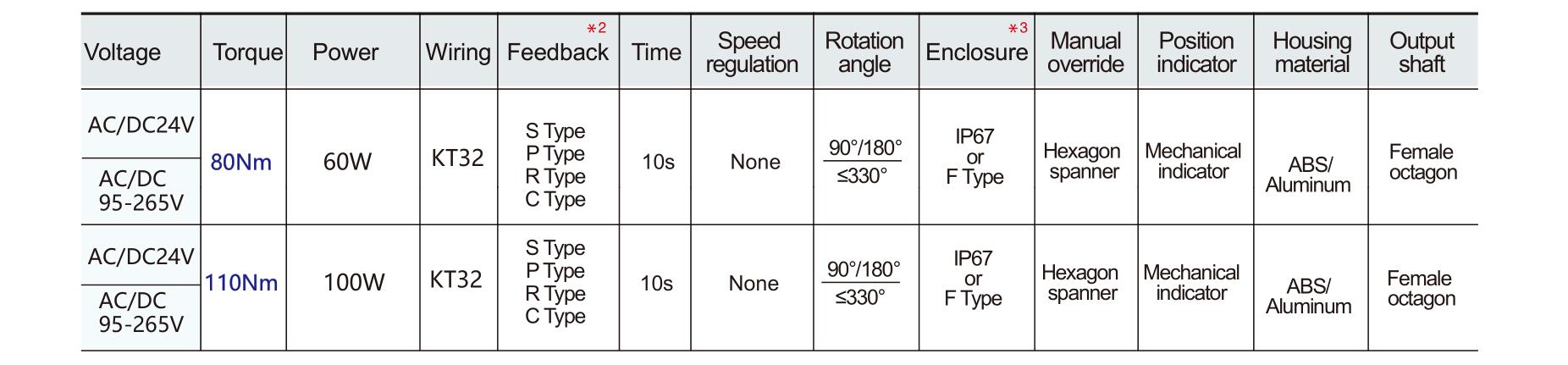

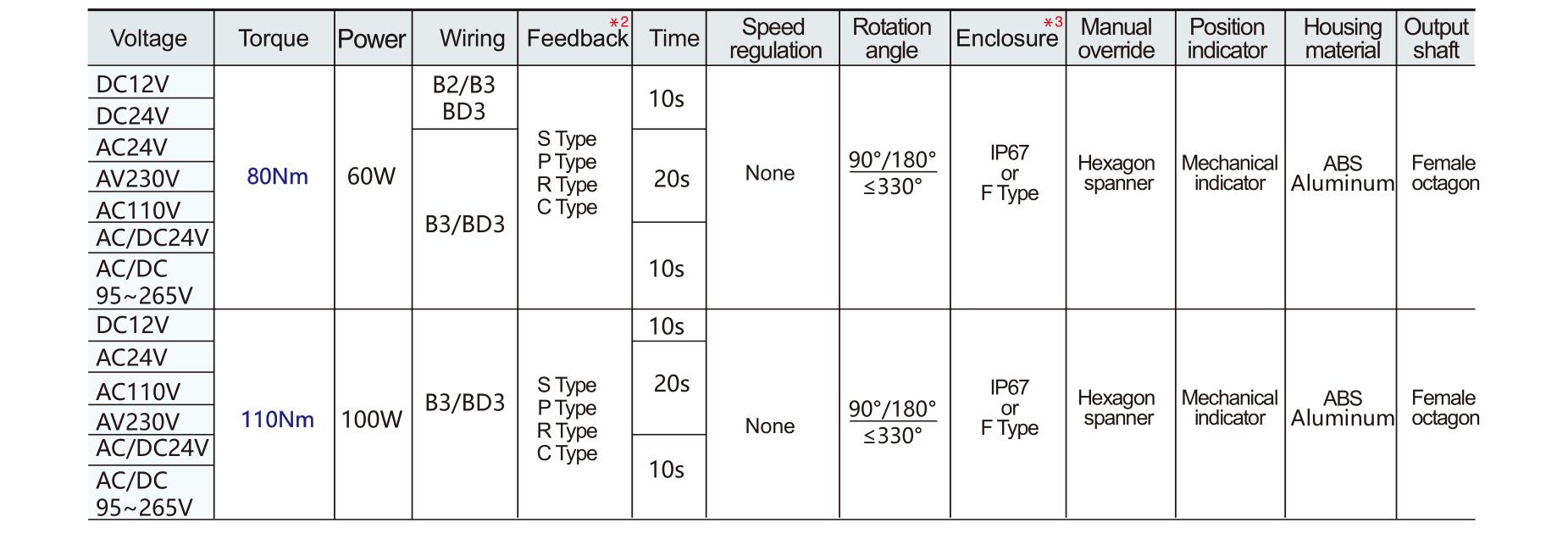

• TF08N/TF11N Series High performance brushless motor Actuator： TF08N/TF11N Basic Electric Actuator(Brushless Motor)
  Features：

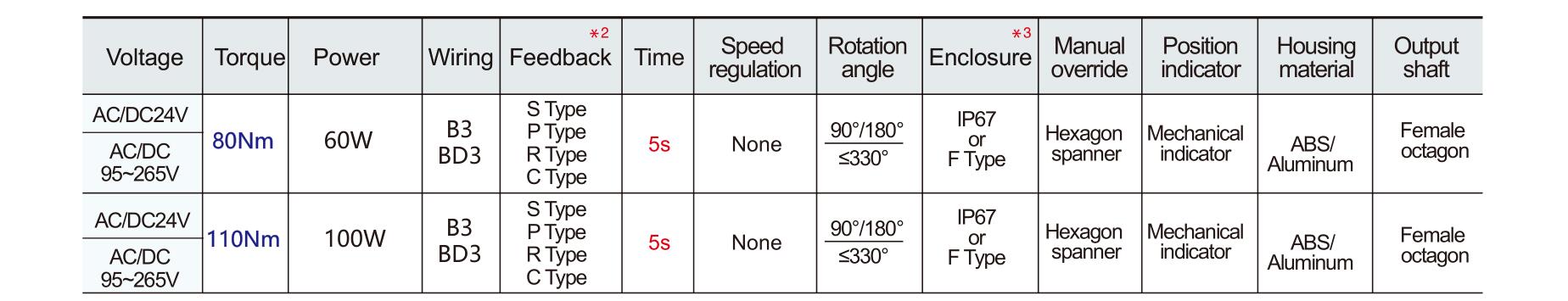

  1. Torque force: 80Nm/110Nm
  2. Power supply: AC/DC24V, AC/DC95-265V
  3. Running time: 10 to 20 seconds

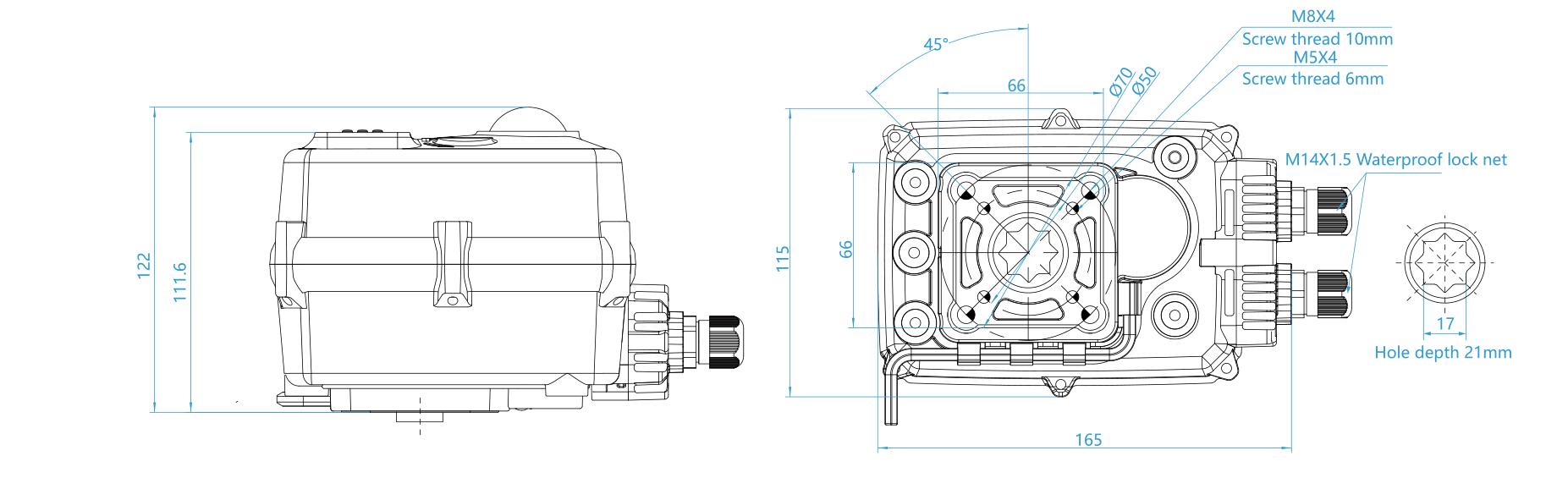

  4. Connection standard: ISO5211 F05、F07
  5. Stem: 17X17MM
  Advantages：
  1. High performance brushless motor.
  2. Overload protection of internal motor.
  3. 100% Metal Gears inside.
  4. Protection grade IP67.
  5. Open angle adjustable(within 360 degree).
