3Nm Electric Valves Actuator CE Certified, IP67 Metal Gears with manual override and position indicator

3Nm Electric Valves Actuator CE Certified, IP67 Metal Gears with manual override and position indicator

3Nm Electric Valves Actuator

  • TFA20 ELECTRIC ACTUATORS: Features:
    1. Torque force: 3Nm
    2. Power supply: DC5V,DC12V,DC24V,AC/DC9-24V, AC110-230V
    3. Running time: 5 seconds

    Advantages:
    1. Electric drive, remote switching control, convenient for automation system.
    2. Different wiring diagram to meet various control methods
    3. 100% Metal Gears inside.
    4. Protection grade IP67.
    5. Manual override; Positing indicator optional.
    6. 100% ON/OFF testing before shipping.

Specifications:

TFA20 Series Electric Actuator
Rated voltage:     DC5VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     DC12V, DC24VWiring :  CR201, CR301, CR501, CR702  (Optional)
Rated voltage:     AC/DC9-24VWiring:   CR202,  CR303, CR305, CR306, CR502,CR703  (Optional)
Rated voltage:     AC110-230VWiring:   CR202,  CR303, CR305, CR306 CR401, CR502, CR703, CR704  (Optional)
Working current:≤500MA
Open/close time:≤5S
Life time:70000 times
Actuator material:Engineering plastics
Gears material:Metal Gears
Actuator rotation:90 degree
Max. torque force:3 Nm
Cable length:0.5m, 1.5m(Optional)
Manual override:Yes, No (Optional)
Indicator:Yes, No (Optional)
Protection class:IP67

Dimensions:

MetInfo enterprise content manager system | MetInfo CMS

Wiring Diagrams:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

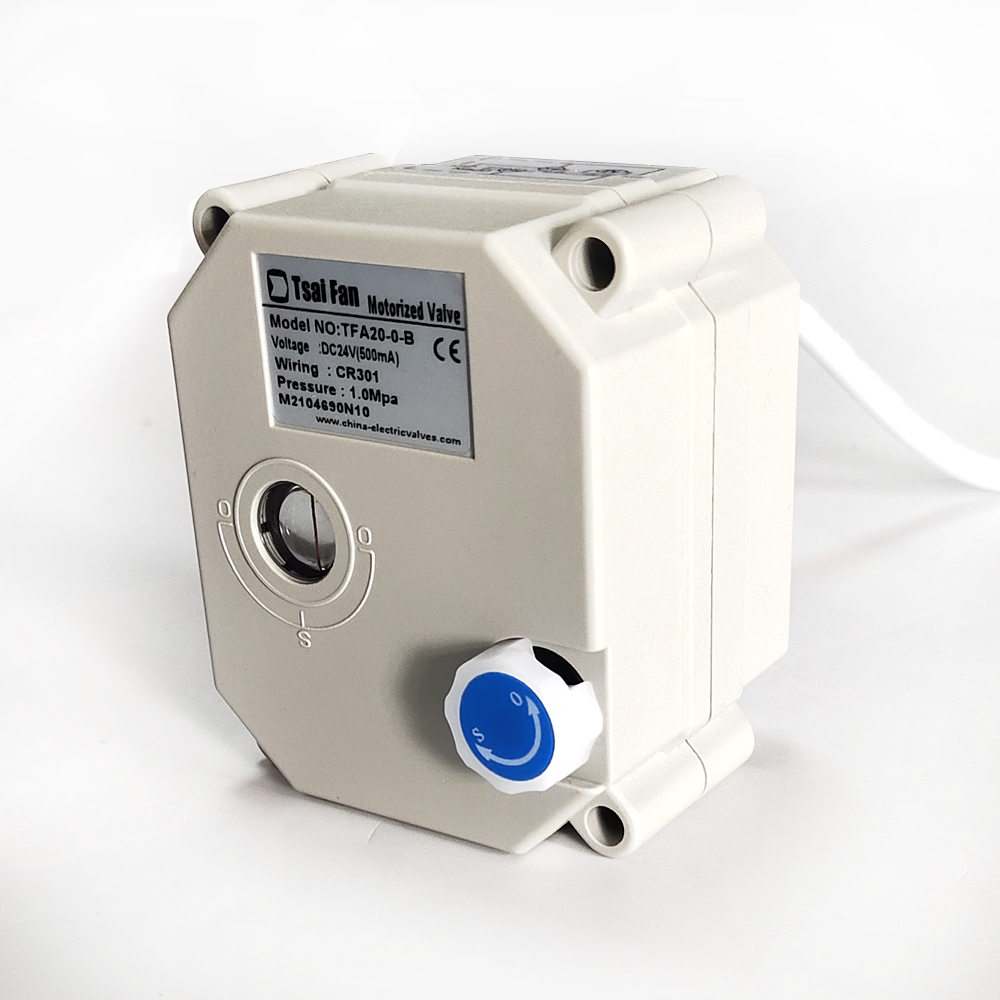

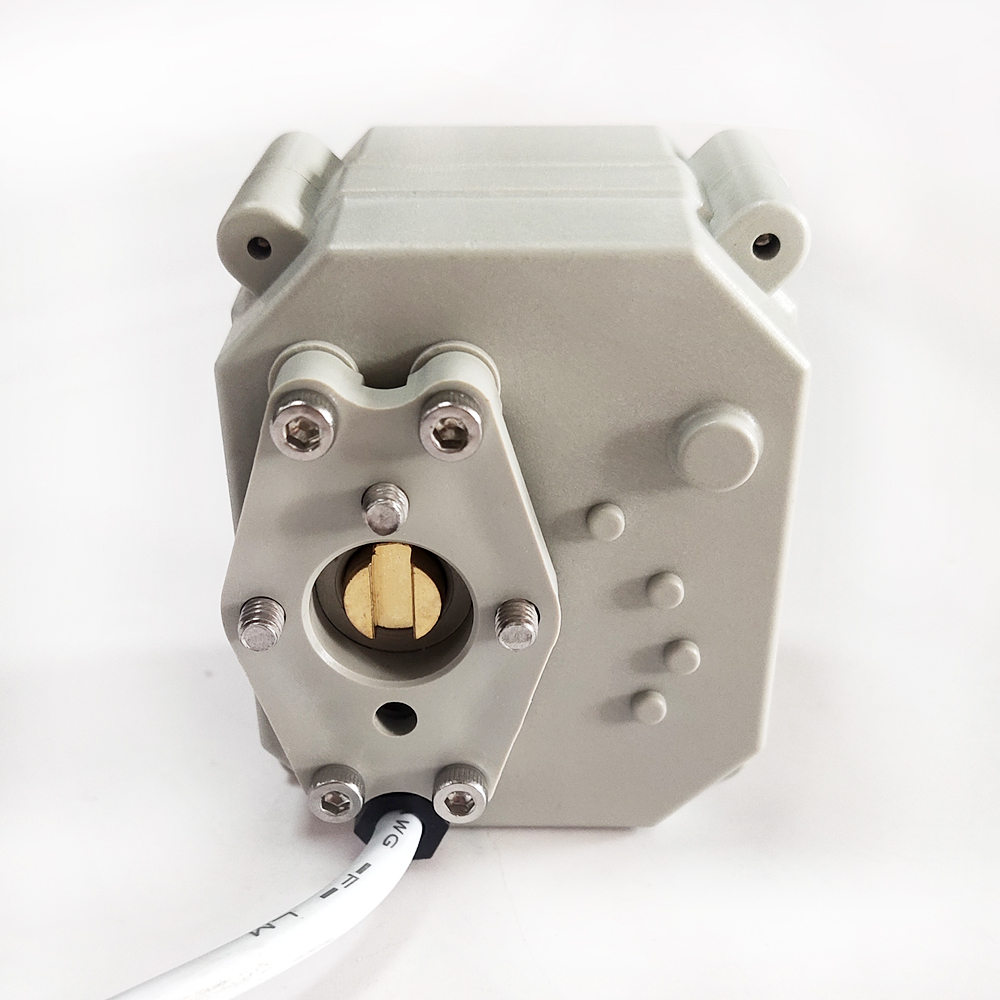

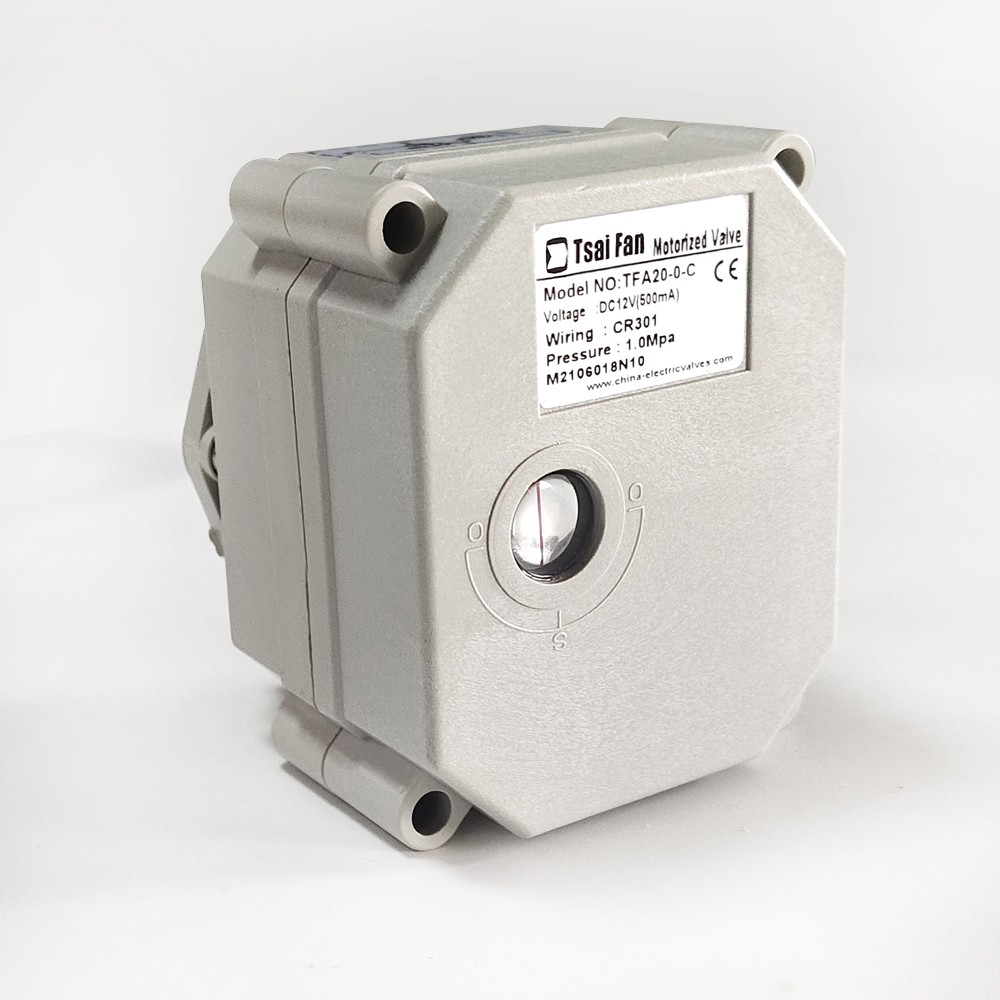

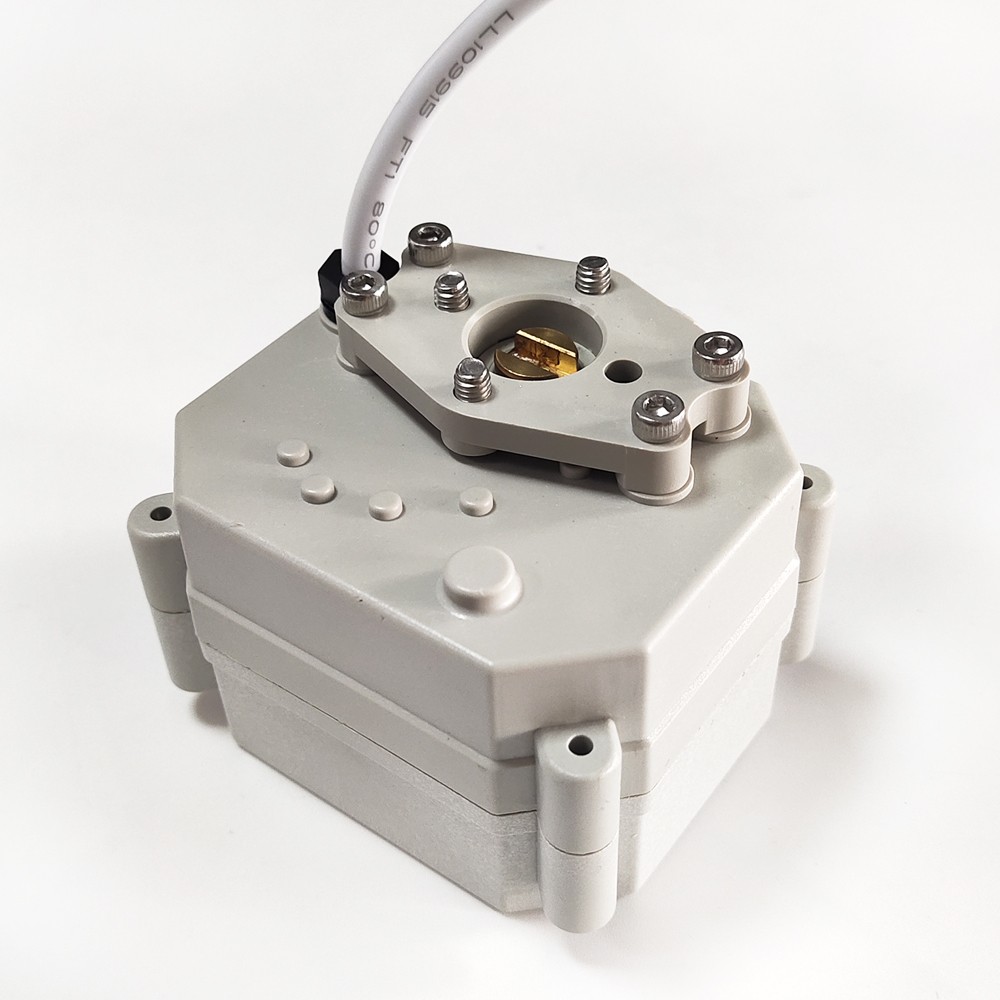

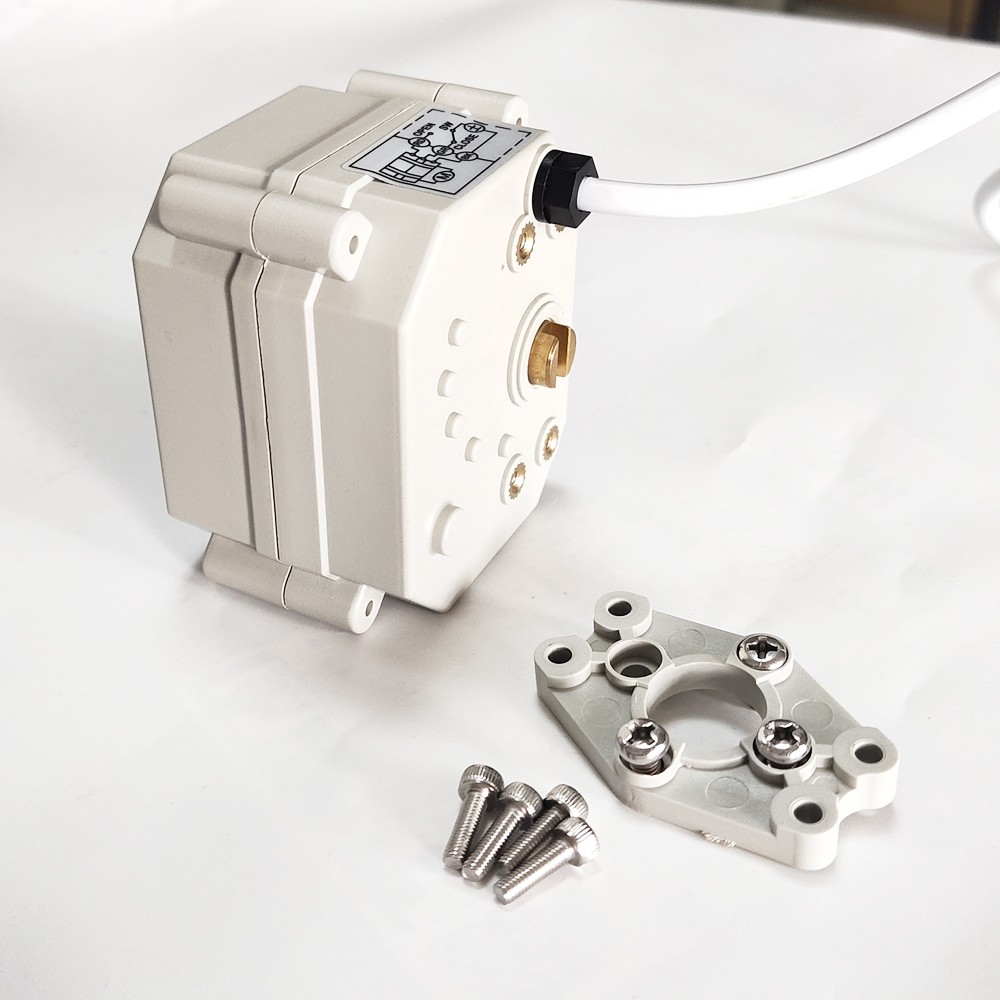

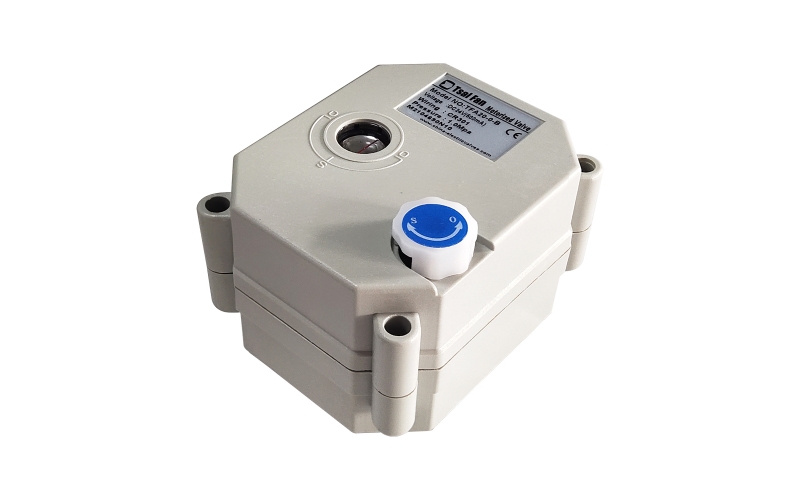

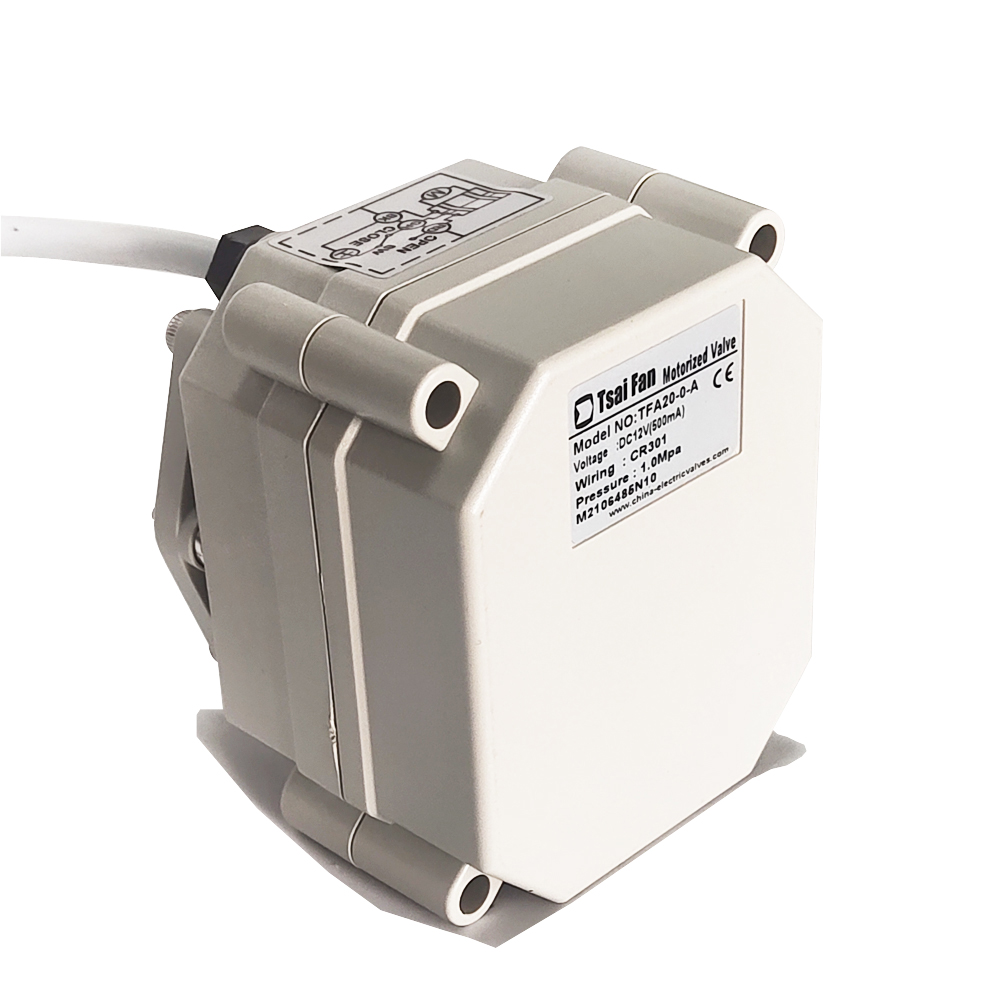

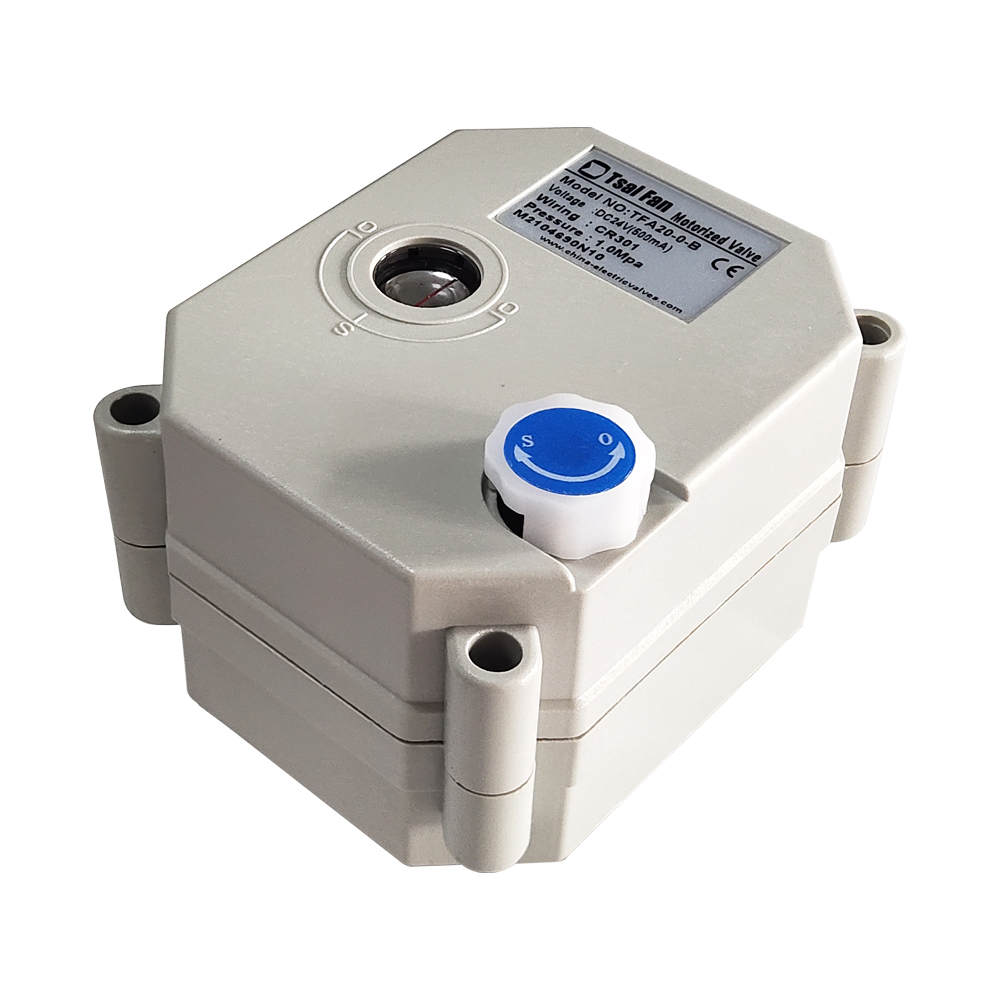

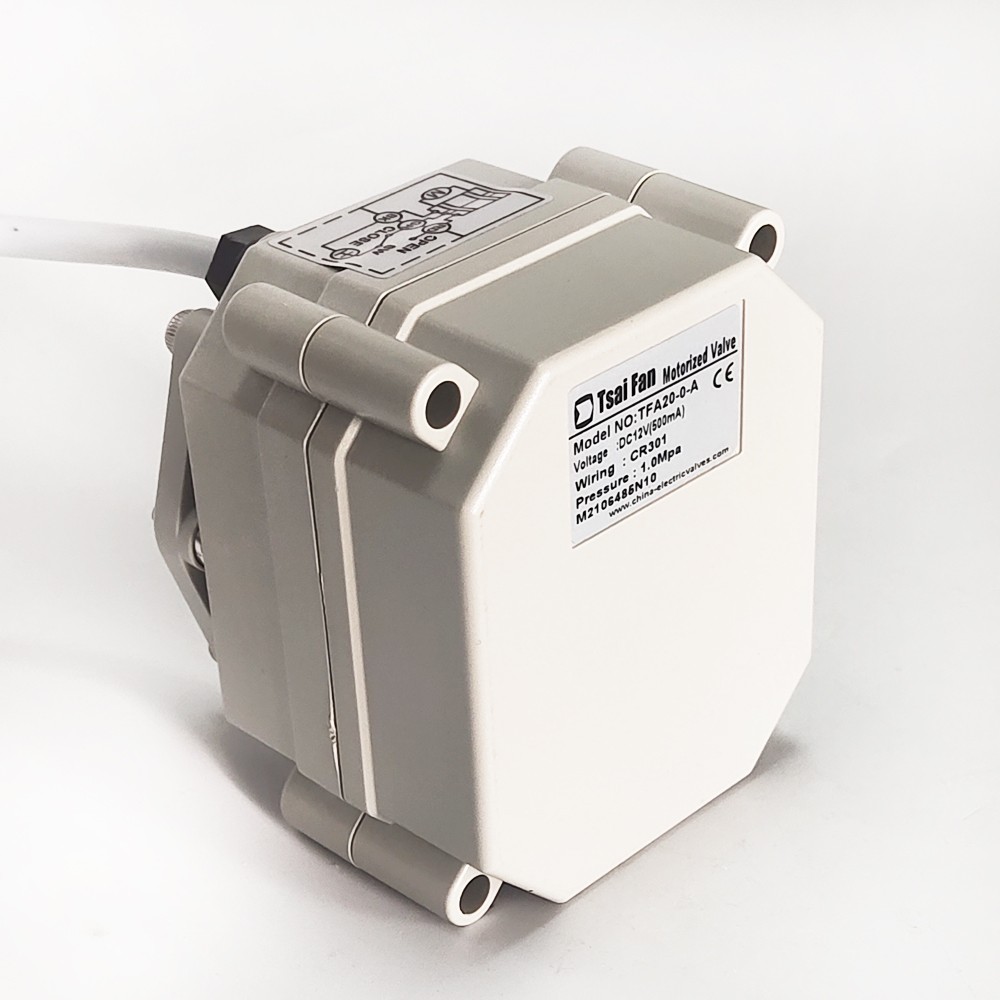

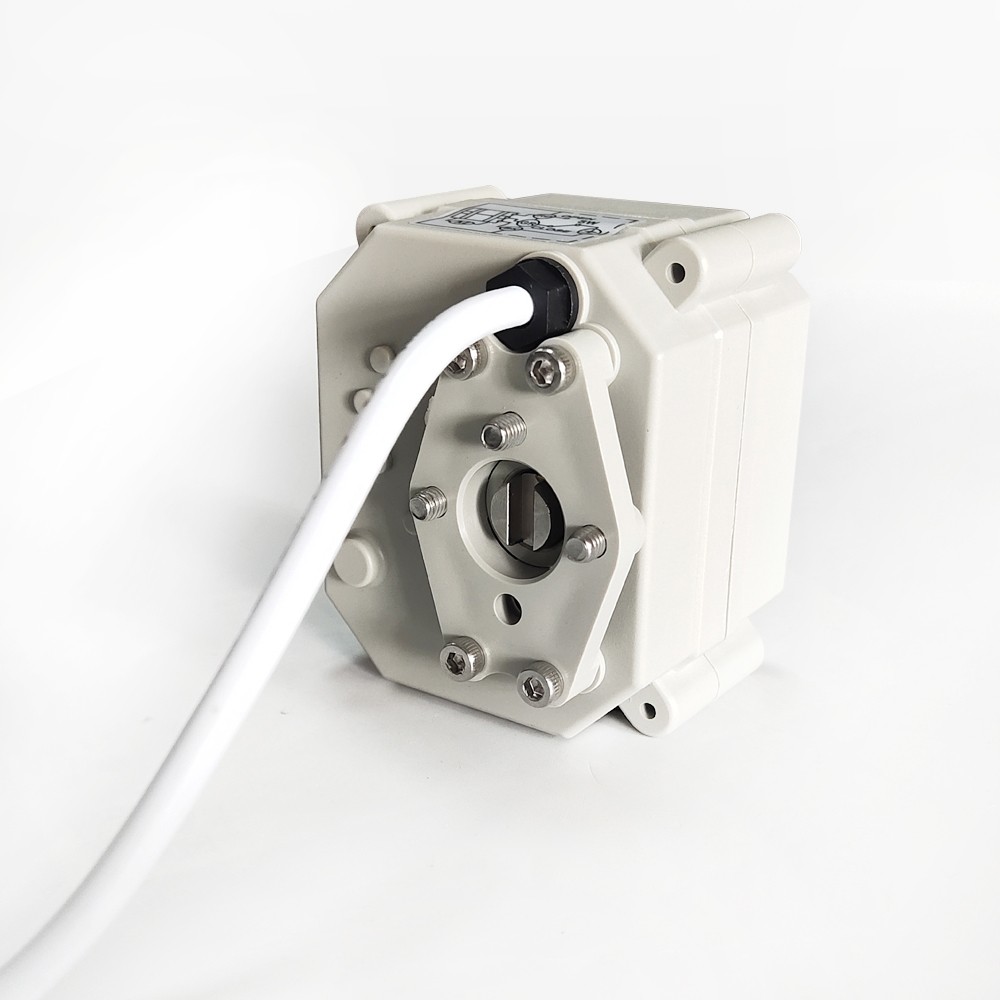

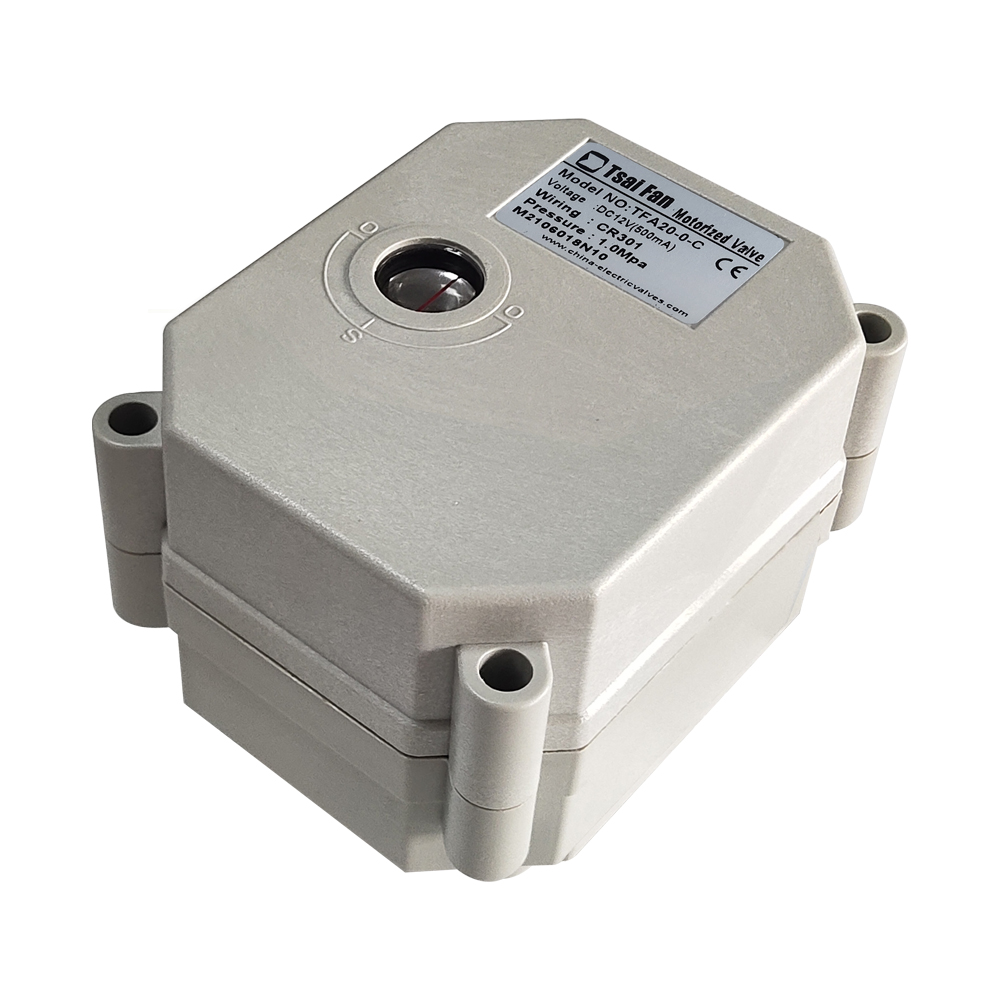

Photos:

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS

MetInfo enterprise content manager system | MetInfo CMS
